L717DE09POL2A113 Overview

D Subminiature Connector, 9 Contact(s), Male, Solder Terminal, Plug, ROHS COMPLIANT

L717DE09POL2A113 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	STANDARD: MIL C24308
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (3) OVER NICKEL
Contact completed and terminated	GOLD (3) OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYETHYLENE
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	717D
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	1/E
Termination type	SOLDER
Total number of contacts	9
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

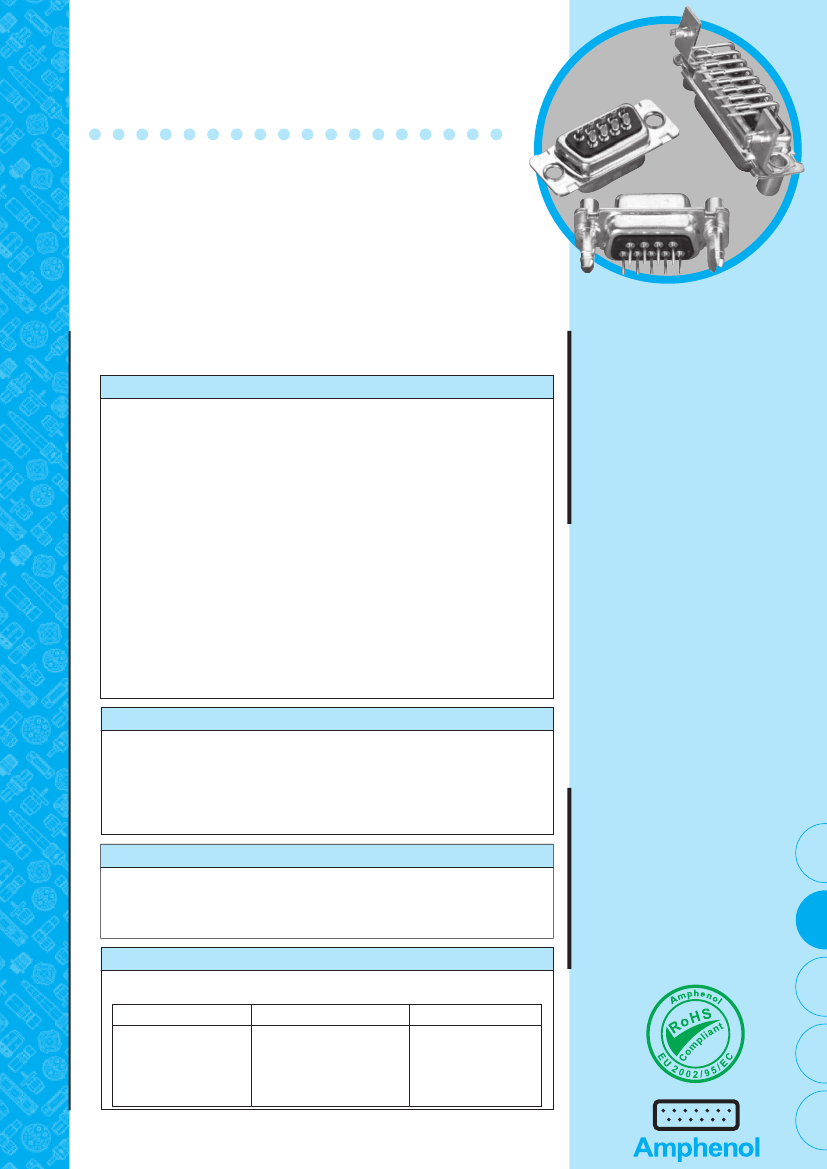

D-DF

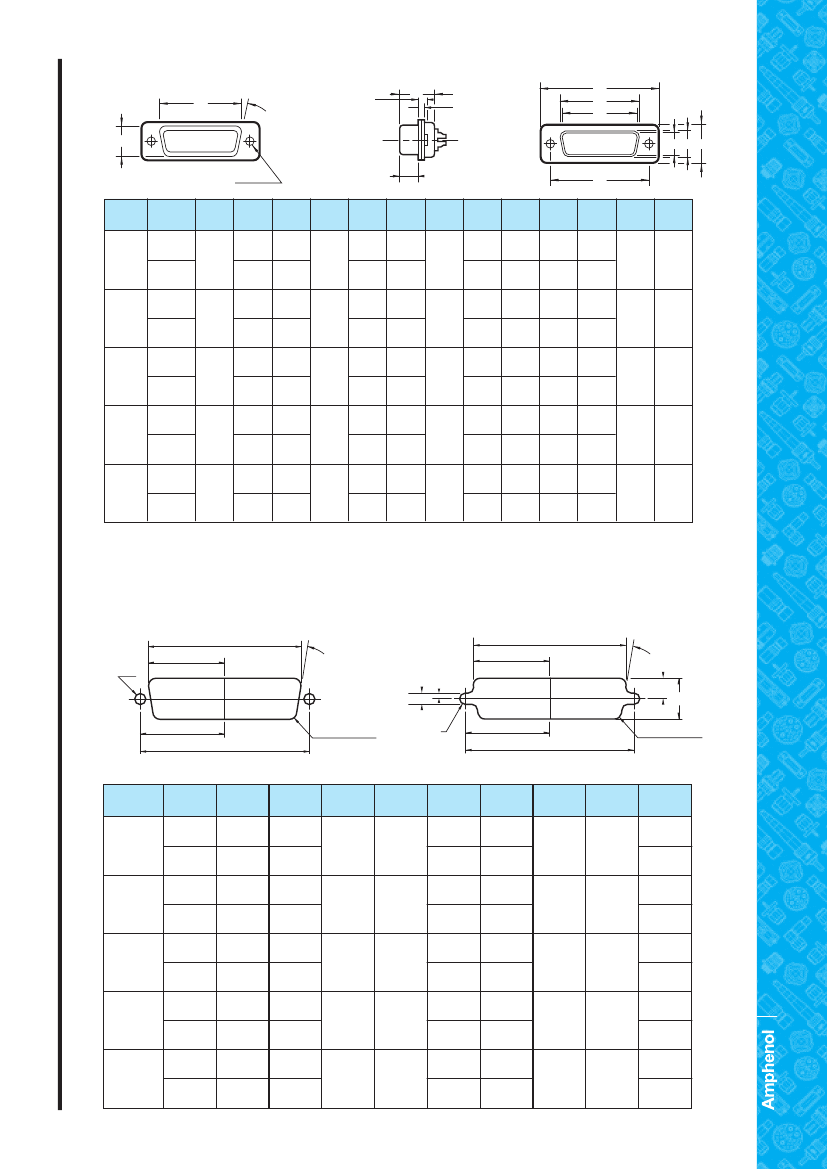

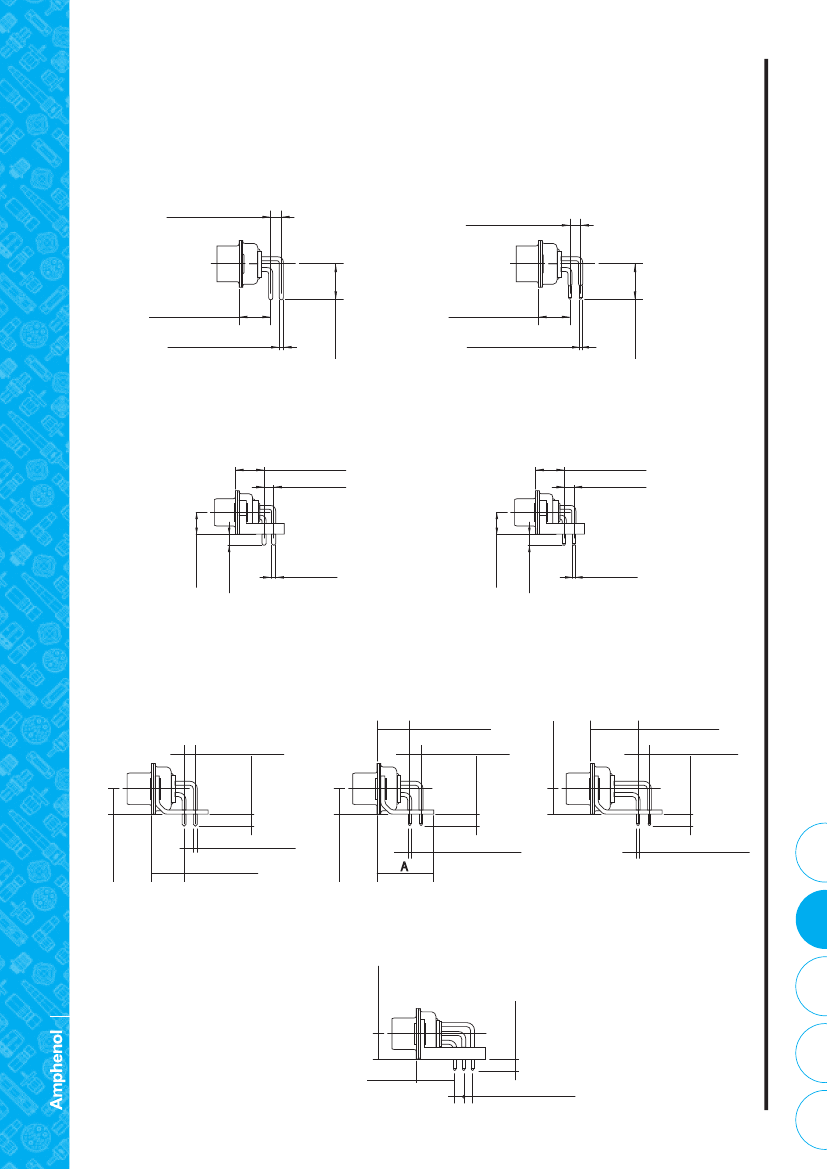

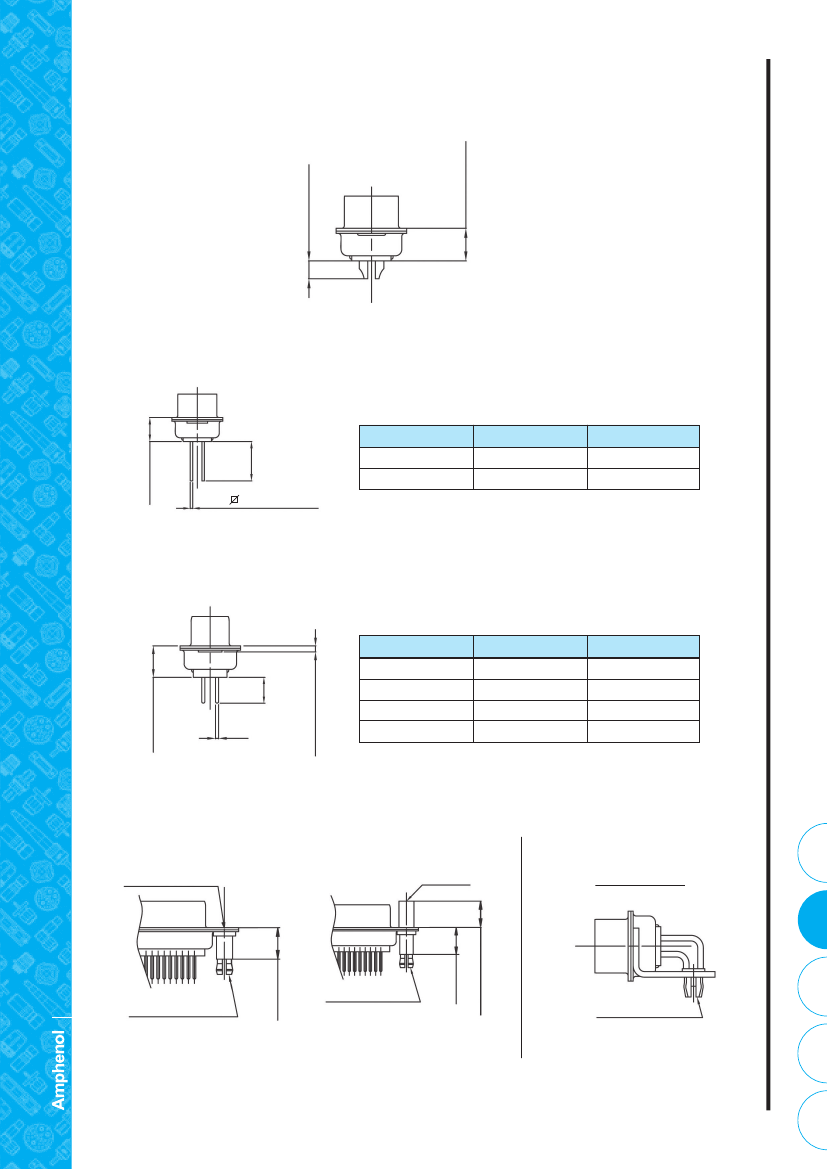

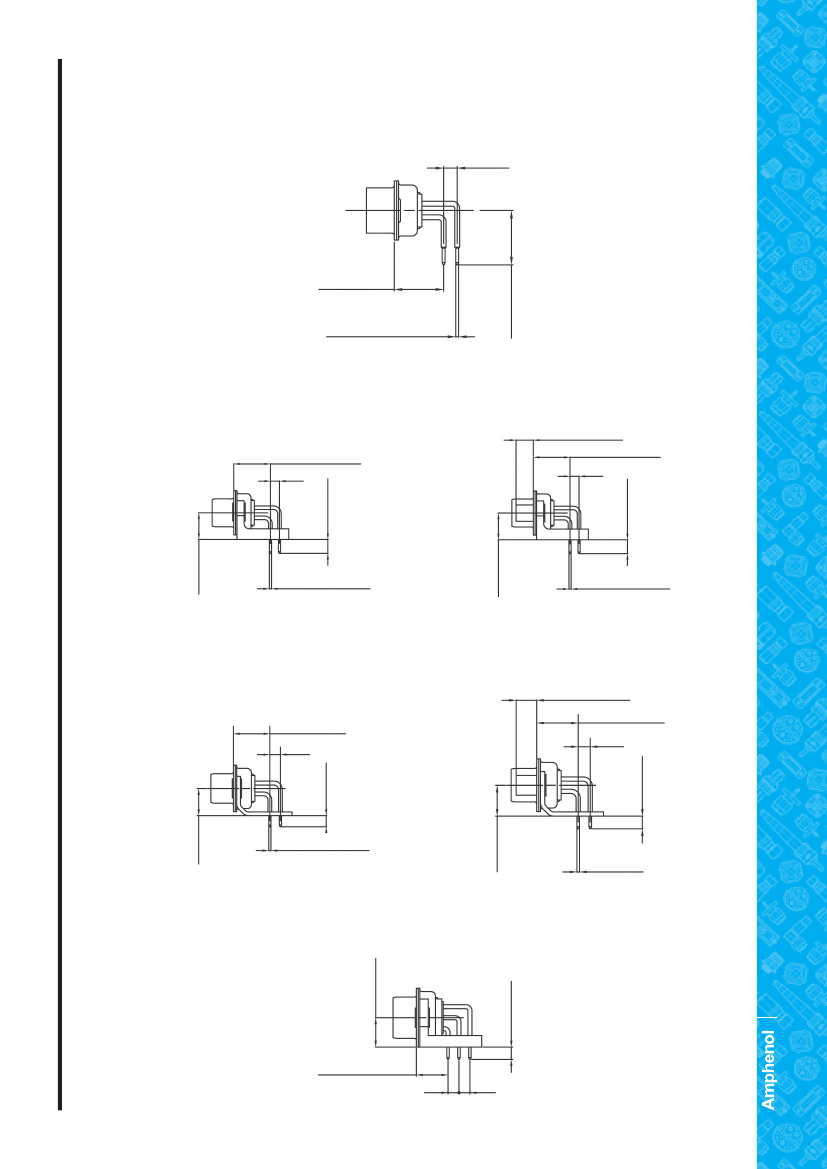

D-Sub connectors - Screw-machined Contacts

FIXED MACHINED

CONTACT CONNECTOR

CHARACTERISTICS

DESCRIPTION

APPLICATIONS

Specifications

• Connectors according to MIL C24308 - NFC93425-HE5

Materials and Platings

Shells

Insulator

Rear insert

Steel tinned with dimples on plug connector

Glass-filled thermoplastic, UL 94V-0

Brass, 3µm up to 5µm (118µ"up to 197µ")

tinned over nickel 2µm up to 3µm

(78µ" up to 118µ")

Tin plating 4µm up to 6µm

(157µ” up to 236µ”) over nickel 2µm up to 3µm

(78µ” up to 118µ”)

Brass, 6µm up to 10µm (236µ" up to 394µ")

tinned over nickel 2µm up to 3µm

(78µ" up to 118µ")

brass

DF:

pin = brass

socket = copper alloy

Right angle version:

full gold plating over 2µm to

3µm nickel

Straight version:

full gold plating over 2µm up to

3µm (78µ” up to 118µ”) nickel

Amphenol’s 17D and 17DF series

fixed contact D-Subminiature

connector is suitable for industrial

or telecom use.

The machined contact provide

stability and reliability.

This series offers the broadest range

of termination options in the

Amphenol line.

Boardlock

Screwlock

Contacts

Electrical Data

Current rating

Voltage rating

Withstanding voltage

Insulation resistance

Contact resistance

7.5A

300V AC/rms 50Hz

1000V AC/rms 50Hz for one minute

5000MΩ

8.5mΩ max

DF:

5mΩ max

Connectors

for industrial

and

telecom use

• Medical

• Industrial

• Telecom

• Any industry standard

I / O connections

Climatic Data

Operating temperature D / DF:

-55°C to + 125°C

Salt spray

48 hours

Humidity

21 days (40˚C - 95% HR)

DF:

56 days (40˚C - 95% HR)

Mechanical Data

Mating and unmating force

Unit: kg ( lb)

No. of Cts

9 (size E)

15 (size A)

25 (size B)

37 (size C)

50 (size D)

Mate (max)

3.05 (6.74)

5.09 (11.24)

8.44 (18.66)

12.51 (27.65)

14.65 (32.38)

Unmate (min)

0.36 (0.79)

0.46 (1.01)

0.81 (1.8)

1.1 (2.47)

1.6 (3.56)

D-DF / E18
