86094648891765E3LF datasheet, PDF

Datasheet> All Categories > The connector> The connector> 86094648891765E3LF

86094648891765E3LF: DescriptionBoard Euro Connector, 64 Contact(s), 2 Row(s), Female, Right Angle, Wire Wrap Terminal, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size150KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

86094648891765E3LF Overview

Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Right Angle, Wire Wrap Terminal, Receptacle, ROHS COMPLIANT

86094648891765E3LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: DIN 41612
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	8609
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	WIRE WRAP
Total number of contacts	64
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

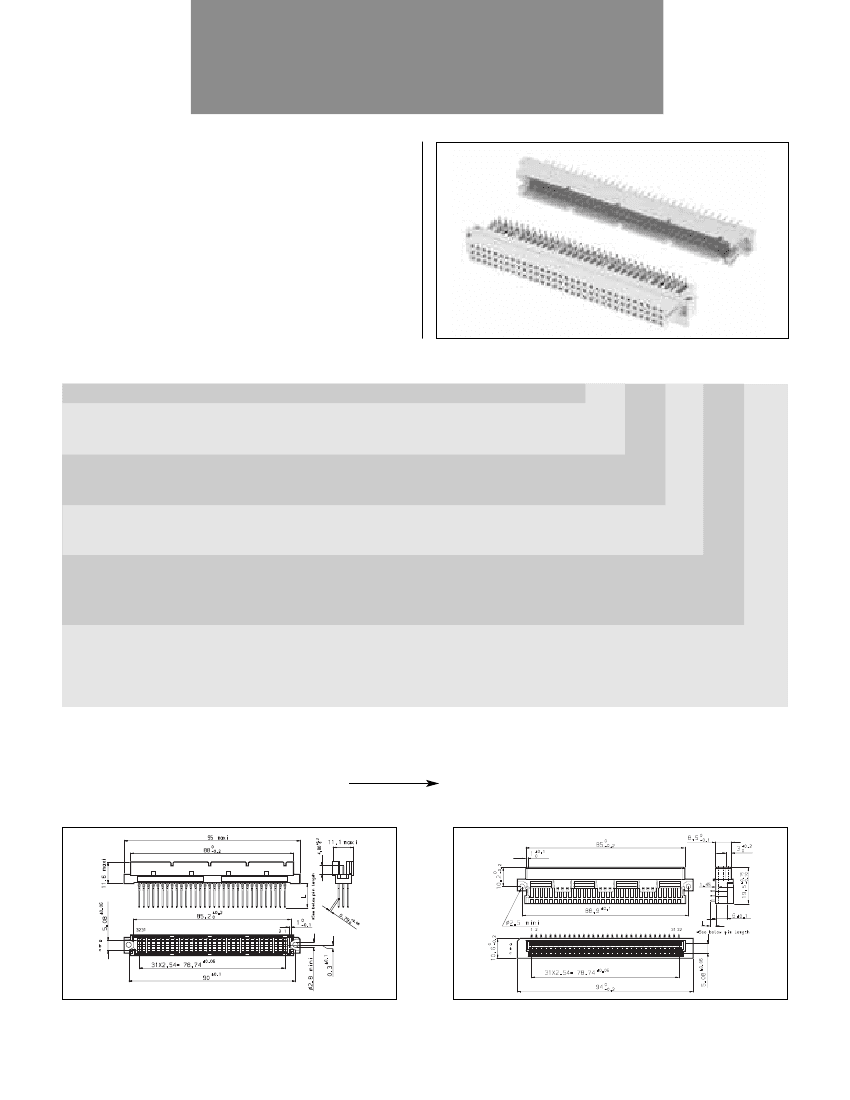

DIN 41612

PCB Signal Press-fit

STYLE R CONNECTORS

Press-fit

Header

: Straight spill

Receptacle : Right angle

Part number

Series

Rows fitted with contacts *

2 rows a & c

3 rows a, b & c

: 64 contacts

: 96 contacts

8609 396

464

396

755 E1LF

Type of insulator

3 rows Straight spill Header insulator

3 rows Right angle Receptacle insulator

Termination *

Short post for Header and Receptacle : L = 5.25 mm

Wire wrap 1 wrap for Receptacle

: L = 13.25 mm

Plating performance Class & Pitch *

DIN 41612 class III

: 2.54 mm

DIN 41612 class II

: 2.54 mm

DIN 41612 class I

: 2.54 mm

☺

745

755

765

Gender

Header (RoHS compatible)

Header (non RoHS compatible)

Receptacle (RoHS compatible)

Receptacle (non RoHS compatible)

* For other options, please consult your local FCI representative.

E1LF

000E1

E3LF

000E3

Rear plug up solution availability

DIN R/2 half size availability

}

Check FCI website at

www.fciconnect.com/din41612

Short post

Wire wrap

L : 5.25 mm

L : 13.25 mm

86094648891765E3LF Related Products

	86094648891765E3LF	86093968891745E3LF	86093968891755000E3	86093968891755E3LF	86093968891765E3LF	86093968894745000E3	86094648891745E3LF	86094648891755000E3	86094648891755E3LF	86094648894745000E3
Description	Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Right Angle, Wire Wrap Terminal, Receptacle, ROHS COMPLIANT	Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Right Angle, Wire Wrap Terminal, Receptacle, ROHS COMPLIANT	Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Right Angle, Wire Wrap Terminal, Receptacle	Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Right Angle, Wire Wrap Terminal, Receptacle, ROHS COMPLIANT	Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Right Angle, Wire Wrap Terminal, Receptacle, ROHS COMPLIANT	Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Right Angle, Wire Wrap Terminal, Receptacle	Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Right Angle, Wire Wrap Terminal, Receptacle, ROHS COMPLIANT	Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Right Angle, Wire Wrap Terminal, Receptacle	Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Right Angle, Wire Wrap Terminal, Receptacle, ROHS COMPLIANT	Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Right Angle, Wire Wrap Terminal, Receptacle
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	GOLD OVER NICKEL	NOT SPECIFIED	NOT SPECIFIED	GOLD OVER NICKEL	NOT SPECIFIED	GOLD OVER NICKEL	NOT SPECIFIED	GOLD OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	8609	8609	8609	8609	8609	8609	8609	8609	8609	8609
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	3	3	3	3	3	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP
Total number of contacts	64	96	96	96	96	96	64	64	64	64
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Is it Rohs certified?	conform to	conform to	-	conform to	conform to	-	conform to	-	conform to	-
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	-	ROHS COMPLIANT	ROHS COMPLIANT	-	ROHS COMPLIANT	-	ROHS COMPLIANT	-
ECCN code	EAR99	-	-	EAR99	EAR99	-	EAR99	-	EAR99	EAR99
Contact material	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	-	NOT SPECIFIED	-
