8609-342-F1-96-765-000-A: DescriptionBoard Euro Connector, 42 Contact(s), 3 Row(s), Female, Straight, Press Fit Terminal; CategoryThe connector The connector; File Size105KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

8609-342-F1-96-765-000-A Overview

Board Euro Connector, 42 Contact(s), 3 Row(s), Female, Straight, Press Fit Terminal

8609-342-F1-96-765-000-A Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD EURO CONNECTOR
Contact completed and terminated	TIN LEAD
Contact point gender	FEMALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	8609
Mixed contacts	YES
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	42
UL Flammability Code	94V-0
Base Number Matches	1

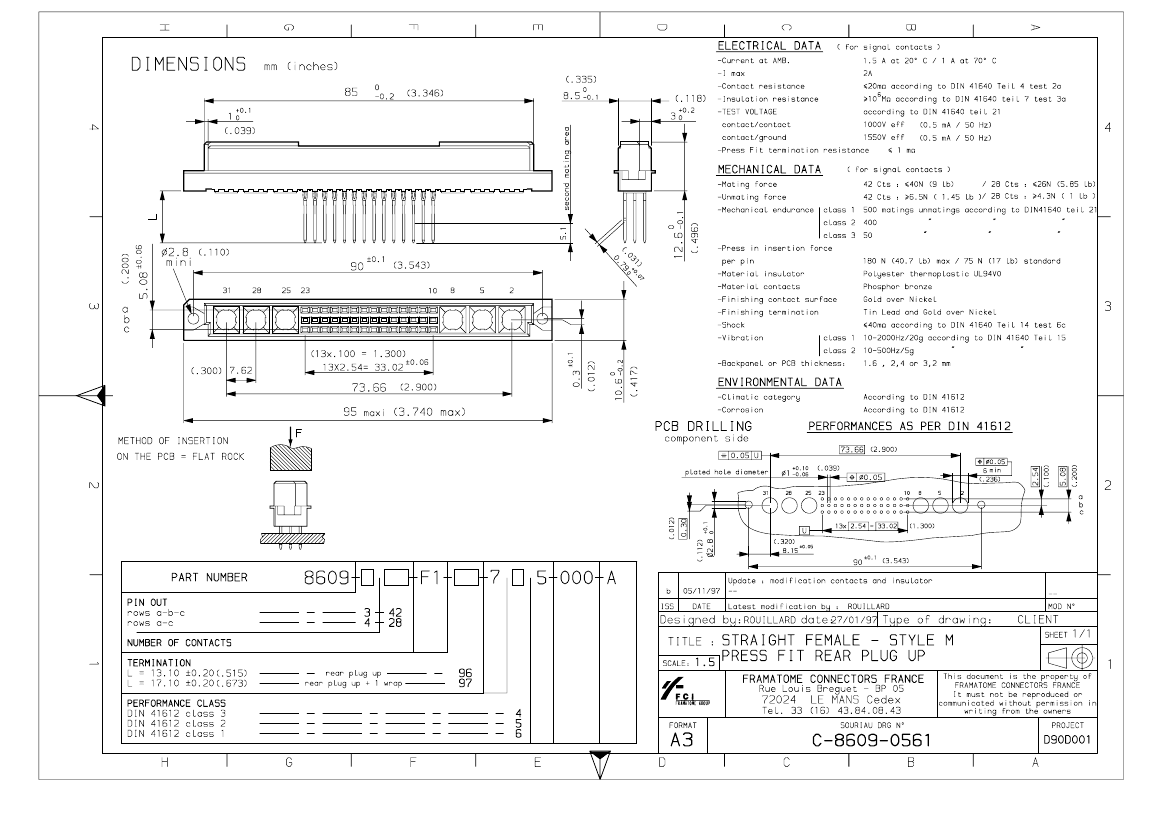

Preview

Download Datasheet

View All

PDM: Rev:B

STATUS:

Released

Printed: Sep 30, 2005

8609-342-F1-96-765-000-A Related Products

	8609-342-F1-96-765-000-A	8609-342-F1-96-745-000-A	8609-342-F1-96-755-000-A	8609-342-F1-97-745-000-A	8609-342-F1-97-755-000-A	8609-342-F1-97-765-000-A
Description	Board Euro Connector, 42 Contact(s), 3 Row(s), Female, Straight, Press Fit Terminal	Board Euro Connector, 42 Contact(s), 3 Row(s), Female, Straight, Press Fit Terminal	Board Euro Connector, 42 Contact(s), 3 Row(s), Female, Straight, Press Fit Terminal	Board Euro Connector, 42 Contact(s), 3 Row(s), Female, Straight, Press Fit Terminal	Board Euro Connector, 42 Contact(s), 3 Row(s), Female, Straight, Press Fit Terminal	Board Euro Connector, 42 Contact(s), 3 Row(s), Female, Straight, Press Fit Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact completed and terminated	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	YES	YES	YES	YES	YES	YES
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
JESD-609 code	e0	e0	e0	e0	e0	e0
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	8609	8609	8609	8609	8609	8609
Mixed contacts	YES	YES	YES	YES	YES	YES
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	3	3	3	3	3	3
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	42	42	42	42	42	42
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1
