LED DOT MATRIX
BL-M19X881XX
n
Ø
Ø
Ø
Ø
Ø
Ø
Features:
46.80mm (1.9” F 4.8 dot matrix LED display, BI-COLOR
)
Low current operation.
Excellent character appearance.
Easy mounting on P.C. Boards or sockets.
I.C. Compatible.
ROHS Compliance.
Electrical-optical characteristics: (Ta=25℃)
(Test Condition: IF=20mA)
Part No
Chip
Emitted Color
Material
λ
P
(nm)
VF
Unit:V
Iv
Typ
Max
TYP.(mcd)
Row Cathode
Column Anode
Row Anode
Column Cathode
BL-M19C881SG-XX
BL-M19D881SG-XX
Super Red
Green
AlGaInP
GaP/GaP
GaAsP/Ga
P
GaP/GaP
AlGaInP
AlGaInP
AlGaInP
AlGaInP
660
570
635
570
660
574
630
574
2.10
2.20
2.10
2.20
2.10
2.20
2.10
2.20
2.50
2.50
2.50
2.50
2.50
2.50
2.50
2.50
270
240
220
240
310
380
255
380
BL-M19C881EG-XX
BL-M19D881EG-XX
Orange
Green
BL-M19C881DUG-XX
BL-M19D881DUG-XX
Ultra Red
Ultra Green
BL-M19C881UEUG-X
X
BL-M19D881UEUG-X
X
Ultra Orange
Ultra Green
n
-XX: Surface / Lens color：
0
Number
Ref Surface Color
White
Epoxy Color
Water
clear
1
Black
White
diffused
2
Gray
Red
Diffused
3
Red
Green
Diffused
4
Green
Yellow
Diffused
5
n
Absolute maximum ratings (Ta=25°
C)
S
30
75
5
150
Parameter
Forward Current I
F
Power Dissipation P
d
Reverse Voltage V
R
Peak Forward Current I
PF
(Duty 1/10 @1KHZ)
Operation Temperature T
OPR
Storage Temperature T
STG
Lead Soldering Temperature
T
SOL
G
30
80
5
150
E
30
80
5
150
D
30
75
5
150
UG
30
75
5
150
UE
30
65
5
150
U
nit
mA
mW
V
mA
℃
℃
-40 to +80
-40 to +85
Max.260±5
℃
for 3 sec Max.
(1.6mm from the base of the epoxy bulb)
℃
APPROVED : XU L CHECKED :ZHANG WH DRAWN: LI FS
REV NO: V.2
Page 1 of 3
WWW.BETLUX.COM
EMAIL:
SALES@BETLUX.COM
,
BETLUX@BETLUX.COM
LED DOT MATRIX
BL-M19X881XX
■

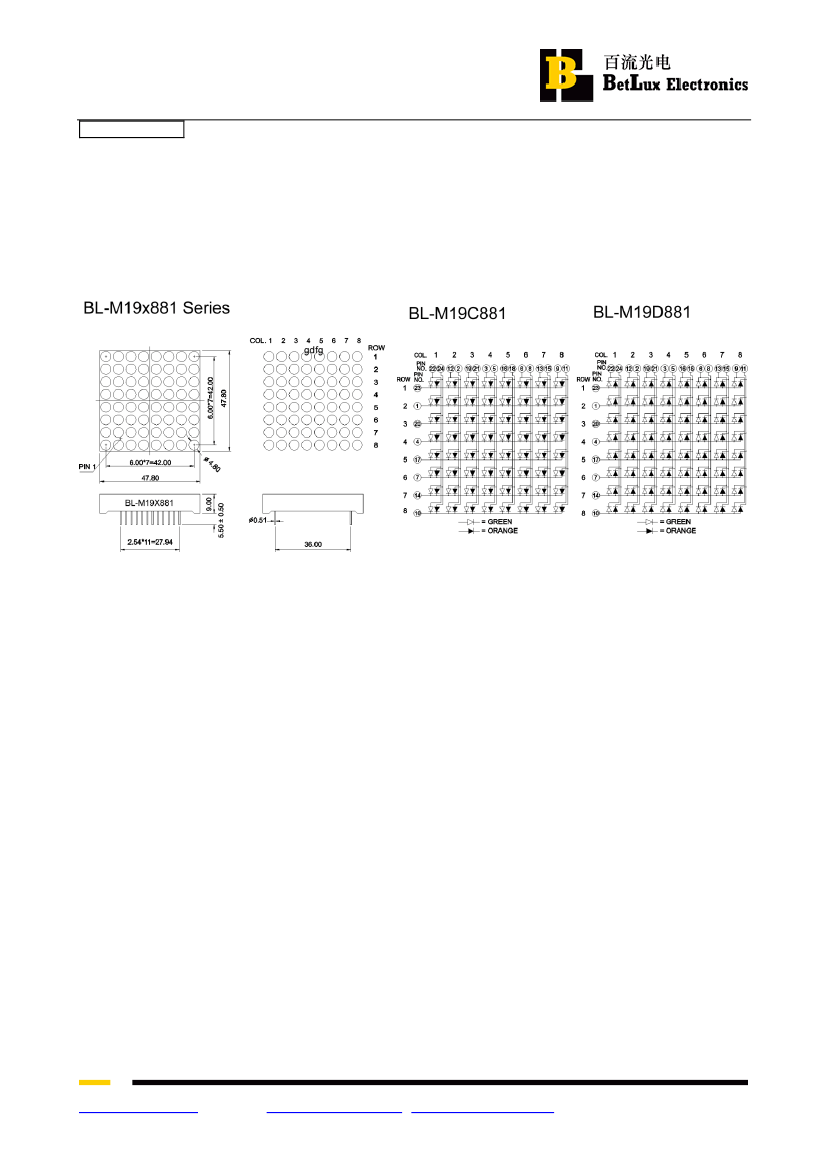

Package configuration & Internal circuit diagram
