89588-020LF datasheet, PDF - EEWORLD Datasheet

89588-020LF: DescriptionBoard Connector, 40 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, LEAD FREE; CategoryThe connector The connector; File Size173KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

89588-020LF Overview

Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, LEAD FREE

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	TIN (100)
Contact point gender	FEMALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	89588
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	40
UL Flammability Code	94V-0
Base Number Matches	1

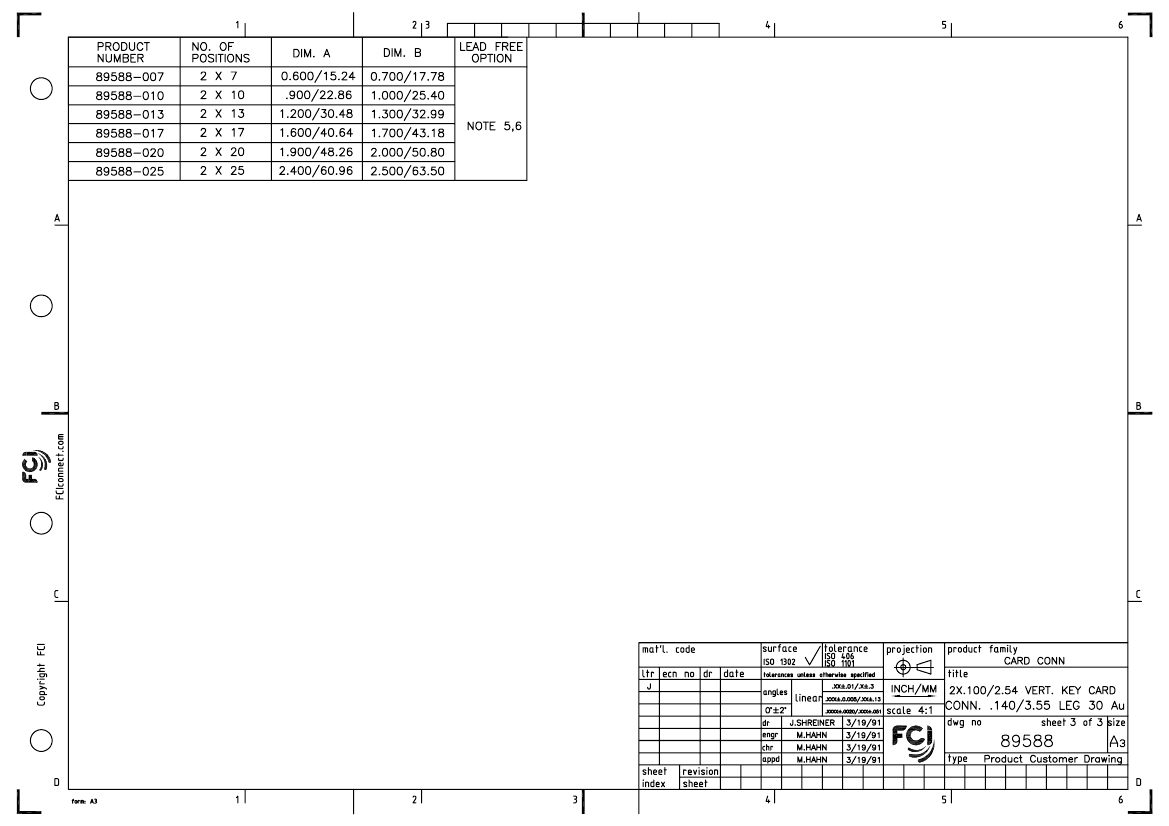

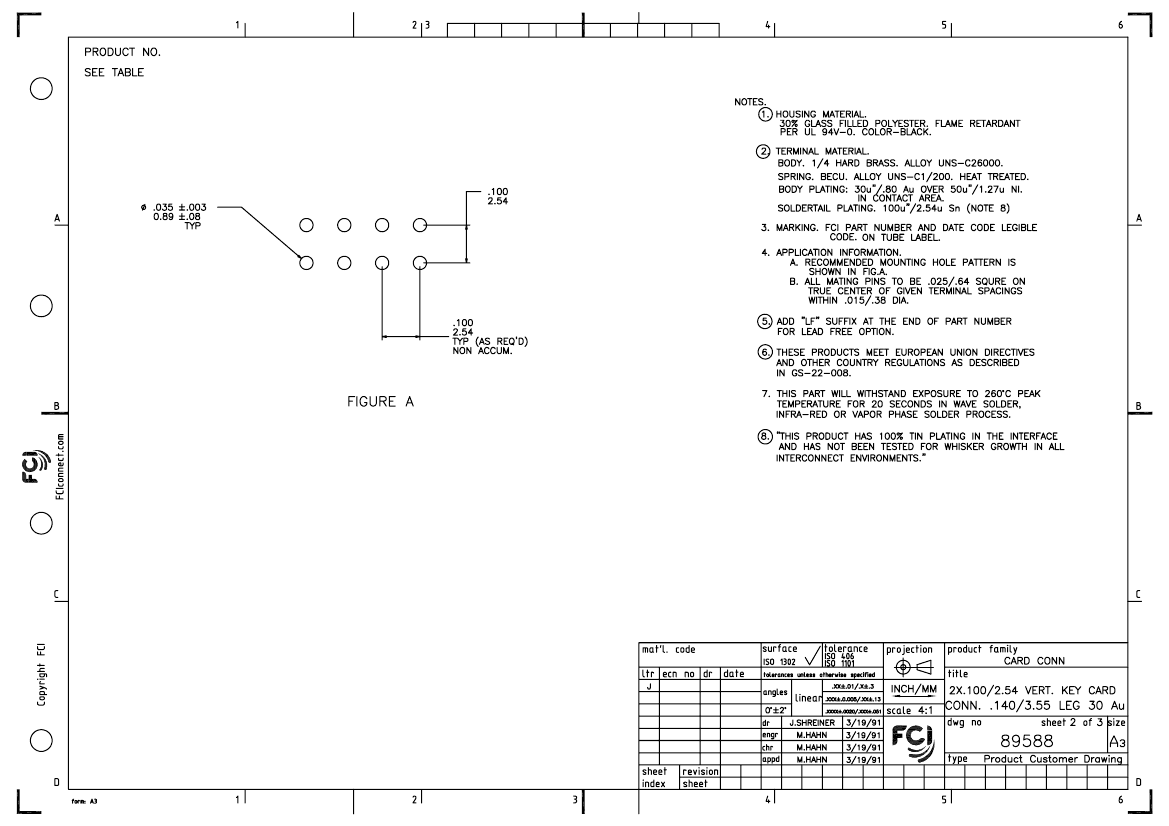

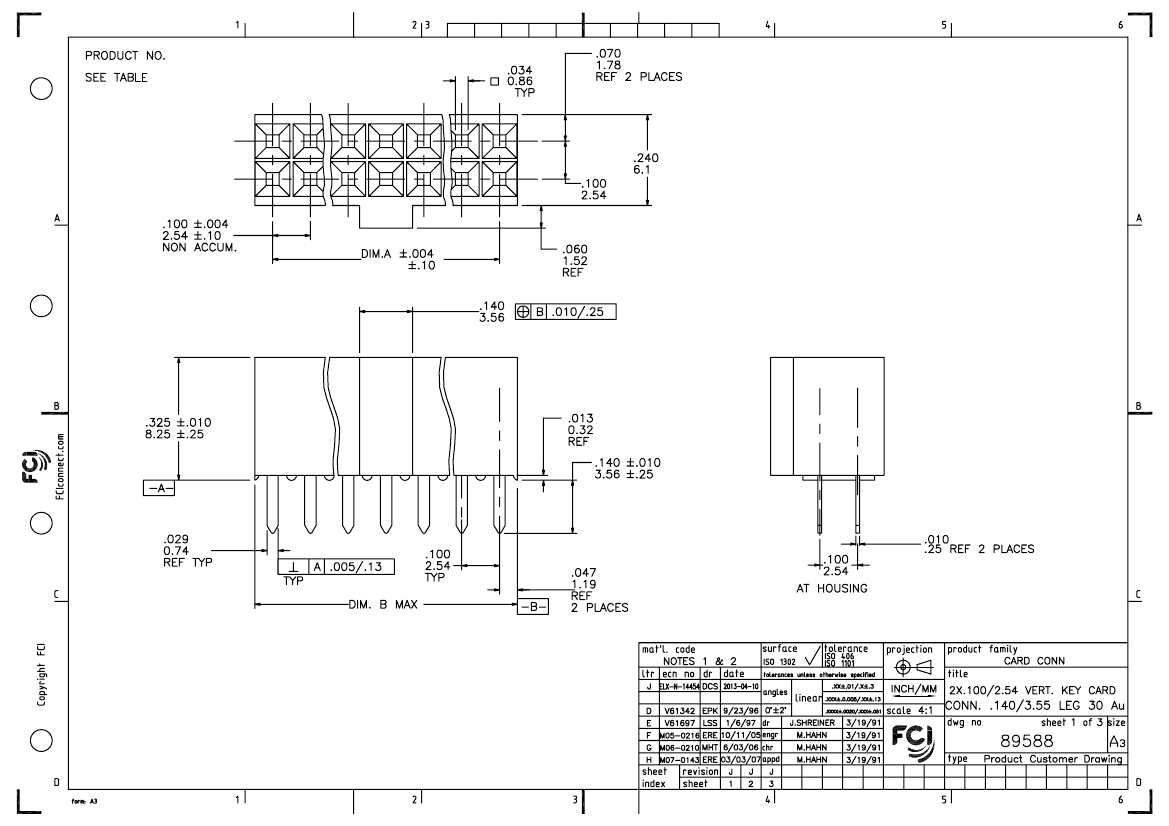

PDS: Rev :J

STATUS:Released

Printed: Apr 09, 2013

	89588-020LF	89588-017LF	89588-007LF	89588-013LF
Description	Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, LEAD FREE	Board Connector, 34 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, LEAD FREE	Board Connector,	Board Connector, 26 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, LEAD FREE
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact material	BRASS	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1	1	1
Is it lead-free?	Lead free	Lead free	-	Lead free
package instruction	LEAD FREE	LEAD FREE	-	LEAD FREE
ECCN code	EAR99	EAR99	-	EAR99
Contact point gender	FEMALE	FEMALE	-	FEMALE
DIN compliance	NO	NO	-	NO
Filter function	NO	NO	-	NO
IEC compliance	NO	NO	-	NO
MIL compliance	NO	NO	-	NO
Mixed contacts	NO	NO	-	NO
Installation method	STRAIGHT	STRAIGHT	-	STRAIGHT
Installation type	BOARD	BOARD	-	BOARD
Number of rows loaded	2	2	-	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	-	2.54 mm
Termination type	SOLDER	SOLDER	-	SOLDER
Total number of contacts	40	34	-	26
UL Flammability Code	94V-0	94V-0	-	94V-0
Factory Lead Time	-	20 weeks	6 weeks	6 weeks
