89588-025 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 89588-025

89588-025: DescriptionBoard Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size169KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

89588-025 Overview

Board Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Plug

89588-025 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.3 inch
subject depth	0.325 inch
body length	2.5 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	TIN (100)
Contact point gender	FEMALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1250VAC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.251 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	89588
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	CENTER
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.14 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	50
UL Flammability Code	94V-0
Evacuation force-minimum value	.3892 N
Base Number Matches	1

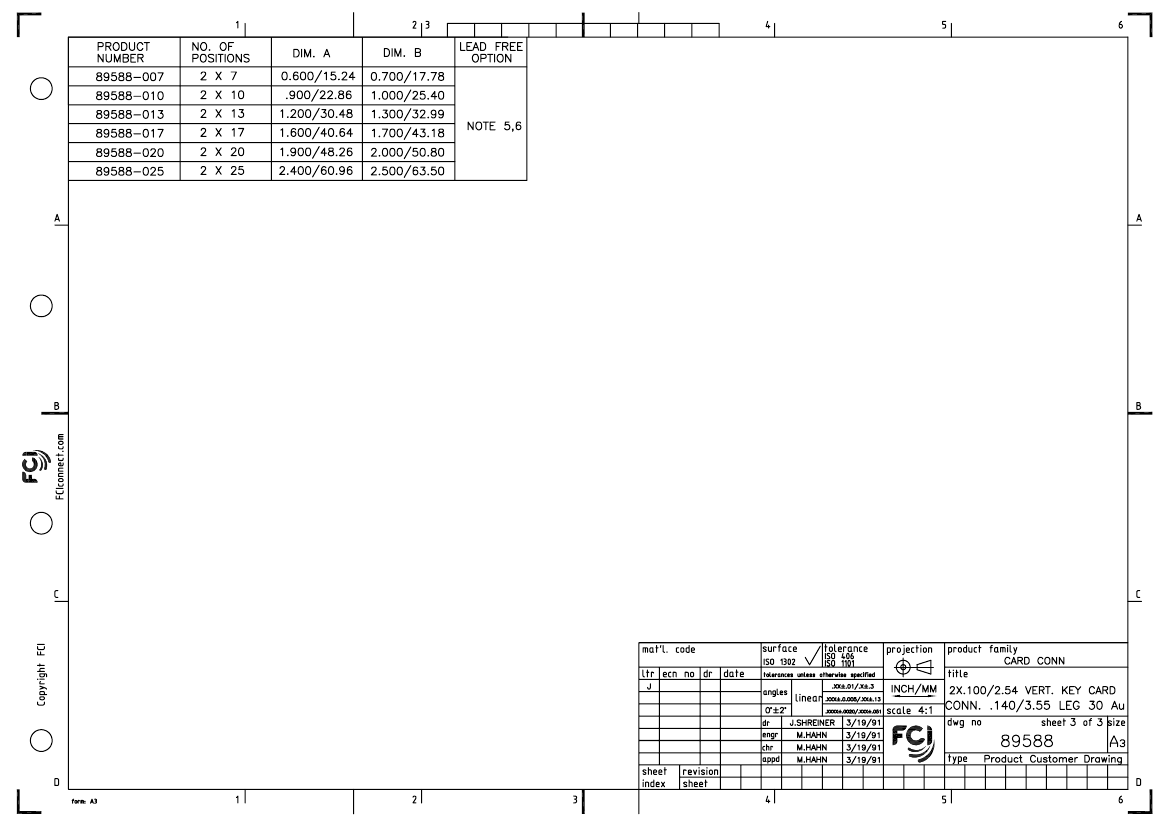

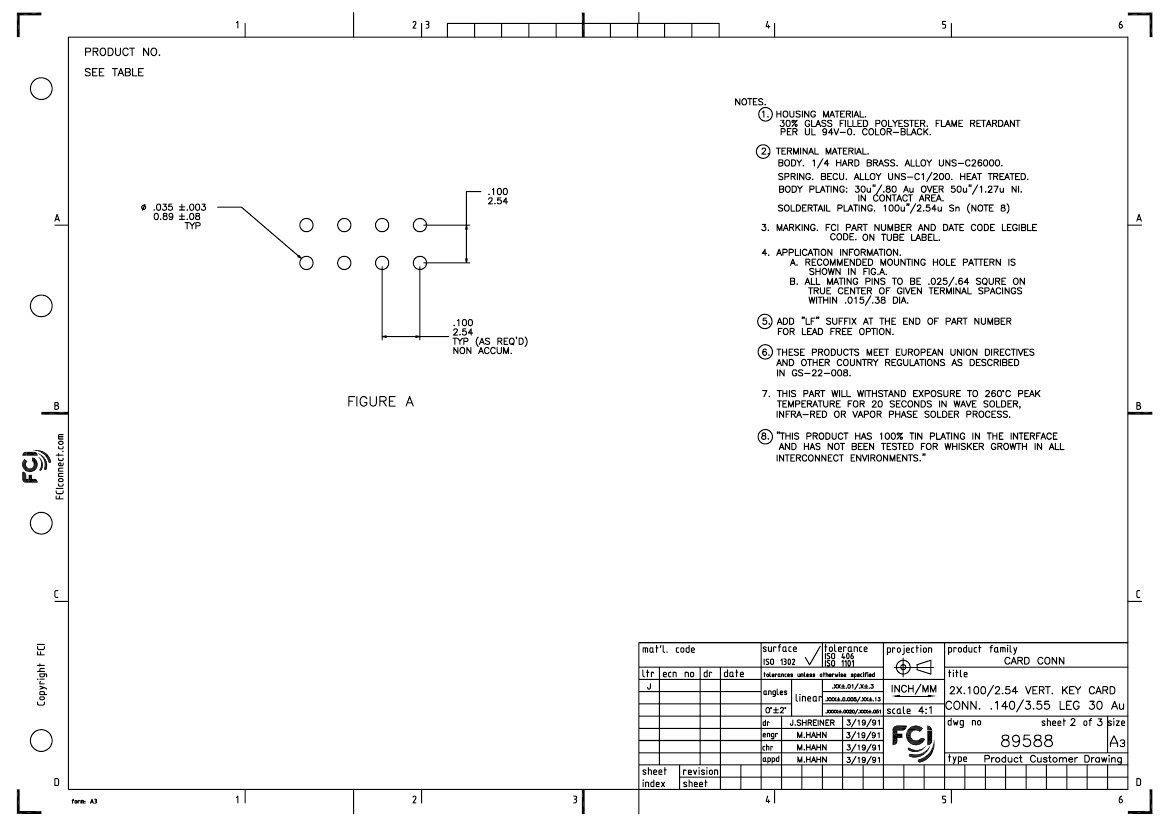

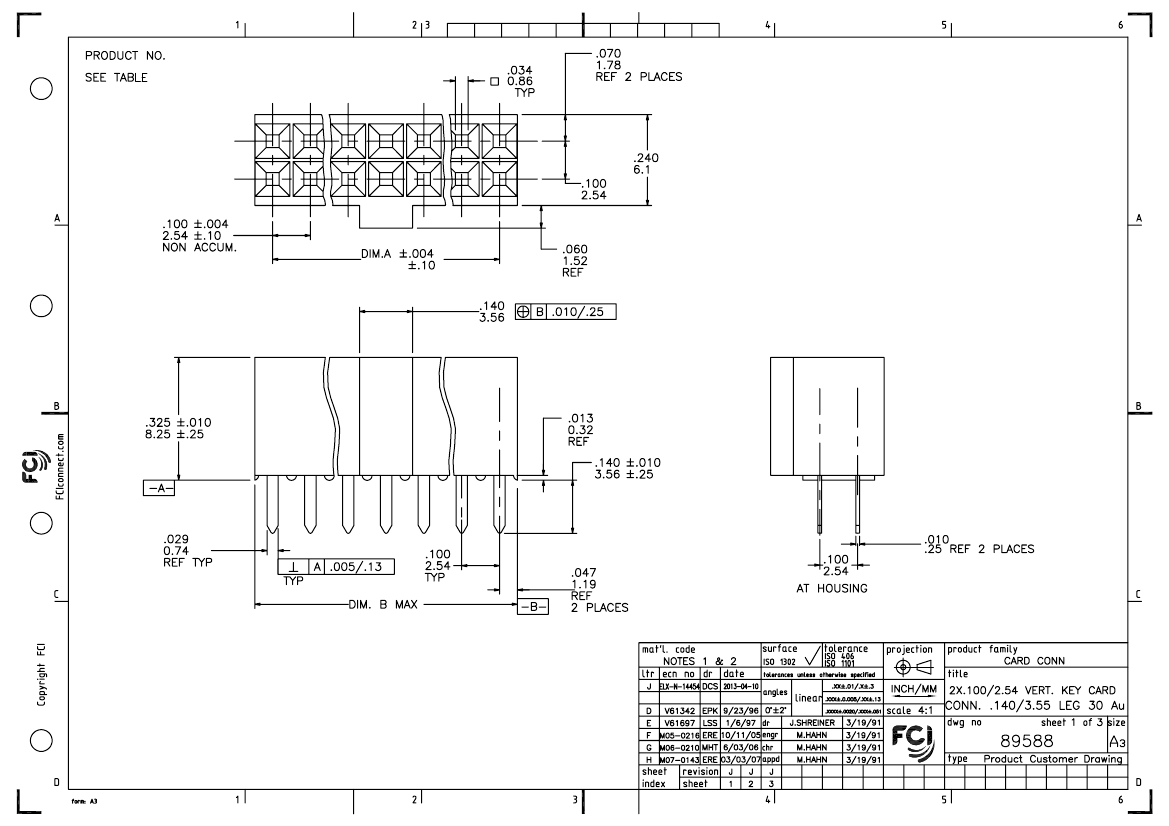

Preview

Download Datasheet

View All

PDS: Rev :J

STATUS:Released

Printed: Apr 09, 2013
