SUPER FLUX LED LAMP, 4PIN LED
BL-FL7644xx
■
Features:
Ø
7.62*7.62*4.0MM, 4MM Cylindrical, Inverted Cone SUPER FLUX LED LAMP
Ø
Ultra brightness.
Ø
Wide Viewing Angles.
Ø
Ideal For Backlight and Indicator
Ø
RoHs Compliance
n
Electrical-optical characteristics: (Ta=25°C)
Chip
(Test Condition: IF=70mA)
Luminous
Intensity
(Iv)
Unit:mcd
Part Number
Emitted Color
Material
λ
P
(n
m)
Lens
Type
Forward
Voltage(VF)
Unit:V
Viewi
ng
Angle
2θ1/2
(deg)
Typ
BL-FL7644URC
BL-FL7644UEC
BL-FL7644UYC
BL-FL7644UGC
BL-FL7644PGC
BL-FL7644BGC
BL-FL7644UBC
BL-FL7644UWC
Ultra Red
Ultra Orange
Ultra Yellow
Ultra Green
Ultra Pure Green
Ultra Bluish Green
Ultra Blue
Ultra White
AlGaAs,DDH
AlGaInP
AlGaInP
AlGaInP
InGaN
InGaN
InGaN
InGaN
660
630
590
574
525
505
470
/
Water
Clear
1.95
2.10
2.10
2.20
3.80
3.80
2.70
2.70
Max
2.20
2.50
2.50
2.50
4.50
4.50
4.20
4.20
Min.
200
180
300
400
600
500
500
500
Typ.
800
900
900
700
140
3000
2800
3000
3000
n
Absolute maximum ratings (Ta=25°C)
UR
Unit
Parameter
UE
UY
UG
PG
BG
UB
W
Forward Current I
F
Power Dissipation P
d
Reverse Voltage V
R
Peak Forward Current I
PF
(Duty 1/10 @1KHZ)
Operation Temperature T
OPR
Storage Temperature T
STG
Lead Soldering Temperature
T
SOL
25
60
5
150
30
65
5
150
30
65
5
150
30
75
5
150
30
110
5
150
30
110
5
100
30
120
5
100
30
120
5
100
mA
mW
V
mA
℃
℃
-40 to +80
-40 to +85
Max.260±5℃ for 3 sec Max.
(1.6mm from the base of the epoxy bulb)
℃
APPROVED : XU L CHECKED :ZHANG WH DRAWN: LI FS
REV NO: V.2
Page 1 of 3
WWW.BETLUX.COM
EMAIL:
SALES@BETLUX.COM
,
BETLUX@BETLUX.COM
SUPER FLUX LED LAMP, 4PIN LED
BL-FL7644xx
■

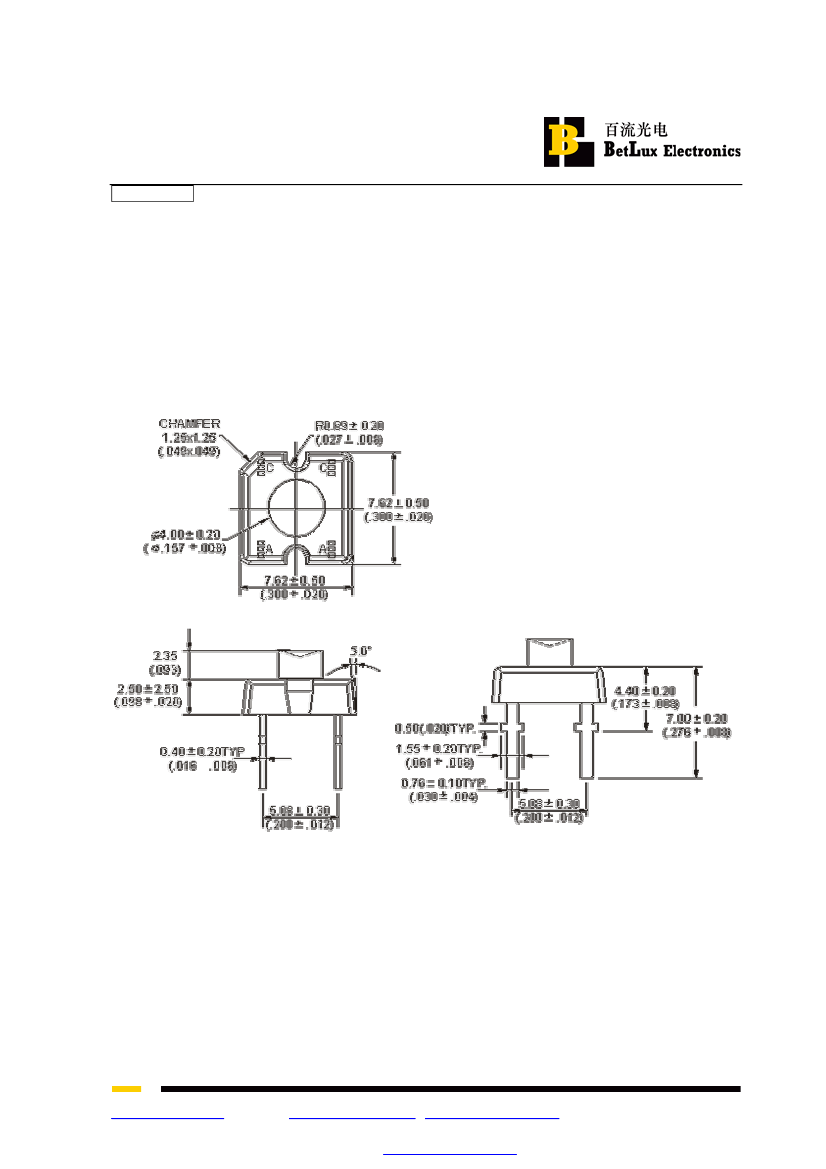

Package configuration & Internal circuit diagram
Notes:
1. All dimensions are in millimeters (inches)
2. Tolerance is
±0.25(0.01")unless
otherwise noted.
3. Specifications are subject to change without notice.
APPROVED : XU L CHECKED :ZHANG WH DRAWN: LI FS
REV NO: V.2
Page 2 of 3
WWW.BETLUX.COM
EMAIL:
SALES@BETLUX.COM
,
BETLUX@BETLUX.COM
SUPER FLUX LED LAMP, 4PIN LED
BL-FL7644xx
■
1.0
Typical electrical-optical characteristics curves:
(A)
(B)
(C)
(D)
(2)
(3)
(8 )
(4 )
(1 ) (6)
(5)
(9)
(1 0)
0.5
0
350
4 00
450
500
550
6 00
650
7 00
750
8 00
850
9 00
950
1000
Wav elength(nm)
RELAT IVE INTEN SITY Vs WAVELENGT H(
λ
p )
(1) - GaAsP/GaAs 655nm/Red
(2) - GaP 570nm/Yellow Green
(3) - GaAsP/GaP 585nm/Yellow
(4) - GaAsp/GaP 635nm/Orange & Hi-Eff Red
(5) - GaP 700nm/Bright Red
(6) - GaAlAs/GaAs 660nm/Super Red
(8) - GaAsP/GaP 610nm/Super Red
(9) - GaAlAs 880nm
(10) - GaAs/GaAs & GaAlAs/GaAs 940nm
(A) - GaN/SiC 430nm/Blue
(B) - InGaN/SiC 470nm/Blue
(C) - InGaN/SiC 505nm/Ultra Green
(D) - InGaAl/SiC 525nm/Ultra Green
50
FORWARD CURRENT(mA)
RELATIVE LUMINOUS INTENSITY
3
2
1
0.5
0.2
0.1
-30
-20
-10
1
8
64 5
2 3
4.0
1
3.0
FORWARD CURRENT(mA)
50
40
30
20
10
0
RELATIVE LUMINOUS INTENSITY
40
30
20
10
0
1.2
1
6
2,4,8,A
3
5
2.0
5
B
1.0
0
20
40
60
80
100
1.6
2.0
2.4
2.6
3.0
20
40
60
80
100
FORWARD VOLTAGE (Vf)
FORWARD CURRENT VS.
FORWARD VOLTAGE
FORWARD CURRENT (mA)
RELATIVE LUMINOUS
INTENSITY VS. FORWARD
CURRENT
AMBIENT TEMPERATURE Ta(
℃
)
FORWARD CURRENT VS. AMBIENT
TEMPERATURE
1
5
4
2
3
10
9
8
7
6
5
4
3
2
0
10
20
30
40
50
60
70
1
AMBIENT TEMPERATURE Ta(
℃
)
1
Ipeak MAX.
IDC MAX.
300KHz
3KHz
10KHz
1KHz
100KHz F-REFRESH RATE
3KHz
300Hz
30KHz
100KHz
10KHz 1KHz
100Hz
10
9
8
7
6
5
Ipeak MAX.
IDC MAX.
4
3
2
1
1
10
100
1000
tp-PULSE DURATION uS
(5)
10
100
1000
tp-PULSE DURATION uS
(1,2,3,4,6,8,B.D.J.K)
10,000
10,000
NOTE:25
℃
free air temperature unless otherwise specified
APPROVED : XU L CHECKED :ZHANG WH DRAWN: LI FS
REV NO: V.2
Page 3 of 3
WWW.BETLUX.COM
EMAIL:
SALES@BETLUX.COM
,
BETLUX@BETLUX.COM
