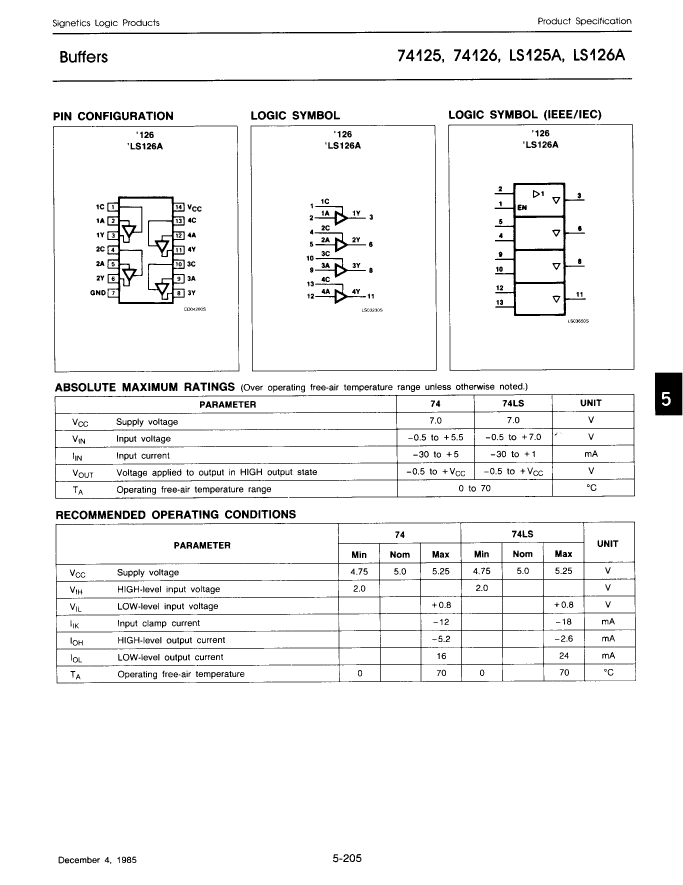

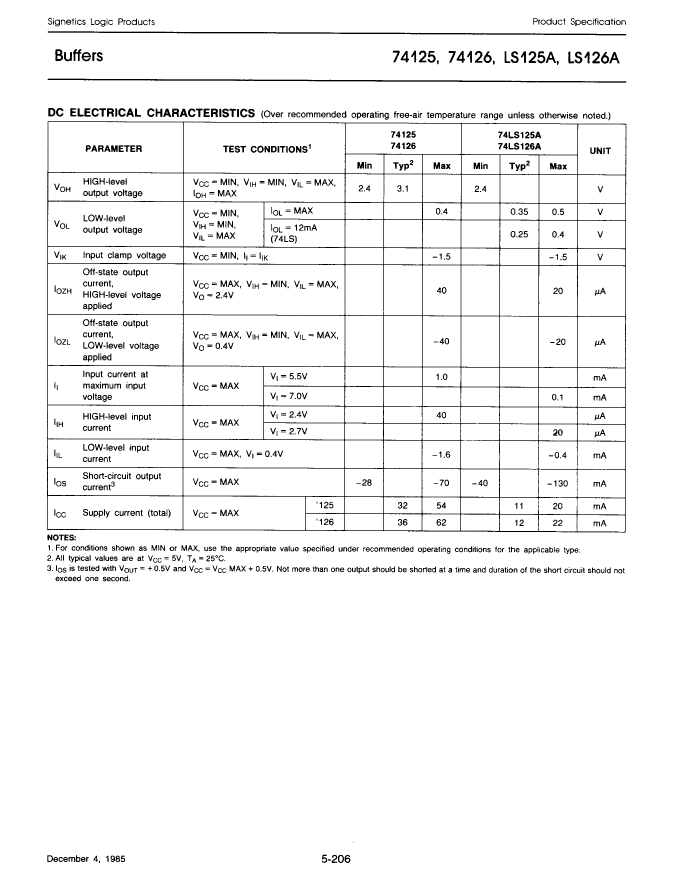

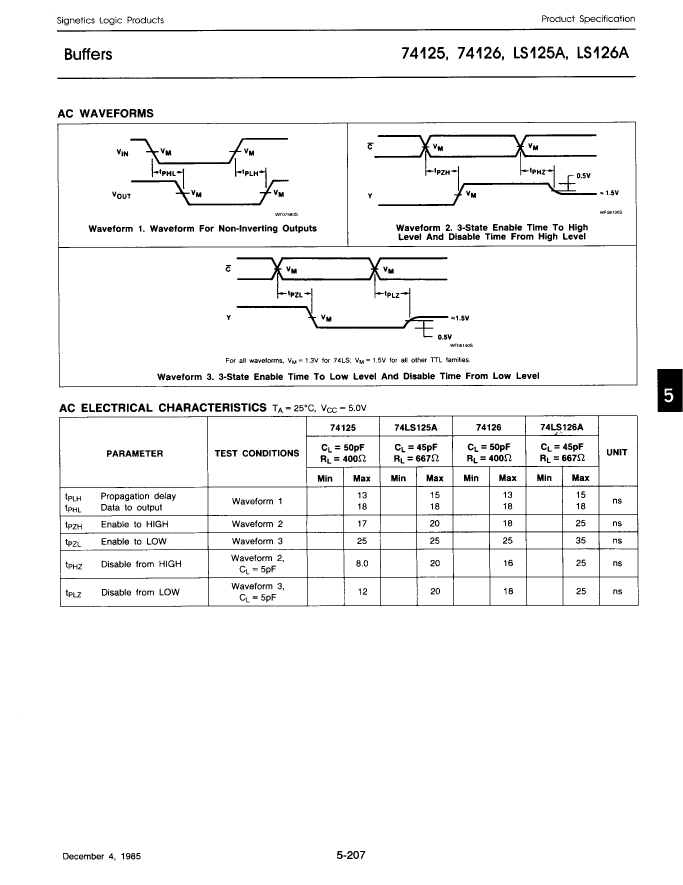

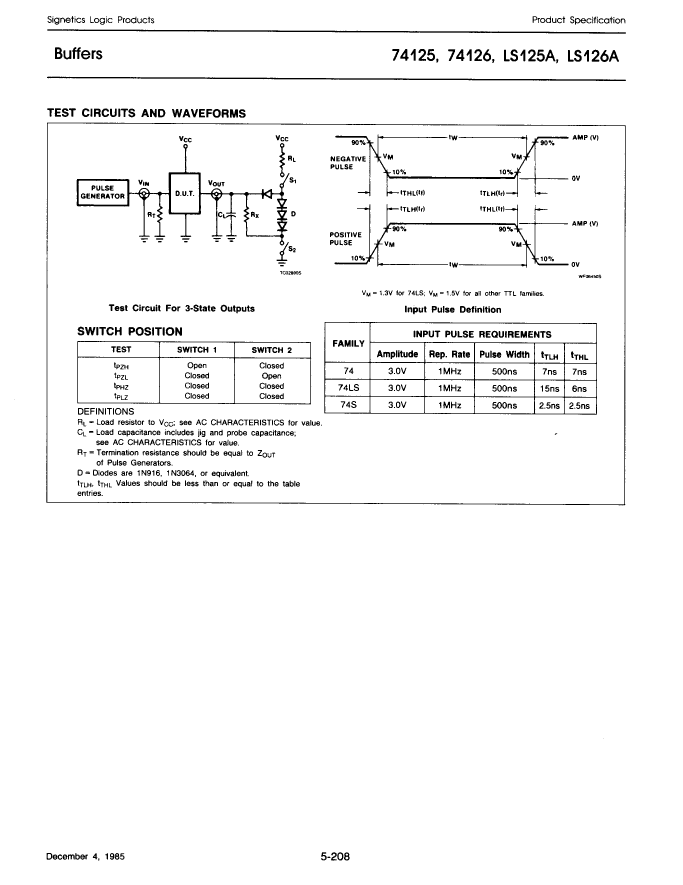

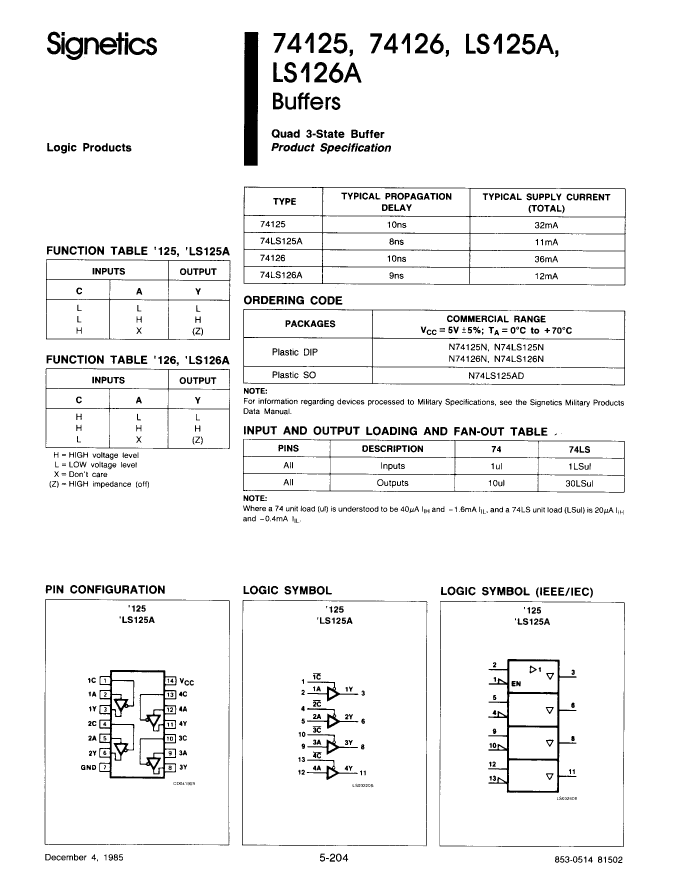

Bus Driver, 1-Func, 4-Bit, True Output, TTL, PDIP14
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Philips Semiconductors (NXP Semiconductors N.V.) |
| package instruction | DIP, DIP14,.3 |
| Reach Compliance Code | unknown |
| Control type | ENABLE HIGH |
| JESD-30 code | R-PDIP-T14 |
| JESD-609 code | e0 |
| Logic integrated circuit type | BUS DRIVER |
| MaximumI(ol) | 0.024 A |
| Number of digits | 4 |
| Number of functions | 1 |
| Number of terminals | 14 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Output characteristics | 3-STATE |
| Output polarity | TRUE |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP14,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Maximum supply current (ICC) | 62 mA |
| Prop。Delay @ Nom-Sup | 18 ns |
| Certification status | Not Qualified |
| surface mount | NO |
| technology | TTL |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Base Number Matches | 1 |
| N74126N | N74125N | N74126N-B | N74125N-B | N74LS126AN | |
|---|---|---|---|---|---|
| Description | Bus Driver, 1-Func, 4-Bit, True Output, TTL, PDIP14 | Bus Driver, 1-Func, 4-Bit, True Output, TTL, PDIP14 | Bus Driver, 1-Func, 4-Bit, True Output, TTL, PDIP14 | Bus Driver, 1-Func, 4-Bit, True Output, TTL, PDIP14 | Bus Driver, 1-Func, 4-Bit, True Output, TTL, PDIP14 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | Philips Semiconductors (NXP Semiconductors N.V.) | Philips Semiconductors (NXP Semiconductors N.V.) | Philips Semiconductors (NXP Semiconductors N.V.) | Philips Semiconductors (NXP Semiconductors N.V.) | Philips Semiconductors (NXP Semiconductors N.V.) |
| package instruction | DIP, DIP14,.3 | DIP, DIP14,.3 | DIP, DIP14,.3 | DIP, DIP14,.3 | DIP, DIP14,.3 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown |
| Control type | ENABLE HIGH | ENABLE LOW | ENABLE HIGH | ENABLE LOW | ENABLE HIGH |
| JESD-30 code | R-PDIP-T14 | R-PDIP-T14 | R-PDIP-T14 | R-PDIP-T14 | R-PDIP-T14 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 |
| Logic integrated circuit type | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER |
| Number of digits | 4 | 4 | 4 | 4 | 4 |
| Number of functions | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 14 | 14 | 14 | 14 | 14 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | TRUE | TRUE | TRUE | TRUE | TRUE |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | DIP | DIP | DIP | DIP |
| Encapsulate equivalent code | DIP14,.3 | DIP14,.3 | DIP14,.3 | DIP14,.3 | DIP14,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE |
| surface mount | NO | NO | NO | NO | NO |
| technology | TTL | TTL | TTL | TTL | TTL |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL |
| MaximumI(ol) | 0.024 A | 0.016 A | - | - | 0.024 A |
| Maximum supply current (ICC) | 62 mA | 62 mA | - | - | 22 mA |
| Prop。Delay @ Nom-Sup | 18 ns | 18 ns | - | - | 18 ns |
| Certification status | Not Qualified | Not Qualified | - | - | Not Qualified |
| Base Number Matches | 1 | 1 | 1 | - | - |
| power supply | - | 5 V | - | 5 V | 5 V |
| Nominal supply voltage (Vsup) | - | 5 V | - | 5 V | 5 V |
