74LVC257DB datasheet, PDF - EEWORLD Datasheet

74LVC257DB: DescriptionMultiplexer, 4-Func, 2 Line Input, CMOS, PDSO16,; Categorylogic logic; File Size141KB，5 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric View All

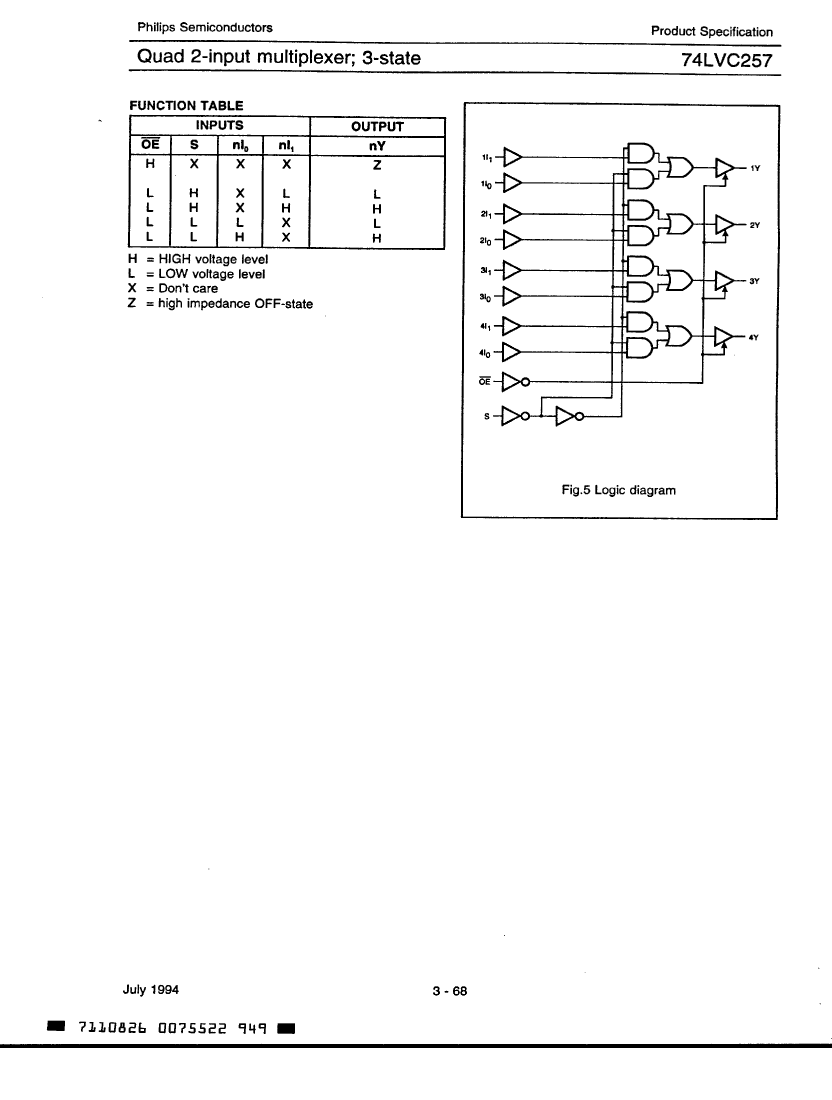

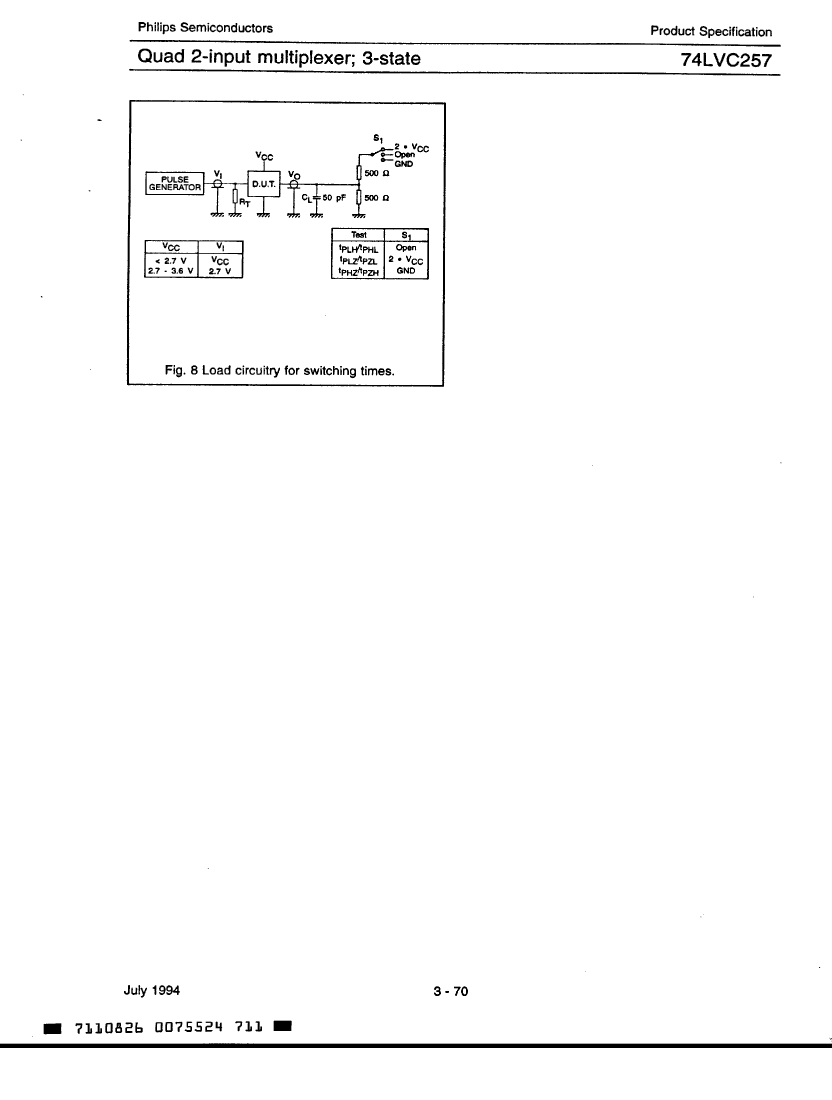

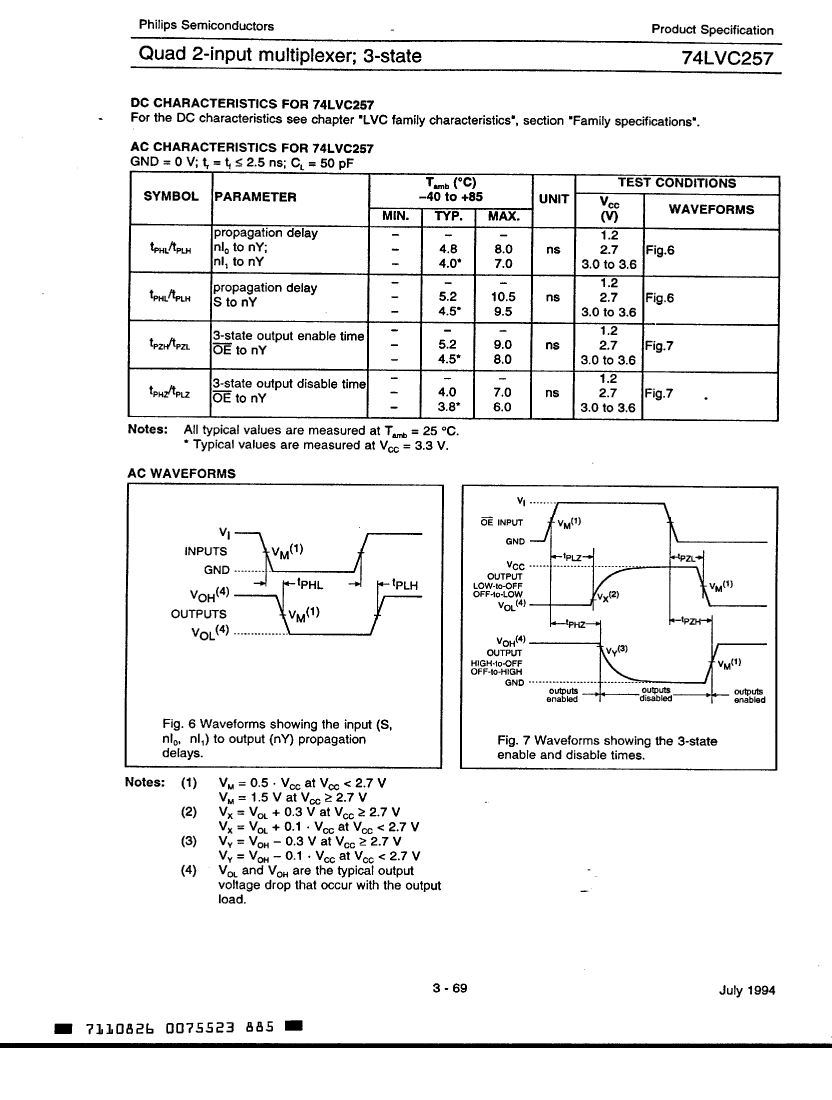

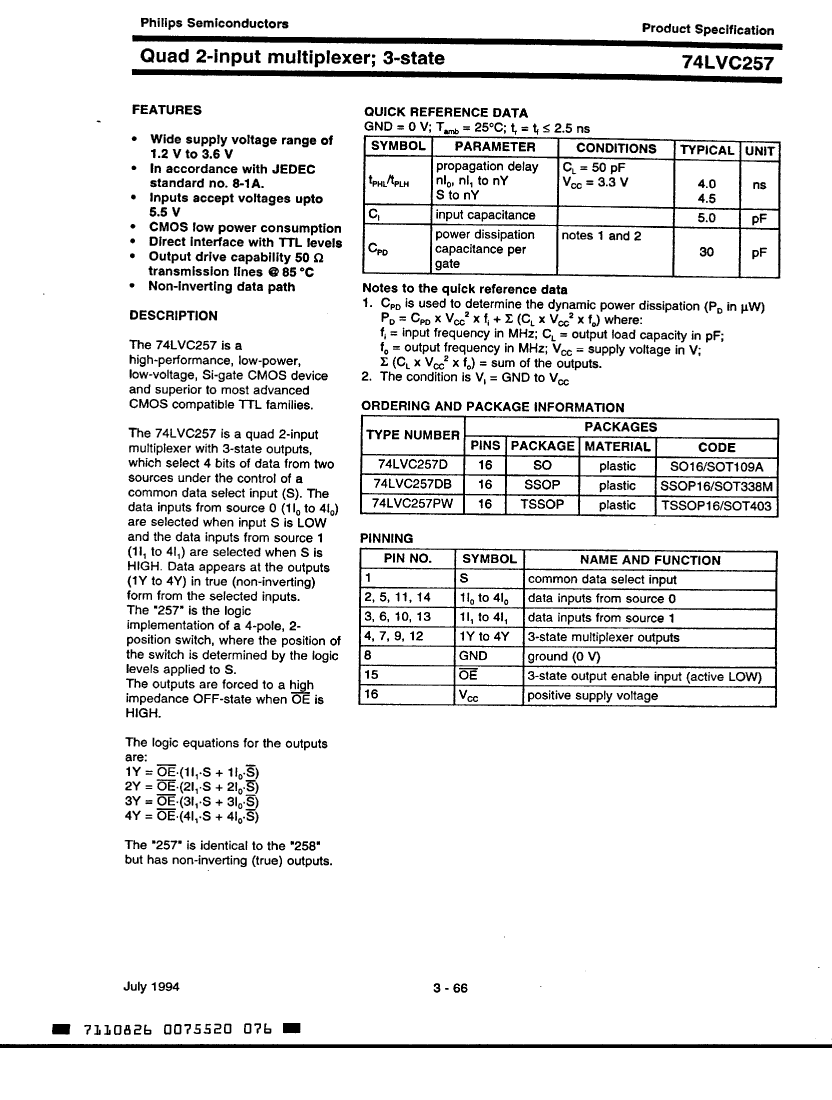

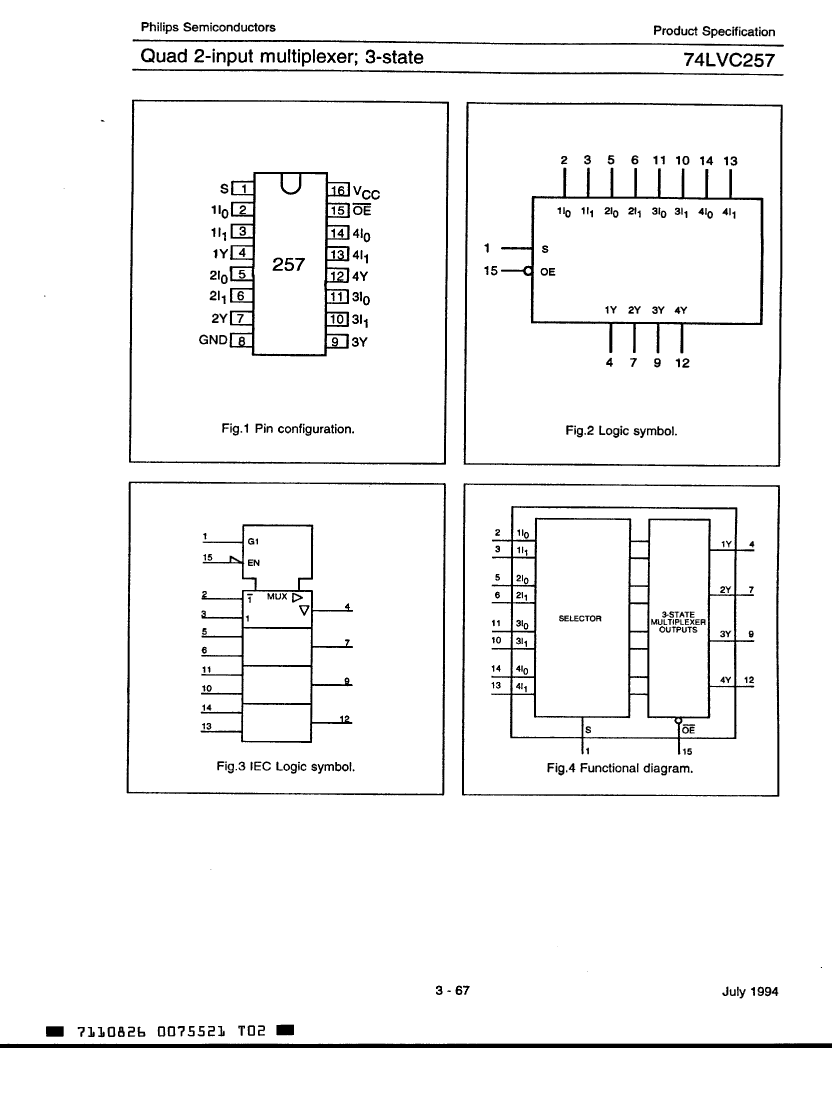

74LVC257DB Overview

Multiplexer, 4-Func, 2 Line Input, CMOS, PDSO16,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	SSOP, SSOP16,.3
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
Logic integrated circuit type	MULTIPLEXER
MaximumI(ol)	0.024 A
Number of functions	4
Number of entries	2
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SSOP16,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
power supply	3.3 V
Prop。Delay @ Nom-Sup	8 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
Base Number Matches	1
