88952-106LF: DescriptionBoard Connector, 48 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Plug, LEAD FREE; CategoryThe connector The connector; File Size787KB，6 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

88952-106LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	88952-106LF	-	-	View	Buy Now

88952-106LF Overview

Board Connector, 48 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Plug, LEAD FREE

88952-106LF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	13 weeks
Other features	POLARIZED
Board mount options	PEG
body width	0.622 inch
subject depth	0.669 inch
body length	0.942 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	.3614 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	88952
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	48
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N
Base Number Matches	1

Preview

Download Datasheet

View All

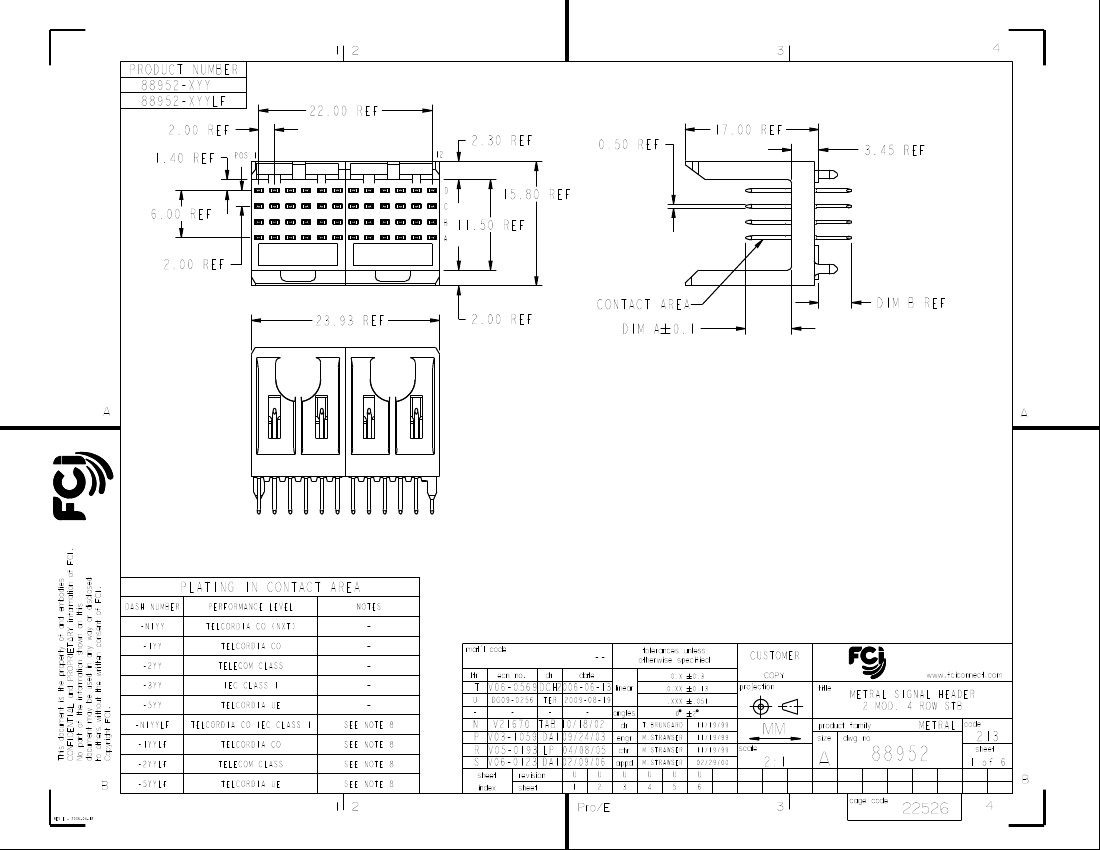

PRODUCT NUMBER

88952-XYY

88952-XYYLF

2.00 REF

1.40 REF

POS.1

22.00 REF

2.30 REF

17.00 REF

0.50 REF

3.45 REF

15.80 REF

11.50 REF

6.00 REF

2.00 REF

CONTACT AREA

23.93 REF

2.00 REF

DIM A 0.1

DIM B REF

PLATING IN CONTACT AREA

DASH NUMBER

CONFIDENTIAL and PROPRIETARY information of FCI.

This document is the property of and embodies

to others without the written consent of FCI.

document may be used in any way or disclosed

PERFORMANCE LEVEL

TELCORDIA CO (NXT)

TELCORDIA CO

TELECOM CLASS

IEC CLASS I

TELCORDIA UE

TELCORDIA CO IEC CLASS I

TELCORDIA CO

TELECOM CLASS

TELCORDIA UE

NOTES

-N1YY

-1YY

-2YY

-3YY

-5YY

SEE NOTE 8

mat'l code

No part of the information shown on this

ecn no.

date

tolerances unless

otherwise specified

CUSTOMER

COPY

projection

title

www.fciconnect.com

ltr

0.X

0.XX

.XXX

angles

engr

chr

appd

0.3

0.13

.051

linear

T V06-0569 DCH2006-06-13

DG09-0256

TER 2009-08-19

METRAL SIGNAL HEADER

2 MOD. 4 ROW STB

METRAL

code

dwg no

-N1YYLF

-1YYLF

-2YYLF

-5YYLF

N V21670 TAB 10/18/02

P V03-1059 DAI 09/24/03

R V05-0193 LP 04/08/05

S V06-0123 DAI 02/09/06

sheet

revision

sheet

T.BRUNGARD

M.STRAWSER

11/19/99

02/29/00

scale

product family

size

2:1

88952

cage code

213

sheet

1 of 6

Pro/E

index

22526

REV E - 2006-04-18

PDM: Rev:U

STATUS:

Released

Printed: Nov 30, 2009
