617H-C50-A-BF-1-01 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 617H-C50-A-BF-1-01

Preview

617H-C50-A-BF-1-01: Description50 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, SOLDER, PLUG; CategoryThe connector The connector; File Size322KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

617H-C50-A-BF-1-01 Overview

50 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, SOLDER, PLUG

617H-C50-A-BF-1-01 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Other features	EMI/RFI SHIELDED TYPE, OTHER STACKING CONNECTOR: 25 CONTACTS, SHELL SIZE: 3/B
body width	1.415 inch
body length	2.083 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD FLASH (3) OVER NICKEL
Contact completed and terminated	TIN LEAD (200) OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	3.336 N
Insulator color	BLACK
insulator material	GLASS FILLED POLYETHYLENE
MIL compliance	NO
Manufacturer's serial number	617H
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	CLINCH NUT
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
PCB row number	2+2
Number of rows loaded	2+2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	6.9088 mm
Plating thickness	FLASH inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	3/B
Terminal length	0.125 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	50
UL Flammability Code	94V-0
Evacuation force-minimum value	.2085 N
Base Number Matches	1

Preview

Download Datasheet

View All

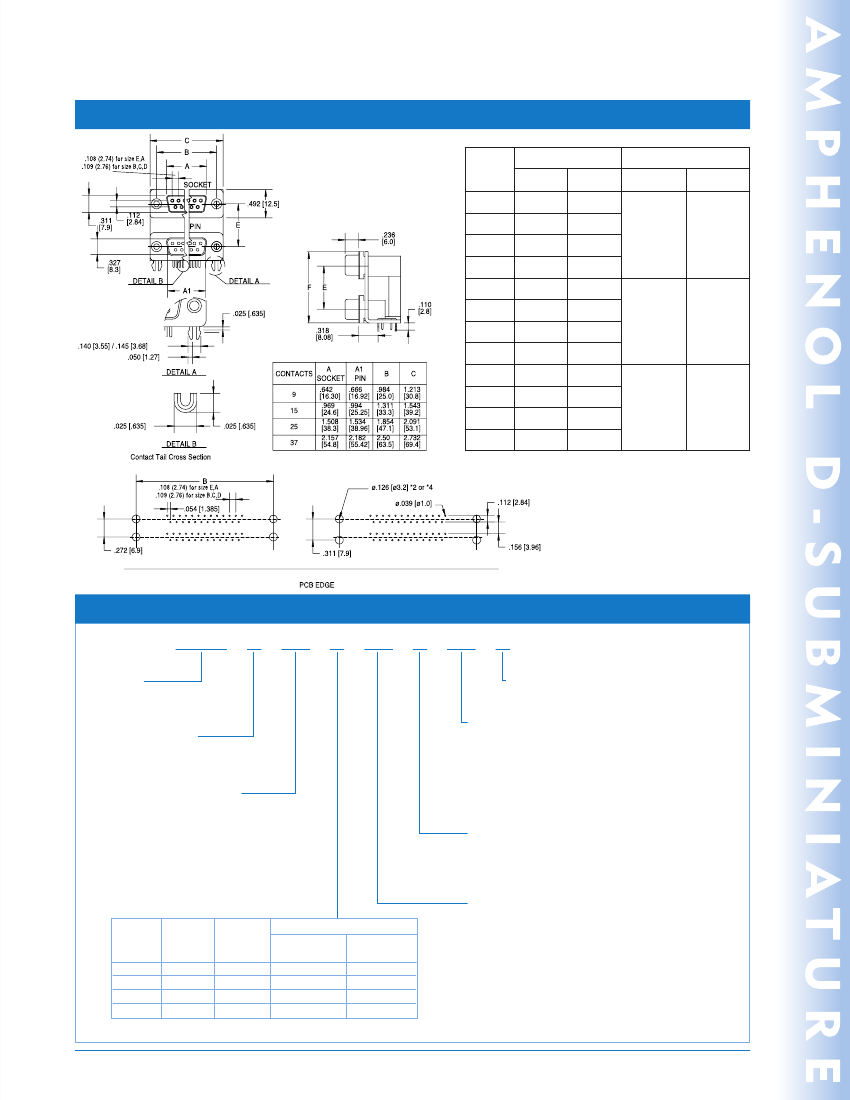

Dual Port Connectors

S

PECIFICATIONS

:

M

ATERIALS

AND

617 H S

ERIES

P

LATINGS

Steel, tin plated

Precision formed copper alloy

Gold over nickel

Engagement: 12 oz. max. (340.2 g)

Separation: .75 oz. min. (21.26 g)

Shells

Contacts

Contact Plating

Contact Forces

E

LECTRICAL

D

ATA

Current Rating

Dielectric Withstanding Voltage

Dielectric

Contact Resistance

5 amps

1000 VAC/60 sec.

Glass ﬁlled thermoplastic,

black, UL 94 VO

15 milliohms max.

Amphenol's 617 series dual port

connectors are a state of the art

design. The front metal shell helps

reduce EMI/RFI emissions.

Contacts are selectively plated for

high performance at a low cost.

C

LIMATIC

D

ATA

Temperature Range

-67°F (-55°C) to 221°F (105°C)

Designed to save PC board space,

Amphenol’s dual port “D” provides

two input output connectors in a

minimal amount of board space.

These connectors are available

with various stacking options:

same gender, mixed gender

and multiple pin counts.

I

NCHES

(

MM

)

10

T

ELEPHONE

: (416) 754-5656 F

AX

: (416) 754-8668

E-M

AIL

:

SALES

@

AMPHENOLCANADA

.

COM
