70234-N584LF: DescriptionBoard Connector, 96 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Plug, LEAD FREE; CategoryThe connector The connector; File Size2MB，12 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

70234-N584LF Overview

Board Connector, 96 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Plug, LEAD FREE

70234-N584LF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
Is Samacsys	N
Other features	POLARIZED
body width	0.622 inch
subject depth	0.669 inch
body length	1.887 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	.3614 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	70234
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	96
UL Flammability Code	94V-0
Evacuation force-minimum value	.14734 N
Base Number Matches	1

Preview

Download Datasheet

View All

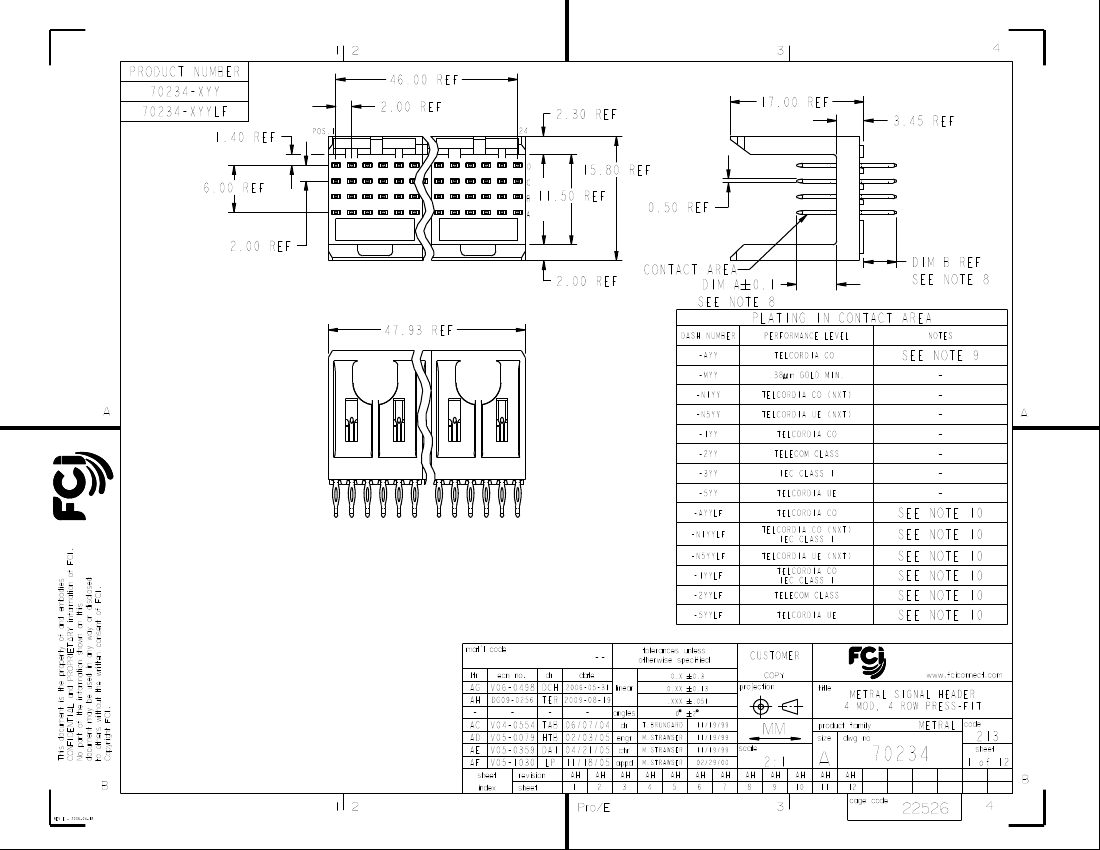

PRODUCT NUMBER

70234-XYY

70234-XYYLF

1.40 REF

POS.1

46.00 REF

2.00 REF

2.30 REF

17.00 REF

3.45 REF

15.80 REF

11.50 REF

0.50 REF

6.00 REF

2.00 REF

DIM B REF

CONTACT AREA

SEE NOTE 8

DIM A 0.1

SEE NOTE 8

PLATING IN CONTACT AREA

DASH NUMBER

-AYY

-MYY

-N1YY

47.93 REF

PERFORMANCE LEVEL

TELCORDIA CO

.38 m GOLD MIN.

TELCORDIA CO (NXT)

TELCORDIA UE (NXT)

TELCORDIA CO

TELECOM CLASS

IEC CLASS 1

TELCORDIA UE

TELCORDIA CO

TELCORDIA CO (NXT)

IEC CLASS 1

TELCORDIA UE (NXT)

TELCORDIA CO

IEC CLASS 1

TELECOM CLASS

TELCORDIA UE

NOTES

SEE NOTE 9

SEE NOTE 10

-N5YY

-1YY

-2YY

-3YY

-5YY

-AYYLF

-N1YYLF

-N5YYLF

-1YYLF

-2YYLF

CONFIDENTIAL and PROPRIETARY information of FCI.

-5YYLF

to others without the written consent of FCI.

document may be used in any way or disclosed

No part of the information shown on this

This document is the property of and embodies

mat'l code

ecn no.

date

tolerances unless

otherwise specified

CUSTOMER

COPY

projection

title

www.fciconnect.com

ltr

0.X

linear

0.3

0.13

.051

V06-0498 DCH

DG09-0256

TER

V04-0554 TAB

V05-0079 HTB

V05-0359 DAI

V05-1030 LP

revision

sheet

2006-05-31

0.XX

.XXX

2009-08-19

06/07/04

02/03/05

04/21/05

11/18/05

angles

engr

chr

appd

METRAL SIGNAL HEADER

4 MOD, 4 ROW PRESS-FIT

METRAL

code

dwg no

T.BRUNGARD

M.STRAWSER

11/19/99

02/29/00

scale

product family

size

2:1

70234

cage code

213

sheet

1 of 12

sheet

REV E - 2006-04-18

index

Pro/E

22526

PDM: Rev:AH

STATUS:

Released

Printed: Feb 20, 2010
