RP480 Series
15 A to 300 A, 600 V
Specifications
Operating Frequency
Usable Frequency
Max. Operating Voltage
Ambient Temperature
Climatic Category
Hipot Rating (L-G)
Terminals (-T)
Safety Approvals
50/60 Hz
DC - 400 Hz
600 V +10%
-25 to 50°C
25/100/21
3800 VDC
S: 15/30/50 A (M5)
80/100 A (M6)
150/200 A (M10)
300 A (M12)
cURus, EN60939
3-PHASE FILTERS
3-Phase WYE Power Line Filters, 600 V

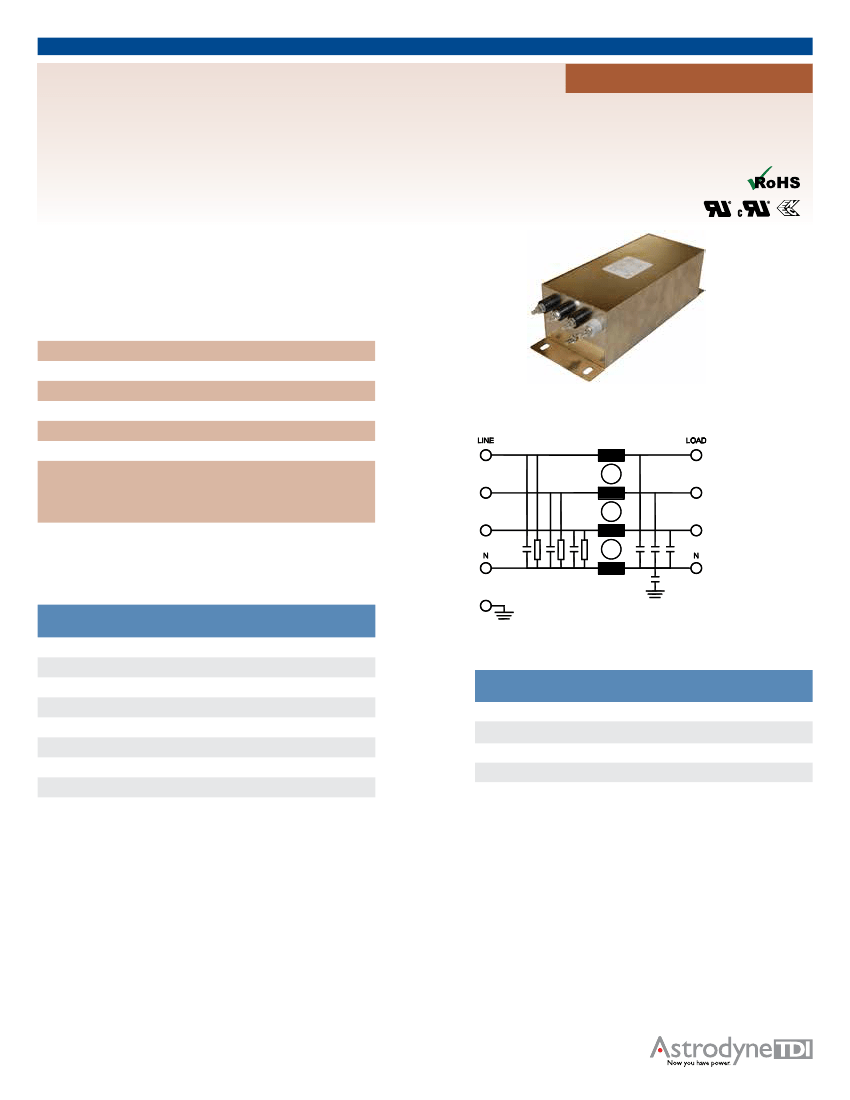

Electrical Schematic
Part Number/Ordering
RP480
-X
(Amps)
15
30
50
80
100
150
200
300
-Y
(Ycap, nF)
0
10
100
1000
2000
-T
S
Typ. Weight,
lbs (kg)
7.0 (3.2)
7.0 (3.2)
8.0 (3.6)
9.0 (4.1)
15.0 (6.8)
17.0 (7.7)
19.0 (8.6)
30.0 (13.6)
Leakage Current
Y-cap, nF
0
10
100
1000
2000
mA,
600 V/60 Hz
0.0
0.15
1.5
15.0
25.0
Note:
Use any combination of -Y with any -X (Amps) rating
e.g. RP480-100-100-S (100 Amps with 100 nF Ycap)
Specifications are subject to change. Consult factory to verify specifications.
For more information on our filter products call us at: (800) 527-4362 or (714) 289-0055
LCR, Radius Power, and Filter Concepts are now part of Astrodyne TDI
www.AstrodyneTDI.com
RP480 Series
15 A to 300 A, 600 V
Typical Insertion Loss, dB (50/50 Ohm)
Freq (MHz)
15/30 Amp
CM(dB)
DM(dB)
50 Amp
CM(dB)
DM(dB)
80 Amp
CM(dB)
DM(dB)
100 Amp
CM(dB)
DM(dB)
150 Amp
CM(dB)
DM(dB)
200 Amp
CM(dB)
DM(dB)
300 Amp
CM(dB)
DM(dB)
50
45
55
50
55
50
42
40
30
30
50
45
55
55
55
55
45
50
30
30
55
45
60
55
60
60
50
50
30
30
60
50
65
60
65
60
50
50
30
30
45
50
55
55
55
60
50
50
40
30
50
50
65
60
65
65
52
70
40
55
55
55
65
65
65
70
52
70
40
60
0.15
0.5
1.0
10
30
3-PHASE FILTERS
3-Phase WYE Power Line Filters, 600 V

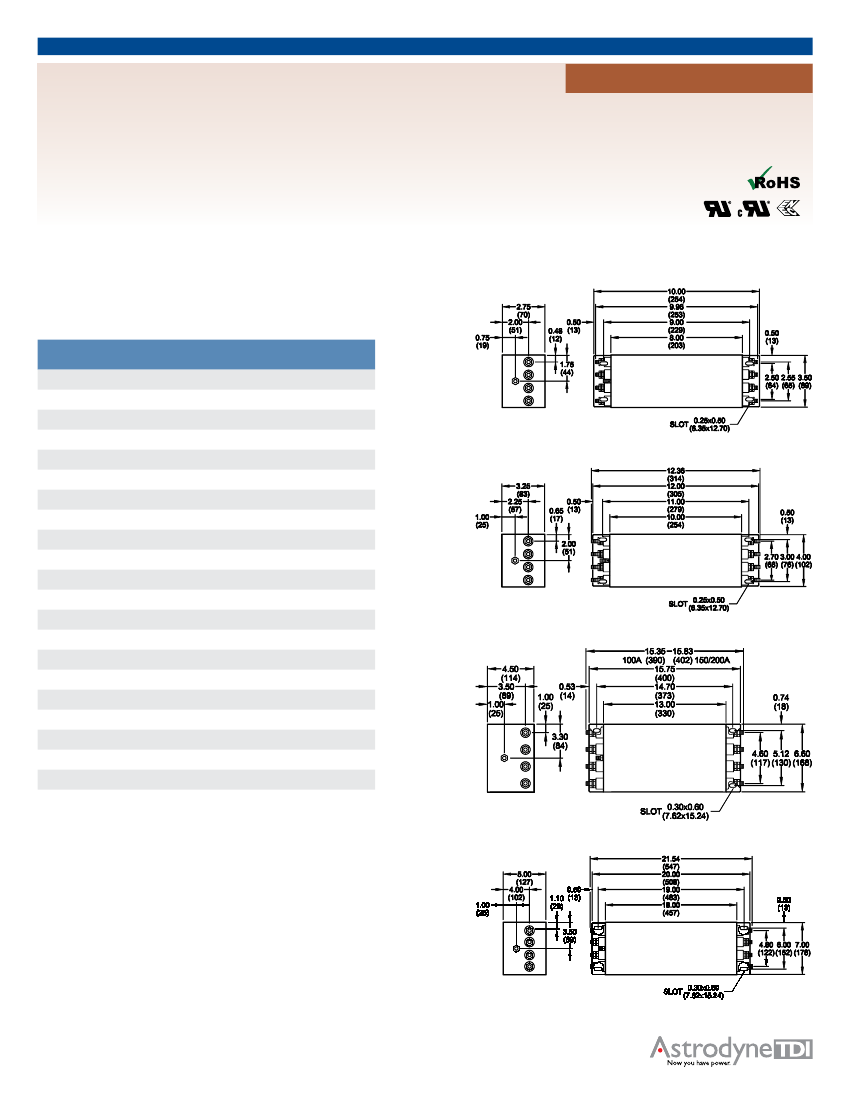

Mechanical Dimensions
TYPICAL TOLERANCE: +/-0.02” (0.50 mm)
15/30/50 Amp
80 Amp
100/150/200 Amp
300 Amp
Specifications are subject to change. Consult factory to verify specifications.
For more information on our filter products call us at: (800) 527-4362 or (714) 289-0055
LCR, Radius Power, and Filter Concepts are now part of Astrodyne TDI
www.AstrodyneTDI.com
