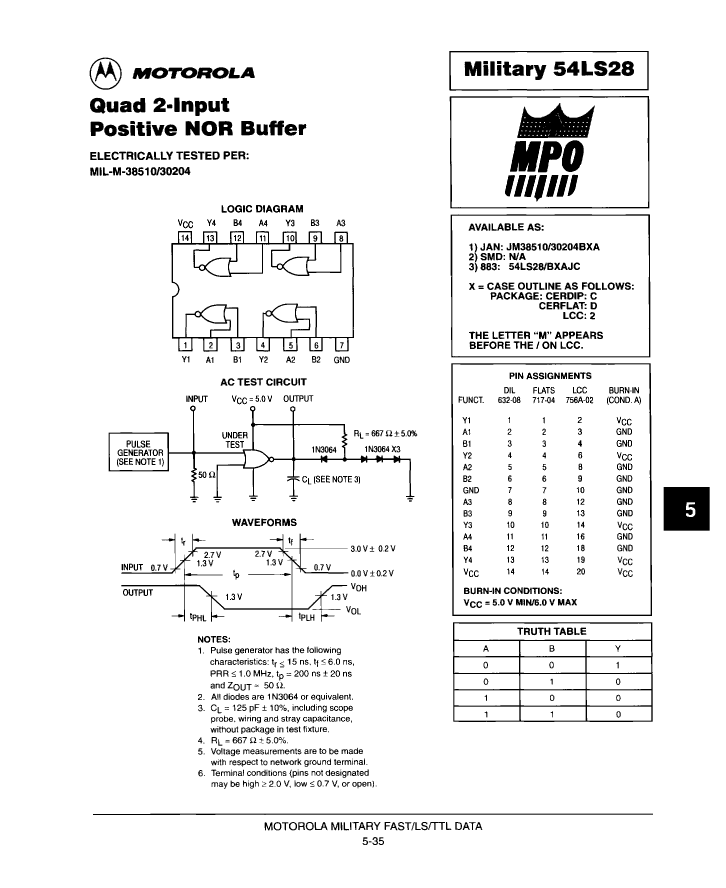

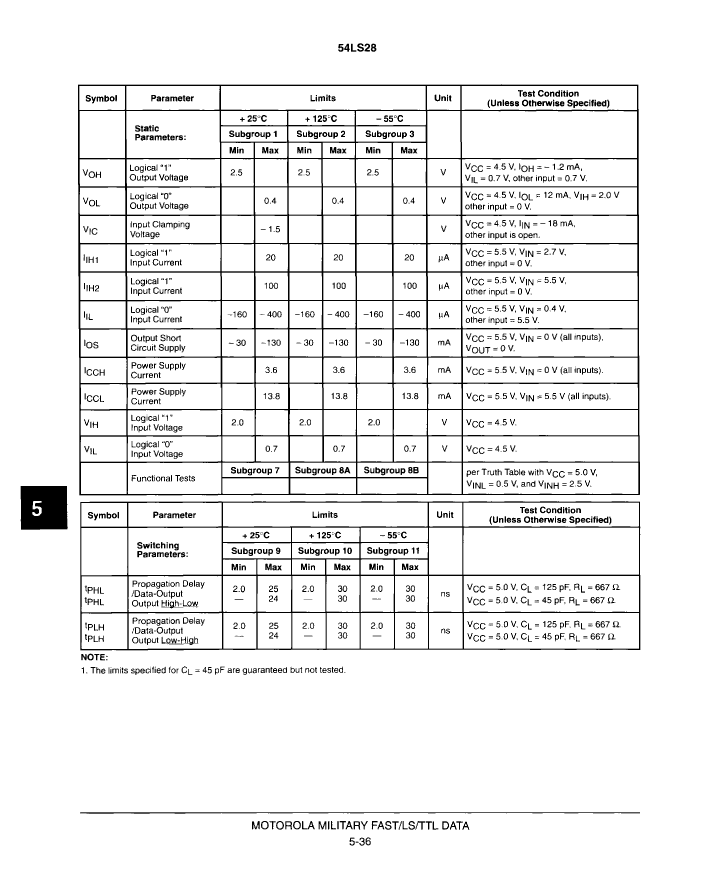

54LS28M/B2AJC: DescriptionNOR Gate, LS Series, 4-Func, 2-Input, TTL, CQCC20, CERAMIC, LCC-20; Categorylogic logic; File Size54KB，2 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54LS28M/B2AJC Overview

NOR Gate, LS Series, 4-Func, 2-Input, TTL, CQCC20, CERAMIC, LCC-20

54LS28M/B2AJC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	CERAMIC, LCC-20
Reach Compliance Code	unknown
Is Samacsys	N
Other features	IOH = 1.2MA @ VOH = 2.5V; IOL = 12MA @ VOL = 0.4V
series	LS
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
length	8.885 mm
Load capacitance (CL)	45 pF
Logic integrated circuit type	NOR GATE
MaximumI(ol)	0.012 A
Number of functions	4
Number of entries	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	13.8 mA
Prop。Delay @ Nom-Sup	30 ns
propagation delay (tpd)	30 ns
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	38535Q/M;38534H;883B
Maximum seat height	1.9 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	8.885 mm
Base Number Matches	1

Preview

Download Datasheet

View All

54LS28M/B2AJC Related Products

	54LS28M/B2AJC	54LS28/BDAJC	54LS28/BCAJC
Description	NOR Gate, LS Series, 4-Func, 2-Input, TTL, CQCC20, CERAMIC, LCC-20	LS SERIES, QUAD 2-INPUT NOR GATE, CDFP14, CERAMIC, FP-14	NOR Gate, LS Series, 4-Func, 2-Input, TTL, CDIP14, CERDIP-14
Is it Rohs certified?	incompatible	incompatible	incompatible
package instruction	CERAMIC, LCC-20	DFP, FL14,.3	DIP, DIP14,.3
Reach Compliance Code	unknown	unknown	unknown
Base Number Matches	1	1	1
Other features	IOH = 1.2MA @ VOH = 2.5V; IOL = 12MA @ VOL = 0.4V	-	IOH = 1.2MA @ VOH = 2.5V; IOL = 12MA @ VOL = 0.4V
series	LS	-	LS
JESD-30 code	S-CQCC-N20	-	R-GDIP-T14
JESD-609 code	e0	-	e0
length	8.885 mm	-	19.495 mm
Load capacitance (CL)	45 pF	-	45 pF
Logic integrated circuit type	NOR GATE	-	NOR GATE
MaximumI(ol)	0.012 A	-	0.012 A
Number of functions	4	-	4
Number of entries	2	-	2
Number of terminals	20	-	14
Maximum operating temperature	125 °C	-	125 °C
Minimum operating temperature	-55 °C	-	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	-	CERAMIC, GLASS-SEALED
encapsulated code	QCCN	-	DIP
Encapsulate equivalent code	LCC20,.35SQ	-	DIP14,.3
Package shape	SQUARE	-	RECTANGULAR
Package form	CHIP CARRIER	-	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED
power supply	5 V	-	5 V
Maximum supply current (ICC)	13.8 mA	-	13.8 mA
Prop。Delay @ Nom-Sup	30 ns	-	30 ns
propagation delay (tpd)	30 ns	-	30 ns
Certification status	Not Qualified	-	Not Qualified
Schmitt trigger	NO	-	NO
Filter level	38535Q/M;38534H;883B	-	38535Q/M;38534H;883B
Maximum seat height	1.9 mm	-	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	-	5.5 V
Minimum supply voltage (Vsup)	4.5 V	-	4.5 V
Nominal supply voltage (Vsup)	5 V	-	5 V
surface mount	YES	-	NO
technology	TTL	-	TTL
Temperature level	MILITARY	-	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	-	THROUGH-HOLE
Terminal pitch	1.27 mm	-	2.54 mm
Terminal location	QUAD	-	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED
width	8.885 mm	-	7.62 mm
