54F280M/B2AJC

Description

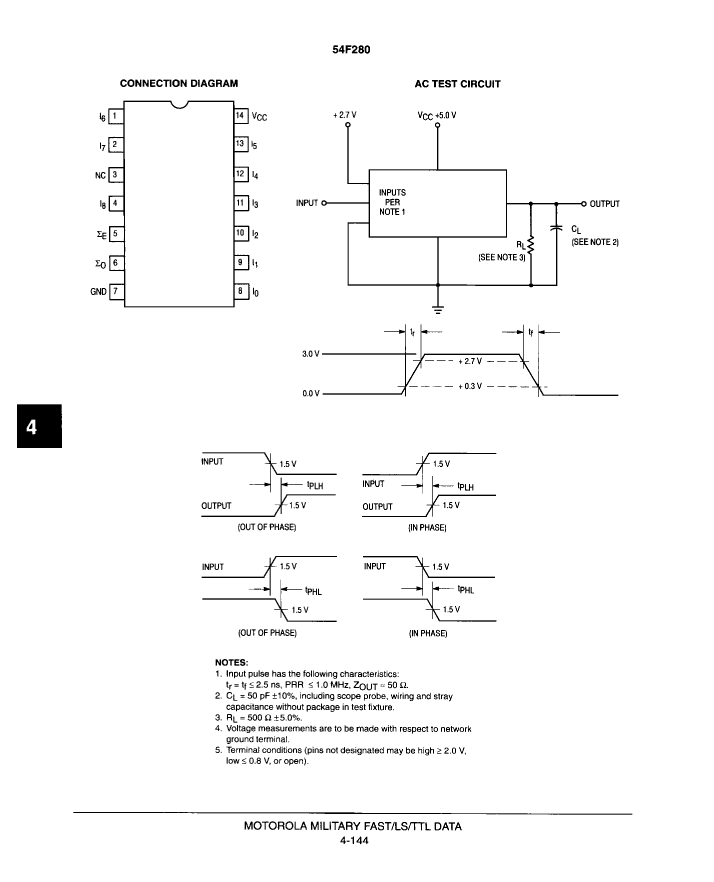

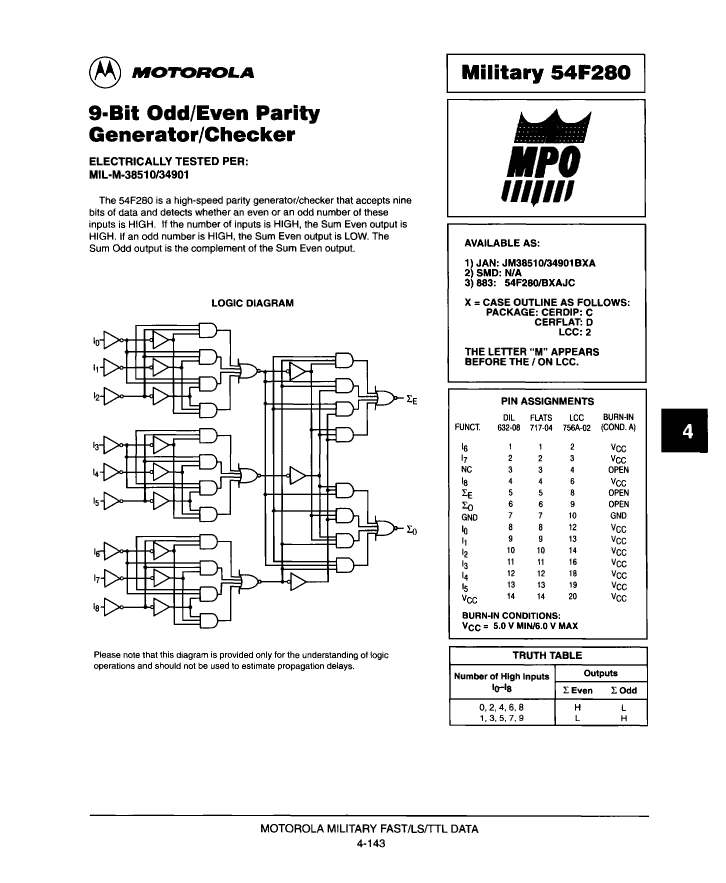

F/FAST SERIES, 9-BIT PARITY GENERATOR/CHECKER, COMPLEMENTARY OUTPUT, CQCC20, CERAMIC, LCC-20
Categorylogic    logic
File Size69KB,3 Pages
ManufacturerMotorola ( NXP )
Websitehttps://www.nxp.com
Download Datasheet Parametric Compare View All

54F280M/B2AJC Overview

F/FAST SERIES, 9-BIT PARITY GENERATOR/CHECKER, COMPLEMENTARY OUTPUT, CQCC20, CERAMIC, LCC-20

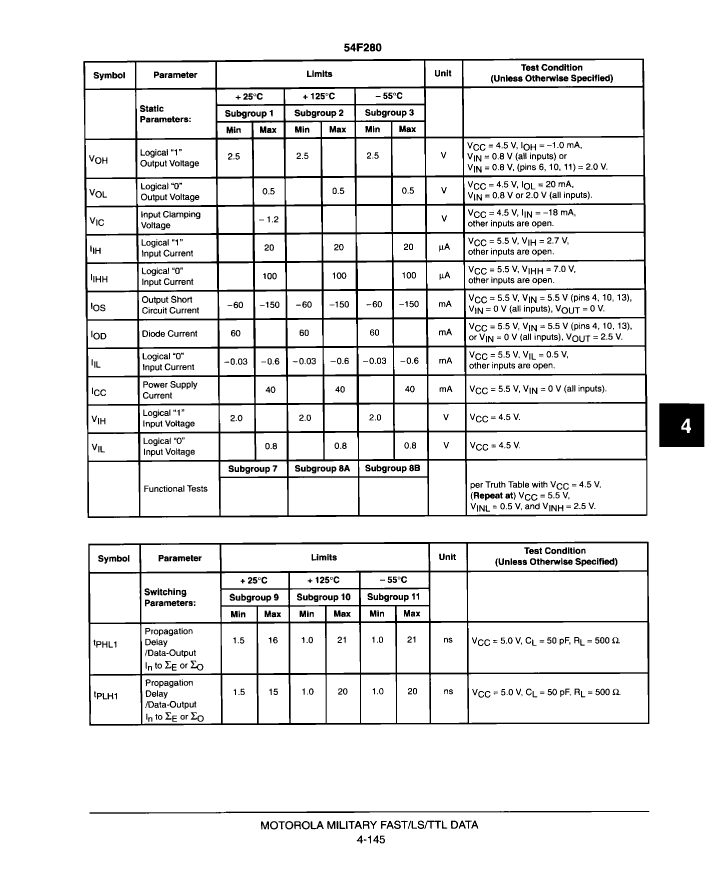

54F280M/B2AJC Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerMotorola ( NXP )
Parts packaging codeQLCC
package instructionQCCN, LCC20,.35SQ
Contacts20
Reach Compliance Codeunknown
Is SamacsysN
Other featuresODD/EVEN PARITY GENERATOR
seriesF/FAST
JESD-30 codeS-CQCC-N20
JESD-609 codee0
length8.885 mm
Load capacitance (CL)50 pF
Logic integrated circuit typePARITY GENERATOR/CHECKER
Number of digits9
Number of functions1
Number of terminals20
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output polarityCOMPLEMENTARY
Package body materialCERAMIC, METAL-SEALED COFIRED
encapsulated codeQCCN
Encapsulate equivalent codeLCC20,.35SQ
Package shapeSQUARE
Package formCHIP CARRIER
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply5 V
Maximum supply current (ICC)40 mA
propagation delay (tpd)21 ns
Certification statusNot Qualified
Filter level38535Q/M;38534H;883B
Maximum seat height1.9 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyTTL
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formNO LEAD
Terminal pitch1.27 mm
Terminal locationQUAD
Maximum time at peak reflow temperatureNOT SPECIFIED
width8.885 mm
Base Number Matches1

54F280M/B2AJC Related Products

54F280M/B2AJC 54F280/BDAJC 54F280/BCAJC
Description F/FAST SERIES, 9-BIT PARITY GENERATOR/CHECKER, COMPLEMENTARY OUTPUT, CQCC20, CERAMIC, LCC-20 F/FAST SERIES, 9-BIT PARITY GENERATOR/CHECKER, COMPLEMENTARY OUTPUT, CDFP14, CERAMIC, FP-14 F/FAST SERIES, 9-BIT PARITY GENERATOR/CHECKER, COMPLEMENTARY OUTPUT, CDIP14, CERDIP-14
Is it Rohs certified? incompatible incompatible incompatible
package instruction QCCN, LCC20,.35SQ DFP, FL14,.3 CERDIP-14
Reach Compliance Code unknown unknown unknown
Other features ODD/EVEN PARITY GENERATOR ODD/EVEN PARITY GENERATOR ODD/EVEN PARITY GENERATOR
series F/FAST F/FAST F/FAST
JESD-30 code S-CQCC-N20 R-GDFP-F14 R-GDIP-T14
JESD-609 code e0 e0 e0
length 8.885 mm 9.65 mm 19.495 mm
Load capacitance (CL) 50 pF 50 pF 50 pF
Logic integrated circuit type PARITY GENERATOR/CHECKER PARITY GENERATOR/CHECKER PARITY GENERATOR/CHECKER
Number of digits 9 9 9
Number of functions 1 1 1
Number of terminals 20 14 14
Maximum operating temperature 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C
Output polarity COMPLEMENTARY COMPLEMENTARY COMPLEMENTARY
Package body material CERAMIC, METAL-SEALED COFIRED CERAMIC, GLASS-SEALED CERAMIC, GLASS-SEALED
encapsulated code QCCN DFP DIP
Encapsulate equivalent code LCC20,.35SQ FL14,.3 DIP14,.3
Package shape SQUARE RECTANGULAR RECTANGULAR
Package form CHIP CARRIER FLATPACK IN-LINE
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
power supply 5 V 5 V 5 V
Maximum supply current (ICC) 40 mA 40 mA 40 mA
propagation delay (tpd) 21 ns 21 ns 21 ns
Certification status Not Qualified Not Qualified Not Qualified
Filter level 38535Q/M;38534H;883B 38535Q/M;38534H;883B 38535Q/M;38534H;883B
Maximum seat height 1.9 mm 2.15 mm 5.08 mm
Maximum supply voltage (Vsup) 5.5 V 5.5 V 5.5 V
Minimum supply voltage (Vsup) 4.5 V 4.5 V 4.5 V
Nominal supply voltage (Vsup) 5 V 5 V 5 V
surface mount YES YES NO
technology TTL TTL TTL
Temperature level MILITARY MILITARY MILITARY
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form NO LEAD FLAT THROUGH-HOLE
Terminal pitch 1.27 mm 1.27 mm 2.54 mm
Terminal location QUAD DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
width 8.885 mm 6.415 mm 7.62 mm
Base Number Matches 1 1 1
Maker Motorola ( NXP ) - Motorola ( NXP )
Parts packaging code QLCC DFP -
Contacts 20 14 -
