86093488613H55E1LF

Description
Board Euro Connector, 48 Contact(s), 3 Row(s), Female, Right Angle, Solder Terminal, Receptacle, ROHS COMPLIANT
CategoryThe connector    The connector
File Size126KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

86093488613H55E1LF Online Shopping

Suppliers Part Number Price MOQ In stock
86093488613H55E1LF - - View Buy Now

86093488613H55E1LF Overview

Board Euro Connector, 48 Contact(s), 3 Row(s), Female, Right Angle, Solder Terminal, Receptacle, ROHS COMPLIANT

86093488613H55E1LF Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerAmphenol
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time9 weeks
Is SamacsysN
Other featuresSTANDARD: DIN 41612
Body/casing typeRECEPTACLE
Connector typeBOARD EURO CONNECTOR
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedPURE MATTE TIN OVER NICKEL
Contact point genderFEMALE
Contact materialCOPPER ALLOY
DIN complianceYES
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Manufacturer's serial number8609
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded3
OptionsGENERAL PURPOSE
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts48
UL Flammability Code94V-0
Base Number Matches1
1
2 3
4
5
6
A
A

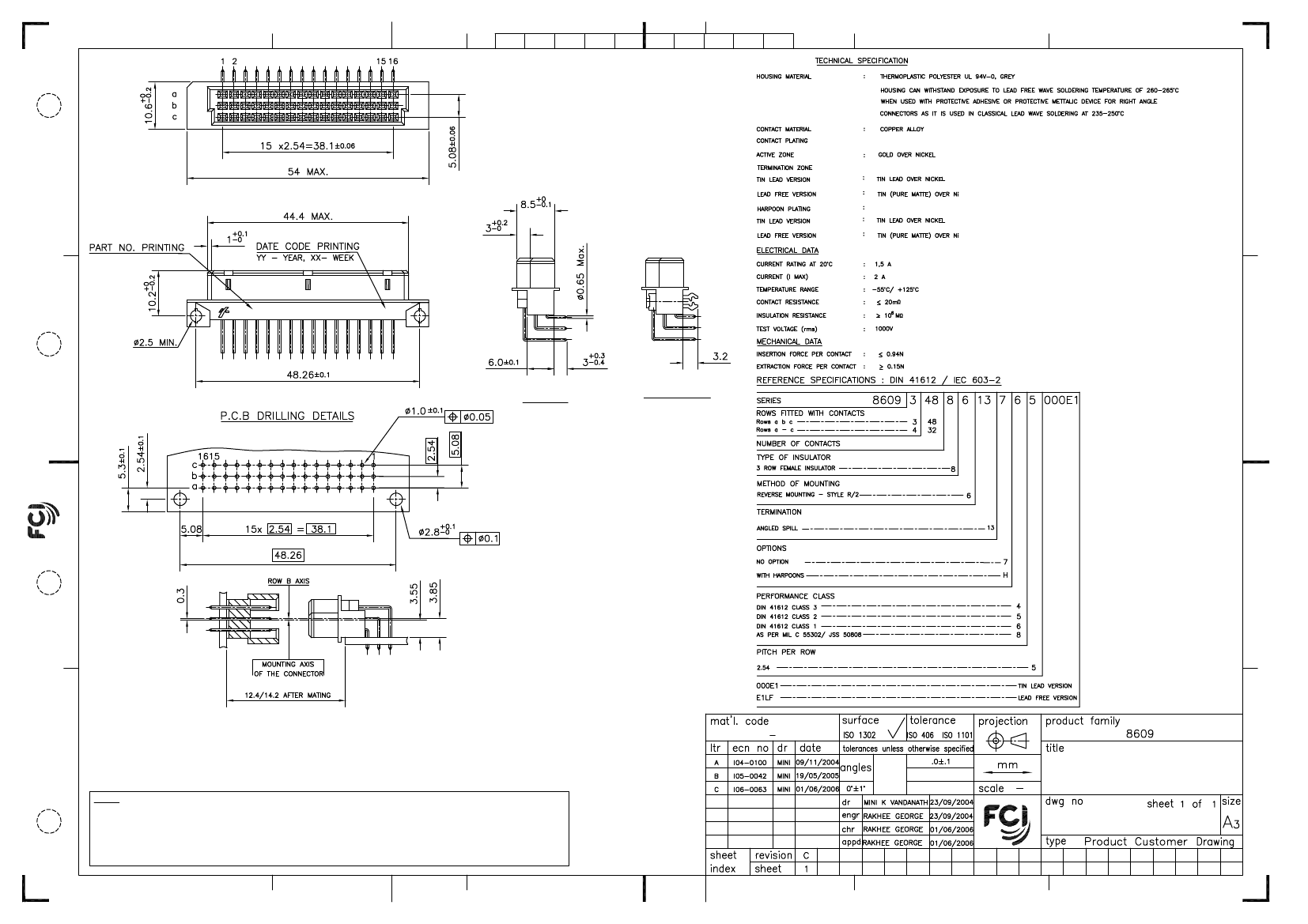

8609 XXX XX XX XXX XXXXX YY XX
