8609-396-81-14-785-000-E2 datasheet, PDF

8609-396-81-14-785-000-E2: DescriptionBoard Euro Connector, 96 Contact(s), 3 Row(s), Female, Straight, Solder Terminal; CategoryThe connector The connector; File Size77KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

8609-396-81-14-785-000-E2 Overview

Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Straight, Solder Terminal

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Is Samacsys	N
Connector type	BOARD EURO CONNECTOR
Contact point gender	FEMALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	8609
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	96
UL Flammability Code	94V-0
Base Number Matches	1

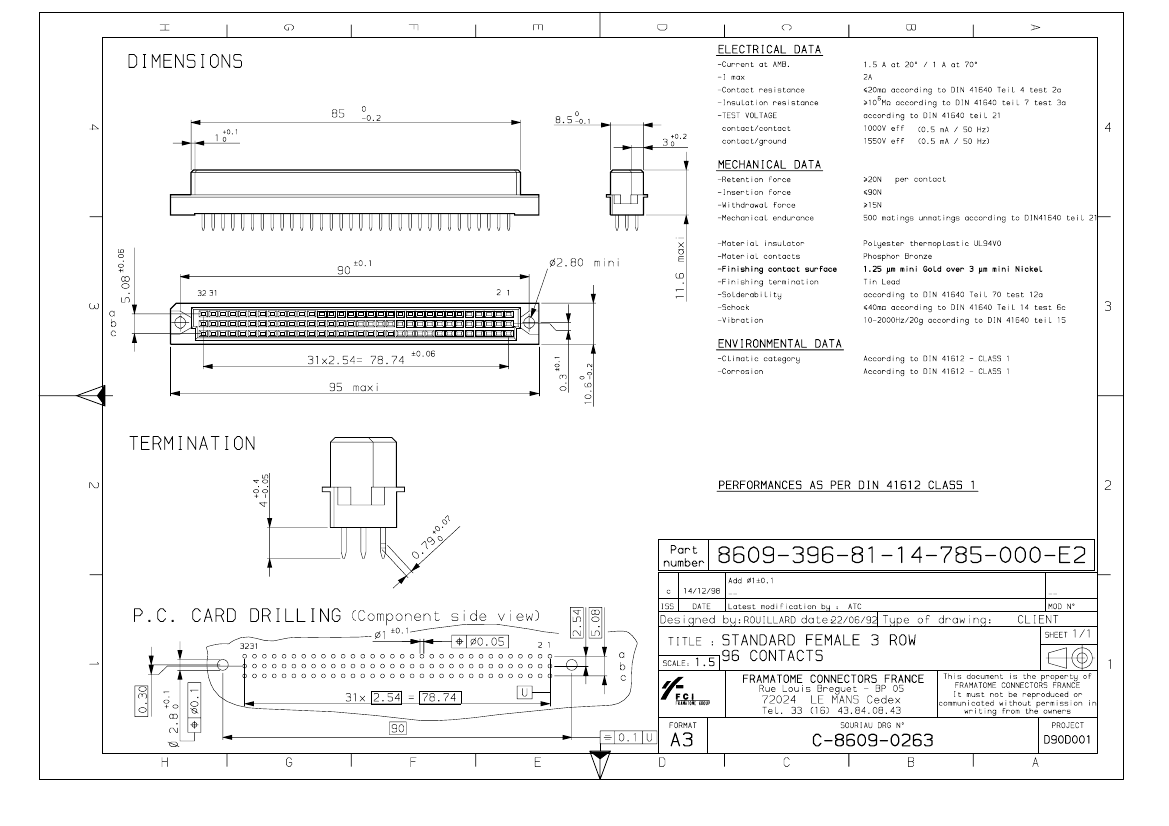

PDM: Rev:C

STATUS:

Released

Printed: Sep 29, 2005
