88951-165LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 88951-165LF

88951-165LF: DescriptionBoard Connector, 24 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, LEAD FREE; CategoryThe connector The connector; File Size725KB，7 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

88951-165LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	88951-165LF	-	-	View	Buy Now

88951-165LF Overview

Board Connector, 24 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, LEAD FREE

88951-165LF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
Factory Lead Time	13 weeks
Is Samacsys	N
Board mount options	PEG
body width	0.622 inch
subject depth	0.669 inch
body length	0.47 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	.3614 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	88951
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	24
UL Flammability Code	94V-0
Evacuation force-minimum value	.14734 N
Base Number Matches	1

Preview

Download Datasheet

View All

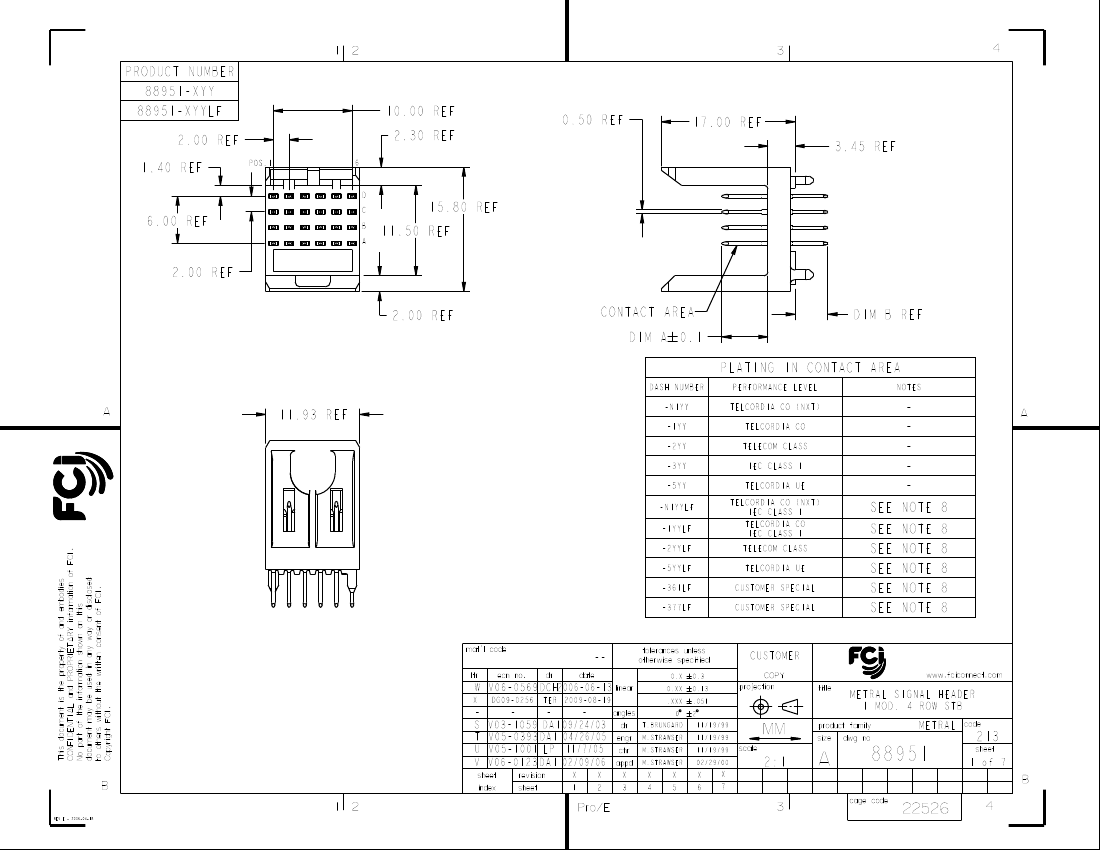

PRODUCT NUMBER

88951-XYY

88951-XYYLF

2.00 REF

1.40 REF

POS.1

10.00 REF

2.30 REF

0.50 REF

17.00 REF

3.45 REF

6.00 REF

15.80 REF

11.50 REF

2.00 REF

CONTACT AREA

DIM A 0.1

PLATING IN CONTACT AREA

DASH NUMBER

DIM B REF

PERFORMANCE LEVEL

TELCORDIA CO (NXT)

TELCORDIA CO

TELECOM CLASS

IEC CLASS 1

TELCORDIA UE

TELCORDIA CO (NXT)

IEC CLASS 1

TELCORDIA CO

IEC CLASS 1

TELECOM CLASS

TELCORDIA UE

CUSTOMER SPECIAL

NOTES

11.93 REF

-N1YY

-1YY

-2YY

-3YY

-5YY

-N1YYLF

-1YYLF

-2YYLF

-5YYLF

-361LF

-377LF

SEE NOTE 8

CONFIDENTIAL and PROPRIETARY information of FCI.

This document is the property of and embodies

to others without the written consent of FCI.

document may be used in any way or disclosed

No part of the information shown on this

mat'l code

ecn no.

date

tolerances unless

otherwise specified

CUSTOMER

COPY

projection

title

www.fciconnect.com

ltr

0.X

0.XX

.XXX

0.3

0.13

.051

linear

W V06-0569 DCH2006-06-13

DG09-0256

TER 2009-08-19

angles

V03-1059 DAI 09/24/03

V05-0393 DAI 04/26/05

engr

V05-1001 LP 11/7/05

chr

V06-0123 DAI 02/09/06

appd

revision

sheet

METRAL SIGNAL HEADER

1 MOD. 4 ROW STB

METRAL

code

dwg no

T.BRUNGARD

M.STRAWSER

11/19/99

02/29/00

scale

product family

size

2:1

88951

cage code

213

sheet

1 of 7

sheet

Pro/E

REV E - 2006-04-18

index

22526

PDM: Rev:X

STATUS:

Released

Printed: Nov 30, 2009

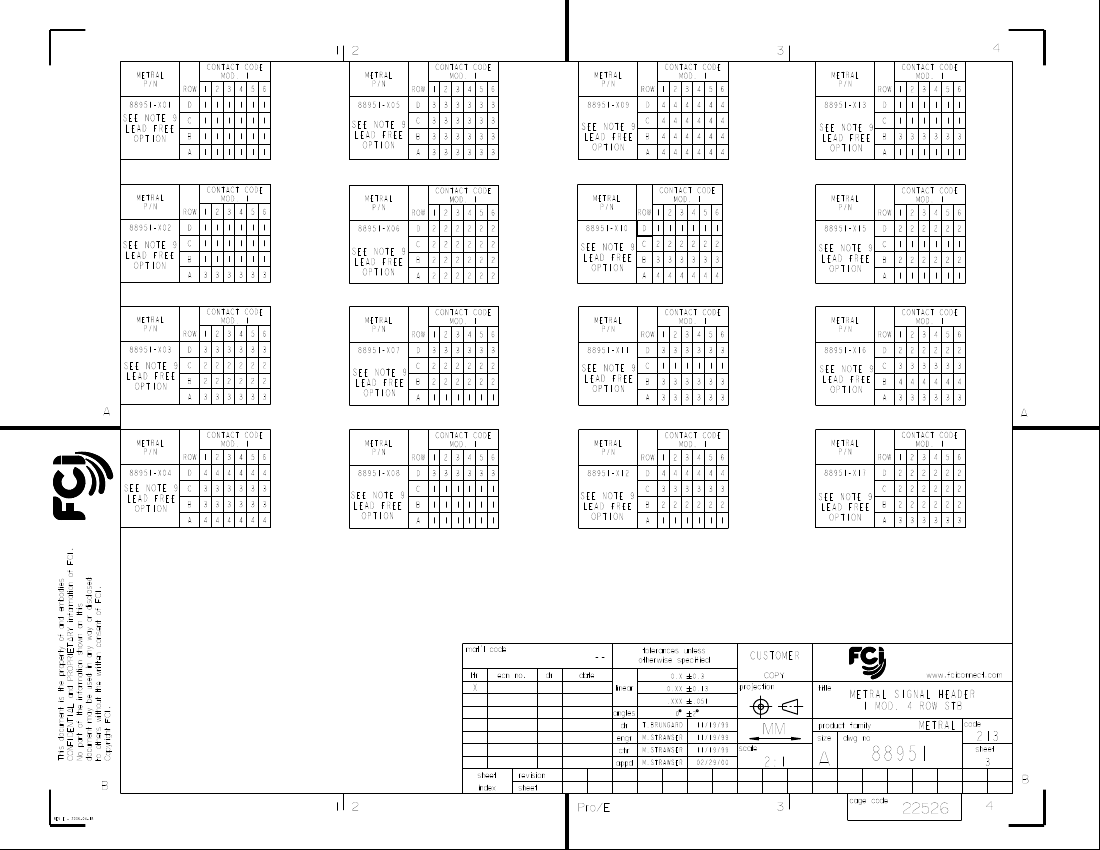

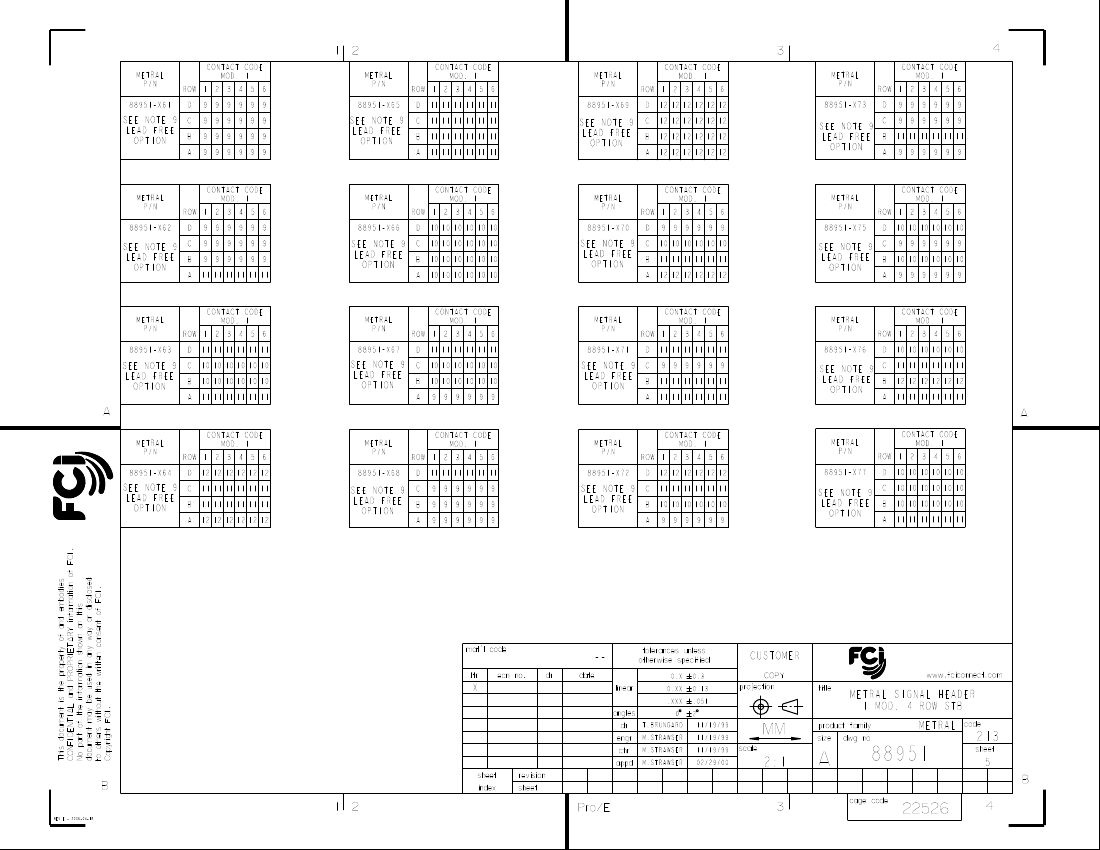

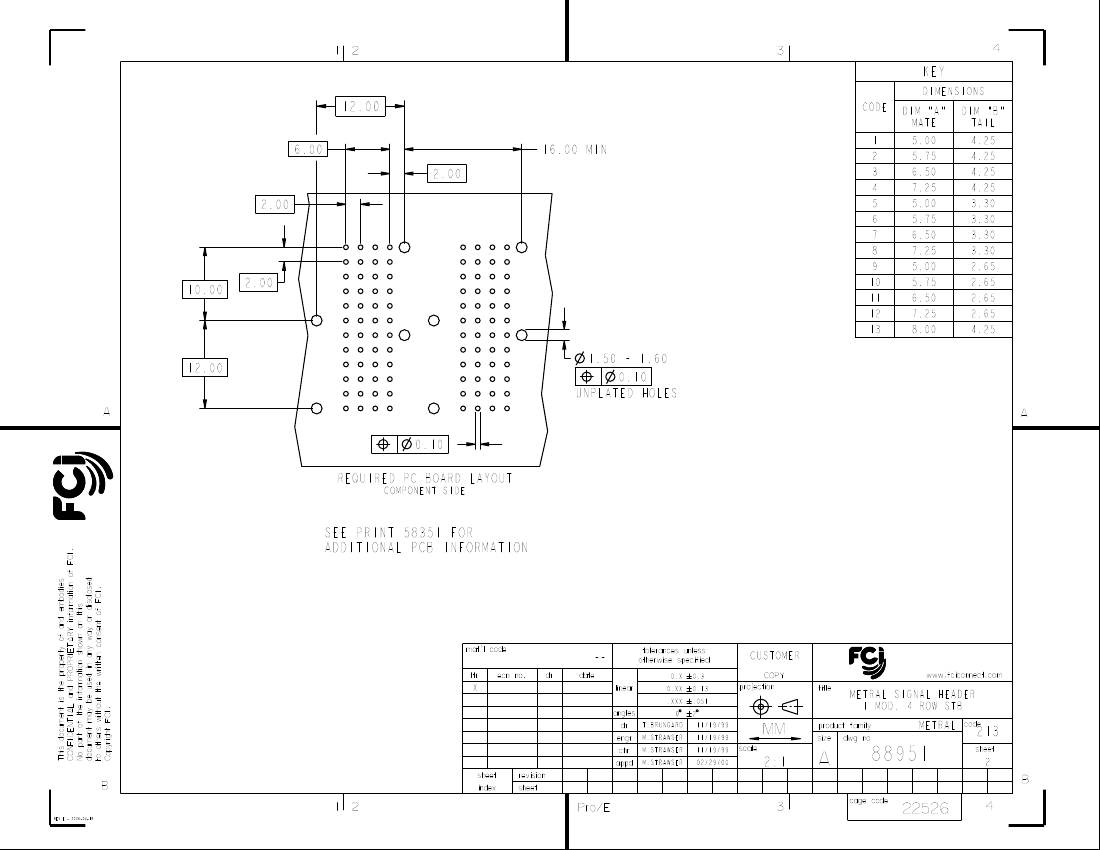

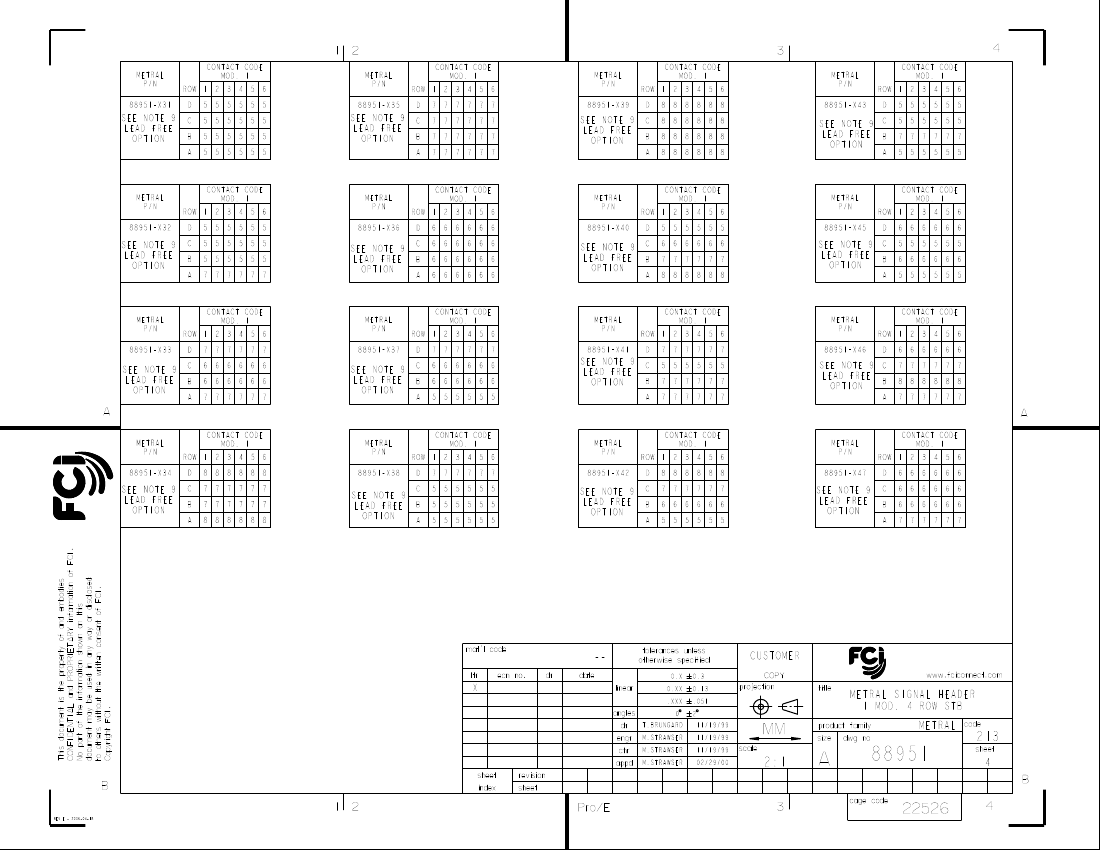

88951-165LF Related Products

	88951-165LF	88951-101LF	88951-102LF	88951-135LF
Description	Board Connector, 24 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, LEAD FREE	Board Connector, 24 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle, LEAD FREE	Board Connector, 24 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle, LEAD FREE	Board Connector, 24 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, LEAD FREE
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Amphenol	Amphenol	Amphenol	Amphenol
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	compliant	compliant	compliant	compliant
Factory Lead Time	13 weeks	9 weeks	11 weeks	13 weeks
Board mount options	PEG	PEG	PEG	PEG
body width	0.622 inch	0.622 inch	0.622 inch	0.622 inch
subject depth	0.669 inch	0.669 inch	0.669 inch	0.669 inch
body length	0.47 inch	0.47 inch	0.47 inch	0.47 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	TIN	TIN	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Contact point gender	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	10 mΩ	10 mΩ	10 mΩ	10 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO	NO
Dielectric withstand voltage	1400VAC V	1400VAC V	1400VAC V	1400VAC V
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
maximum insertion force	.3614 N	100.08 N	100.08 N	.3614 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Mixed contacts	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE
PCB row number	4	4	4	4
Number of rows loaded	4	4	4	4
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.0066 mm	2 mm	2 mm	2.0066 mm
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1 A	1 A	1 A	1 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	2 mm	2 mm	2 mm	2 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	24	24	24	24
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	.14734 N	.14734 N	.14734 N	.14734 N
Base Number Matches	1	1	1	1
