5828C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> 5828C

5828C: DescriptionEDO DRAM Module, 2MX32, 70ns, CMOS, SIMM-72; Categorystorage storage; File Size435KB，14 Pages; ManufacturerCelestica Inc.

Download Datasheet Parametric Compare View All

5828C Overview

EDO DRAM Module, 2MX32, 70ns, CMOS, SIMM-72

5828C Parametric

Parameter Name	Attribute value
Maker	Celestica Inc.
Parts packaging code	SIMM
package instruction	,
Contacts	72
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
access mode	FAST PAGE WITH EDO
Maximum access time	70 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-XSMA-N72
memory density	67108864 bit
Memory IC Type	EDO DRAM MODULE
memory width	32
Number of functions	1
Number of ports	1
Number of terminals	72
word count	2097152 words
character code	2000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2MX32
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal location	SINGLE
Base Number Matches	1

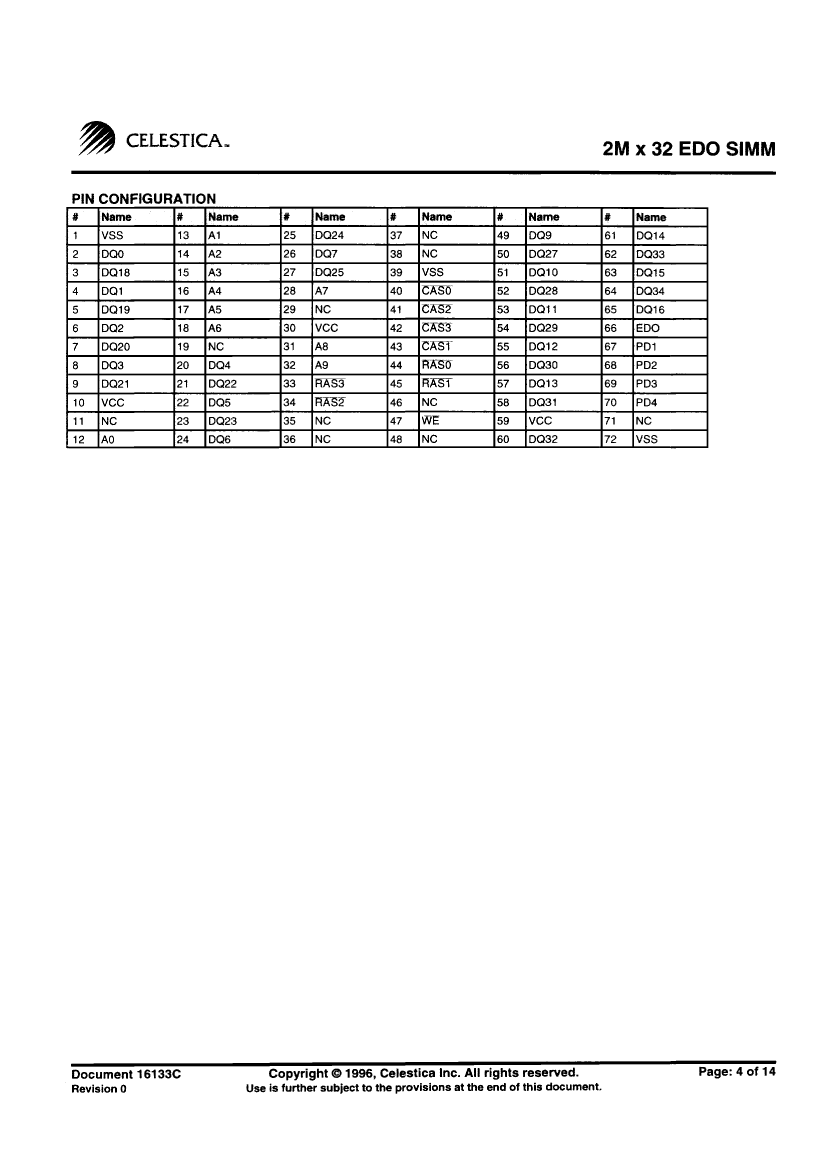

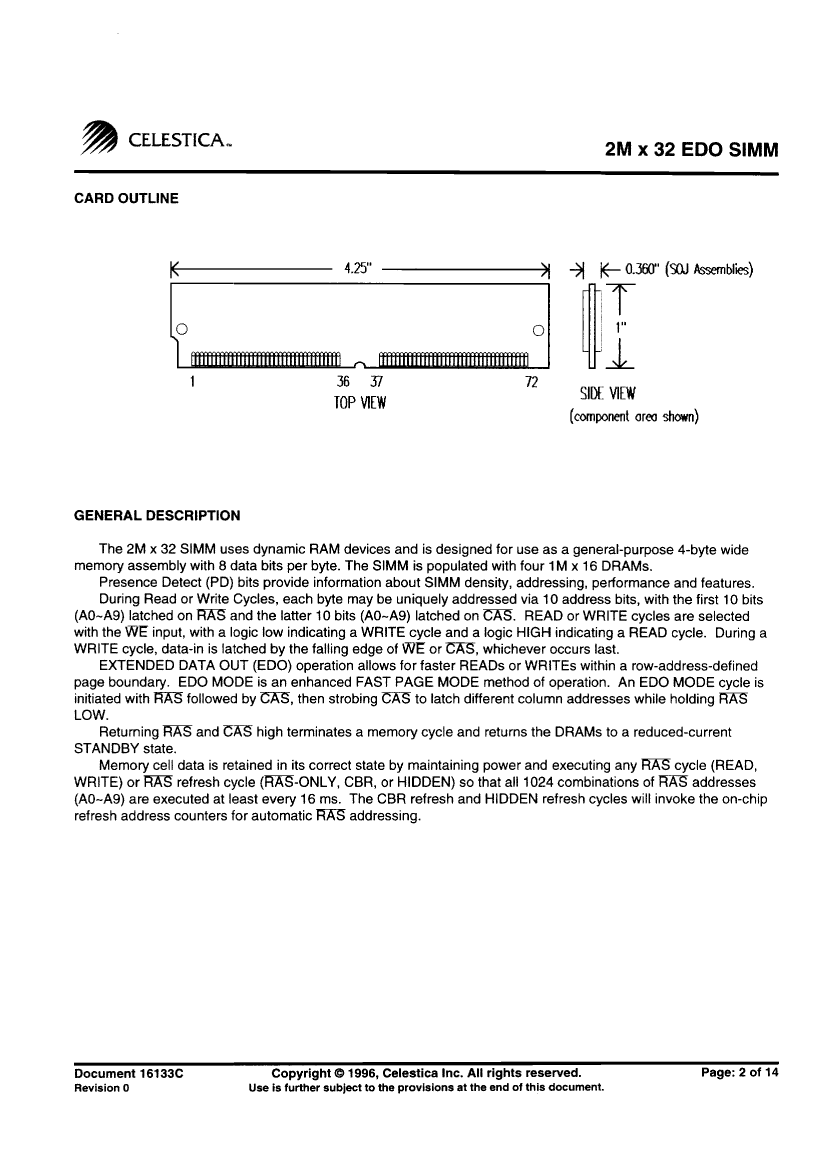

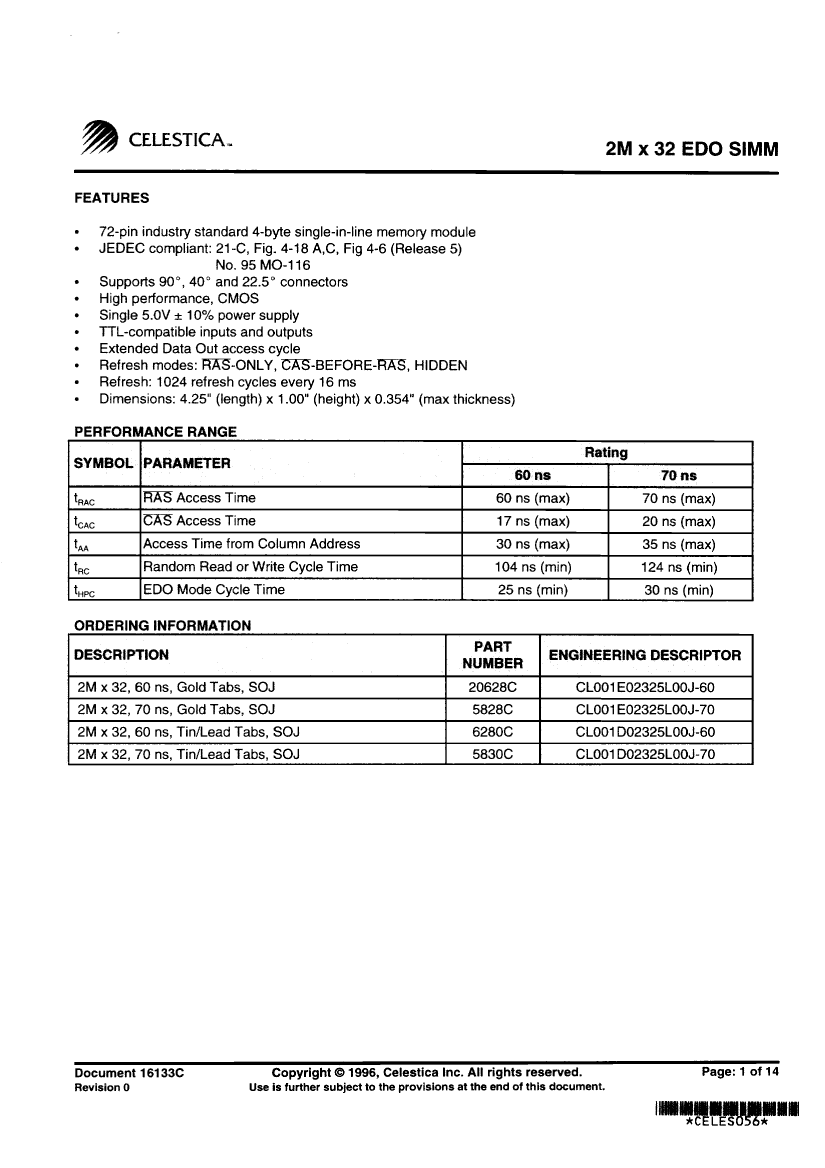

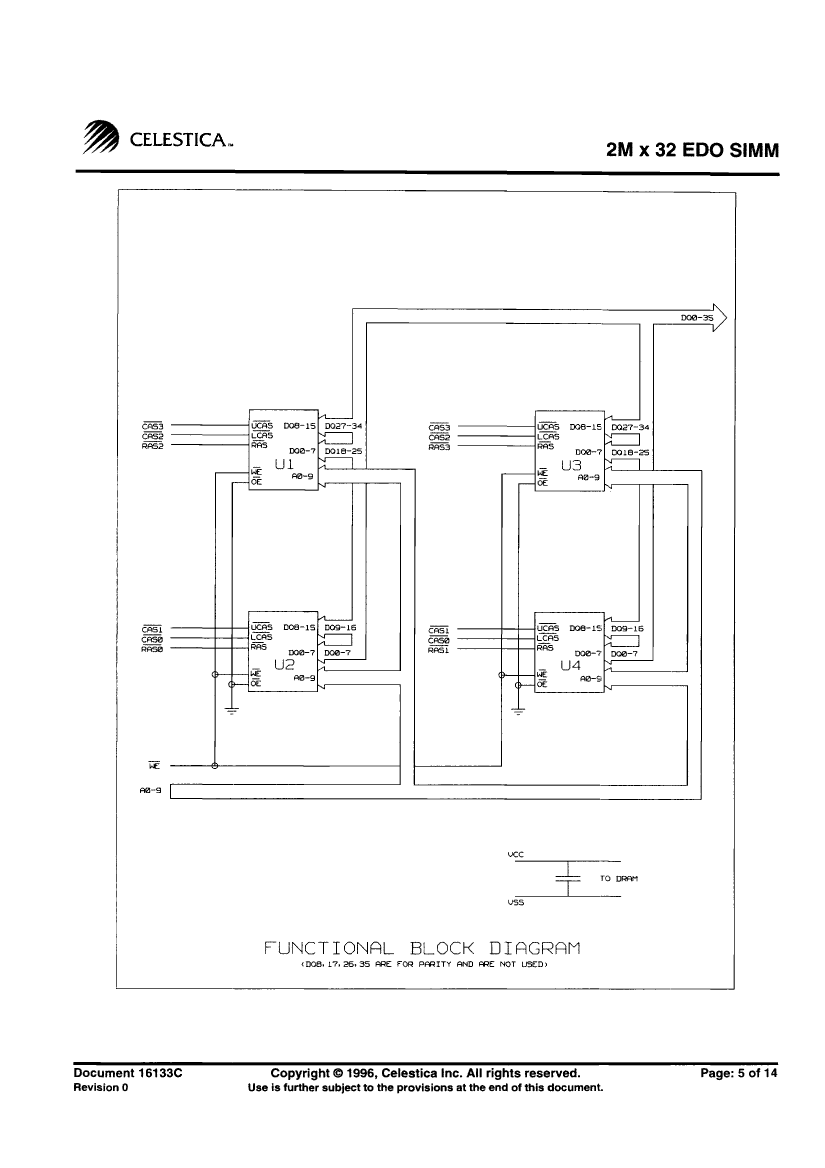

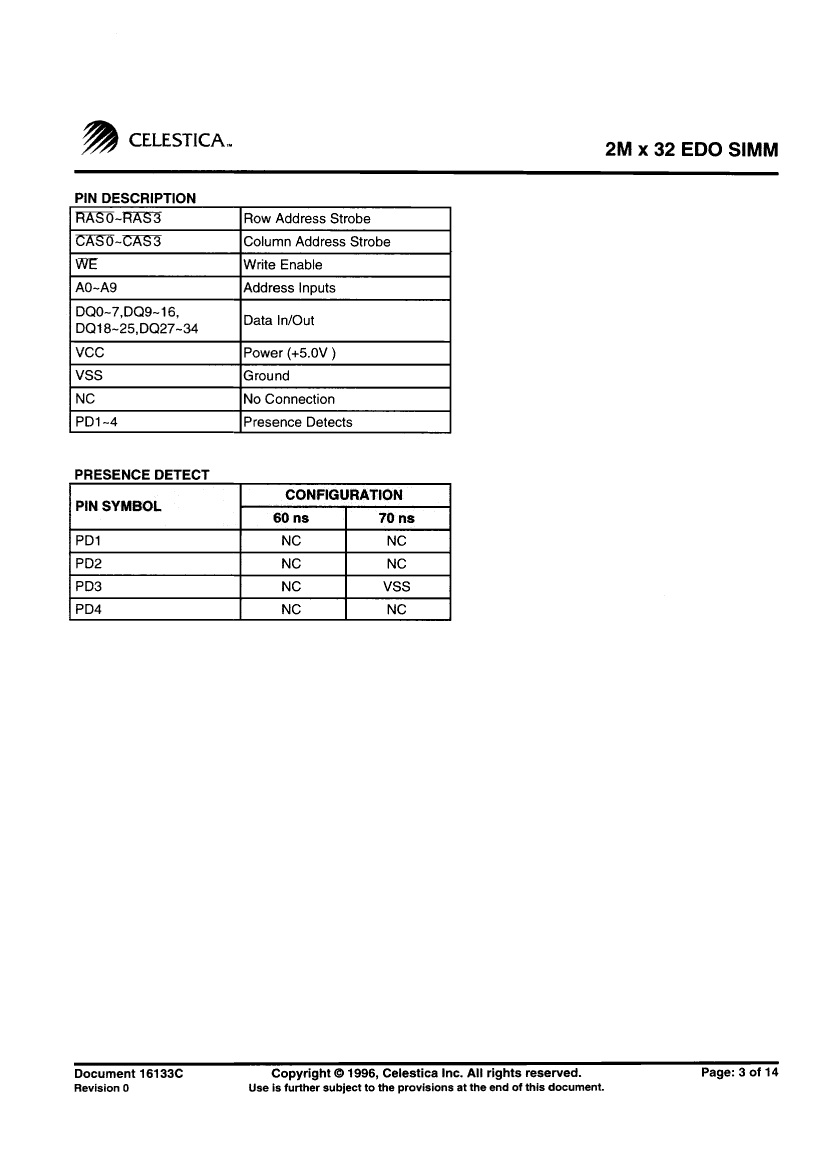

Preview

Download Datasheet

View All

5828C Related Products

	5828C	20628C	6280C	CL001D02325L00J-70	CL001D02325L00J-60	CL001E02325L00J-60	5830C	CL001E02325L00J-70
Description	EDO DRAM Module, 2MX32, 70ns, CMOS, SIMM-72	EDO DRAM Module, 2MX32, 60ns, CMOS, SIMM-72	EDO DRAM Module, 2MX32, 60ns, CMOS, SIMM-72	EDO DRAM Module, 2MX32, 70ns, CMOS, SIMM-72	EDO DRAM Module, 2MX32, 60ns, CMOS, SIMM-72	EDO DRAM Module, 2MX32, 60ns, CMOS, SIMM-72	EDO DRAM Module, 2MX32, 70ns, CMOS, SIMM-72	EDO DRAM Module, 2MX32, 70ns, CMOS, SIMM-72
Parts packaging code	SIMM	SIMM	SIMM	SIMM	SIMM	SIMM	SIMM	SIMM
Contacts	72	72	72	72	72	72	72	72
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO
Maximum access time	70 ns	60 ns	60 ns	70 ns	60 ns	60 ns	70 ns	70 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72
memory density	67108864 bit	67108864 bit	67108864 bit	67108864 bit	67108864 bit	67108864 bit	67108864 bit	67108864 bit
Memory IC Type	EDO DRAM MODULE	EDO DRAM MODULE	EDO DRAM MODULE	EDO DRAM MODULE	EDO DRAM MODULE	EDO DRAM MODULE	EDO DRAM MODULE	EDO DRAM MODULE
memory width	32	32	32	32	32	32	32	32
Number of functions	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1
Number of terminals	72	72	72	72	72	72	72	72
word count	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words
character code	2000000	2000000	2000000	2000000	2000000	2000000	2000000	2000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	2MX32	2MX32	2MX32	2MX32	2MX32	2MX32	2MX32	2MX32
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maker	Celestica Inc.	Celestica Inc.	Celestica Inc.	-	Celestica Inc.	Celestica Inc.	Celestica Inc.	Celestica Inc.
