74ACT139

Description
AC SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDSO16
Categorysemiconductor    logic
File Size98KB,9 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Download Datasheet Parametric Compare View All

74ACT139 Overview

AC SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDSO16

74ACT139 Parametric

Parameter NameAttribute value
Number of functions2
Number of terminals16
Maximum operating temperature85 Cel
Minimum operating temperature-40 Cel
Maximum supply/operating voltage6 V
Minimum supply/operating voltage2 V
Rated supply voltage3.3 V
Processing package description0.150 INCH, MS-012, SOIC-16
Lead-freeYes
EU RoHS regulationsYes
stateACTIVE
CraftsmanshipCMOS
packaging shapeRECTANGULAR
Package SizeSMALL OUTLINE
surface mountYes
Terminal formGULL WING
Terminal spacing1.27 mm
terminal coatingMATTE TIN
Terminal locationDUAL
Packaging MaterialsPLASTIC/EPOXY
Temperature levelINDUSTRIAL
seriesAC
Logic IC typeOTHER DECODER/DRIVER
Output polarityINVERTED
propagation delay TPD11 ns
74AC139 • 74ACT139 Dual 1-of-4 Decoder/Demultiplexer
November 1988
Revised November 1999
74AC139 • 74ACT139
Dual 1-of-4 Decoder/Demultiplexer
General Description
The AC/ACT139 is a high-speed, dual 1-of-4 decoder/
demultiplexer. The device has two independent decoders,
each accepting two inputs and providing four mutually-
exclusive active-LOW outputs. Each decoder has an
active-LOW Enable input which can be used as a data
input for a 4-output demultiplexer. Each half of the AC/
ACT139 can be used as a function generator providing all
four minterms of two variables.
Features
s
I
CC
reduced by 50%
s
Multifunction capability
s
Two completely independent 1-of-4 decoders
s
Active LOW mutually exclusive outputs
s
Outputs source/sink 24 mA
s
ACT139 has TTL-compatible inputs
Ordering Code:
Order Number
74AC139SC
74AC139SJ
74AC139MTC
74AC139PC
74ACT139SC
74ACT139SJ
74ACT139MTC
74ACT139PC
Package Number
M16A
M16D
MTC16
N16E
M16A
M16D
MTC16
N16E
Package Description
16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150” Narrow Body
16-Lead Small Outline Package (SOIC), EIAJ Type II, 5.3mm Wide
16-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide
16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300” Wide
16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150” Narrow Body
16-Lead Small Outline Package (SOIC), EIAJ Type II, 5.3mm Wide
16-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide
16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300” Wide
Device also available in Tape and Reel. Specify by appending suffix letter “X” to the ordering code.

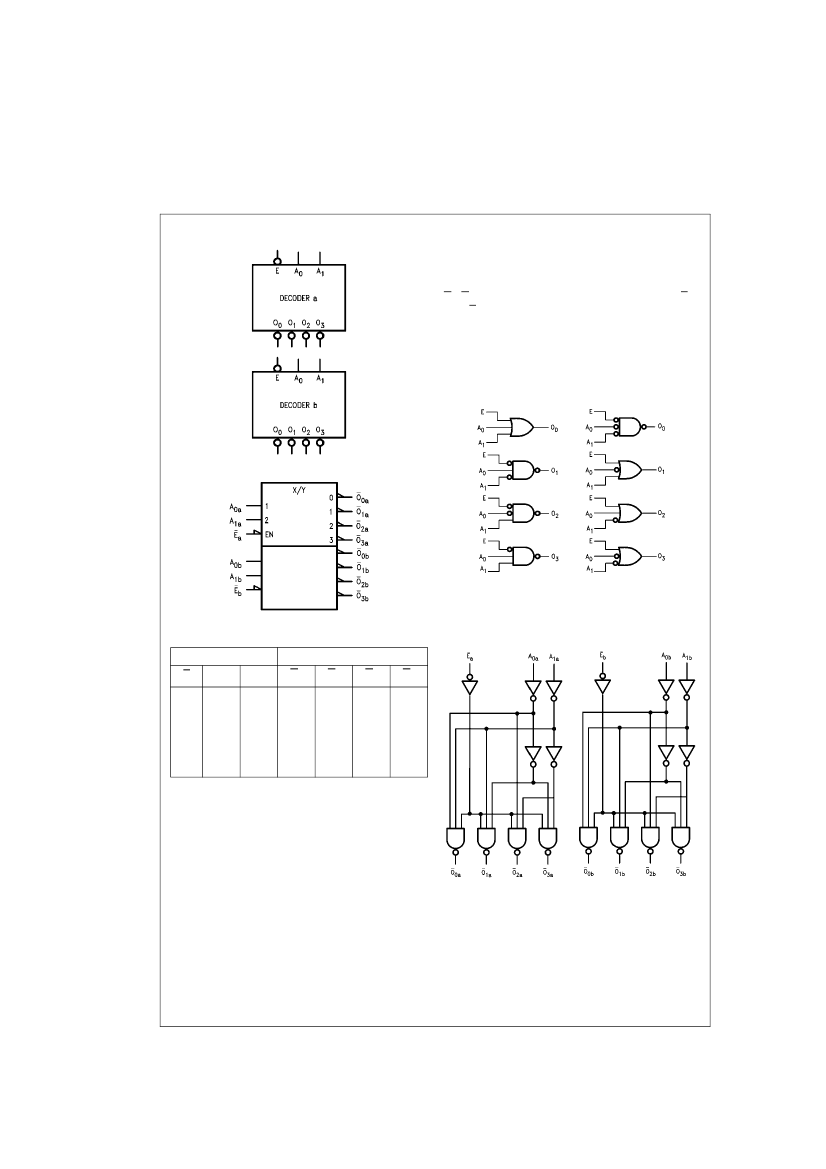

Connection Diagram
Pin Descriptions
Pin Names
A
0
, A
1
E
O
0
–O
3
Description
Address Inputs
Enable Inputs
Outputs
FACT is a trademark of Fairchild Semiconductor Corporation.
© 1999 Fairchild Semiconductor Corporation
DS009926
www.fairchildsemi.com
