Part Number

Search

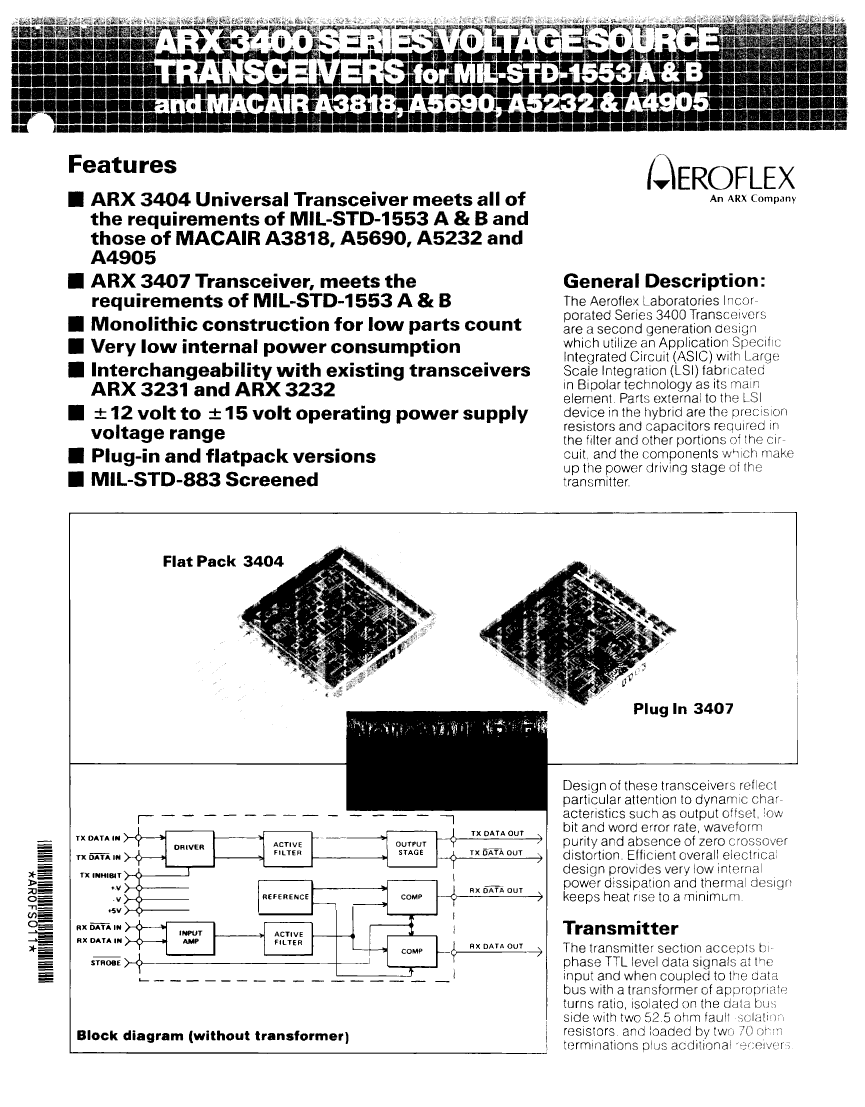

5962-8959202XC

Description
Line Transceiver, 1 Func, 1 Driver, 1 Rcvr, 1.270 X 1.270 INCH, 0.175 INCH HEIGHT, DIP-24
CategoryAnalog mixed-signal IC    Drivers and interfaces
File Size373KB,6 Pages
ManufacturerCobham Semiconductor Solutions
Download Datasheet Parametric View All

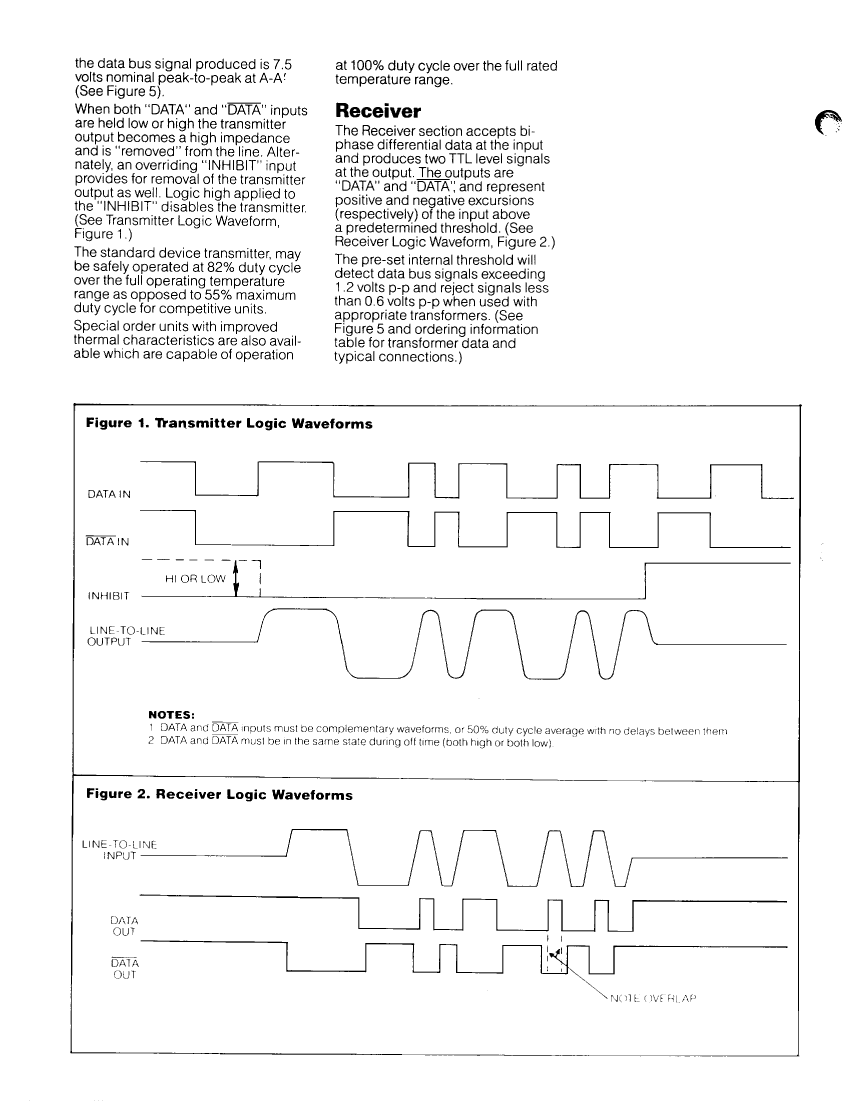

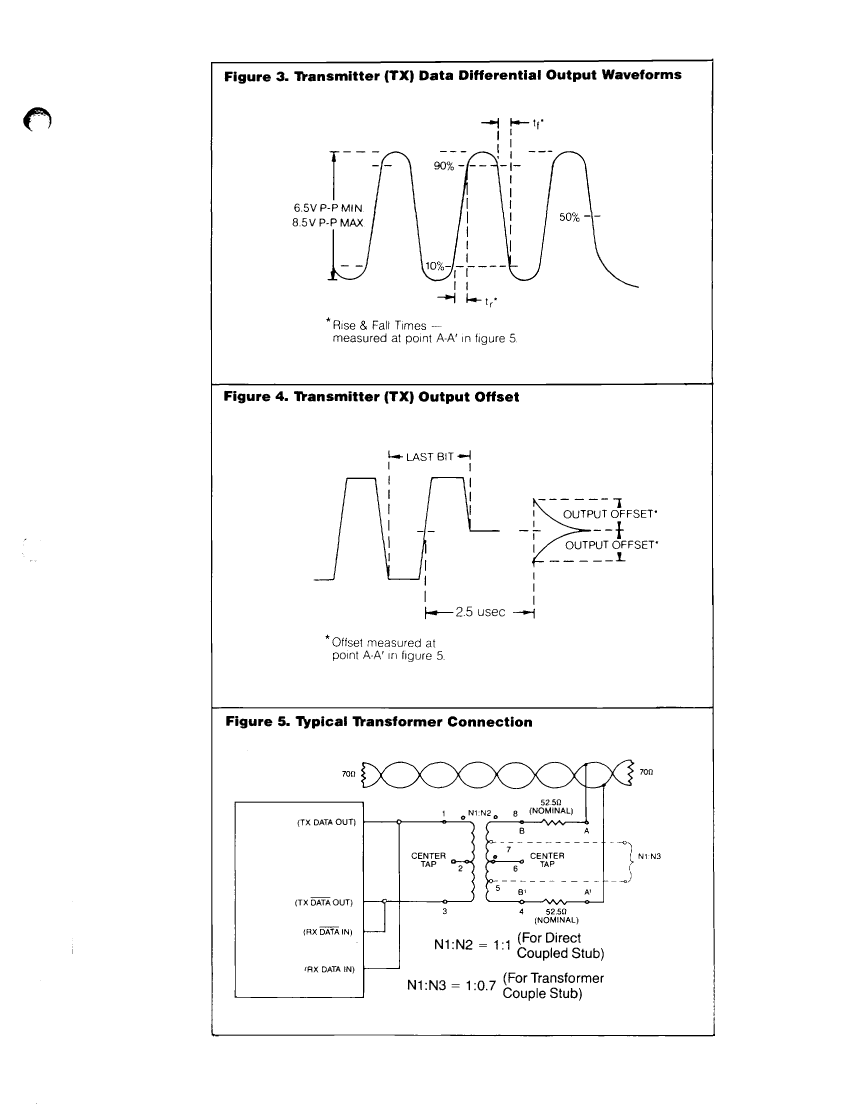

5962-8959202XC Overview

Line Transceiver, 1 Func, 1 Driver, 1 Rcvr, 1.270 X 1.270 INCH, 0.175 INCH HEIGHT, DIP-24

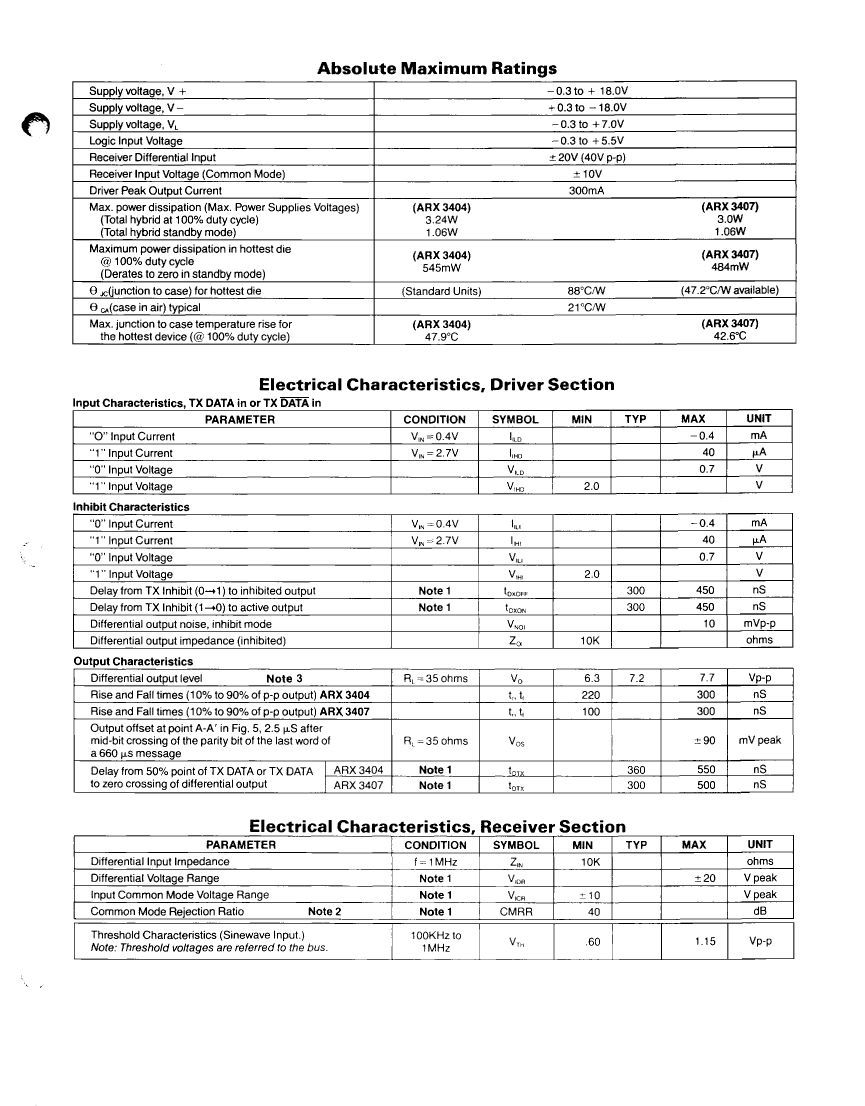

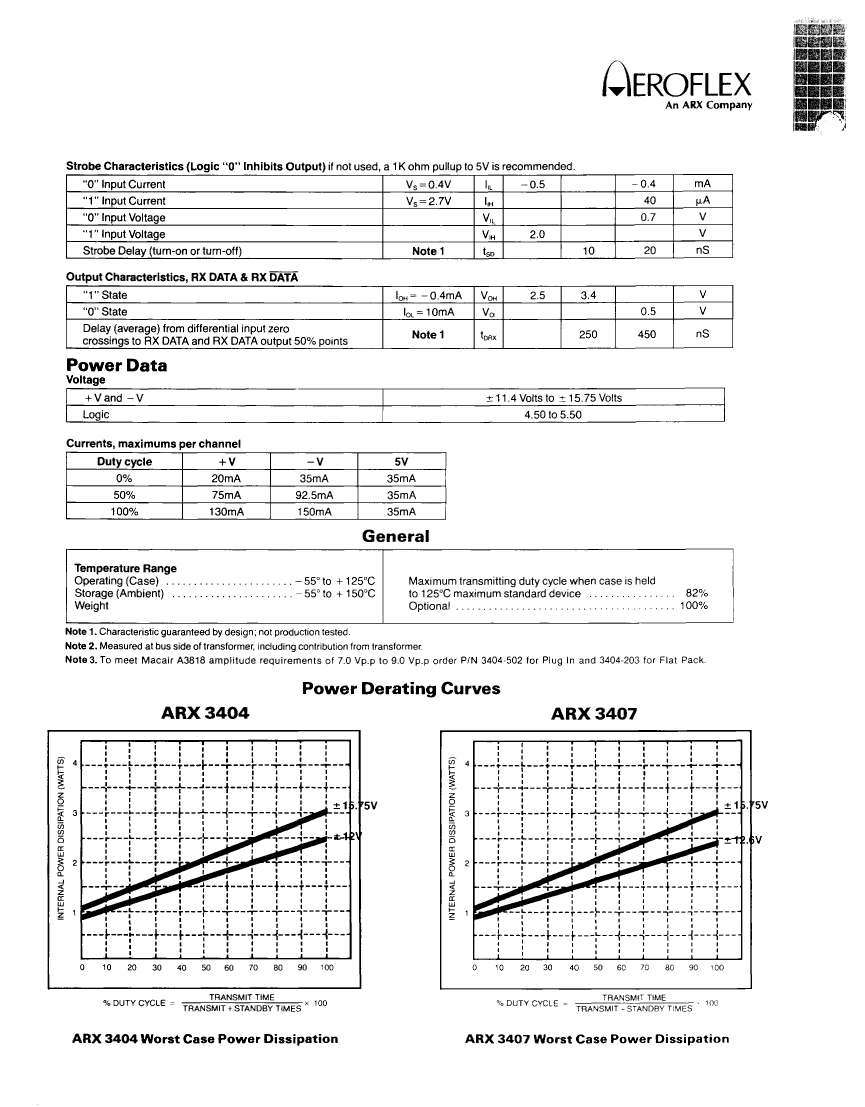

5962-8959202XC Parametric

Parameter NameAttribute value
MakerCobham Semiconductor Solutions
Parts packaging codeDIP
package instructionDIP,
Contacts24
Reach Compliance Codeunknown
ECCN codeEAR99
Is SamacsysN
Differential outputYES
Number of drives1
Input propertiesDIFFERENTIAL
Interface integrated circuit typeLINE TRANSCEIVER
Interface standardsMIL-STD-1553A; MIL-STD-1553B
JESD-30 codeS-XDIP-P24
JESD-609 codee4
Nominal negative supply voltage-15 V
Number of functions1
Number of terminals24
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialUNSPECIFIED
encapsulated codeDIP
Package shapeSQUARE
Package formIN-LINE
Certification statusNot Qualified
Maximum receive delay450 ns
Number of receiver bits1
Filter levelMIL-STD-883
Maximum seat height4.46 mm
Maximum supply voltage15.75 V
Minimum supply voltage11.4 V
Nominal supply voltage15 V
Supply voltage 1-max5.5 V
Mains voltage 1-minute4.5 V
Supply voltage1-Nom5 V
surface mountNO
Temperature levelMILITARY
Terminal surfaceGOLD
Terminal formPIN/PEG
Terminal pitch2.54 mm
Terminal locationDUAL
maximum transmission delay550 ns
Base Number Matches1
