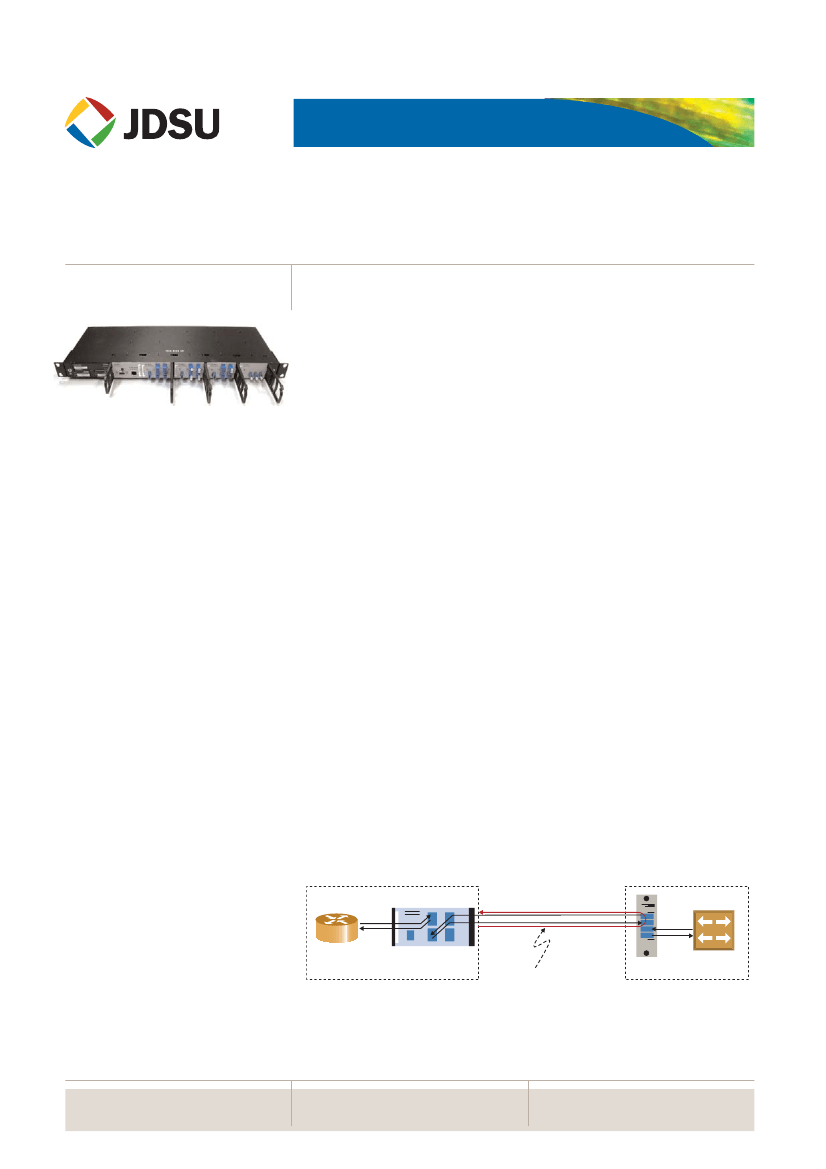

Optical Link Monitoring System: BrightJack 200
Key Features
• Enables protocol- and format-independent monitoring of
link loss
• Enables real-time monitoring of in-service fiber pairs
• Requires no power for passive customer-end interface
• Supports link budgets up to 20 dB
• Provides direct TL-1 interface
• Provides monitoring for up to six fiber links from a high-
density 1U CO chassis
Applications
• Enables optical link monitoring of
up to six discrete optical fiber pairs
• Enables optical demarcation
interface between carrier and
client networks
The JDSU WaveReady™ BrightJack 200 is a compact, modular performance
monitoring solution for optical fiber links. The BrightJack lets system operators
isolate faults within the fiber plant to improve response time. BrightJack also lets
system operators monitor the health of the optical fiber over time and address
slow degradation in fiber performance before it can result in unplanned service
outages.
The BrightJack 200 operates independent of optical power and does not disrupt
service in the event of power failure. Unlike Layer 2 performance monitoring
solutions, which may not differentiate between equipment failure and fiber
failure, the BrightJack monitors the health of the fiber plant from the central
office (CO) without dependence on electronics located at the far end of the link.
With interfaces for remote TL-1 alarms over transmission control protocol/
Internet protocol (TCP/IP), visual alarms, and local telemetry alarms, the
BrightJack is readily integrated into a wide variety of network management
interfaces and ready to deploy out of the box.
Compliance
• Telcordia NEBS Level 3
• UL 60950 Third Edition
• FCC Class A
CO
Local Loop Fiber
RT
BrightJack 200 Shelf
1625 nm monitor wavelength
BrightJack 200 Loopback
Figure 1 Local loop fiber
NORTH AMERICA
:
800 498-JDSU (5378)
WORLDWIDE
:
+800 5378-JDSU
WEBSITE
:
www.jdsu.com/waveready
BRIGHTJACK 200
2
Sample Configurations
10 GigE
OC-192 LAN PHY
PC
OC-12
Gigabit
Ethernet
1/2 G
Fiber
Channel WDM
Central
Office
BrightJack 200
Chassis
Fiber
Plant
Remote
Loopback Module
OC-192
WDM
10 GigE
LAN PHY
OC-12
Gigabit
Ethernet
1/2 G Fibre
Channel
Customer
Premises

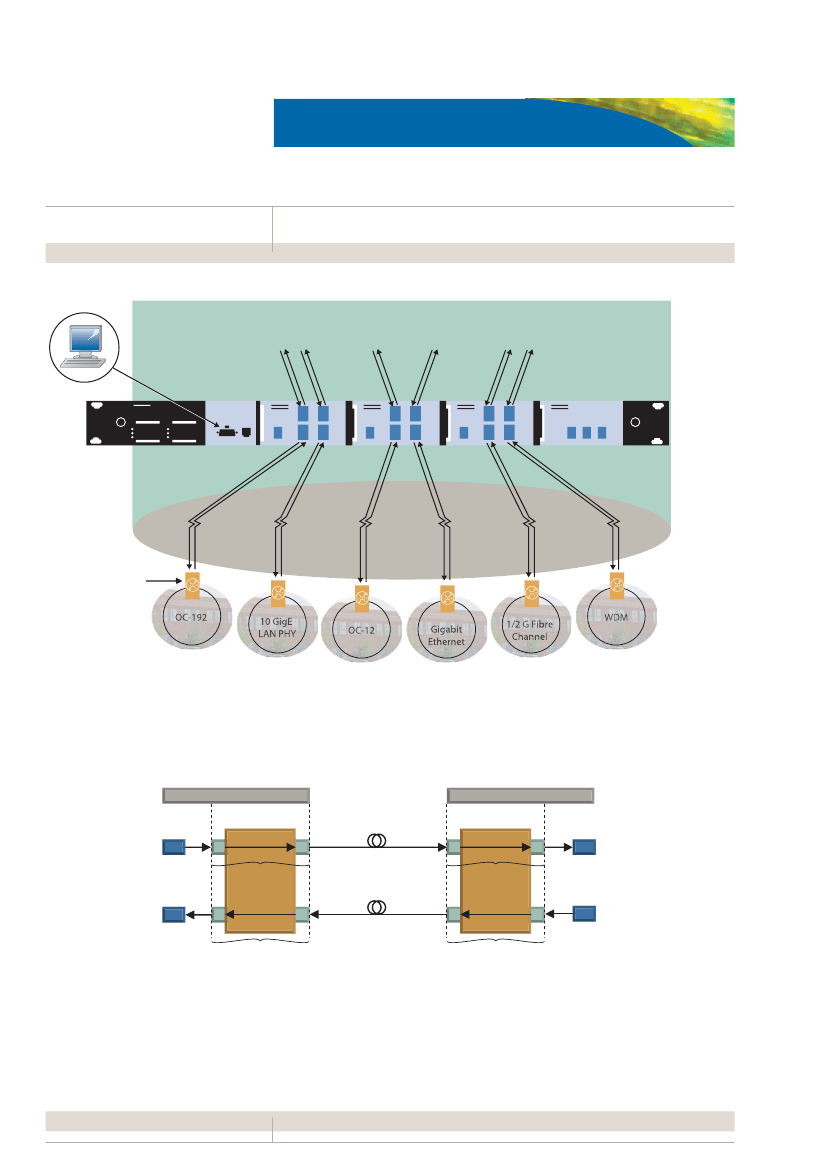

Figure 2 BrightJack 200 application
Central Office
Dual Link Monitor
Tx
1.3 dB max (EOL)
with connectors
Fiber loss
0 dB min
10 dB max
Customer Premises
Remote Loopback
Rx
0.9 dB max (EOL)
with connectors
Rx
0.9 dB max (EOL)
with connectors
Fiber loss
0 dB min
10 dB max
0.9 dB max (EOL)
with connectors
Tx
Figure 3 BrightJack 200 insertion loss
BRIGHTJACK 200
3
Performance Specifications
1
Parameter
Optical Characteristics
Supported data rates
Operating wavelength range
1310 nm wavelength
1550 nm wavelength
Monitor channel wavelength range
Client input power range
Monitor input power
Link loss range
Insertion loss
2
End-to-end path from CO Client In to CP Client Out
End-to-end path from CP Client In to CO Client Out
Return loss
Optical input power
PDL
PMD
Min
Typical
Max
Any
1260 nm
1480 nm
1620 nm
–10 dBm
–8 dBm
0 dB
—
—
40 dB
—
—
—
1310 nm
1550 nm
1625 nm
—
–5 dBm
—
—
—
—
—
—
—
1360 nm
1580 nm
1630 nm
0 dBm
–1.4 dBm
20 dB
2.2 dB
1.8 dB
—
300 mW
0.2 dB
0.2 ps
Electrical Characteristics (Chassis)
DC supply voltage (CO chassis)
3, 4
DC current (CO chassis)
Power dissipation (CO chassis)
Power dissipation (Remote loopback)
–40 V DC
—
—
—
–48 V DC
225 mA
10.8 W
0W
–57.5 V DC
300 mA
15 W
—
Physical Characteristics (Chassis)
External dimensions including brackets (H x W x L)
Weight (approximate)
4.5 x 58.4 x 30.5 cm (1.75 x 23.0 x 13.2 in)
3.2 kg (7.0 lb)
Physical Characteristics (Remote loopback)
External dimensions including brackets (H x W x L)
Weight (approximate)
13.0 x 2.74 x 15.2 cm (5.1 x 1.08 x 6.0 in)
0.45 kg (1.0 lb)
Environmental Characteristics
Normal operating temperature
Extended operating temperature
Storage temperature
Relative humidity (non-condensing)
0°C
–5°C
–40°C
5%
—
—
—
—
40°C
55°C
85°C
85%
Interface Specifications
Optical connectors
DB-9/RS-232 craft user port
LC/PC on CO equipment, SC/PC on terminal loopback module
Three-wire serial TTL, 9600 Baud, no parity, no flow control, 8 data bits, 1 stop bit
TL1 command line via serial (RS-232) or network (10/100Base-T) ports
1
2
This product should be deployed in accordance with your company’s deployment directives
Refer to Figure 2 BrightJack insertion loss
3
The DC power supply must be –48 V SELV output and certified by a nationally recognized test laboratory (NRTL). UL tested at –48 V
4
The Remote Loopback module (BJK-200LB02B) is a passive optical device with no applicable electrical connections or heat dissipation
BRIGHTJACK 200
Ordering Information
For more information on this or other products and their availability, please contact your local JDSU account manager or
JDSU directly at 1-800-498-JDSU (5378) in North America, +1 800-5378-JDSU worldwide or via e-mail at sales@jdsu.com.
Sample: BJK-200BC200
Product Code
BJK-200BC200
BJK-200CM100
BJK-200LM63B
BJK-200DM42B
BJK-200DC48R
BJK-200AL100
BJK-200LB02B
Description
BrightJack 4-slot Chassis, ANSI
BrightJack Controller Module 100
BrightJack Laser Source Module, 3 Port
BrightJack Dual Link Monitor Module, Low IL
BrightJack 48 V DC Power Supply Plug-in
BrightJack Alarm Interface Module
BrightJack Remote Loopback Module, Low IL
CLEI
WOMA210HRA
WOCUAB1AA
WOCUAB2JAA
WOCUAB0JAA
WOPUAAFEAA
WOCUAB4JAA
WOCUAB3JAA
NORTH AMERICA
:
800 498-JDSU (5378)
WORLDWIDE
:
+800 5378-JDSU
WEBSITE
:
www.jdsu.com/waveready
Product specifications and descriptions in this document subject to change without notice. © 2008 JDS Uniphase Corporation
May 2008
30149398 000 0508 BRIGHTJACK200.DS.CMS.TM.AE
