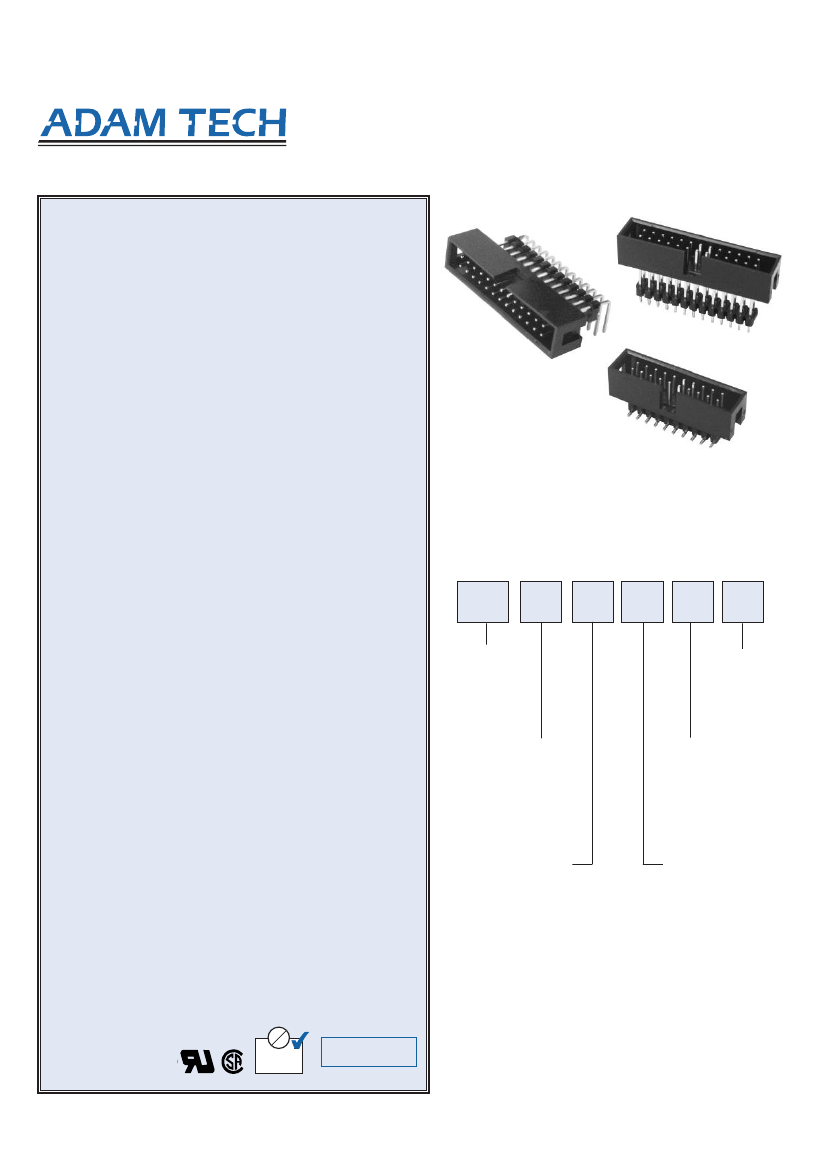

.100" ELEVATED BOX HEADERS
Adam Technologies, Inc.
.100" X .100" [2.54 X 2.54] CENTERLINE
BHRE SERIES
INTRODUCTION:
Adam Tech BHR Series Elevated Box Headers provide all of the
advantages of our standard Box Headers such as our Low Profile
design, snug fit & polarized mating but have additional plastic
insulators in place to stabilize rows of pins for stacking
applications. This series is available in Straight, Right Angle &
SMT mounting with standard or customer specified Stacking
Heights and PCB tail lengths.
FEATURES:
Elevated for Stacking applications
Low Profile design
Straight, Right Angle & SMT mounting options
Standard or customer specified Stacking
Heights & PCB tail lengths
MATING SOCKETS:
Adam Tech .100" X .100" dual row IDC sockets
SPECIFICATIONS:
MATERIAL:
Insulator: PBT, glass reinforeced, rated UL94V-0
Optional Hi-Temp insulator: Nylon 6T, rated UL94V-0
Insulator Color: Black (Gray optional)
Contacts: Brass
ORDERING INFORMATION
BHRE
50
V
U
A
XXX
HEIGHT DIM X
Customer specified
in Inches.
PLATING:
U = Gold flash (30u” optional) over nickel underplate
SG = Gold flash (30u” optional) over nickel underplate on
contact area, tin over copper underplate on tails.
T = Tin over copper underplate overall
ELECTRICAL:
Operating voltage: 250V AC max.
Current rating: 1 Amp max
Contact resistance: 20 mΩmax. initial
Insulation resistance: 5000 MΩmin.
Dielectric withstanding voltage: 1000V AC for 1 minute
MECHANICAL:
Mating durability: 500 cycles min.
TEMPERATURE RATING:
Operating temperature: -55°C to +105°C
PACKAGING:
Anti-ESD plastic trays
SAFETY AGENCY APPROVALS:
UL Recognized
CSA Certified
SERIES
INDICATOR
BHRE
=
.100
''
Elevated
Box Header
POSITIONS
10, 14, 16, 20,
24, 26, 30, 34,
40, 50, 60, 64
PIN LENGTHS
A
= Standard
solder tail
B
= Special length,
solder tail
customer specified
SMT
= Surface Mount
MOUNTING ANGLE
V
= Vertical
H
= Horizontal
CONTACT PLATING
U
= Gold plated
T
= Tin plated
SG
= Gold plating in
contact area,
Tin on tails
Pb
UL
®
®
®
E
D
COMPLIANT
2002
/ 95
/ EC
RoHS
V
HI-TEMP
INSULATOR
AVA I L A B L E
OPTIONS:
Add designator(s) to end of part number
30
= 30u'' Gold on contact area
GY
= Gray color insulator
HT
= Hi-Temp insulator for Hi-Temp soldering processes
up to 260°C
(Add this option for thru-hole products only.
All SMT products are manufactured with Hi-Temp insulators)
260
909 Rahway Avenue
•
Union, New Jersey 07083
•
T: 908-687-5000
•
F: 908-687-5710
•
WWW.ADAM-TECH.COM
RoHS
COMPLIANT
