66513-526 datasheet, PDF - EEWORLD Datasheet

66513-526: DescriptionBoard Connector, 26 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size260KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

66513-526 Overview

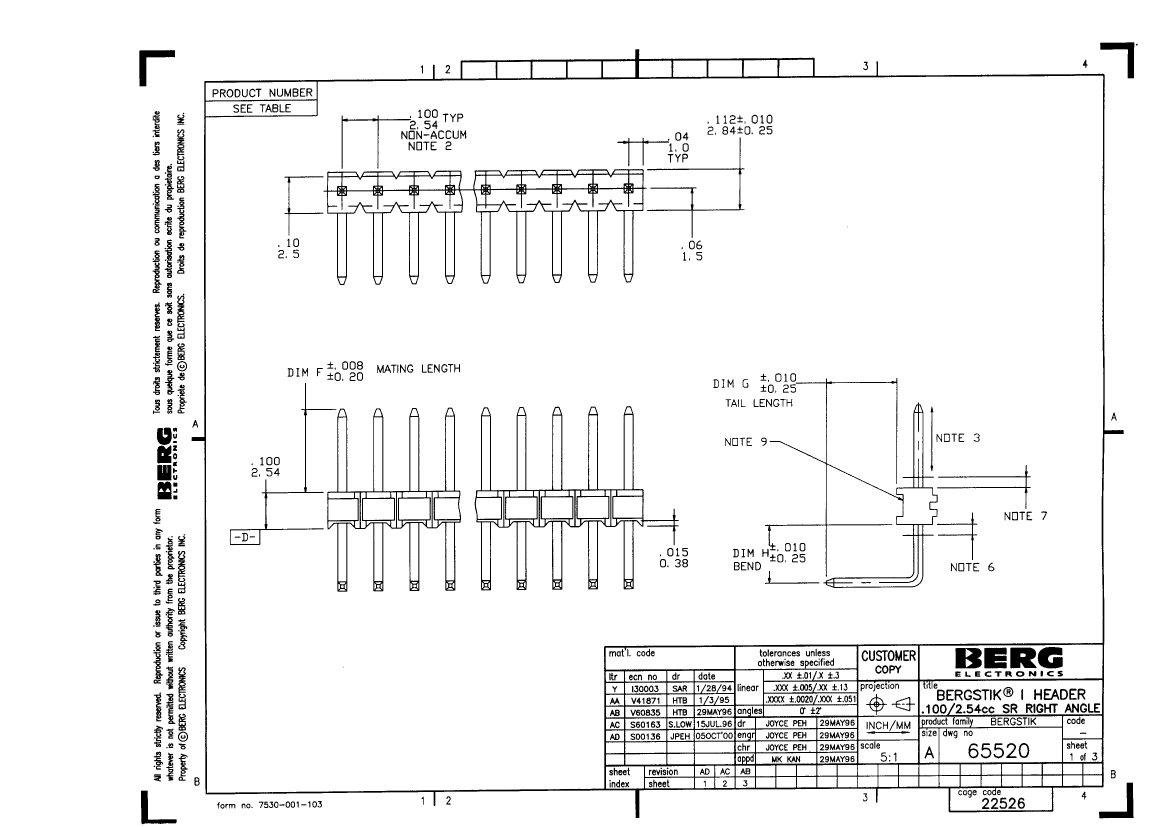

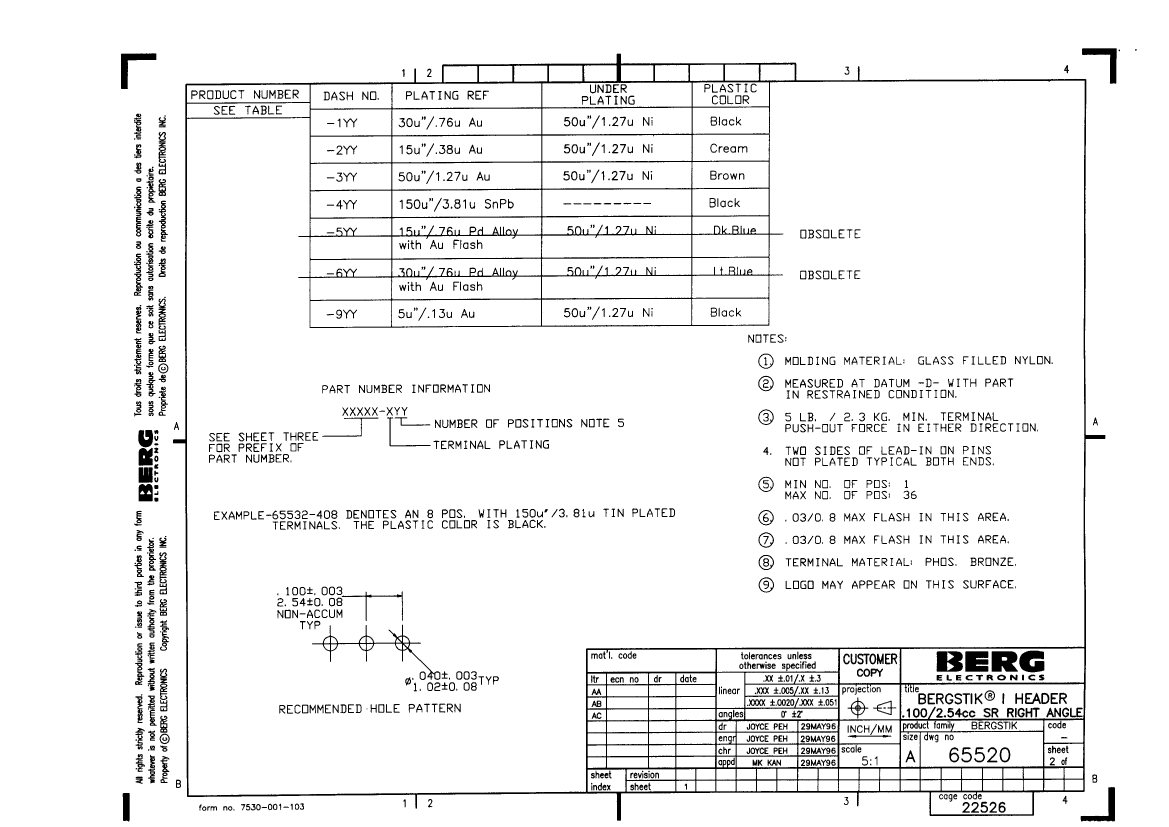

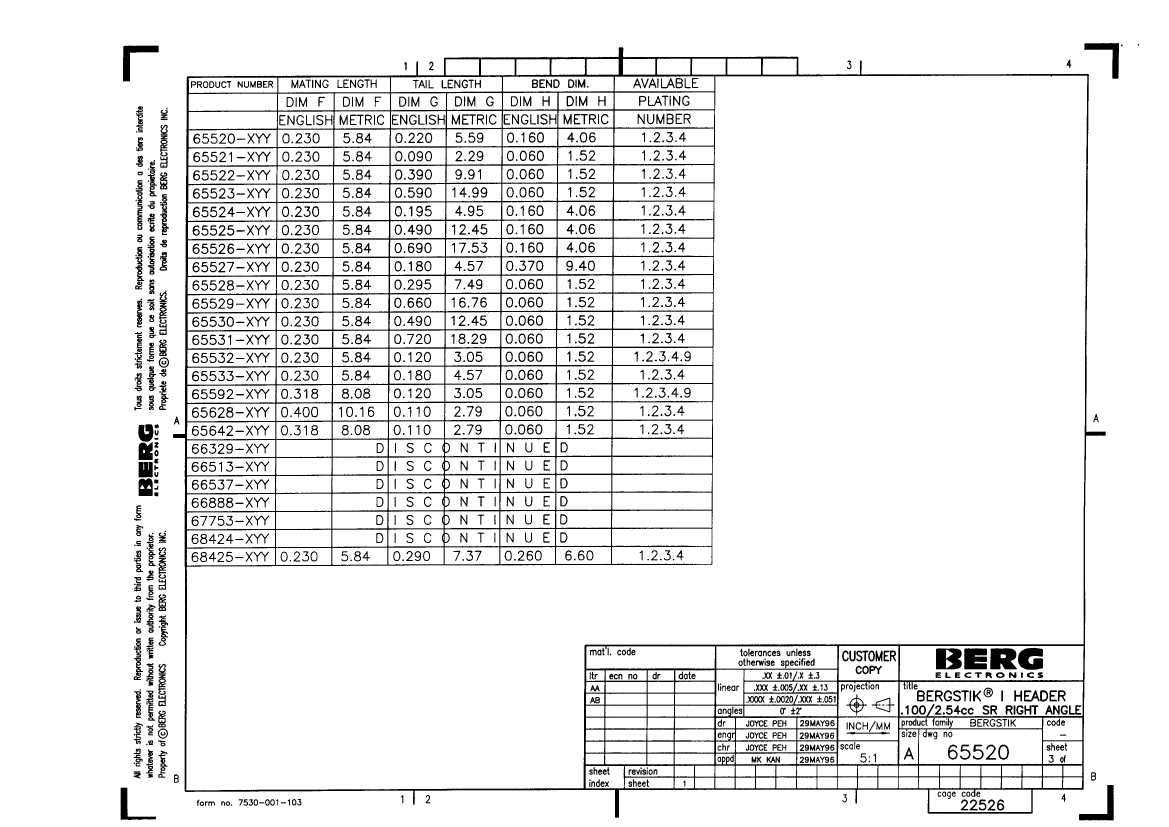

Board Connector, 26 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Is Samacsys	N
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	66513
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	26
Base Number Matches	1

PDM: Rev:AD

STATUS:

Released

Printed: May 09, 2006

.
