Part Number

Search

50545-A492A

Description
Board Connector, 496 Contact(s), Male, Straight, Solder Terminal, Guide Slot, Black Insulator, Receptacle
CategoryThe connector    The connector
File Size194KB,3 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

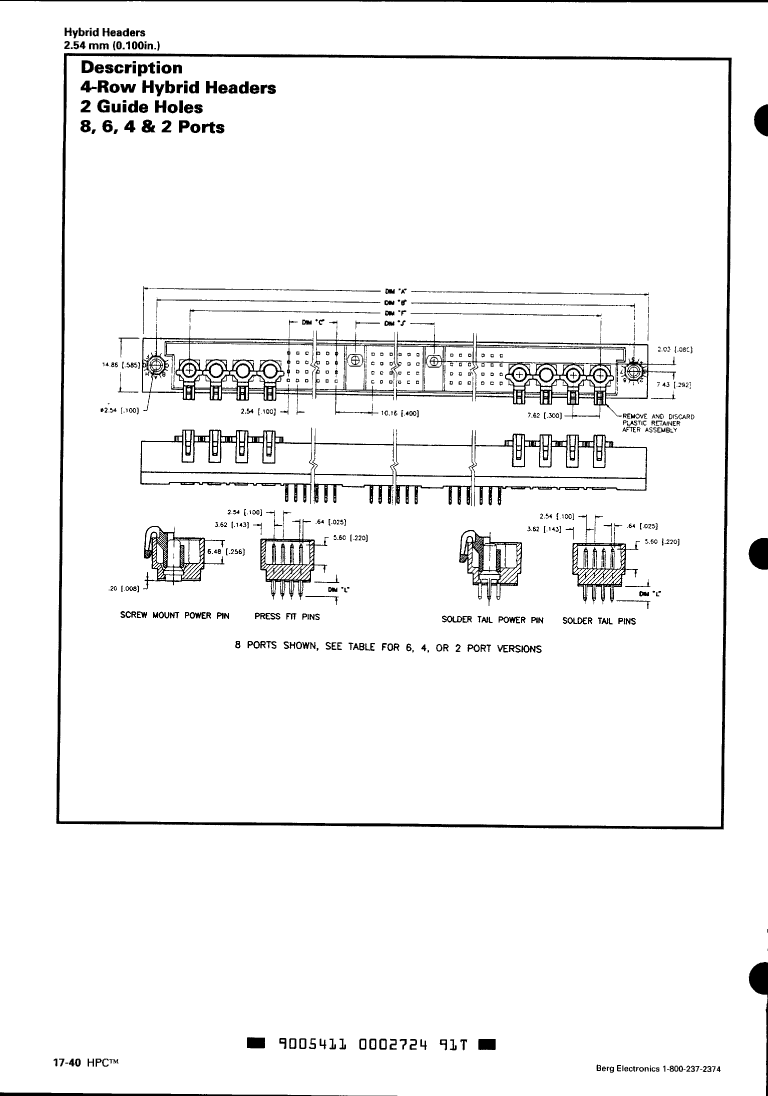

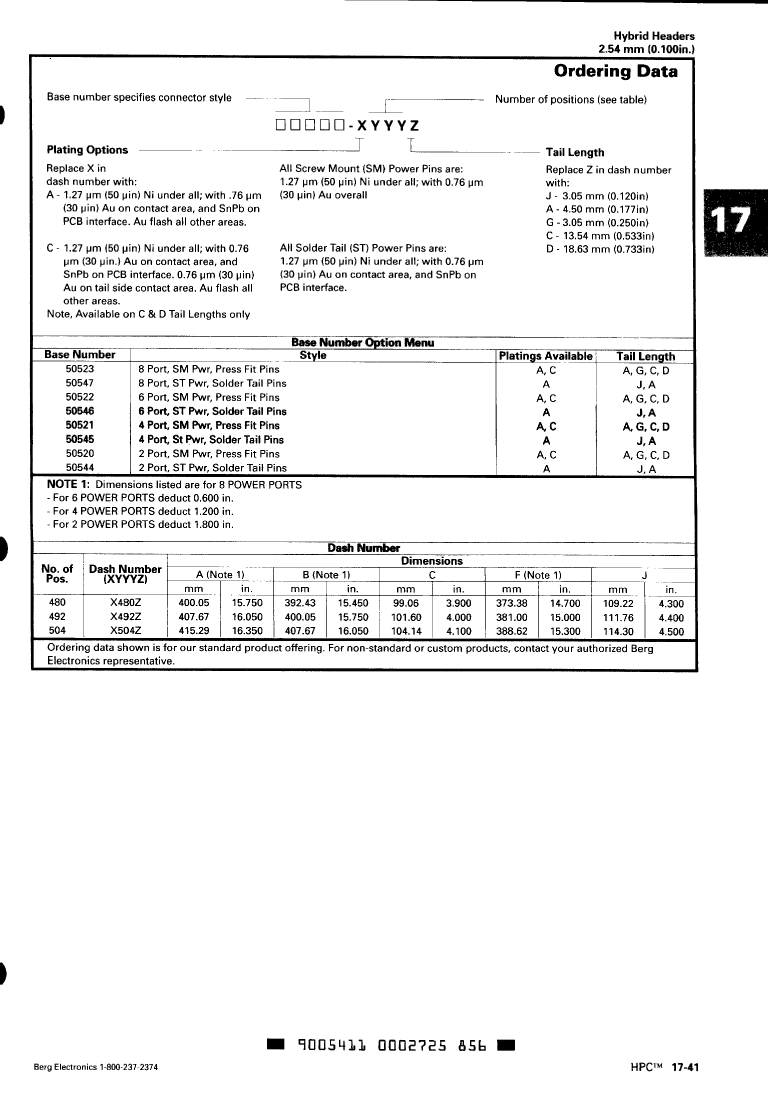

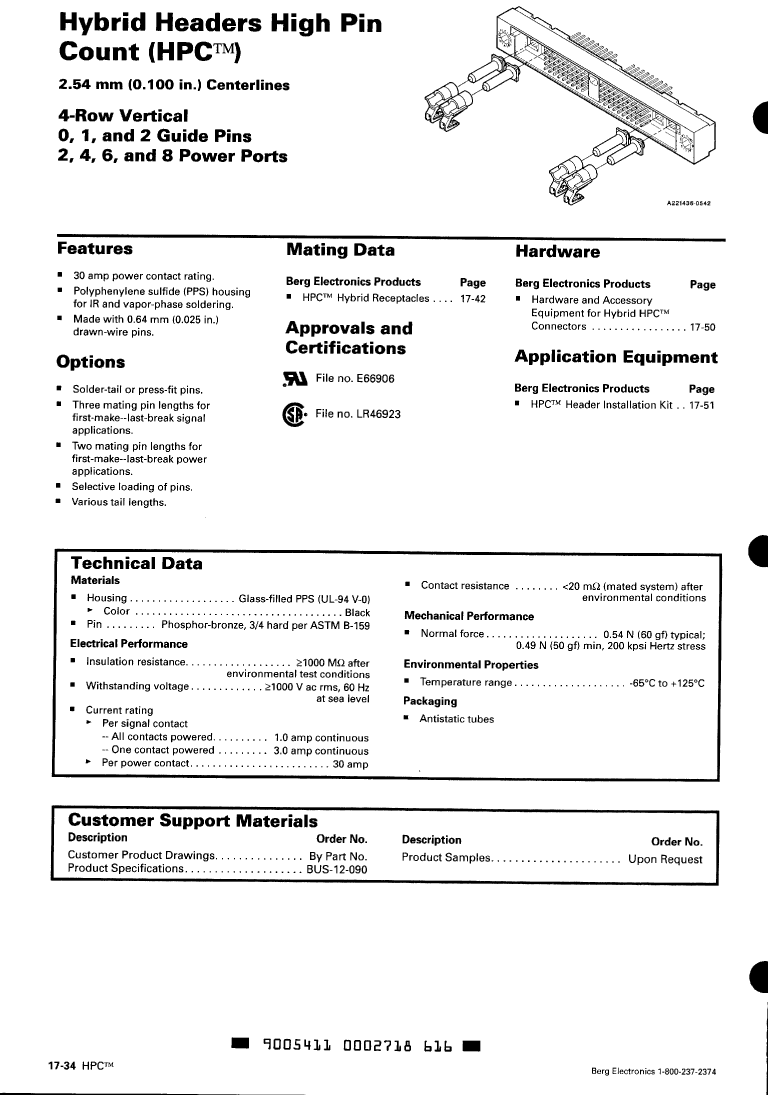

50545-A492A Overview

Board Connector, 496 Contact(s), Male, Straight, Solder Terminal, Guide Slot, Black Insulator, Receptacle

50545-A492A Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codecompliant
Is SamacsysN
Board mount optionsHOLE .099-.111
body width0.585 inch
body length14.85 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact arrangementS492P4
Contact to complete cooperationAU ON NI
Contact completed and terminatedTIN OVER NICKEL
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage1000VAC V
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYPHENYLENE SULPHIDE
Manufacturer's serial number50545
Mixed contactsYES
Installation option 1GUIDE SLOT
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
Maximum operating temperature125 °C
Minimum operating temperature-65 °C
Plating thickness30u inch
Rated current (signal)1 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.177 inch
Termination typeSOLDER
Total number of contacts496
Base Number Matches1
