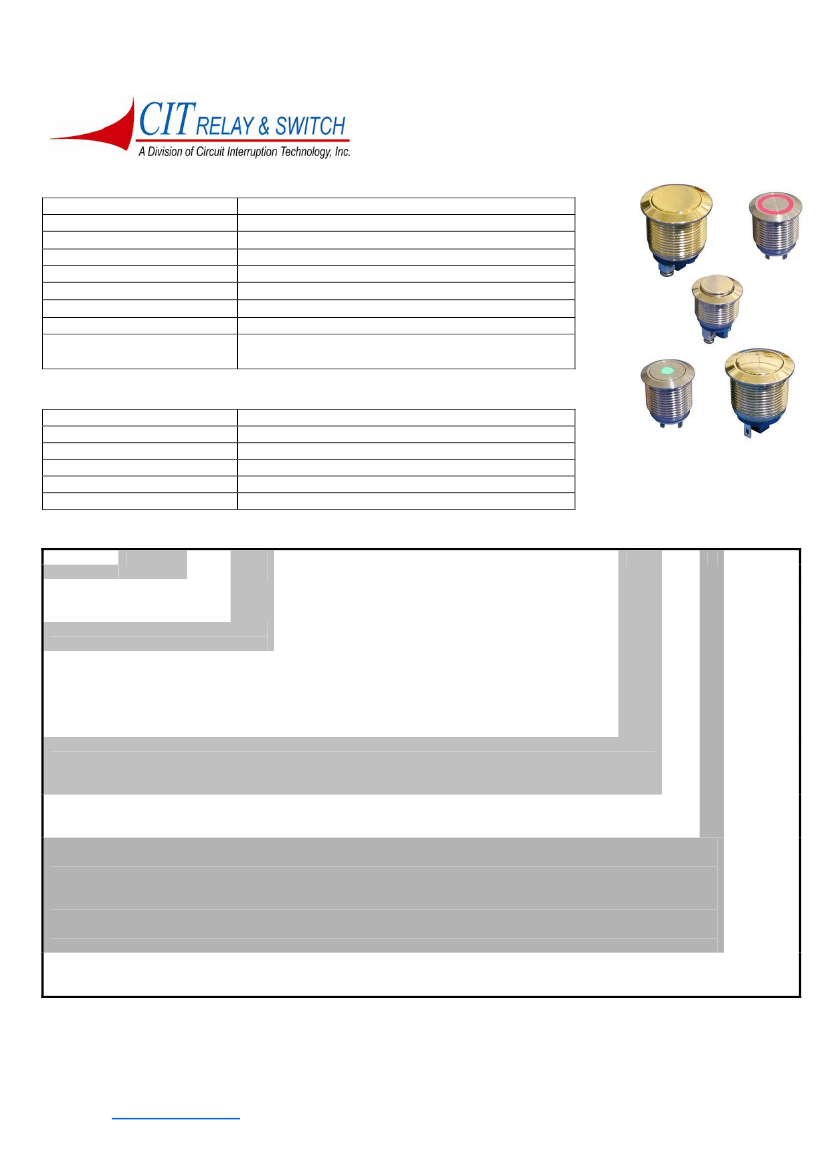

BH SERIES
SPECIFICATIONS
Electrical Ratings
Electrical Life
Contact Resistance
Actuation Force
Actuator Travel
Dielectric Strength:
Insulation Resistance
Sealing
Operating Temperature
Storage Temperature
2A @ 36VDC; 1A @ 125VAC, 0.5A @ 250VAC
50,000 cycles typical
< 50 mΩ initial
16mm - 500 +/- 100gF; 19mm - 750 +/- 100gF
16mm - 1.6 +/- .25mm; 19mm - 2.0 +/- .25mm
2000Vrms min (contact to contact)
>100MΩ min
IP65
-25°C to 55°C
-25°C to 55°C
MATERIALS
←
RoHS COMPLIANT
Actuator
Threaded Body
Nut
Terminal Support
Contacts
Terminals
Stainless Steel, Brass (Nickel or Gold plated)
Stainless Steel, Brass (Nickel or Gold plated)
Stainless Steel, Brass (Nickel or Gold plated)
PBT
Silver Alloy
Brass, Nickel plated
ORDERING INFORMATION
1. Series:
BH
16
N
R
BH
2. Switch Body Diameter:
16 = 16mm
19 = 19mm
3. Switch Function:
N = Momentary
4. Actuator Style:
M = Round
F = Flush
R = Raised
B = Flush – Ring Illuminated
**only available in 16mm diameter (for 19mm illuminated, see AH series)
C = Flush – Dot Illuminated
**only available in 16mm diameter (for 19mm illuminated, see AH series)
5. Switch Finish:
S = Brushed Stainless Steel
N = Nickel Plated Brass
P = Gold Plated Brass
6. Terminal Options:
Z = Screw Terminal
B = Solder Lugs
**illuminated versions only available with solder lugs
7. LED Color:
**only available in 16mm diameter
Blank = No LED
RO = Red/Orange dual LED
YG = Yellow/Green dual LED
R = Red
RY = Red/Yellow dual LED
YB = Yellow/Blue dual LED
Y = Yellow
RG = Red/Green dual LED
GB = Green/Blue dual LED
G = Green
RB = Red/Blue dual LED
B = Blue
OY = Orange/Yellow dual LED
W = White
OG = Orange/Green dual LED
O = Orange
OB = Orange/Blue dual LED
8. LED Voltage:
**only available in 16mm diameter
Blank = No LED
N = No internal resistor in series with the LED
S
Z
Website: www.citswitch.com
Tel: 763-535-2339
Fax: 763-535-2194
BH SERIES

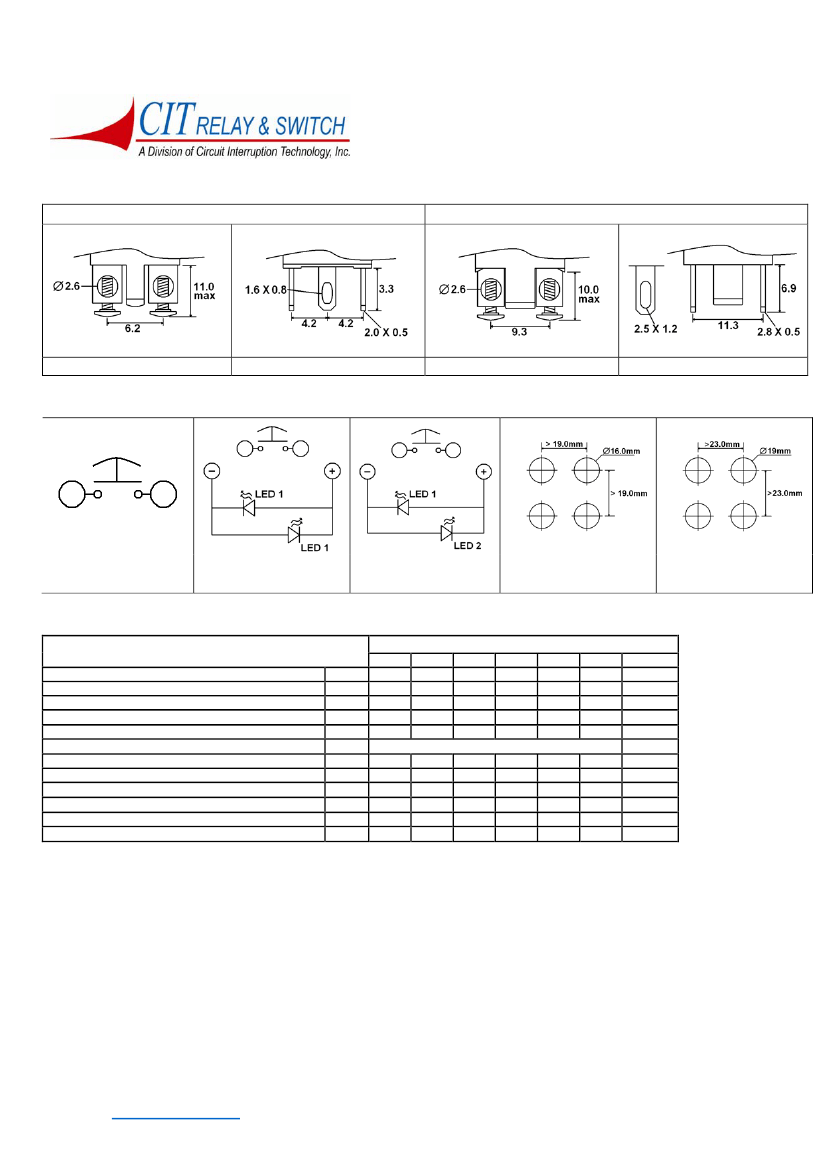

TERMINALS
16mm
19mm
Z – SCREW TERMINAL
B – SOLDER LUG
Z – SCREW TERMINAL
B – SOLDER LUG

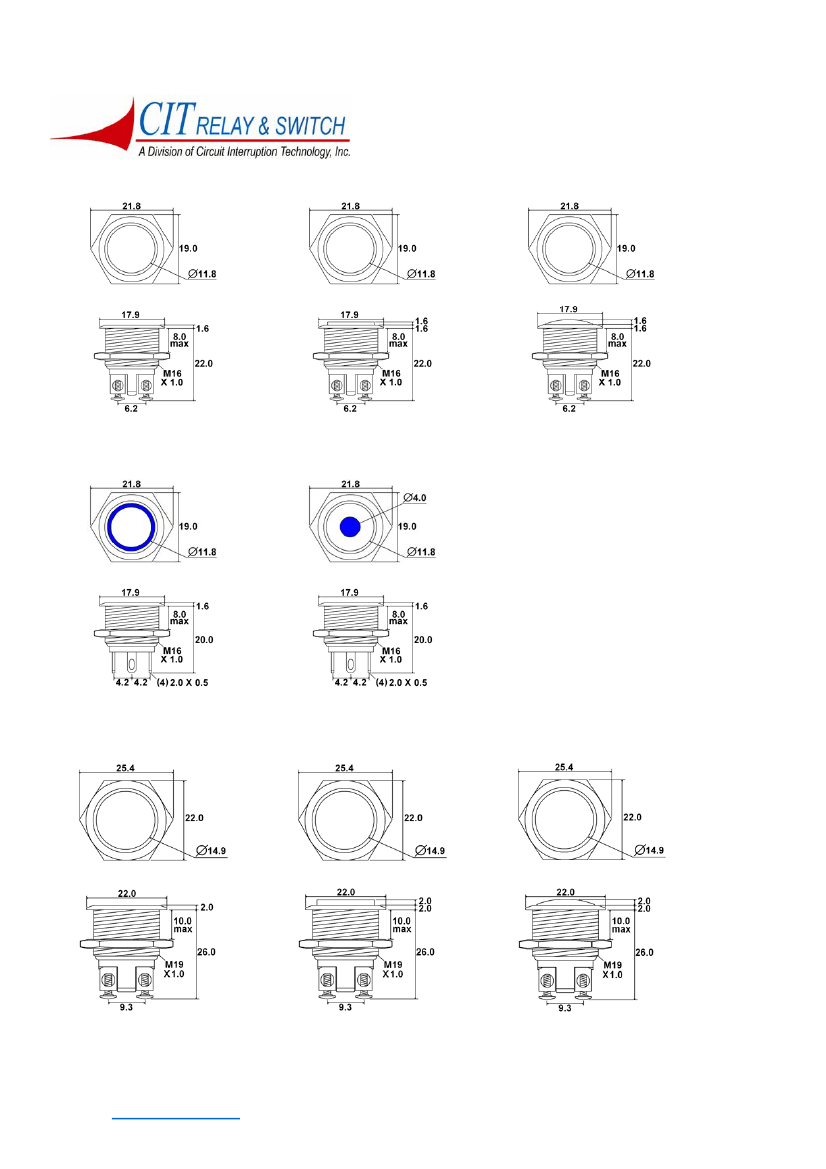

SCHEMATICS & PANEL CUT OUTS
SPST
SPST w/ LED
SPST w/ Dual
LED
16mm
19mm
LED CHARACTERISTICS
LED Ratings
Reverse Voltage
Forward Current (avg)
Forward Current (peak)
Reverse Current V
R
= 5V
Power Dissipation
Operating & Storage Temperature
Forward Voltage (typ.), I
F
= 20mA
Forward Voltage (max.), I
F
= 20mA
Wavelength at Peak Emmission, I
F
= 20mA
Spectral Line Half-Width, I
F
= 20mA
Luminous Intensity, I
F
= 20mA
Viewing Angle
V
R
I
F
I
FS
I
R
P
T
T
A
V
F
V
F
λ
P
∆λ
LI
Θ
R
5
25
120
10
80
2.1
2.4
635
14
120
145
Y
5
25
120
10
80
2.1
2.5
592
12
120
145
COLORS
G
B
O
5
5
5
30
30
25
160
160
120
10
10
10
120
120
80
-40~ +85
3.3
3.3
2.0
3.6
3.6
2.3
516
463
606
28
20
12
170
100
120
145
145
145
W
5
30
160
10
120
3.0
3.6
N/A
N/A
700
145
Units
V
mA
mA
µA
mW
°C
V
V
nm
nm
mcd
Deg
Website: www.citswitch.com
Tel: 763-535-2339
Fax: 763-535-2194
