558-1192-14-00-00 datasheet, PDF

558-1192-14-00-00: DescriptionVariable Inductor, 12uH Min, 18uH Max, Carbonyl-Core, Shielded, 3434,; CategoryPassive components inductor; File Size142KB，2 Pages; ManufacturerCambion Electronics Ltd.; Websitehttp://www.cambion.com/

Download Datasheet Parametric View All

558-1192-14-00-00 Overview

Variable Inductor, 12uH Min, 18uH Max, Carbonyl-Core, Shielded, 3434,

Parameter Name	Attribute value
Maker	Cambion Electronics Ltd.
package instruction	3434
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
uppercase and lowercase codes	3434
structure	Shielded
core material	CARBONYL
DC Resistance	2.7 Ω
Maximum inductance(L)	18 µH
Minimum inductance(L)	12 µH
Nominal inductance(L)	18 µH
Inductor Applications	RF INDUCTOR
Inductor type	VARIABLE INDUCTOR
Lead diameter	0.64 mm
Lead length	3.96 mm
Number of functions	1
Number of terminals	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	7.14 mm
Package length	8.74 mm
Package form	PCB Mount
Package width	8.74 mm
Minimum quality factor (at nominal inductance)	50
Maximum rated current	0.18 A
series	558-1192
Shape/Size Description	PCB MOUNT, VERTICAL ADJUSTER
shield	YES
surface mount	NO
Terminal location	DUAL IN-LINE
Terminal shape	PRINTED WIRING PIN
Base Number Matches	1

AMBION

Technical Data Sheet

Wearnes Cambion

LTD

Castleton, Hope Valley, Derbyshire, S33 8WR, England

Telephone: +44(0)1433 621555 Fax: +44(0)1433 621290

Web: www.cambion.com Email: enquiries@cambion.com

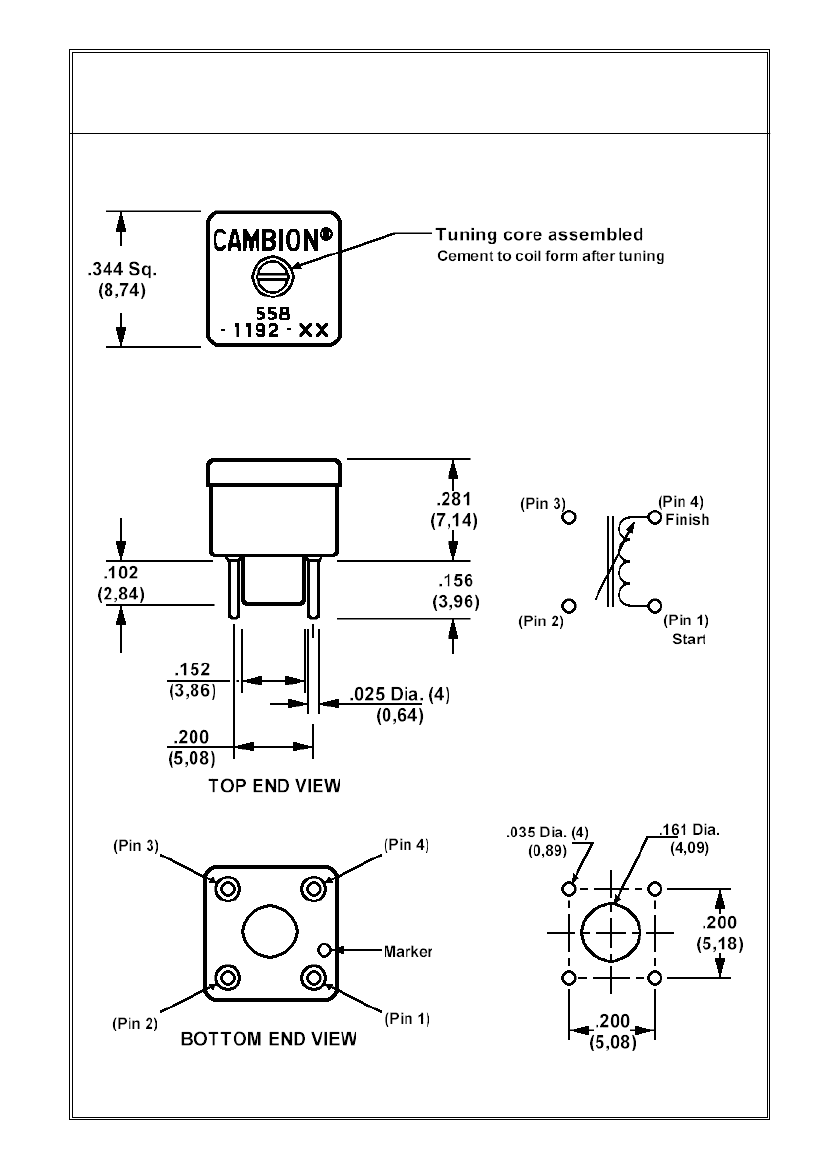

558-1192,

Variable Coil, Shielded, Vertical, .080µH thru 1.20mΗ

(533−1738

Form)

Page 1 of 2
