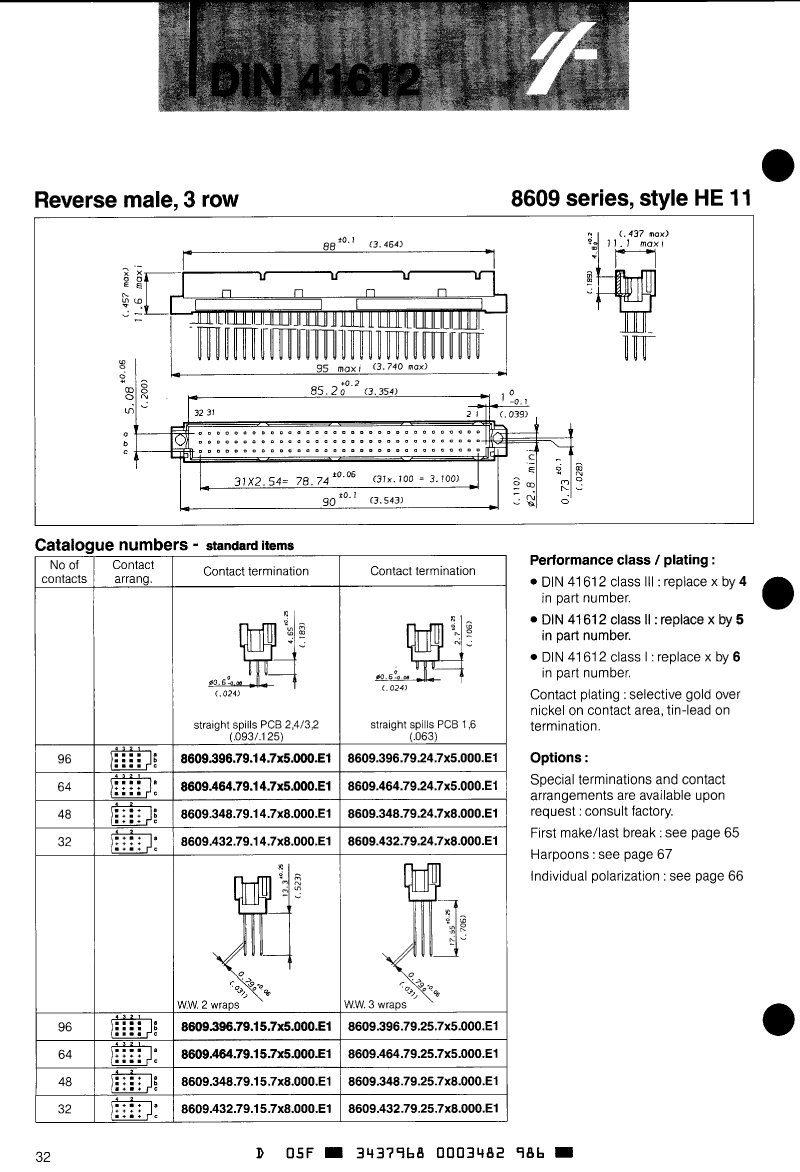

8609.396.79.14.745.000.E1 datasheet, PDF

8609.396.79.14.745.000.E1: DescriptionBoard Euro Connector, 96 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size854KB，8 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

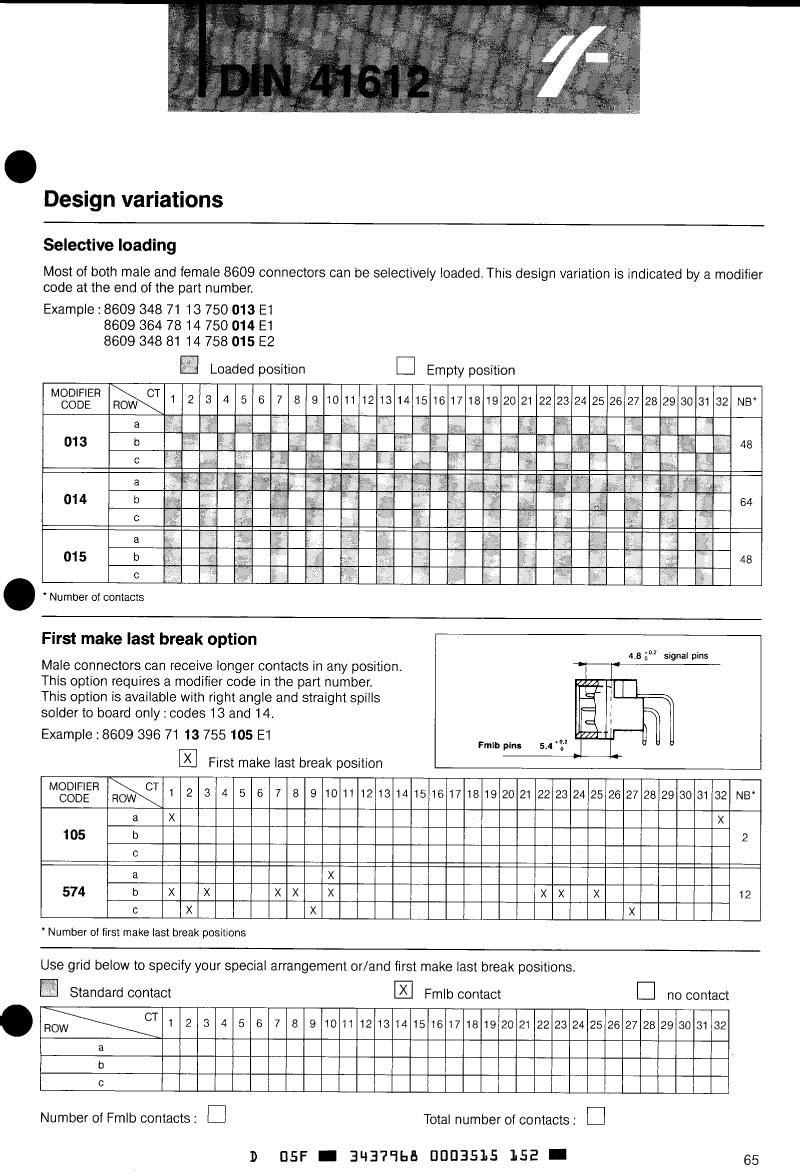

8609.396.79.14.745.000.E1 Overview

Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	STANDARD: DIN 41612
body width	0.437 inch
subject depth	0.457 inch
body length	3.74 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	TIN LEAD
Contact point gender	MALE
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.9452 N
Insulation resistance	1000000000000 Ω
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	8609
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,B,C
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	HOUSING SIDE
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.183 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	96
Evacuation force-minimum value	.139 N
Base Number Matches	1
