74ABTH162244DGG datasheet, PDF

74ABTH162244DGG: DescriptionBus Driver, 4-Func, 4-Bit, True Output, PDSO48,; Categorylogic logic; File Size202KB，8 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

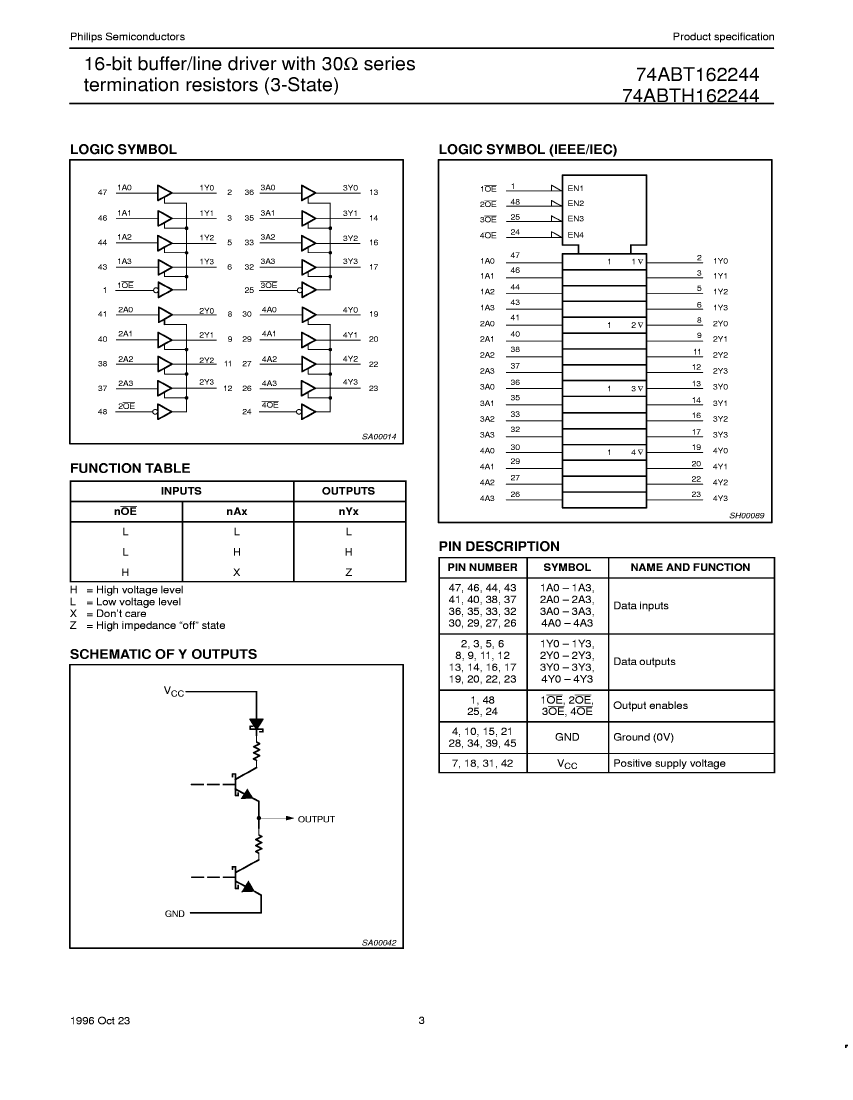

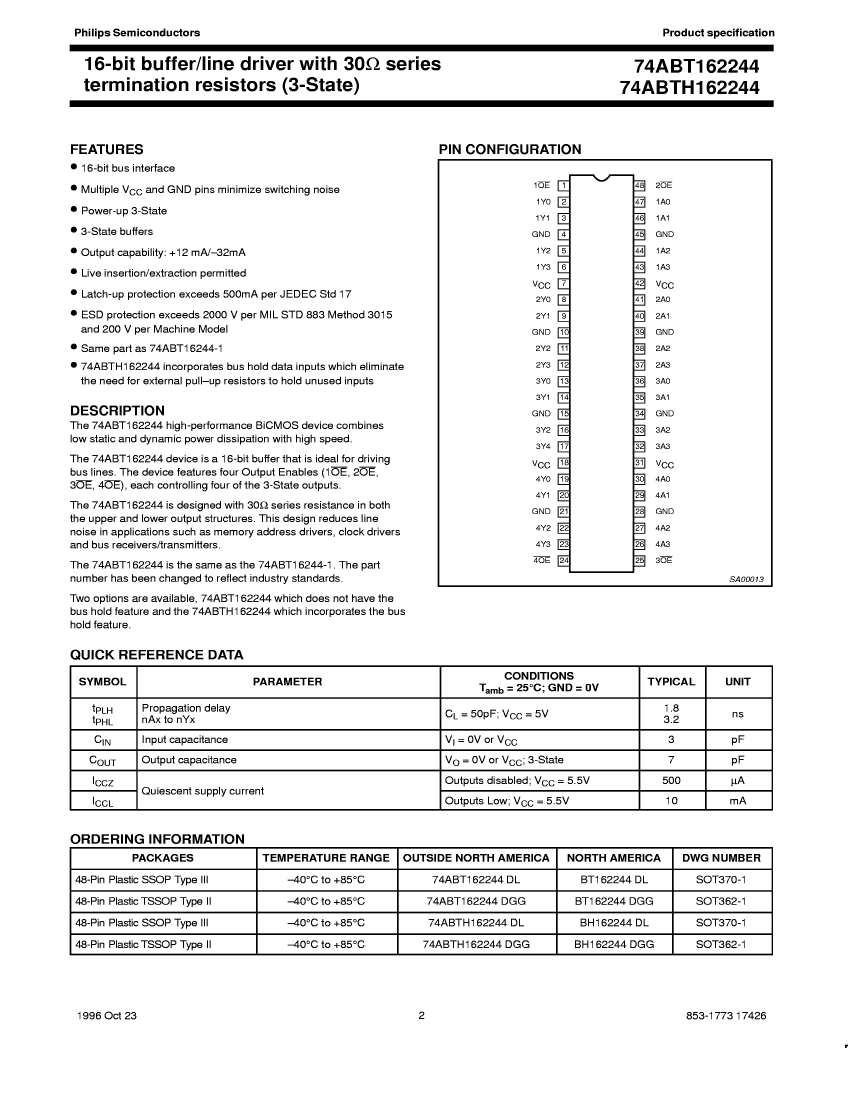

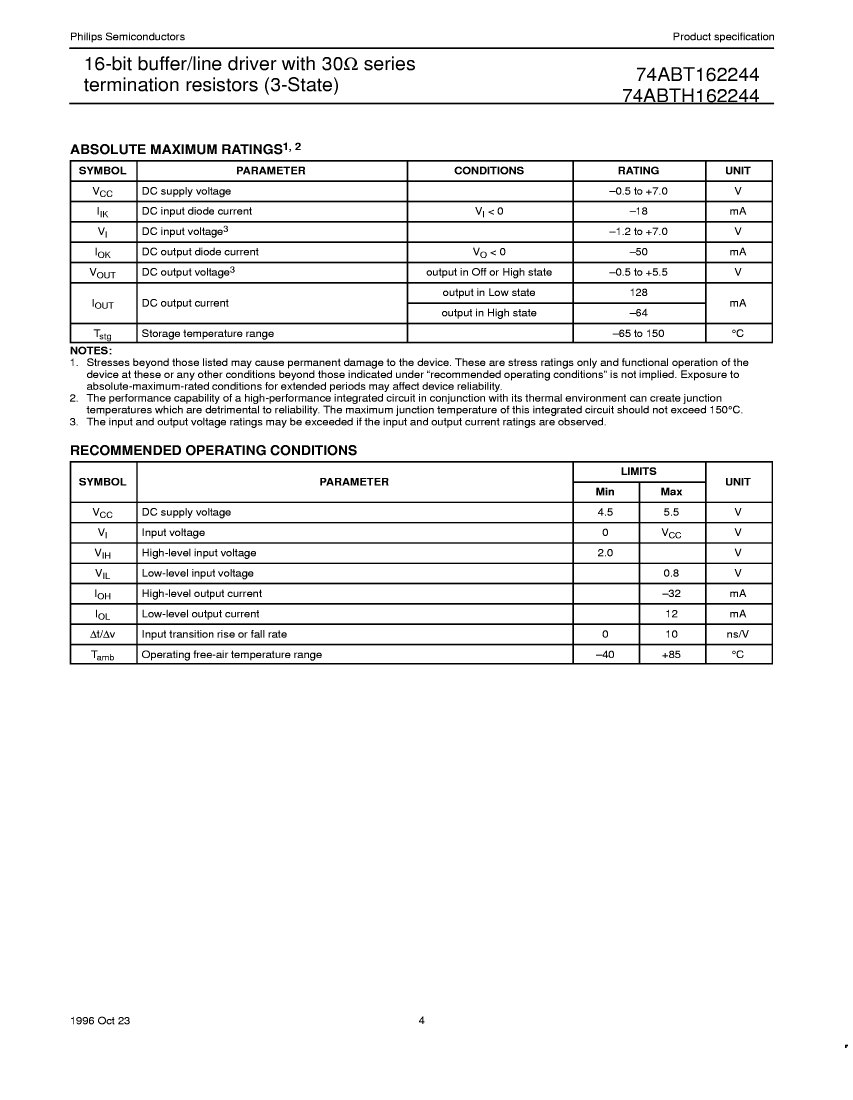

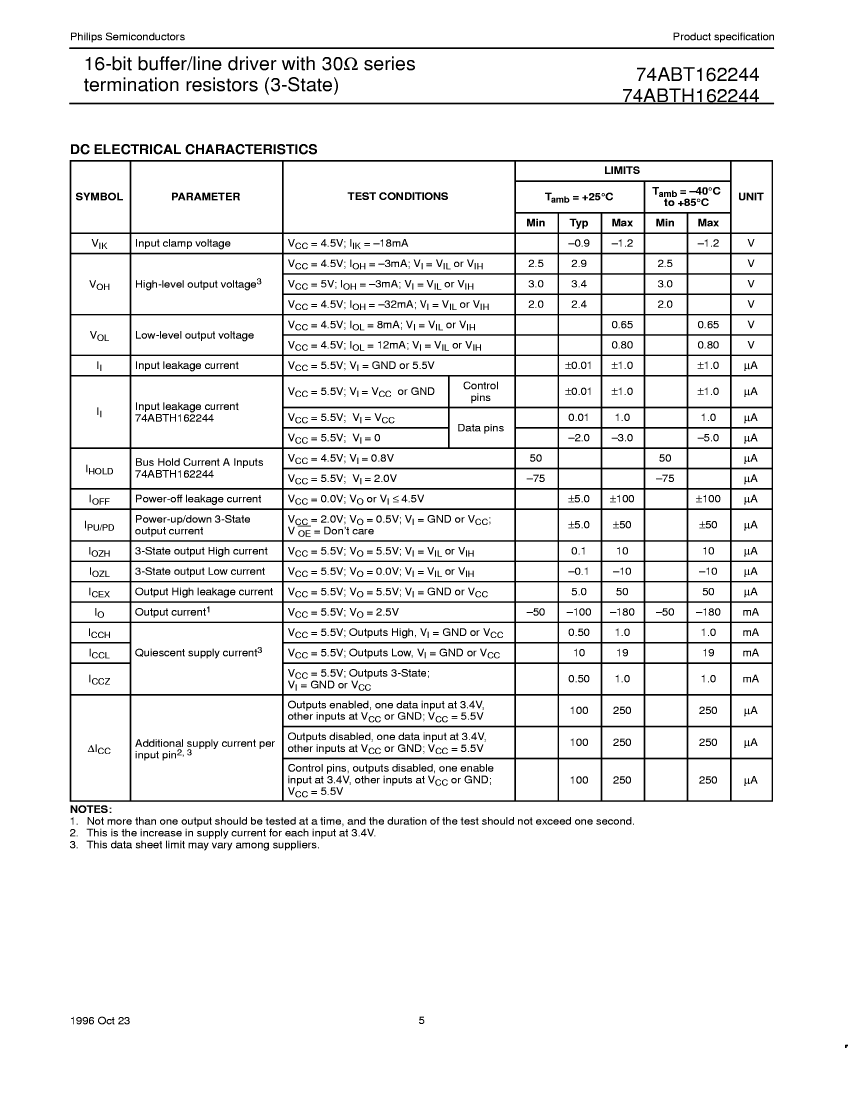

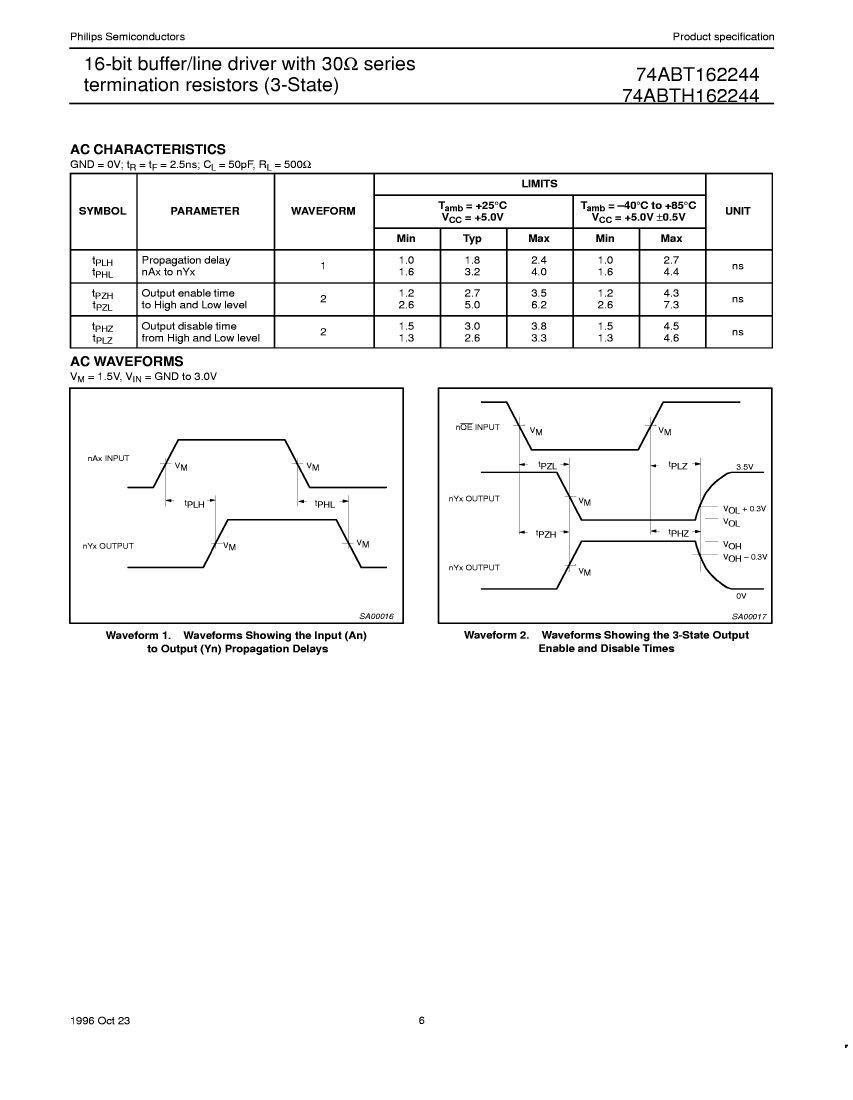

74ABTH162244DGG Overview

Bus Driver, 4-Func, 4-Bit, True Output, PDSO48,

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	TSSOP, TSSOP48,.3,20
Reach Compliance Code	unknown
Is Samacsys	N
Control type	ENABLE LOW
JESD-30 code	R-PDSO-G48
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.012 A
Number of digits	4
Number of functions	4
Number of terminals	48
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP48,.3,20
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
power supply	5 V
Prop。Delay @ Nom-Sup	4.4 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
Base Number Matches	1

This Material Copyrighted By Its Respective Manufacturer

	74ABTH162244DGG	74ABT162244DL
Description	Bus Driver, 4-Func, 4-Bit, True Output, PDSO48,	Bus Driver, 4-Func, 4-Bit, True Output, PDSO48
Is it Rohs certified?	conform to	conform to
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	TSSOP, TSSOP48,.3,20	SSOP, SSOP48,.4
Reach Compliance Code	unknown	unknown
Control type	ENABLE LOW	ENABLE LOW
JESD-30 code	R-PDSO-G48	R-PDSO-G48
Logic integrated circuit type	BUS DRIVER	BUS DRIVER
MaximumI(ol)	0.012 A	0.012 A
Number of digits	4	4
Number of functions	4	4
Number of terminals	48	48
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE
Output polarity	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	SSOP
Encapsulate equivalent code	TSSOP48,.3,20	SSOP48,.4
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
power supply	5 V	5 V
Prop。Delay @ Nom-Sup	4.4 ns	4.4 ns
Certification status	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.635 mm
Terminal location	DUAL	DUAL
Base Number Matches	1	1
