BD-A543RD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> BD-A543RD

BD-A543RD: Descriptionyellow chips, which are made from GaAsP on GaP substrate.; CategoryLED optoelectronic/LED photoelectric; File Size238KB，3 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric View All

BD-A543RD Overview

yellow chips, which are made from GaAsP on GaP substrate.

BD-A543RD Parametric

Parameter Name	Attribute value
Maker	BRIGHT
package instruction	DD-23, 18 PIN
Reach Compliance Code	unknow
color	YELLOW
Configuration	COMMON ANODE, 2 DIGITS WITH DECIMAL POINT
Display height	14.224 mm
Maximum forward current	0.03 A
Number of functions	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY

Preview

Download Datasheet

View All

BRIGHT LED ELECTRONICS CORP.

SINCE 1981

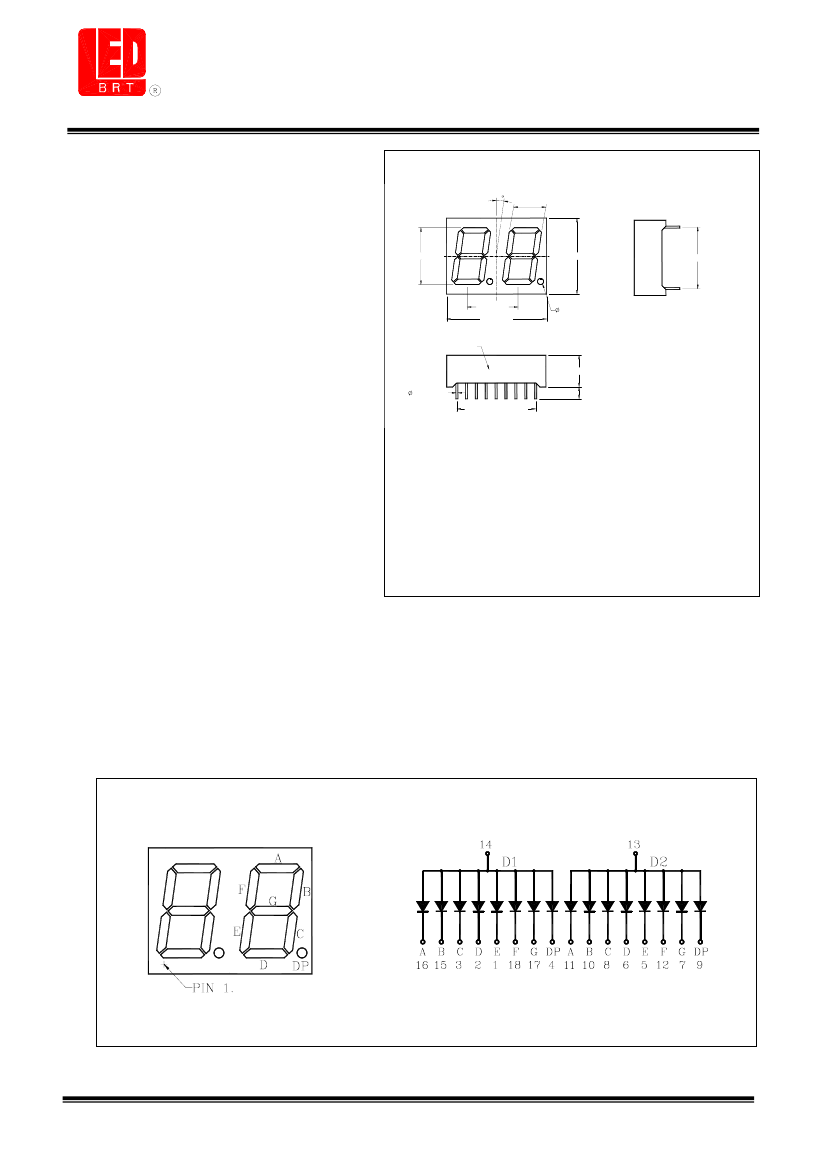

BD-A543RD

●

Features :

0.56 inch (14.20mm) Digit Height.

Continuous uniform segments.

Low power requirement.

Excellent characters appearance.

Solid state reliability.

Categorized for luminous intensity.

Direct drive common anode.

●

Package Dimensions :

8.0(.315)

14.20(.560)

19.0(.748)

15.24(.600)

12.7(.500)

25.0(.984)

1.5(.059)

MARK

xxxxxx

0.50(.020)

2.54x8=20.32(.800)

8.0(.315)

3.0(.118)MIN.

●

Description :

The BD-A543RD is a 14.2mm(0.56")

high dual digit seven segments display.

This product use yellow chips, which

are made from GaAsP on GaP substrate.

This product have a black face and

white segments.

Notes:

1. All dimensions are in millimeters(inches).

2. Tolerance is ±0.25mm(.01")unless otherwise

specified.

3. Specifications are subject to change without

notice.

●

Internal Circuit Diagram :

½鴻工業股½有限公司

http://www.brtled.com

Ver.2.0 Page 1 of 3
