Bothhand USA.
e-mail: sales@bothhandusa.com http://www.bothhand.com

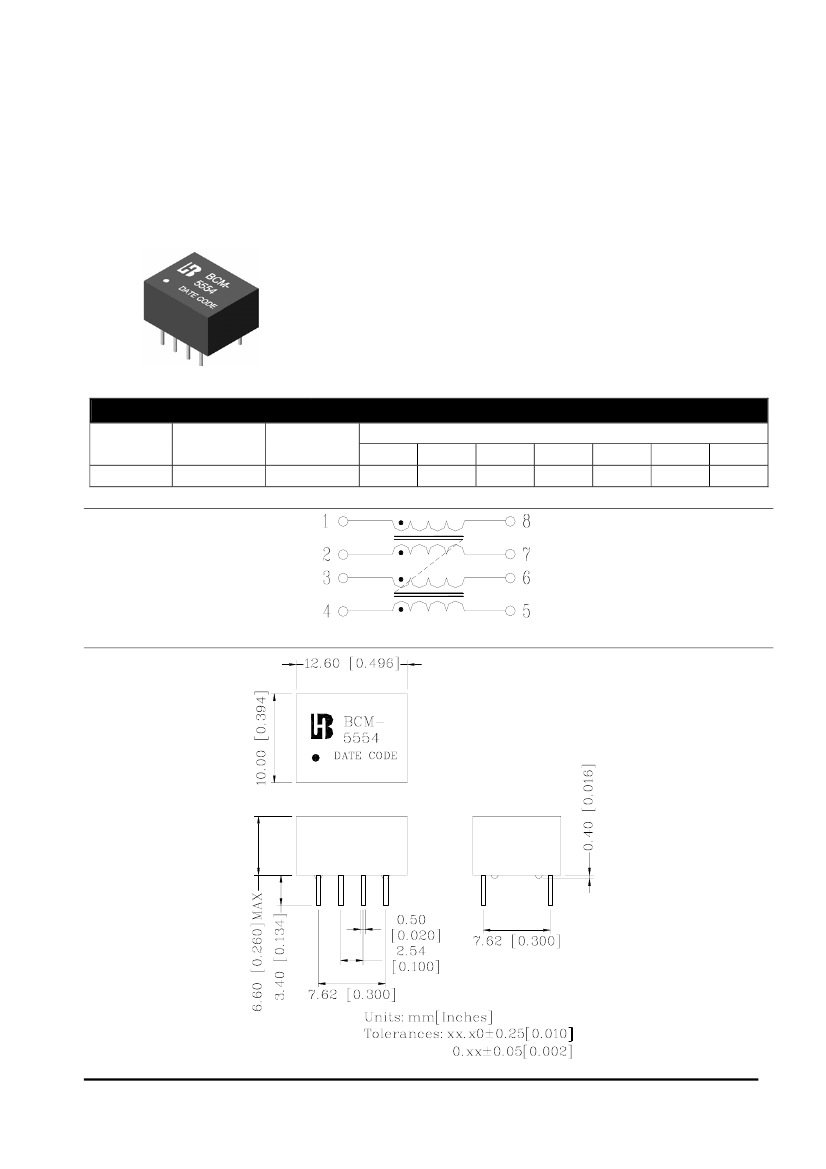

THROUGH HOLE COMMON MODE CHOKE
Page : 1/1
P/N: BCM-5554 DATA SHEET
Feature
Suited for LAN and Telecom application.
Reduces radiated EMI emissions.
Filters common mode noise for EMI reduction.
Common mode attenuation from 100KHz to 500MHz.
Tube packaging available for through hole parts.
Operating temperature range: 0°C to +70°C.
Storage temperature range: -25°C to +100°C.
Electrical Specifications @ 25°C
Part
Number
BCM-5554
Pri OCL
(uH Min)
24
DCR
(ΩMax)
0.30
Common Mode Attenuation (dB Min)
1MHz
-21
10MHz
-32
30 MHz
-38
50MHz
-39
100MHz
-34
300MHz
-24
500MHz
-13
Schematic
Mechanical
462 Boston St - Topsfield, MA 01983 - Phone: 978-887-8050 - Fax: 978-887-5434
A2(02/06)
