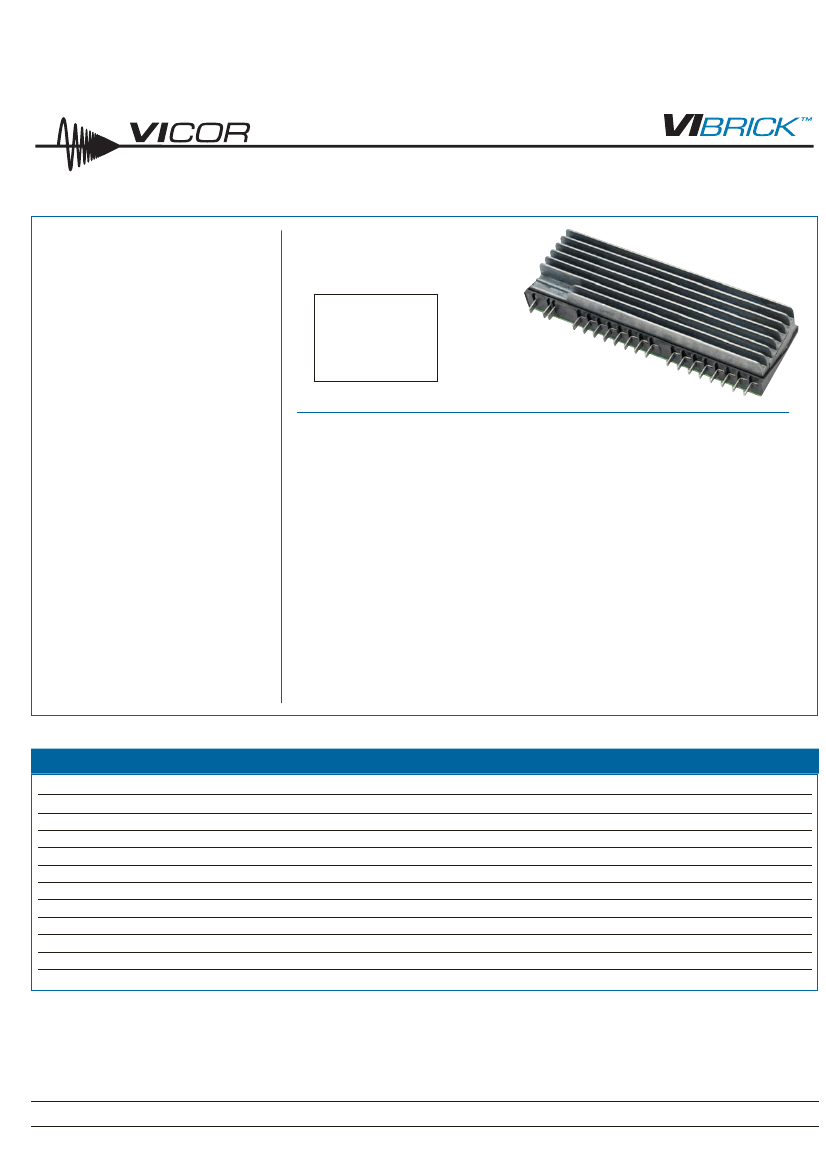

BC384R120T060VM-00 Overview

BCM Array⑩

Preview

Download Datasheet

View All

BCM Array

BC384R120T060VM-00

Features

•

384 V to 12 V VI BRICK™ BCM Array

•

600 Watt (900 Watt for 1 ms)

•

Vertical mount package

reduces footprint

•

Integrated heat sink simplifies

thermal management

•

High density – up to 268 W/in

•

Small footprint – 303 W/in

•

Low weight – 3.2 oz (92 g)

•

ZVS / ZCS isolated sine

amplitude converter

•

Typical efficiency 95%

•

<1 µs transient response

•

>1.8 million hours MTBF

•

Internal fuse and filter

•

No output filtering required

Vin = 360 – 400 V

Vout = 11.3 – 12.5 V

Iout = 50 A

K = 1/32

Rout = 10.0 mΩ max

Size:

3.54 x 0.56 x 1.13 in

89,9 x 14,2 x 28,7 mm

Product Description

The BC384R120T060VM-00 contains two high efficiency, narrow input range Sine

Amplitude Converter (SAC) converters operating from a 360 to 400 Vdc primary bus to

deliver an isolated low voltage secondary. The module provides an isolated 11.3 -12.5 V

distribution bus and is packaged in a thermally efficient VI BRICK BCM Array package.

Due to the fast response time and low noise, the need for limited life aluminum

electrolytic or tantalum capacitors at the input of POL converters is reduced—or

eliminated—resulting in savings of board area, materials and total system cost.

The BC384R120T060VM-00 achieves a power density of 268 W/in

in a VI BRICK BCM

Array package utilizing an integrated heat sink. Owing to its high conversion efficiency

and safe operating temperature range, the VI BRICK BCM Array does not require

additional heat sinking or high airflow velocities. Low junction-to-heat sink thermal

impedance assures low junction temperatures and long life in the harshest environments.

Absolute Maximum Ratings

Parameter

+In to -In

PC to -In

+Out to -Out

Isolation voltage

Output current

Peak output current

Output power

Peak output power

Operating junction temperature

(1)

Storage temperature

Note:

(1) The referenced junction is defined as the semiconductor having the highest temperature.

This temperature is monitored by a shutdown comparator.

Values

-1.0 to 440

500

-0.3 to 7.0

-0.5 to 16.0

4242

55.4

75.0

600

900

-40 to 125

Unit

Vdc

°C

Notes

For 100 ms

Input to Output

Continuous

For 1 ms

Continuous

For 1 ms

T-Grade

VI BRICK BCM Array

BC384R120T060VM-00

vicorpower.com

Rev. 1.1

Page 1 of 6
