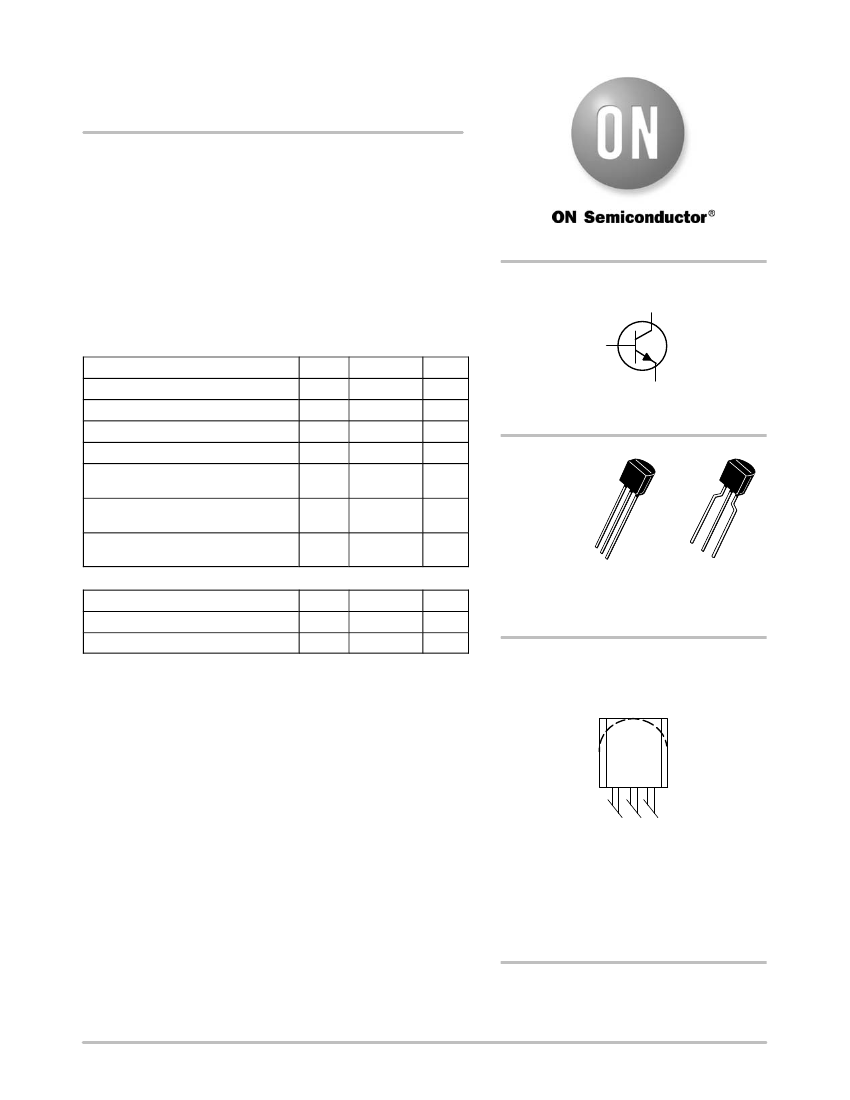

BC337, BC337-25,
BC337-40
Amplifier Transistors
NPN Silicon
Features
http://onsemi.com
•
These are Pb−Free Devices
COLLECTOR
1
MAXIMUM RATINGS
Rating
Collector
−
Emitter Voltage
Collector
−
Base Voltage
Emitter
−
Base Voltage
Collector Current
−
Continuous
Total Device Dissipation @ T
A
= 25°C
Derate above 25°C
Total Device Dissipation @ T
C
= 25°C
Derate above 25°C
Operating and Storage Junction
Temperature Range
Symbol
V
CEO
V
CBO
V
EBO
I
C
P
D
P
D
T
J
, T
stg
Value
45
50
5.0
800
625
5.0
1.5
12
−55
to +150
Unit
Vdc
Vdc
Vdc
mAdc
mW
mW/°C
W
mW/°C
°C
TO−92
CASE 29
STYLE 17
2
BASE
3
EMITTER
THERMAL CHARACTERISTICS
Characteristic
Thermal Resistance, Junction−to−Ambient
Thermal Resistance, Junction−to−Case
Symbol
R
qJA
R
qJC
Max
200
83.3
Unit
°C/W
°C/W
3
STRAIGHT LEAD
BULK PACK
12
1
3
BENT LEAD
TAPE & REEL
AMMO PACK
2
Stresses exceeding those listed in the Maximum Ratings table may damage the
device. If any of these limits are exceeded, device functionality should not be
assumed, damage may occur and reliability may be affected.
MARKING DIAGRAM
BC33
7−xx
AYWW
G
G
BC337−xx = Device Code
(Refer to page 4)
A
= Assembly Location
Y
= Year
WW
= Work Week
G
= Pb−Free Package
(Note: Microdot may be in either location)
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 4 of this data sheet.
©
Semiconductor Components Industries, LLC, 2013
November, 2013
−
Rev. 8
1
Publication Order Number:
BC337/D
BC337, BC337−25, BC337−40
ELECTRICAL CHARACTERISTICS
(T
A
= 25°C unless otherwise noted)
Characteristic
OFF CHARACTERISTICS
Collector
−Emitter
Breakdown Voltage
(I
C
= 10 mA, I
B
= 0)
Collector
−Emitter
Breakdown Voltage
(I
C
= 100
mA,
I
E
= 0)
Emitter
−Base
Breakdown Voltage
(I
E
= 10
mA,
I
C
= 0)
Collector Cutoff Current
(V
CB
= 30 V, I
E
= 0)
Collector Cutoff Current
(V
CE
= 45 V, V
BE
= 0)
Emitter Cutoff Current
(V
EB
= 4.0 V, I
C
= 0)
ON CHARACTERISTICS
DC Current Gain
(I
C
= 100 mA, V
CE
= 1.0 V)
(I
C
= 300 mA, V
CE
= 1.0 V)
Base−Emitter On Voltage
(I
C
= 300 mA, V
CE
= 1.0 V)
Collector
−Emitter
Saturation Voltage
(I
C
= 500 mA, I
B
= 50 mA)
SMALL−SIGNAL CHARACTERISTICS
Output Capacitance
(V
CB
= 10 V, I
E
= 0, f = 1.0 MHz)
Current
−Gain −
Bandwidth Product
(I
C
= 10 mA, V
CE
= 5.0 V, f = 100 MHz)
C
ob
f
T
−
−
15
210
−
−
pF
MHz
BC337
BC337−25
BC337−40
h
FE
−
100
160
250
60
−
−
−
−
−
−
−
−
630
400
630
−
1.2
0.7
Vdc
Vdc
V
(BR)CEO
V
(BR)CES
V
(BR)EBO
I
CBO
I
CES
I
EBO
45
50
5.0
−
−
−
−
−
−
−
−
−
−
−
−
100
100
100
Vdc
Vdc
Vdc
nAdc
nAdc
nAdc
Symbol
Min
Typ
Max
Unit
V
BE(on)
V
CE(sat)
Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product
performance may not be indicated by the Electrical Characteristics if operated under different conditions.
r(t), NORMALIZED EFFECTIVE TRANSIENT
THERMAL RESISTANCE
1.0
0.7
0.5
0.3
0.2
0.1 0.05
0.07 0.02
0.05
0.03
0.02
0.01
0.001
D = 0.5
0.2
0.1
P
(pk)
SINGLE PULSE
0.01
SINGLE PULSE
t
1
t
2
DUTY CYCLE, D = t
1
/t
2
0.002
0.005
0.01
0.02
0.05
0.1
0.2
0.5
t, TIME (SECONDS)
1.0
2.0
5.0
q
JC
(t) = (t)
q
JC
q
JC
= 100°C/W MAX
q
JA
(t) = r(t)
q
JA
q
JA
= 375°C/W MAX
D CURVES APPLY FOR
POWER
PULSE TRAIN SHOWN
READ TIME AT t
1
T
J(pk)
−
T
C
= P
(pk)
q
JC
(t)
10
20
50
100

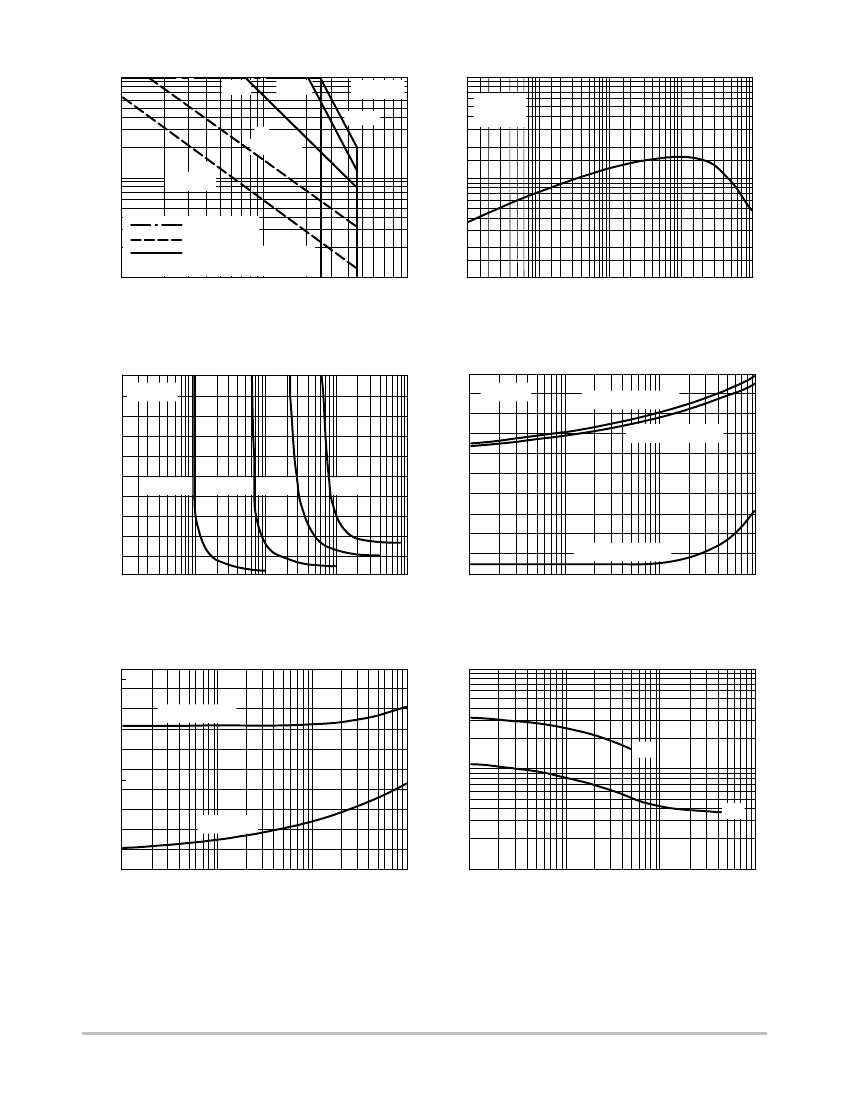

Figure 1. Thermal Response
http://onsemi.com
2
BC337, BC337−25, BC337−40
1000
IC, COLLECTOR CURRENT (mA)
1.0 s
1.0 ms
1000
T
J
= 135°C
hFE, DC CURRENT GAIN
100
ms
dc
T
C
= 25°C
100
dc
T
A
= 25°C
V
CE
= 1 V
T
J
= 25°C
100
10
1.0
CURRENT LIMIT
THERMAL LIMIT
SECOND BREAKDOWN LIMIT
(APPLIES BELOW RATED V
CEO
)
3.0
10
30
V
CE
, COLLECTOR-EMITTER VOLTAGE
100
10
0.1
1.0
10
100
I
C
, COLLECTOR CURRENT (MA)
1000
Figure 2. Active Region
−
Safe Operating Area
Figure 3. DC Current Gain
VCE , COLLECTOR-EMITTER VOLTAGE (VOLTS)
1.0
T
J
= 25°C
0.8
V, VOLTAGE (VOLTS)
1.0
T
A
= 25°C
0.8
V
BE(on)
@ V
CE
= 1 V
0.6
V
BE(sat)
@ I
C
/I
B
= 10
0.6
I
C
= 10 mA
100 mA
300 mA
500 mA
0.4
0.4
0.2
0
0.01
0.2
V
CE(sat)
@ I
C
/I
B
= 10
0
0.1
1
I
B
, BASE CURRENT (mA)
10
100
1
10
100
I
C
, COLLECTOR CURRENT (mA)
1000
Figure 4. Saturation Region
Figure 5. “On” Voltages
θ
V, TEMPERATURE COEFFICIENTS (mV/
°
C)
+1
q
VC
for V
CE(sat)
0
C, CAPACITANCE (pF)
100
C
ib
10
-1
-2
q
VB
for V
BE
C
ob
1
10
100
I
C
, COLLECTOR CURRENT (mA)
1000
1
0.1
1
10
V
R
, REVERSE VOLTAGE (VOLTS)
100
Figure 6. Temperature Coefficients
Figure 7. Capacitances
http://onsemi.com
3
BC337, BC337−25, BC337−40
PACKAGE DIMENSIONS
TO−92 (TO−226)
CASE 29−11
ISSUE AM
A
R
P
L
SEATING
PLANE
B
STRAIGHT LEAD
BULK PACK
NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: INCH.
3. CONTOUR OF PACKAGE BEYOND DIMENSION R
IS UNCONTROLLED.
4. LEAD DIMENSION IS UNCONTROLLED IN P AND
BEYOND DIMENSION K MINIMUM.
INCHES
MIN
MAX
0.175
0.205
0.170
0.210
0.125
0.165
0.016
0.021
0.045
0.055
0.095
0.105
0.015
0.020
0.500
---
0.250
---
0.080
0.105
---
0.100
0.115
---
0.135
---
MILLIMETERS
MIN
MAX
4.45
5.20
4.32
5.33
3.18
4.19
0.407
0.533
1.15
1.39
2.42
2.66
0.39
0.50
12.70
---
6.35
---
2.04
2.66
---
2.54
2.93
---
3.43
---
K
X X
H
V
1
D
G
J
C
N
N
SECTION X−X
DIM
A
B
C
D
G
H
J
K
L
N
P
R
V
R
A
B
BENT LEAD
TAPE & REEL
AMMO PACK
P
T
SEATING
PLANE
NOTES:
1. DIMENSIONING AND TOLERANCING PER
ASME Y14.5M, 1994.
2. CONTROLLING DIMENSION: MILLIMETERS.
3. CONTOUR OF PACKAGE BEYOND
DIMENSION R IS UNCONTROLLED.
4. LEAD DIMENSION IS UNCONTROLLED IN P
AND BEYOND DIMENSION K MINIMUM.
MILLIMETERS
MIN
MAX
4.45
5.20
4.32
5.33
3.18
4.19
0.40
0.54
2.40
2.80
0.39
0.50
12.70
---
2.04
2.66
1.50
4.00
2.93
---
3.43
---
STYLE 17:
PIN 1. COLLECTOR
2. BASE
3. EMITTER
K
G
X X
V
1
D
J
C
N
SECTION X−X
DIM
A
B
C
D
G
J
K
N
P
R
V
ON Semiconductor
and
are registered trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC owns the rights to a number of patents, trademarks,
copyrights, trade secrets, and other intellectual property. A listing of SCILLC’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. SCILLC
reserves the right to make changes without further notice to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any
particular purpose, nor does SCILLC assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without
limitation special, consequential or incidental damages. “Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications
and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC
does not convey any license under its patent rights nor the rights of others. SCILLC products are not designed, intended, or authorized for use as components in systems intended for
surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where
personal injury or death may occur. Should Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and
its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly,
any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture
of the part. SCILLC is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner.
PUBLICATION ORDERING INFORMATION
LITERATURE FULFILLMENT:
Literature Distribution Center for ON Semiconductor
P.O. Box 5163, Denver, Colorado 80217 USA
Phone:
303−675−2175 or 800−344−3860 Toll Free USA/Canada
Fax:
303−675−2176 or 800−344−3867 Toll Free USA/Canada
Email:
orderlit@onsemi.com
N. American Technical Support:
800−282−9855 Toll Free
USA/Canada
Europe, Middle East and Africa Technical Support:
Phone: 421 33 790 2910
Japan Customer Focus Center
Phone: 81−3−5817−1050
ON Semiconductor Website: www.onsemi.com
Order Literature:
http://www.onsemi.com/orderlit
For additional information, please contact your local
Sales Representative
http://onsemi.com
5
BC337/D
