89891-434 datasheet, PDF - EEWORLD Datasheet

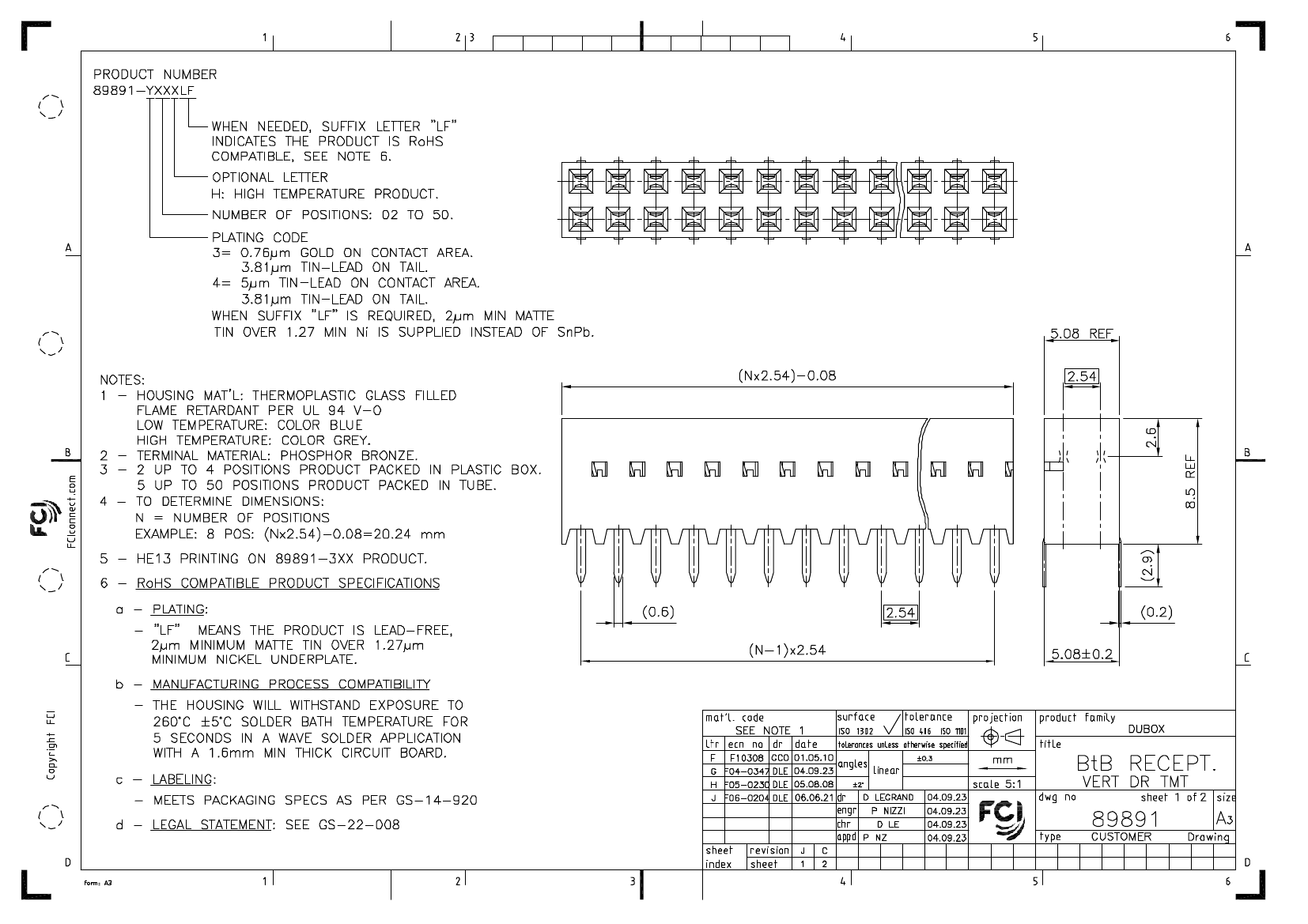

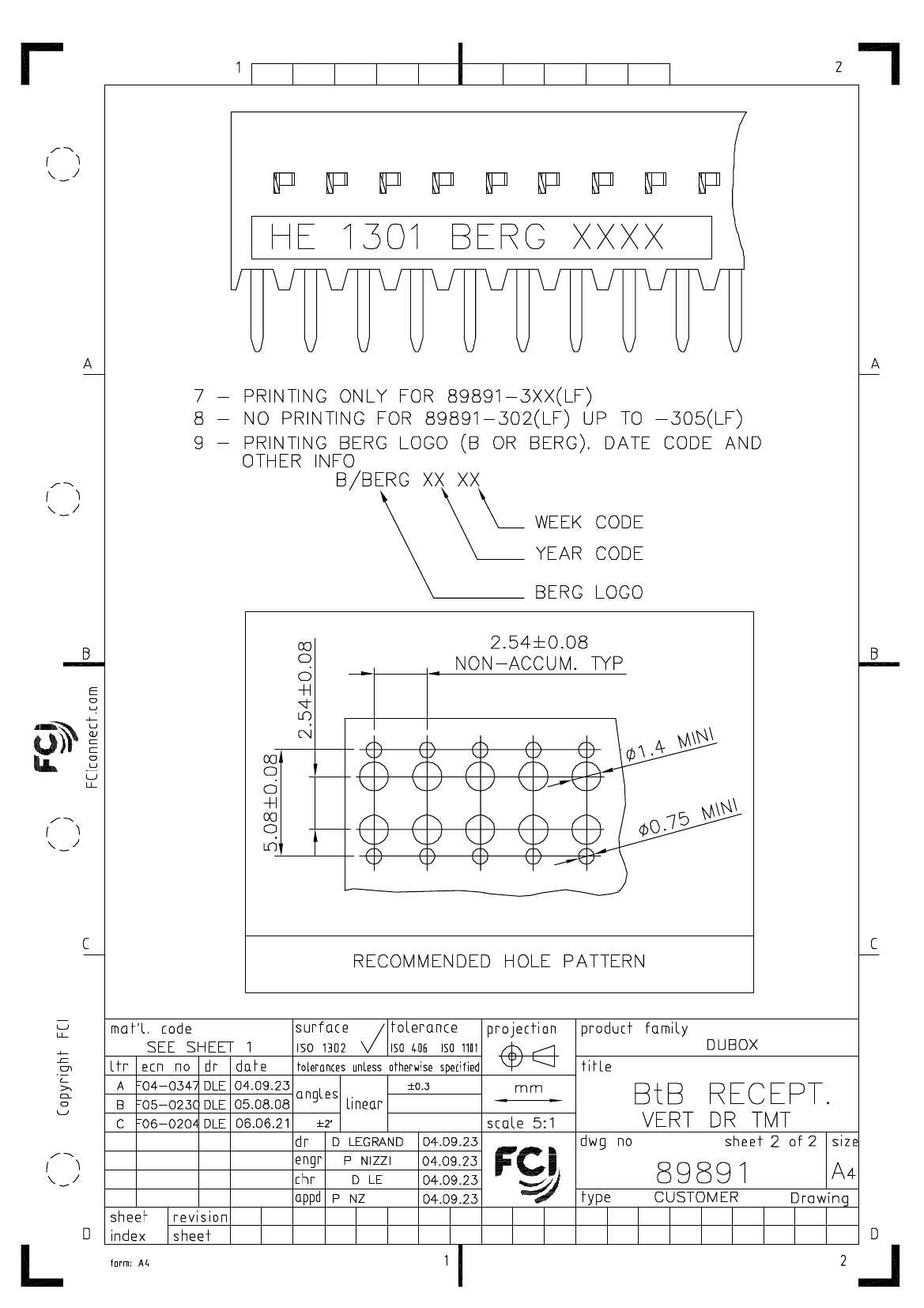

89891-434: DescriptionBoard Connector, 68 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, Receptacle; CategoryThe connector The connector; File Size84KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

89891-434 Overview

Board Connector, 68 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, Receptacle

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	TUBE PAKAGING
body width	0.2 inch
subject depth	0.335 inch
body length	3.397 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD OVER NICKEL
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	1.4734 N
Insulation resistance	100000000000 Ω
Insulator color	BLUE
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	89891
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
Plating thickness	197u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.114 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	68
UL Flammability Code	94V-0
Evacuation force-minimum value	.3058 N
Base Number Matches	1

PDM: Rev:J

STATUS:

Released

Printed: Jul 12, 2006
