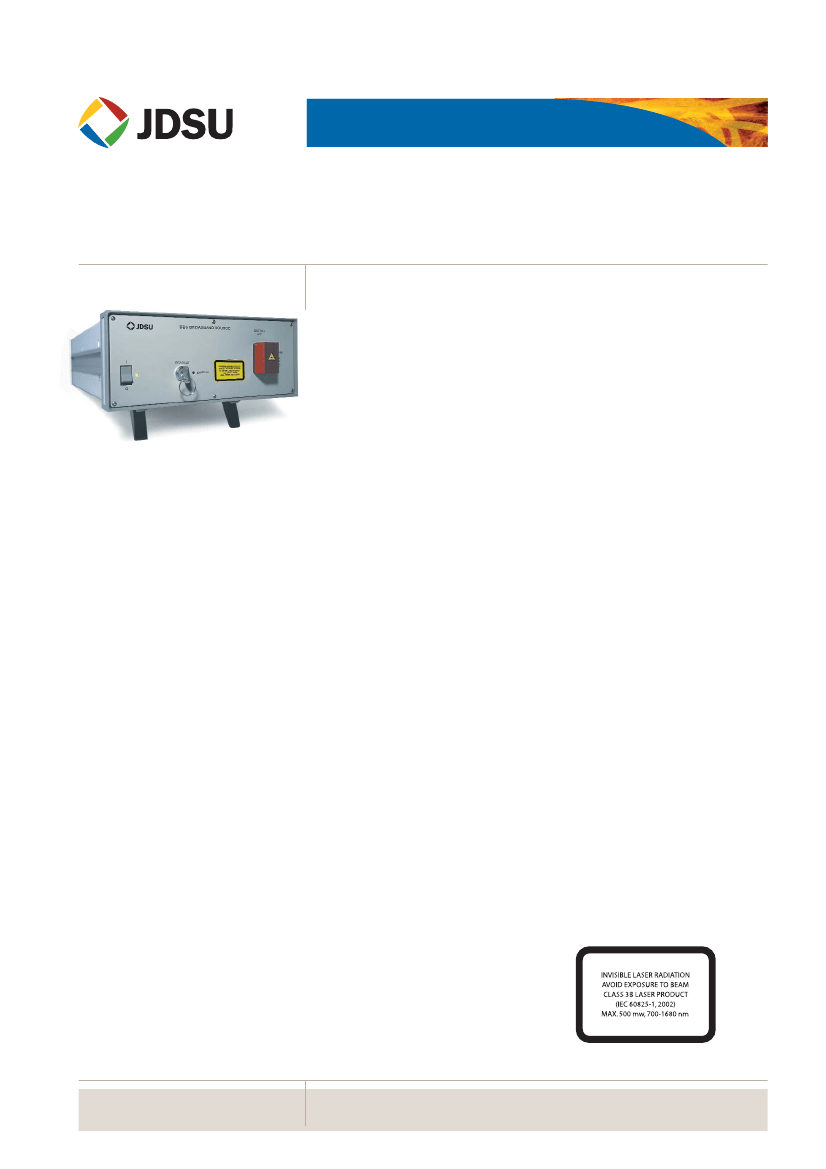

COMMUNICATIONS TEST & MEASUREMENT
Benchtop Broadband Source
BBS Series
Key Features
• Choice of wavelengths (C-band and L-band)
• Flattened output power spectrums
• High output power density
• High spectral stability
• Optional quad outputs
Applications
•
•
•
•
Optical component spectral tests
Systems compliance tests
Optical measurement systems
Sensors and imaging
The JDSU Benchtop BBS series provides a wide wavelength and high output
power source within the 1525 to 1610 nm window. Its superior performance is
achieved by pumping erbium-doped fiber to generate amplified spontaneous
emission combined with specialized optical filters to achieve optimal flatness
over its operating wavelength range.
Through optimization of spectral power density, spectral uniformity and
optical stability, the broadband source maximizes your capabilities of optical
component spectral measurements and systems compliance tests both in
manufacturing and research and development (R&D) environments.
The Benchtop models provide specialized variants and optical performance not
available in the Multiple Application Platform (MAP) product line. Additional
Benchtop BBS models are available in the MAP BBS cassette product line.
Safety Information
Complies to CE requirements plus
UL3101-1 and CAN/CSA-C22.2
No. 1010.1 Meets the requirements
of Class 3B in standard IEC
60825-1(2002) and complies with
21CFR1040.10 except deviations
per Laser Notice No. 50, July 2001.
WEBSITE
:
www.jdsu.com
BENCHTOP BROADBAND SOURCE
2
12
9

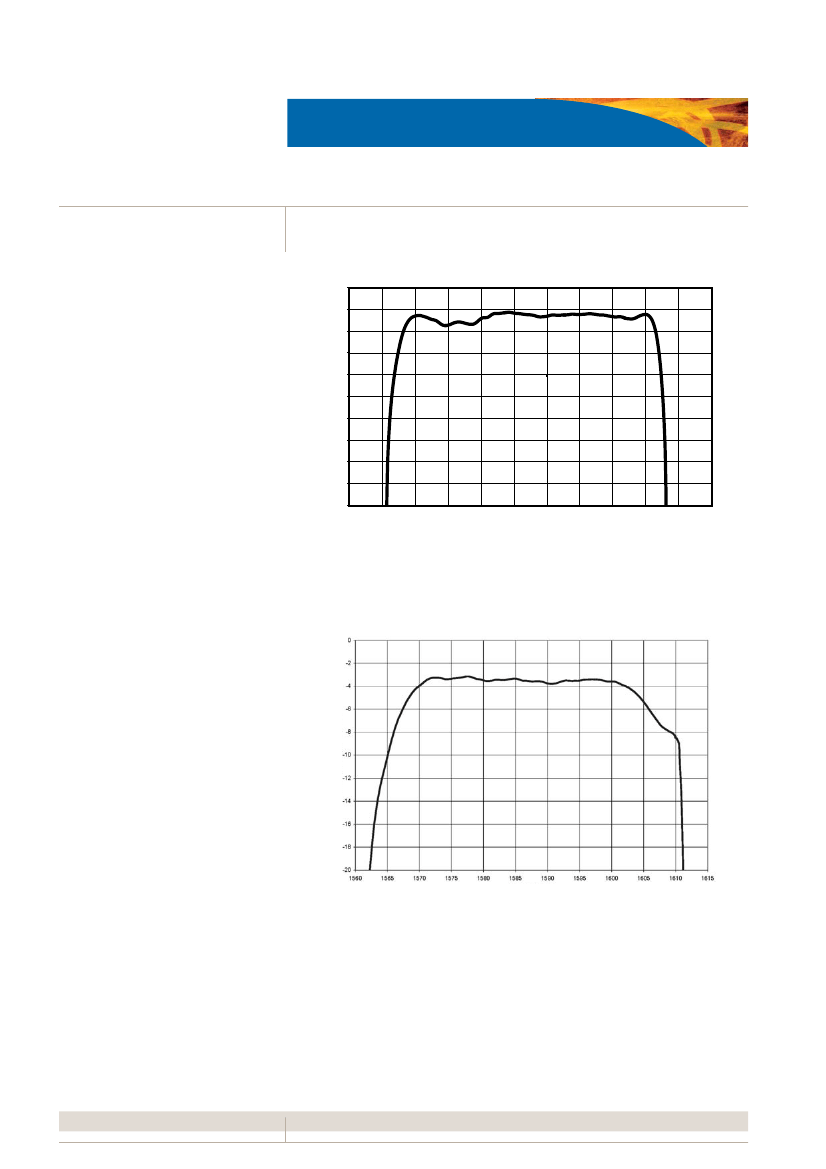

Spectral Density (dBm, 1 nm)
6
3
0
-3
-6
-9
-12
-15
-18
1520
1525
1530
1535
1540
1545 1550 1555
Wavelength (nm)
1560
1565
1570
1575
BBS1550+2XX30 C-band 250 mW
Spectral Density (dBm, 1 nm)
Wavelength (nm)
BBS1590+2XX00 L-band 20 mW
BENCHTOP BROADBAND SOURCE
3
Specifications
Parameter
1550
150
mW
Output Power
Test band
Operating wavelength range
Spectral gain flatness (maximum)
Gain flattened range
Total output power stability
1,2,3
Output isolation (minimum)
Input voltage
Power consumption
Operating temperature
Storage temperature
Humidity
Dimensions (W x H x D)
Weight
1. Measured at 1547 nm (C-band) at 23°C.
2. Measured at 1586 nm (L-band) at 23°C.
3. Over one hour at 23°C, after one hour of warm-up.
1550
250 mW
Output Power
C-band
1527 to 1568 nm
1.8 dB
2.5 dB
1529 to 1565 nm
1590
1590
20 mW
150 mW
Output Power
Output Power
L-band
1565 to 1610 nm
1.8 dB
4.5 dB
1570 to 1603 nm
0.02 dB
45 dB
100 to 240 V AC, 50 to 60 Hz
90 V A maximum
0 to 50°C
-40 to 70°C
maximum 95% RH non condensing from 0 to 45°C
21.2 x 8.9 x 35.5 cm
< 4 kg
BENCHTOP BROADBAND SOURCE
Ordering Information
For more information on this or other products and their availability, please contact your local JDSU account manager or
JDS Uniphase directly at 1-800-498-JDSU (5378) in North America and +800-5378-JDSU worldwide or via e-mail at
sales@jdsu.com.
Sample : BBS1550+2FP02
BBS
Code
1550
1590
Model
C-band, 1527 to 1568 nm
L-band, 1565 to 1610 nm
+ 2
Code
0
4
Connectors
Standard one output connector
Optional four output connectors
for BBS1550
Code
FP
FA
SC
SU
Connector Type
FC/PC
FC/APC
SC/PC
SC/APC
Code
0
2
3
Output power
Standard output power
(available for BBS1590)
150 mW output power
(available for BBS1550 and BBS1590)
250 mW output power
(available for BBS1550)
Standard Accessories
Part Number
Description
ED000899-A-00 Standard 19-inch rackmount kit
Optional Accessories
Part Number
Description
ED000899-A-01 Rackmount kit (Japan)
