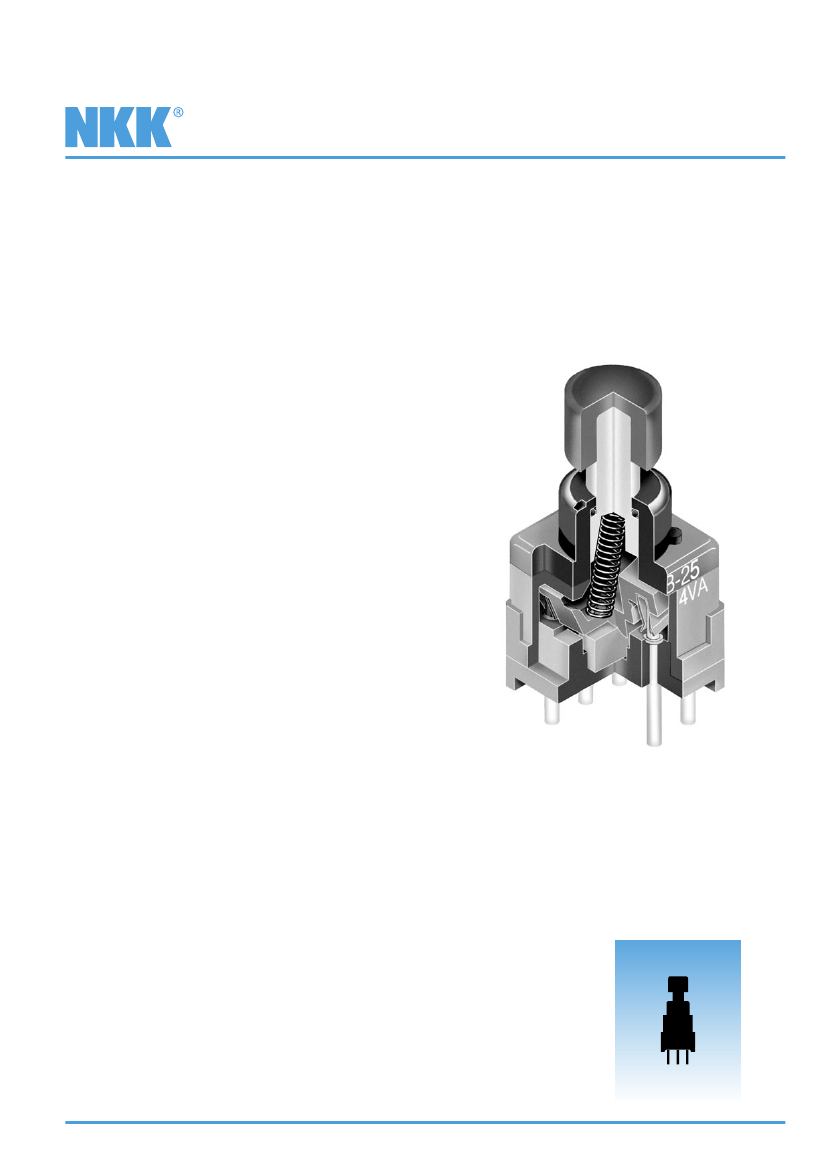

Process Sealed Subminiature Antistatic Pushbuttons
Series BB
Distinctive Characteristics
Subminiature size (1/3 size of Series M switches) saves space on PC boards.
Specifically developed for logic-level applications.
Available in momentary and maintained circuits.
Industry’s smallest alternate action (maintained)
pushbutton with latchdown feature providing
visible, audible, and tactile feedback.
Antistatic superstructure, consisting of the carbon
impregnated bushing and the support bracket,
prevents static discharge to the contacts. Static
electricity from an operator’s touch travels from
the actuator through the bushing and bracket to
the PC board.
Award-winning STC contact mechanism with
benefits unavailable in conventional mechanisms:
smoother, positive detent actuation, increased
contact stability and unparalleled logic-level
reliability. (Additional STC details in Terms &
Acronyms; see Supplement section.)
Smooth, 6mm diameter bushing simplifies panel layout.
Totally sealed body construction prevents contact contamination
and allows time- and money-saving soldering and cleaning.
.100” x .100” (2.54mm x 2.54mm) terminal spacing conforms to standard
PC board grids.
Actual Size
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com
03-07
Process Sealed Subminiature Antistatic Pushbuttons
Series BB
General Specifications
Electrical Capacity (Resistive Load)
Logic Level:
0.4VA maximum @ 28V AC/DC maximum
(Applicable Range 0.1mA ~ 0.1A @ 20mV ~ 28V)
Note: Find additional explanation of operating range in Supplement section.
Other Ratings
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Mechanical Life:
Electrical Life:
Nominal Operating Force:
Contact Timing:
Travel:
50 milliohms maximum
500 megohms minimum @ 500V DC
500V AC minimum for 1 minute minimum
50,000 operations minimum (momentary)
25,000 operations minimum (alternate action)
50,000 operations minimum (momentary)
25,000 operations minimum (alternate action)
2.55N (momentary); 2.94N (alternate action)
Nonshorting
Momentary: Pretravel .028” (0.7mm); Overtravel .016” (0.4mm); Total Travel .043” (1.1mm)
Alternate: Pretravel .039” (1.0mm); Overtravel .039” (1.0mm); Total Travel .079” (2.0mm)
Materials & Finishes
Plunger:
Bushing:
Case Housing:
Support Bracket:
Movable Contact:
Stationary Contacts:
Terminals:
Polyacetal
Carbon blended polyamide
Glass fiber reinforced polyamide
Tin plated phosphor bronze
Phosphor bronze with gold plating
Copper alloy with gold plating
Copper alloy with gold plating
Environmental Data
Operating Temp Range:
Humidity:
Vibration:
Shock:
–30°C through +85°C (–22°F through +185°F)
90 ~ 95% humidity for 96 hours @ 40°C (104°F)
10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range
& returning in 1 minute; 3 right angled directions for 2 hours
50G (490m/s
2
) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)
Installation
Cap Installation Force:
49.03N (11.2 lbf) maximum downward force on actuator;
actuator must be in UP position to remove cap from alternate action models
PCB Processing
Soldering:
Cleaning:
Wave Soldering Recommended: See Profile A in Supplement section.
Manual Soldering: See Profile B in Supplement section.
Automated cleaning. See Cleaning specifications in Supplement section.
Standards & Certifications
Flammability Standards:
UL Recognition
or CSA Certification:
UL94V-0 available
The BB Series pushbuttons have not been tested for UL recognition or CSA certification.
These switches are designed for use in a low-voltage, low-current, logic-level circuit.
When used as intended in a logic-level circuit, the results do not produce hazardous energy.
03-07
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com
Process Sealed Subminiature Antistatic Pushbuttons

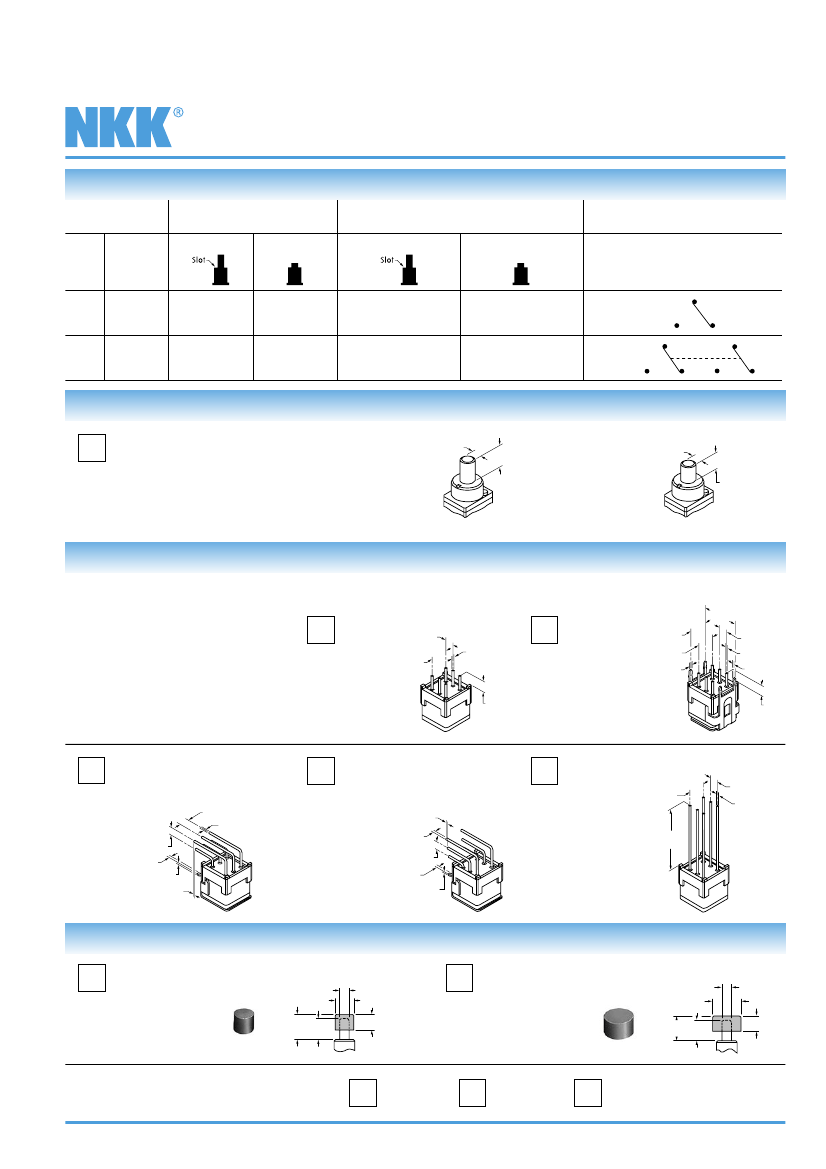

TYPICAL SWITCH ORDERING EXAMPLE
Series BB
A
BB
POLES
1
2
SPDT
DPDT
1
5
A
H
F
PC TERMINALS
P
*
B
*
H
*
V
W
Straight
Straight with Bracket
Right Angle with Bracket
Vertical with Bracket
Straight Long
CIRCUITS
5
6
ON
ON
(ON)
ON
( ) = Momentary
Alternate Action has Latchdown.
BB16 has a Double Pole case.
*Bracketed models are ESD protected
CAP COLORS
CAPS
PLUNGER
A
.213” (5.4mm) Long
F
H
.201” (5.1mm) Diameter
.295” (7.5mm) Diameter
A
B
C
Black
White
Red
DESCRIPTION FOR TYPICAL ORDERING EXAMPLE
BB15AH-FA
SPDT
ON-(ON) Circuit
Right Angle PC Terminals
Black .201” (5.1mm)
Diameter Cap
.213” (5.4mm) Long
White Plunger
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com
03-07
Process Sealed Subminiature Antistatic Pushbuttons
POLES & CIRCUITS
Plunger Position
( ) = Momentary
Normal
Pole
SP
DP
Model
BB15
BB16
BB25
BB26
ON
ON
ON
ON
(ON)
ON
(ON)
ON
2-3
2-3 5-6
2-1
2-1 5-4
SPDT
DPDT
Down
Connected Terminals
Normal
Down
Note:
Series BB
Throw & Schematics
Terminal numbers are not
actually on the switch.
2 (COM)
1
2
1
(COM)
3
4
3
5
6
PLUNGERS
A
.213” (5.4mm) Long
Normal
Position
(2.8) Dia
.110
(5.4)
.213
(2.8) Dia
.110
Standard Plunger Color:
White
Contact factory for other colors and lengths.
Latchdown
Position
(4.2)
.165
PC TERMINALS
Use of a support bracket is recommended to increase PCB mounting strength and stability.
(10.16)
.400
(5.08)
.200
(5.08)
.200
(0.6) Typ
.024
(2.54) Typ
.100
(0.6) Dia Typ
.024
(0.4) Typ
.016
(3.1)
.122
Both single pole and double pole
alternate action models have
double pole bases.
See Typical Switch Dimensions
for details.
P
Straight
(2.54) Typ
.100
(5.08)
.200
B
(0.6) Dia Typ
.024
Straight
with Bracket
(3.1) Typ
.122
H
Right Angle with Bracket
(2.54) Typ
.100
(0.6) Dia Typ
.024
(2.54) Typ
.100
(0.6)
.024 (0.4)
.016
(0.5) Typ
.020
V
Vertical with Bracket
(0.5) Typ
.020
(0.6) Dia Typ
.024
(2.54) Typ
.100
(0.6)
.024
(0.4)
.016
W
Straight Long
(5.08)
.200
(2.54) Typ
.100
(0.6) Dia Typ
.024
(18.9)
.744
SLIP-ON CAPS
F
AT475
.201” (5.1mm) Diameter Cap
(2.8) Dia
.110
(4.0)
.157
H
(5.1) Dia
.201
(6.3) (5.4)
.248 .213
AT496
.295” (7.5mm) Diameter Cap
(7.5) Dia
.295
(6.3) (5.4)
.248 .213
(2.8) Dia
.110
(4.0)
.157
Material: Polyamide
Material: Polyamide
Colors Available:
A
Black
B
White
C
Red
03-07
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com
Process Sealed Subminiature Antistatic Pushbuttons

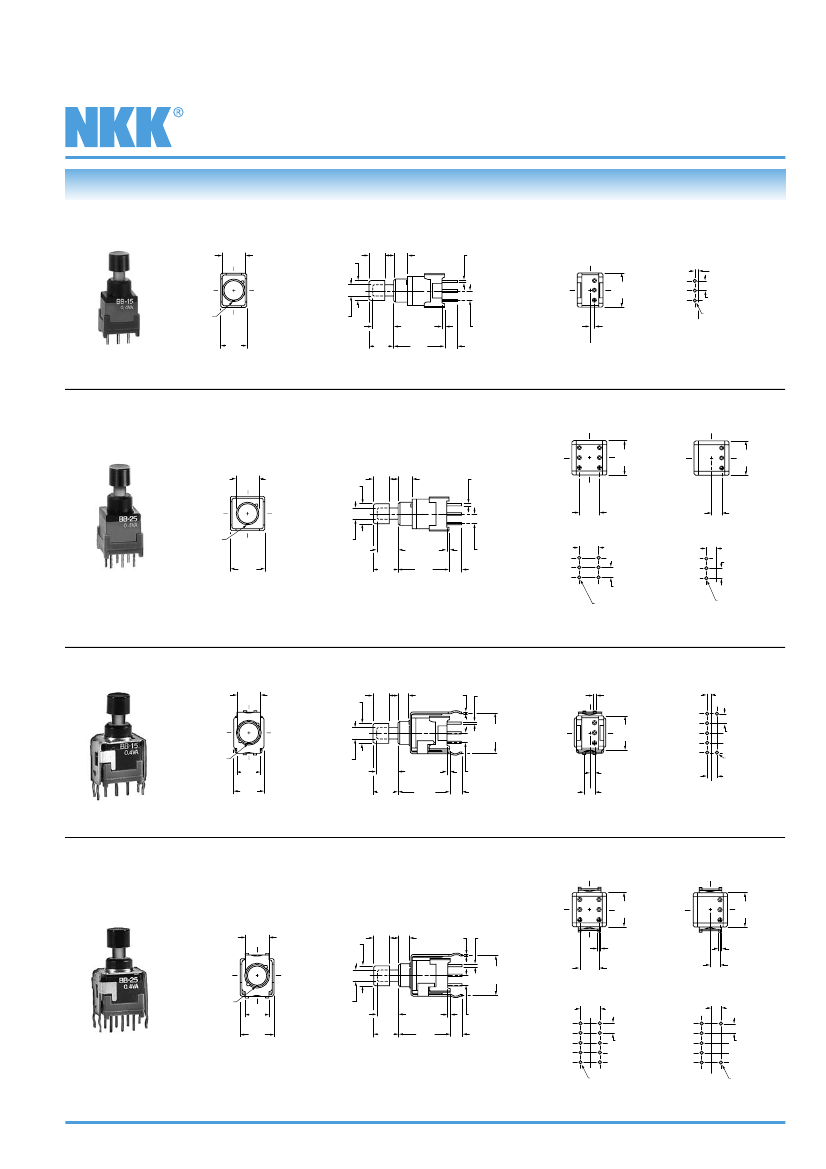

TYPICAL SWITCH DIMENSIONS
Straight PC
(6.0) Dia
.236
(5.1) Dia
.201
(4.0)
.157
(3.5)
.138
(0.6) Dia Typ
.024
1
2
COM
3
Series BB
Single Pole
1
(1.0)
.039
(2.54) Typ
.100
(0.8) Dia Typ
.031
(8.8)
.346
(1.0)
.039
2
3
Slot
(6.8)
.268
(2.8) Dia
.110
(5.4)
.213
(6.3)
.248
(0.8)
.031
(13.1)
.516
(2.54) Typ
.100
(3.1)
.122
C
L
C
L
BB15AP-FA
Momentary
Straight PC
Double Pole
1
COM
2
3
4
5
6
BB16AP
1
COM
2
3
(8.8)
.346
(8.8)
.346
(6.0) Dia
.236
(5.1) Dia
.201
(4.0)
.157
(3.5)
.138
(0.6) Dia Typ
.024
(5.08)
.200
Slot
(8.8)
.346
(2.8) Dia
.110
(5.4)
.213
(6.3)
.248
(0.8)
.031
(13.1)
.516
(2.54) Typ
.100
(3.1)
.122
(5.08)
.200
(2.54)
.100
(2.54)
.100
(2.54) Typ
.100
C
L
(0.8) Dia Typ
.031
4
5
6
1
2
3
1
2
3
(2.54) Typ
.100
(0.8) Dia Typ
.031
BB25AP-FA
Momentary & Alternate
Alternate
Straight PC • Bracket
(6.0) Dia
.236
(5.1) Dia
.201
(4.0)
.157
(2.7) (0.4) Typ
.106 .016
(0.6) Dia Typ
.024
(10.16)
.400
Slot
(2.8) Dia
.110
(0.8)
.031
(13.1)
.516
(2.54) Typ
.100
(3.1)
.122
Single Pole
(0.6) Typ
.024
1
2
COM
3
1
(1.0)
.039
(2.54) Typ
.100
(0.8) Dia Typ
.031
(2.54)
.100
(8.8)
.346
2
3
(6.0)
.236
(8.0)
.315
(5.4)
.213
(6.3)
.248
C
L
(1.0)
.039
(2.54)
.100
C
L
BB15AB-FA
Momentary
Straight PC • Bracket
Double Pole
1
COM
2
3
4
5
6
BB16AB
1
COM
2
3
(8.8)
.346
(0.6) Typ
.024
(5.08)
.200
(8.8)
.346
(6.0) Dia
.236
(5.1) Dia
.201
(4.0)
.157
(2.7) (0.4) Typ
.106 .016
(0.6) Dia Typ
.024
(10.16)
.400
(0.6) Typ
.024
(2.54)
.100
Slot
(6.0)
.236
(8.8)
.346
(2.8) Dia
.110
(5.4)
.213
(6.3)
.248
(0.8)
.031
(13.1)
.516
(2.54) Typ
.100
(3.1)
.122
(5.08)
.200
4
5
6
1
2
3
(2.54) Typ
.100
1
2
3
(2.54) Typ
.100
(2.54) Typ
.100
(0.8) Dia Typ
.031
(0.8) Dia Typ
.031
C
L
BB25AB-FA
Momentary & Alternate
Alternate
03-07
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com
