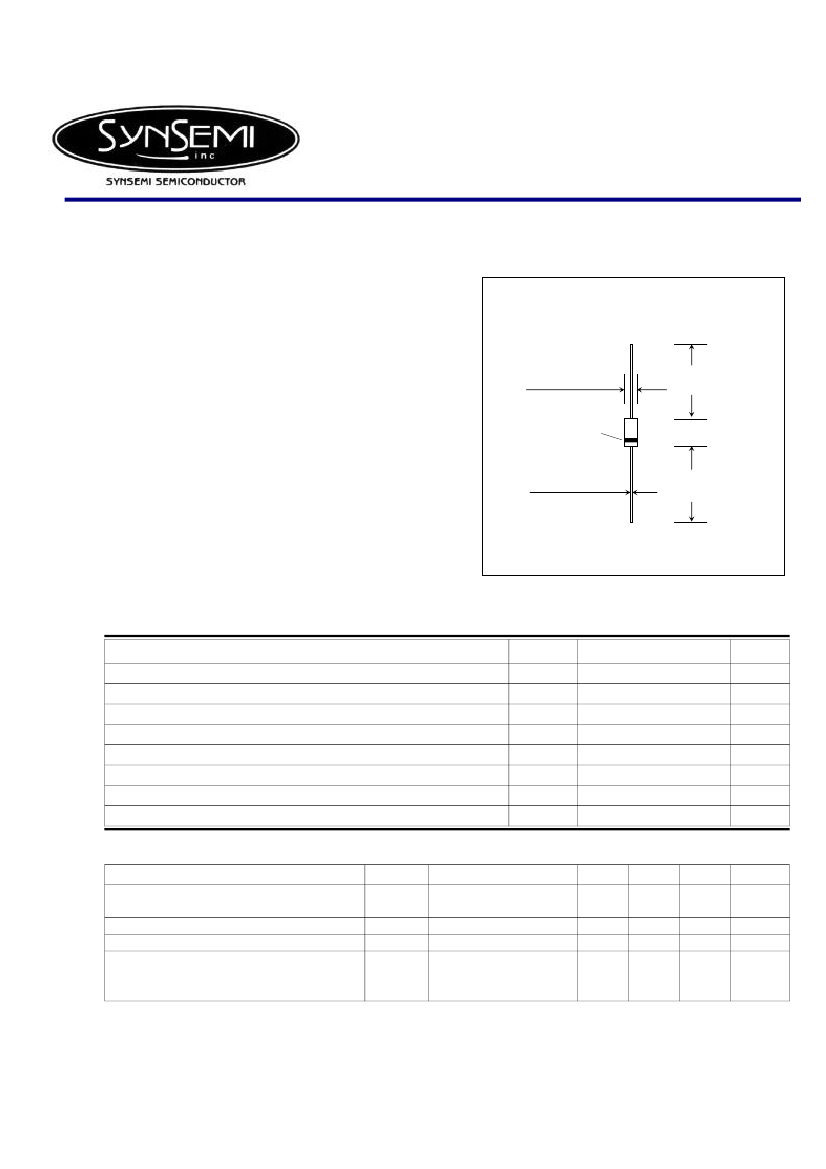

BAW62
FEATURES :
• High switching speed: max. 4 ns
• Continuous reverse voltage:max. 75 V
• Repetitive peak reverse voltage:max. 75 V
• Repetitive peak forward current: max. 450 mA
• Pb / RoHS Free
HIGH SPEED SWITCHING DIODE
DO - 35 Glass
(DO-204AH)
0.079(2.0 )max.
1.00 (25.4)
min.
Cathode
Mark
0.150 (3.8)
max.
MECHANICAL DATA :
Case:
DO-35 Glass Case
Weight:
approx. 0.13g
0.020 (0.52)max.
1.00 (25.4)
min.
Dimensions in inches and ( millimeters )
Maximum Ratings and Thermal Characteristics
(Rating at
Parameter
Maximum Repetitive Peak Reverse Voltage
Maximum Continuous Reverse Voltage
Maximum Continuous Forward Current
Maximum Power Dissipation
Maximum Repetitive Peak Forward Current
Maximum Non-repetitive Peak Forward Current at t = 1s
Maximum Junction Temperature
Storage Temperature Range
25
°
C ambient temperature unless otherwise specified.)
Symbol
V
RRM
V
RM
I
F
P
D
I
FRM
I
FSM
T
J
T
S
Value
75
75
250
350
450
0.5
200
-65 to + 200
Unit
V
V
mA
mW
mA
A
°C
°C
Electrical Characteristics
(T
J
= 25°C unless otherwise noted)
Parameter
Reverse Current
Forward Voltage
Diode Capacitance
Reverse Recovery Time
Symbol
I
R
V
F
Cd
Trr
Test Condition
V
R
= 75 V
V
R
= 75 V , Tj = 150
°C
I
F
= 100 mA
f = 1MHz ; V
R
= 0
I
F
= 10 mA to I
R
= 10 mA
R
L
= 100
Ω
; measured
at I
R
= 1mA
Min
-
-
-
-
-
Typ
-
-
-
-
-
Max
5
100
1.0
2.0
4
Unit
µA
V
pF
ns
Page 1 of 2
Rev. 02 : March 25, 2005

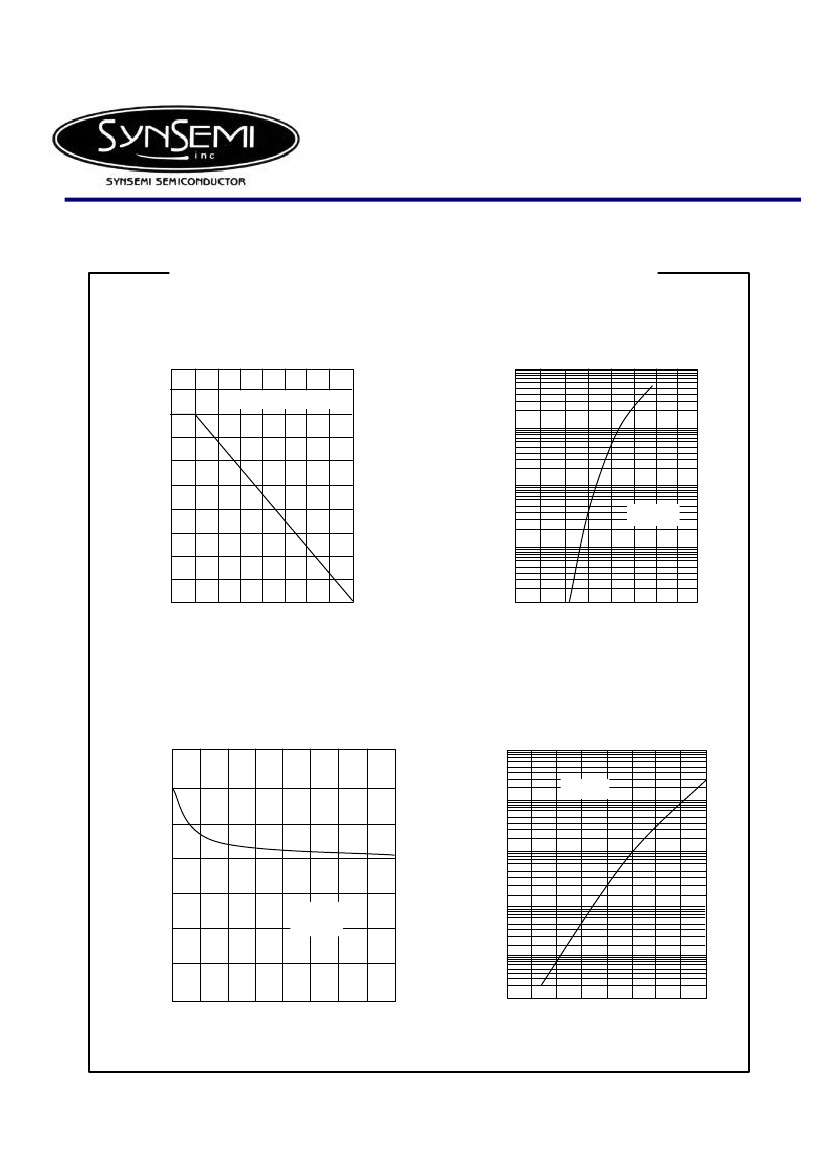

RATING AND CHARACTERISTIC CURVES ( BAW62 )
FIG. 1 MAXIMUM PERMISSIBLE CONTINUOUS
FORWARD CURRENT AS A FUNCTION OF
AMBIENT TEMPERATURE.
250
CONTINUOUS FORWARD CURRENT,
I
F
(mA)
Lead Length 10mm.
1000
FIG. 2 TYPICAL FORWARD VOLTAGE
Forward Current , I
F
(mA)
200
100
150
10
T
J
= 25
°
C
1
100
50
0
0
100
200
0.1
0
0.4
0.8
1.2
1.4
Ambient Temperature , Ta (°C)
Forward Voltage , V
F
(V)
FIG. 3 TYPICAL DIODE CAPACITANCE AS
A FUNCTION OF REVERSE VOLTAGE
FIG.4 TYPICAL REVERESE CURRENT
VS JUNCTION TEMPERATURE
1.2
10
3
1.0
V
R
= 75V
Diode Capacitance , Cd (pF)
0.9
0.8
Reverse Current , I
R
(
µ
A)
10
2
10
0.7
f = 1MHz;
T
J
= 25
°
C
1
0.6
10
-1
0.5
10
-2
0
10
20
0
100
200
0.4
Reverse Voltage , V
R
(V)
Junction Temperature , Ta (°C)
Page 2 of 2
Rev. 02 : March 25, 2005
