BAO20-UAC-12 Overview

20W Open Frame AC-DC Power Modules

Preview

Download Datasheet

View All

BTCPower

BAO20 Series

•

Broadband TelCom Power,

Inc.

Redefining “Current” Limits In Power Conversion

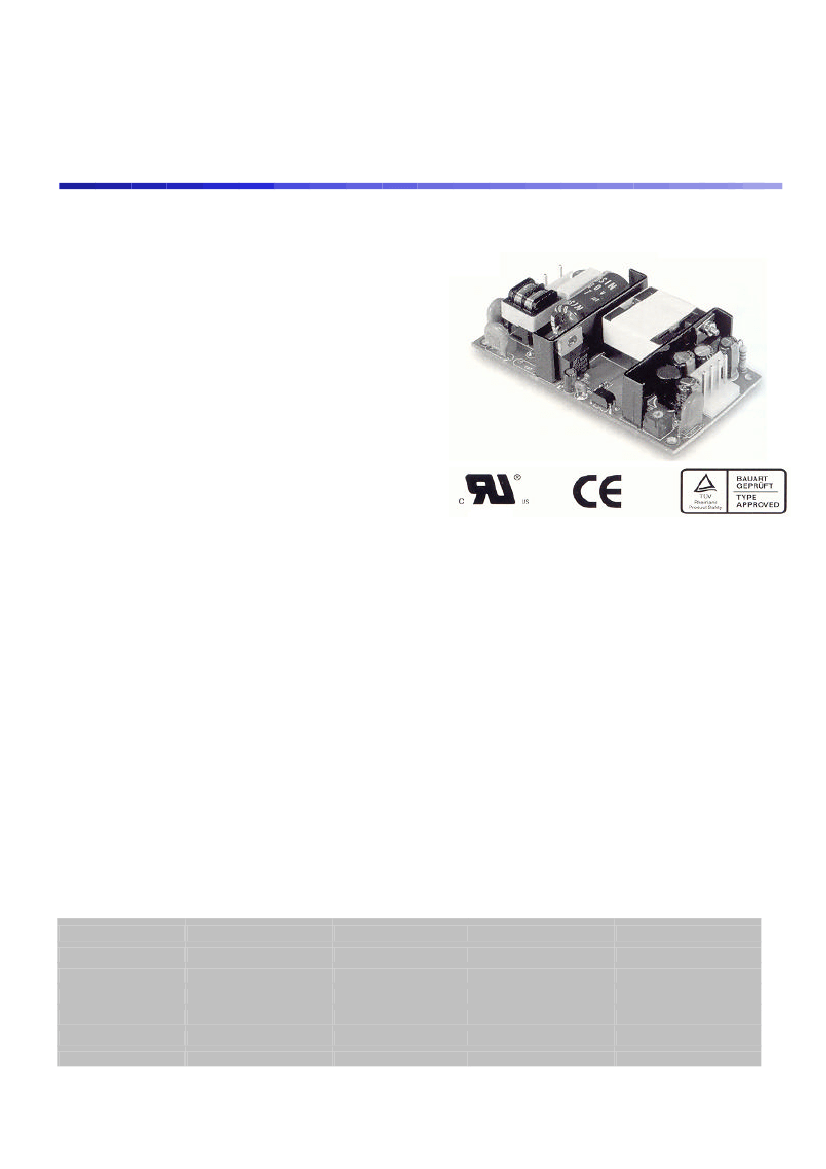

20W Open Frame AC-DC Power Modules

Universal Input 85-264 Vac

PCB Mountable

Efficiency to 82%

Industry Standard Pin Out

100 % full load burn-in test

ISO-9001 certified manufacturer

Short circuit / overload / over voltage

protection

•

Approvals: UL / TUV / CE

Specifications

Input voltage range……………………………………

85-264 Vac

Input frequency………….……………………………… 47 – 63 Hz

Inrush current…………………………………………… Cold start, 20A / 155Vac, 40A / 230Vac

Output voltage….………………………………………… Refer to below table

Initial Accuracy ………………………………………….. ±1.0% max.

Temperature Coefficient ……………………………….. ±0.05% / ºC

Ripple & Noise, 20Mhz BW ……………………………. 50mVp-p, max @ 3.3/5Vo; 1%p-p,max @

others output voltage modules

Hold-up time ¹ ………………………………………….. 16ms typ.

Short circuit protection……………...…………………… Continuous

Line regulation ² .…………………………………….…. ±0.05% max.

Load regulation ³ ………………………………………… ±1.0% max.

Efficiency ………..…..…………………………………… Refer to below table

Working temp……………………………………………

0-50 ºC @ 100 %, -10 ºC @ 80%, 60 ºC @ 60%

Isolation Voltage (Input/Output) ……………………… 4242 Vac

Operating temp. range ………………………………… 0 ºC – 45 ºC

Storage temp. range ………………………..…………. -40 ºC – +100 ºC

Cooling…………………………………………………… Free air convection

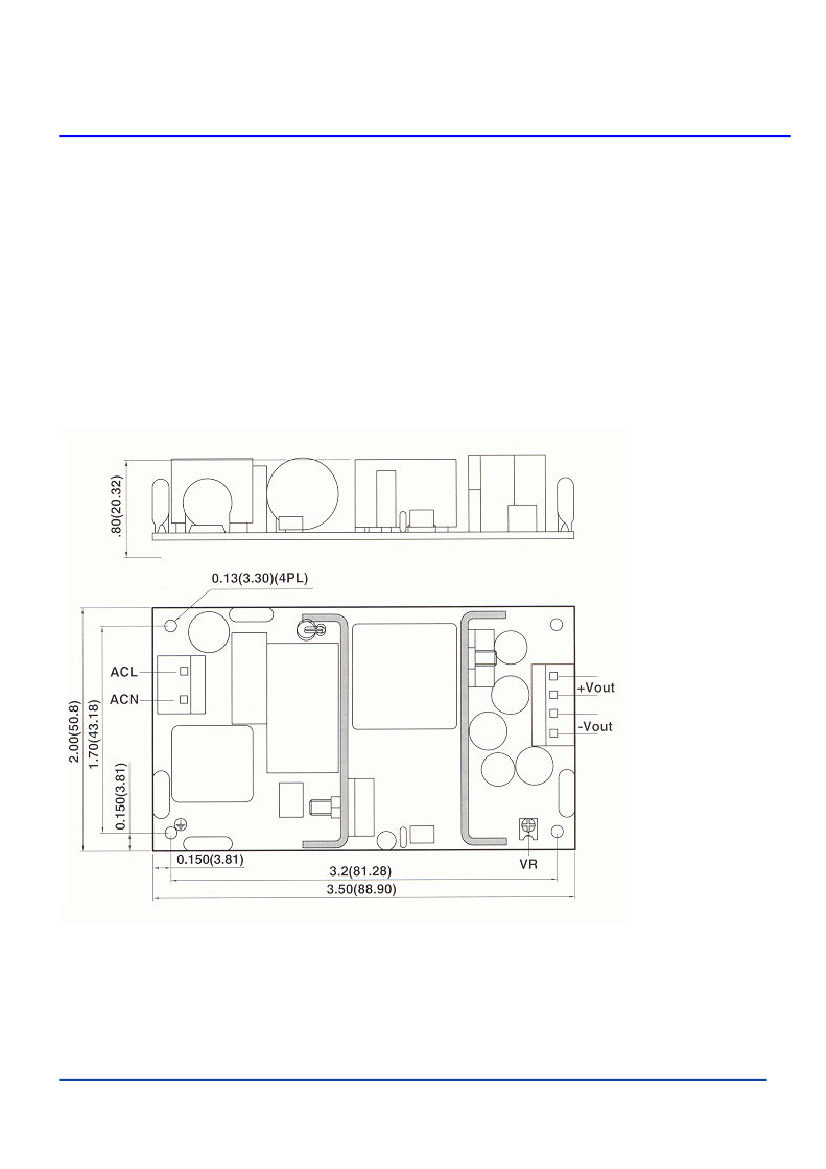

Part No

BAO20-UAC-3.3

BAO20-UAC-5

BAO20-UAC-9

BAO20-UAC-12

BAO20-UAC-15

BAO20-UAC-24

Output

3.3V, 4.4A

5V, 4.4A

9V, 2.44A

12V, 1.8A

15V, 1.4A

24V, 0.92A

Tolerance

+/ - 1 %

Ripple

50 mV

90 mV

120 mV

150 mV

240 mV

Efficiency

70%

73%

77%

80%

82%
