SMT Inductors, SIMID Series
SIMID 0805–F
B82498F
Size 0805 (EIA) or 2012 (IEC)
Rated inductance ceramic 2.7nH to 820nH
Rated inductance ferrite 1000nH to 6800nH
Rated current from 90 to 1000 mA
Construction
Cubic coil with ceramic or ferrite core
Epoxy moulded flat top for vacuum pickup
Wire welded to terminations
Features
High resonance frequency
Close inductance tolerance
Suitable for reflow (IR and vapor phase)
and wave soldering
Applications
Antenna amplifiers
DECT systems
Mobile phones
Keyless entry
GPS (Global Positioning System)
Terminals
Thick–film coating of Ag/Pd/Pt
Base material AL
2
O
3
ceramic or NiZn ferrite
Marking
No marking on component
Minimum data on reel:
Manufacturer, part number, ordering code,
L–Value and tolerance of L–value,
quantity, date of packing
Delivery mode
8–mm blister tape, wound on 178–mm reel
For details on taping, packing and packing units see databook
The information contained in this datasheet describes the
type of component and shall not be considered as guaran-
teed characteristics.
B82498–F****–*–2–7659
1
11.11.2004
7 pages
SMT Inductors, SIMID Series
SIMID 0805–F
B82498F
General technical data
Rated inductance L
R
Measured with impedance analyzer HP 4291A and
test fixture 16197 at frequency f
L;
short dimensions
2.0 x 1.2 x 0.8 (mm); 0.9 + 0.1 (mm) pad distance;
short inductance 200 pH unconsidered
Measured with impedance analyzer HP 4291A and
test fixture 16197 at frequency f
Q;
short dimensions
2.0 x 1.2 x 0.8 (mm); 0.9 + 0.1(mm) pad distance;
short inductance 200 pH unconsidered
Maximum permissible DC with inductance decrease-
L/L
0
10% and temperature increase of 25 K
at rated temperature of 125
°C
Measured with network analyzer HP 8720D
Measured at 20°C ambient temperature,
measuring current < I
R
In accordance with IEC 60068–1
55/150/56 (–55
°C/
+150
°C/
56 days damp heat test)
In accordance with IEC 60068–2–58 (lead free)
(245
3)
°C,
(3
0,3) s
Wetting of soldering area:
90%
In accordance with IEC 60068–2–20
260
°C,
10 s
∆L/L
3%
2 mm (100 mm long standard PCB)
Approx. 8,5mg (ceramic), 12,5mg (ferrite)
Q factor Q
min
Self–resonance frequency f
res,min
DC resistance R
max
Climatic category
Solderability
Resistance to soldering heat
Permissible PCB bending
Weight
The information contained in this datasheet describes the
type of component and shall not be considered as guaran-
teed characteristics.
B82498–F****–*–2–7659
2
11.11.2004
7 pages
¡
¤
¢
£¡
¢
¢ ¡
¢
Rated current I
R
SMT Inductors, SIMID Series
SIMID 0805–F
B82498F

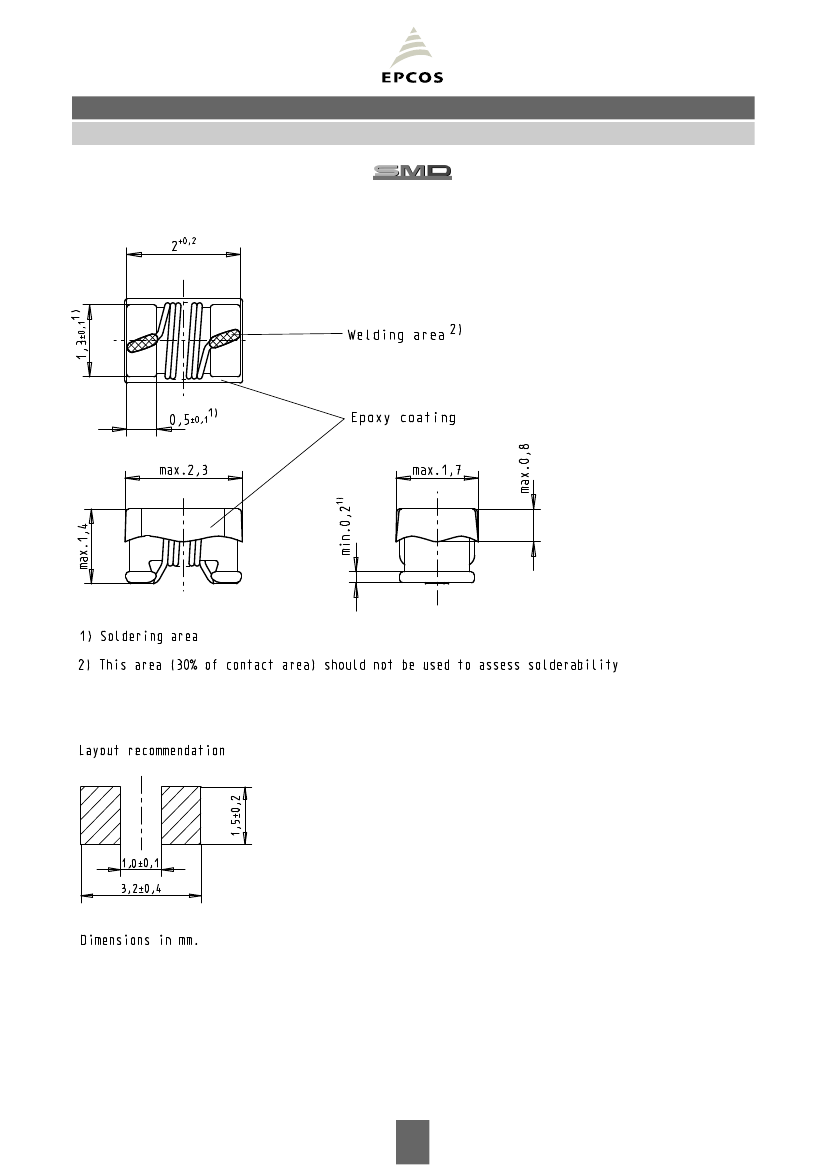

Dimensional drawing
The information contained in this datasheet describes the
type of component and shall not be considered as guaran-
teed characteristics.
B82498–F****–*–2–7659
3
11.11.2004
7 pages
SMT Inductors, SIMID Series
SIMID 0805–F
B82498F
Characteristics and ordering codes
L
R
nH
2,7
5,6
6,8
8,2
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1)
2)
MHz
MHz
50
50
50
50
50
50
50
60
60
60
65
65
65
60
60
60
55
50
45
45
45
45
45
40
30
23
23
23
1500
1000
1000
1000
500
500
500
500
500
500
500
500
500
500
500
500
500
250
250
250
250
250
250
250
100
50
50
50
mA
1000
900
800
700
700
700
650
700
700
700
600
600
600
600
500
500
450
440
400
340
320
270
220
210
190
230
190
180
Ω
0.03
0.04
0.05
0.09
0.09
0.09
1.13
0.08
0.08
0.09
0.11
0.12
0.13
0.14
0.18
0.19
0.28
0.31
0.42
0.53
0.70
1.0
1.5
1.6
1.9
1.3
1.7
1.9
Core material: ceramics
10%
K
250
250
250
250
250
250
250
250
250
250
250
250
200
200
200
150
150
150
100
100
100
100
100
100
50
25
25
25
9000
7000
6000
5000
5000
4000
3300
3300
2500
2500
2200
2100
2000
1700
1600
1500
1350
1250
1150
1050
950
900
800
700
650
400
300
300
B82498F3279+000
B82498F3569+000
B82498F3689+000
B82498F3829+000
B82498F3100+000
B82498F3120+000
B82498F3150+000
B82498F3180+000
B82498F3220+000
B82498F3270+000
B82498F3330+000
B82498F3390+000
B82498F3470+000
B82498F3560+000
B82498F3680+000
B82498F3820+000
B82498F3101+000
B82498F3121+000
B82498F3151+000
B82498F3181+000
B82498F3221+000
B82498F3271+000
B82498F3331+000
B82498F3391+000
B82498F3471+000
B82498F3561+000
B82498F3681+000
B82498F3821+000
2%
G
5%
J
intermediate values and closer tolerances upon request
Replace the + by the code letter for the required inductance tolerance.
The information contained in this datasheet describes the
type of component and shall not be considered as guaran-
teed characteristics.
B82498–F****–*–2–7659
4
11.11.2004
¥
Toler–
ance
1)
f
L
Q
min
f
Q
I
R
R
max
f
res,min
Ordering code
2)
( 180–mm reel)
MHz
§
§¦
§
¦
¦
7 pages
SMT Inductors, SIMID Series
SIMID 0805–F
B82498F
Characteristics and ordering codes
(continued)
L
R
nH
Toler–
ance
1)
f
L
MHz
Q
min
f
Q
MHz
I
R
mA
R
max
Ω
f
res,min
Ordering code
2)
( 180–mm reel)
MHz
Core material: ferrite
1800
2200
2700
3300
3900
4700
5600
6800
1)
intermediate values and closer tolerances upon request
2)
Replace the + by the code letter for the required inductance tolerance.
The information contained in this datasheet describes the
type of component and shall not be considered as guaran-
teed characteristics.
1000
1200
1500
5%
J
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
20
20
20
20
20
20
20
20
20
20
20
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
240
220
200
190
130
120
100
95
90
85
80
0.55
0.65
0.70
0.98
1.60
2.00
3.30
3.60
3.80
4.30
4.70
440
420
380
350
330
270
250
230
210
180
140
B82498F1102J000
B82498F1122J000
B82498F1152J000
B82498F1182J000
B82498F1222J000
B82498F1272J000
B82498F1332J000
B82498F1392J000
B82498F1472J000
B82498F1562J000
B82498F1682J000
B82498–F****–*–2–7659
5
11.11.2004
¨
©
7 pages
