NOTES:
1.
MATERIALS AND FINISHES:
BODY - ZINC DIE CAST, NICKEL PLATING (.000100 THICK MIN)
RESISTOR CONTACT - 75 OHMS 1/4 WATT, COPPER WIRE LEAD, MATTE TIN PLATING
INSULATOR - PTFE
CAP - PE
ELECTRICAL:
A. IMPEDANCE: 75 OHM
B. FREQUENCY RANGE: DC - 3 GHz
C. VSWR(RETURN LOSS): 24 dB @ 2 GHz MIN.
MECHANICAL:
A. DURABILITY: 100 CYCLES MIN.
B. TEMPERATURE RANGE: -40 $C TO 140 $C
PACKAGING:
A. QUANTITY: SINGLE PACK
B. MARKING: BAG TO BE MARKED
"AMPHENOL, 531-40172 , AND DATE CODE"
THIRD ANGLE PROJ.
REV
REVISIONS
A
RELEASE TO MFG.
DESCRIPTION
B
C
D
E
CHANGED BRIGHT TIN PLATING TO NICKEL
"1.8REF." WAS "2.54±0.25"; ADDED DIA .425
ADD STAKING \DM12053101S1
ADDED CAP TO CONNECTOR
12/16/03
6/15/10
1/23/09
DATE
47393
48066
48259
49114
44738
ECO
APPR
KJC
MY
2.
31-May-12
18-Aug-11
SL
SCOTT
CPM
3.
4.
10,8
[.425]
1,8
REF
[.071]
STAKE IN 8 PLACES
EQUALLY SPACED 45 $APART
SCALE
2.000
0,7
[.028]
5,1
[.200]
SECTION
A-A
8,5
[.335]
3/8-32UNEF-2B
7/16" HEX
[11.1 mm]
CAP IS NOT SHOWN IN THIS VIEW
14,5
[.571]
UNLESS OTHERWISE SPECIFIED, DIMENSIONS ARE IN METRIC AND TOLERANCES ARE:
<0.5mm
0.5 - 6mm
6 - 30mm
30 - 120mm
ANGLES
# 0.05mm
#
0.1mm
# 0.3mm
#
0.2mm
# $
1
NOTICE - These drawings, specifications, or other data (1) are, and remain the
property of Amphenol corp. (2) must be returned upon requiest; and (3) arre
confidential and not to be disclosed to any person other than those to whom
they
are given by Amphenol Corp. the funishing of these drawings, specifications,
or
other data by Amphenol Corp., or to any other person to anyone for any purpose
is
not to be regarded by implicatioin or otherwise in any manner licensing,
granting
rights to permitting such holder or any other sperson to manufacture, use or
sell any
product, process or design, patented or otherwsie, that may in any way be
related to
or disclosed by said drawings, specifications, or other data.
MATERIAL
SEE NOTES
REFERENCE
EAR # 1135
616X-1112-100
MOTOROLA 482093
DRAWN
S.LI
ENGINEER
K.CAPOZZI
APPROVED
S.HSIEH
DATE
05-Jun-12
DATE
14-Oct-03
DATE
05-Jun-12

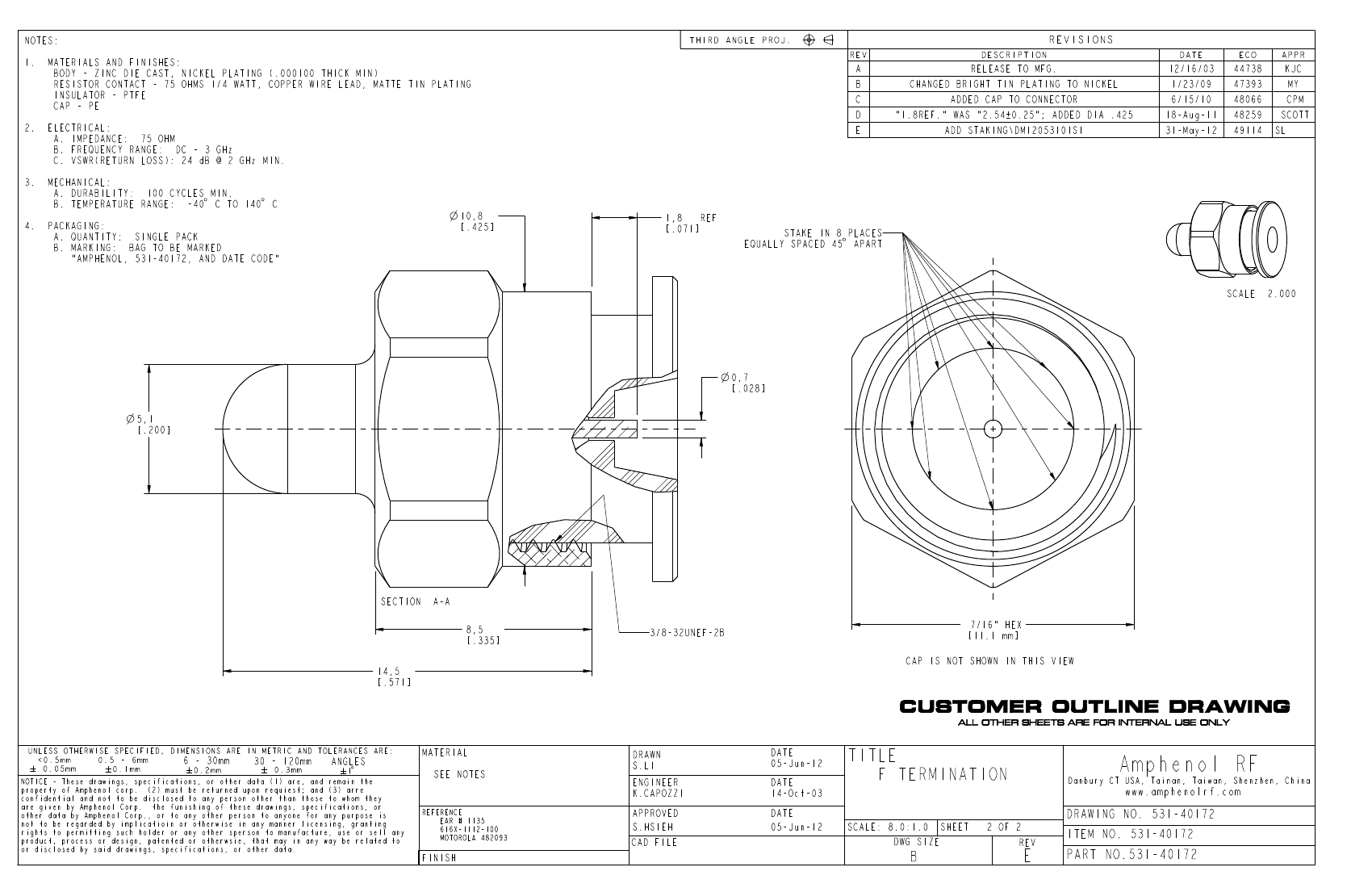

TITLE
F TERMINATION
SCALE: 8.0:1.0
SHEET
2 OF 2
Danbury CT USA, Tainan, Taiwan, Shenzhen, China
Amphenol RF
www.amphenolrf.com
DRAWING NO. 531-40172
FINISH
CAD FILE
DWG SIZE
B
REV
E
ITEM NO. 531-40172
PART NO. 531-40172
