8002001DX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 8002001DX

8002001DX: DescriptionLS SERIES, 4-BIT TRANSCEIVER, INVERTED OUTPUT, CDFP14; Categorylogic logic; File Size97KB，4 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

8002001DX Overview

LS SERIES, 4-BIT TRANSCEIVER, INVERTED OUTPUT, CDFP14

8002001DX Parametric

Parameter Name	Attribute value
Maker	Motorola ( NXP )
package instruction	DFP,
Reach Compliance Code	unknown
Is Samacsys	N
Other features	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION
series	LS
JESD-30 code	R-GDFP-F14
length	9.65 mm
Logic integrated circuit type	BUS TRANSCEIVER
Number of digits	4
Number of functions	1
Number of ports	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
propagation delay (tpd)	25 ns
Certification status	Not Qualified
Maximum seat height	2.15 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
width	6.415 mm
Base Number Matches	1

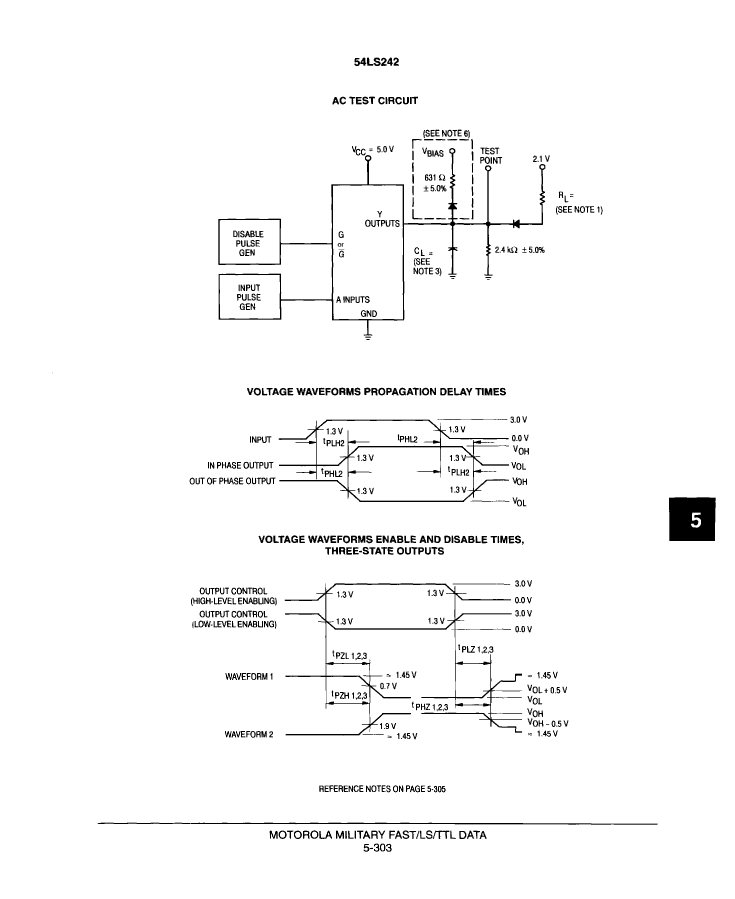

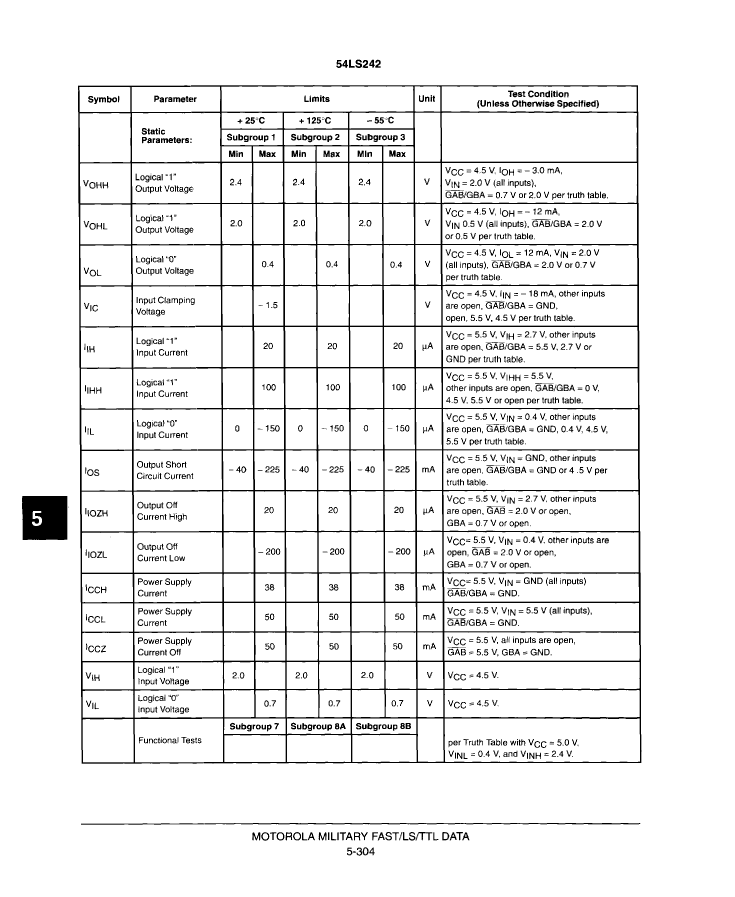

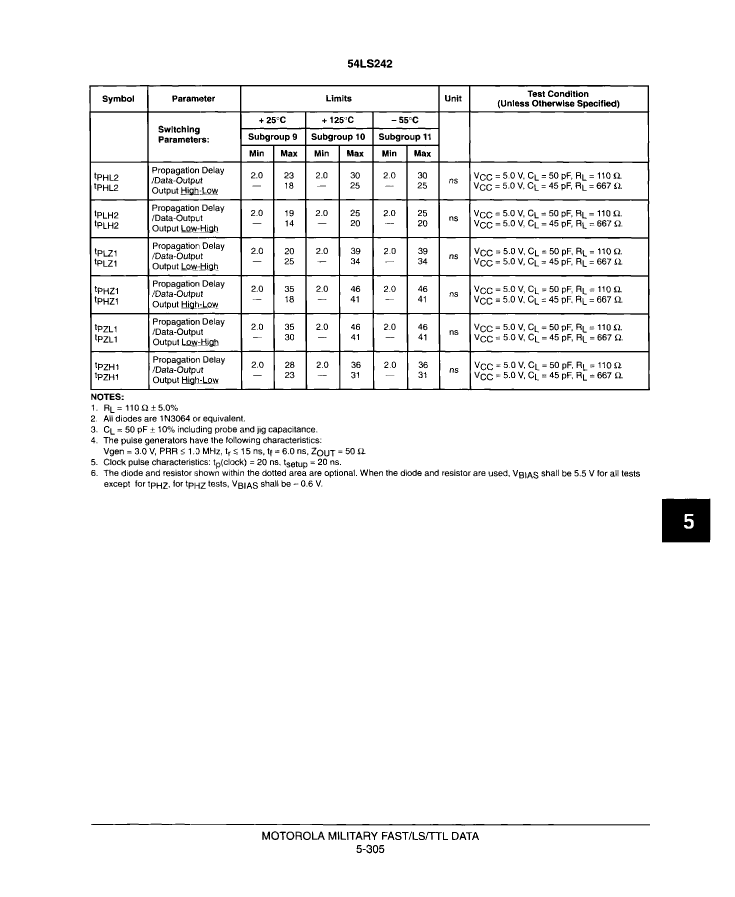

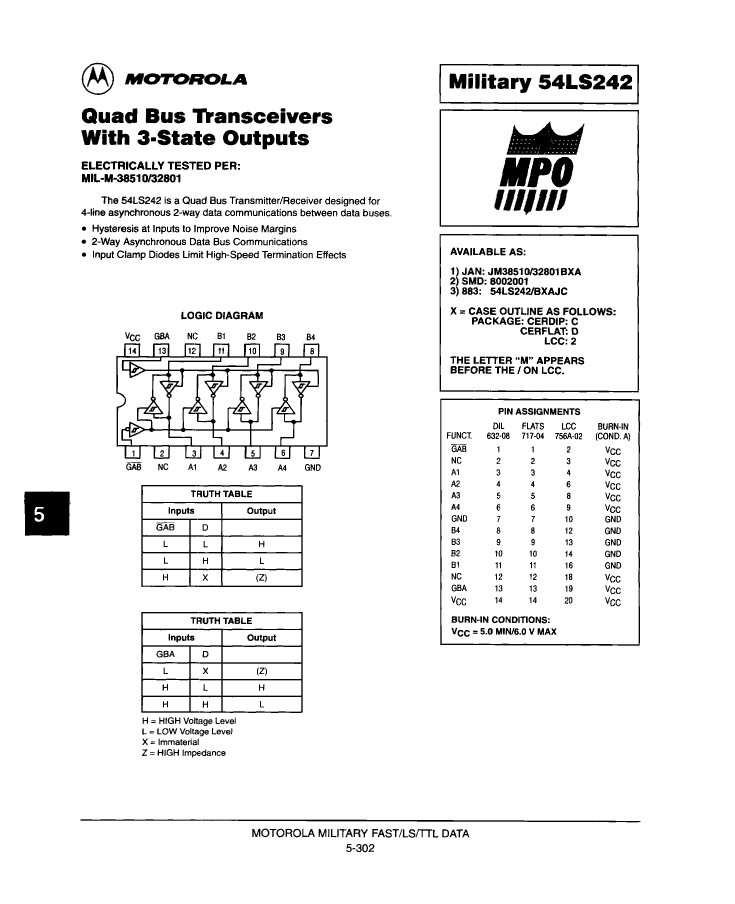

Preview

Download Datasheet

View All

8002001DX Related Products

	8002001DX	C364	C365A	C365B	54LS242/BCAJC	54LS242M/B2AJC	54LS242/BDAJC	80020012X	8002001CX
Description	LS SERIES, 4-BIT TRANSCEIVER, INVERTED OUTPUT, CDFP14	Silicon Controlled Rectifier	Silicon Controlled Rectifier	Silicon Controlled Rectifier	Bus Transceiver, LS Series, 1-Func, 4-Bit, Inverted Output, TTL, CDIP14, CERDIP-14	LS SERIES, 4-BIT TRANSCEIVER, INVERTED OUTPUT, CQCC20, CERAMIC, LCC-20	Bus Transceiver, LS Series, 1-Func, 4-Bit, Inverted Output, TTL, CDFP14, CERAMIC, FP-14	LS SERIES, 4-BIT TRANSCEIVER, INVERTED OUTPUT, CQCC20	LS SERIES, 4-BIT TRANSCEIVER, INVERTED OUTPUT, CDIP14
package instruction	DFP,	-	-	-	CERDIP-14	QCCN, LCC20,.35SQ	DFP, FL14,.3	QCCN,	DIP,
Reach Compliance Code	unknown	-	-	-	unknown	unknown	unknown	unknown	unknown
Other features	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	-	-	-	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION
series	LS	-	-	-	LS	LS	LS	LS	LS
JESD-30 code	R-GDFP-F14	-	-	-	R-GDIP-T14	S-CQCC-N20	R-GDFP-F14	S-CQCC-N20	R-GDIP-T14
length	9.65 mm	-	-	-	19.495 mm	8.89 mm	9.65 mm	8.885 mm	19.495 mm
Logic integrated circuit type	BUS TRANSCEIVER	-	-	-	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER
Number of digits	4	-	-	-	4	4	4	4	4
Number of functions	1	-	-	-	1	1	1	1	1
Number of ports	2	-	-	-	2	2	2	2	2
Number of terminals	14	-	-	-	14	20	14	20	14
Maximum operating temperature	125 °C	-	-	-	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-	-	-	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	-	-	-	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	-	-	-	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED
Package body material	CERAMIC, GLASS-SEALED	-	-	-	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
encapsulated code	DFP	-	-	-	DIP	QCCN	DFP	QCCN	DIP
Package shape	RECTANGULAR	-	-	-	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR
Package form	FLATPACK	-	-	-	IN-LINE	CHIP CARRIER	FLATPACK	CHIP CARRIER	IN-LINE
propagation delay (tpd)	25 ns	-	-	-	25 ns	25 ns	25 ns	25 ns	25 ns
Certification status	Not Qualified	-	-	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.15 mm	-	-	-	5.08 mm	1.9 mm	2.15 mm	1.9 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	-	-	-	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	-	-	-	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	-	-	-	5 V	5 V	5 V	5 V	5 V
surface mount	YES	-	-	-	NO	YES	YES	YES	NO
technology	TTL	-	-	-	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	-	-	-	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	-	-	-	THROUGH-HOLE	NO LEAD	FLAT	NO LEAD	THROUGH-HOLE
Terminal pitch	1.27 mm	-	-	-	2.54 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	-	-	-	DUAL	QUAD	DUAL	QUAD	DUAL
width	6.415 mm	-	-	-	7.62 mm	8.89 mm	6.415 mm	8.885 mm	7.62 mm
Base Number Matches	1	-	-	-	1	1	1	1	1
