7311A-ASV81-D-FREQ-OUT21 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> 7311A-ASV81-D-FREQ-OUT21

7311A-ASV81-D-FREQ-OUT21: DescriptionCMOS Output Clock Oscillator, 25MHz Min, 52MHz Max; CategoryPassive components oscillator; File Size47KB，1 Pages; ManufacturerNDK; Websitehttp://www.ndk.com/en/

Download Datasheet Parametric View All

7311A-ASV81-D-FREQ-OUT21 Overview

CMOS Output Clock Oscillator, 25MHz Min, 52MHz Max

7311A-ASV81-D-FREQ-OUT21 Parametric

Parameter Name	Attribute value
Maker	NDK
Reach Compliance Code	unknown
Is Samacsys	N
Maximum control voltage	3.15 V
Minimum control voltage	0.15 V
Frequency Adjustment - Mechanical	NO
frequency stability	40%
Manufacturer's serial number	7300
Installation features	SURFACE MOUNT
Maximum operating frequency	52 MHz
Minimum operating frequency	25 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	CMOS
Output load	15 pF
physical size	11.4mm x 11.4mm x 4.9mm
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	60/40 %
Base Number Matches	1

Preview

Download Datasheet

View All

CRYSTAL

OSCILLATORS

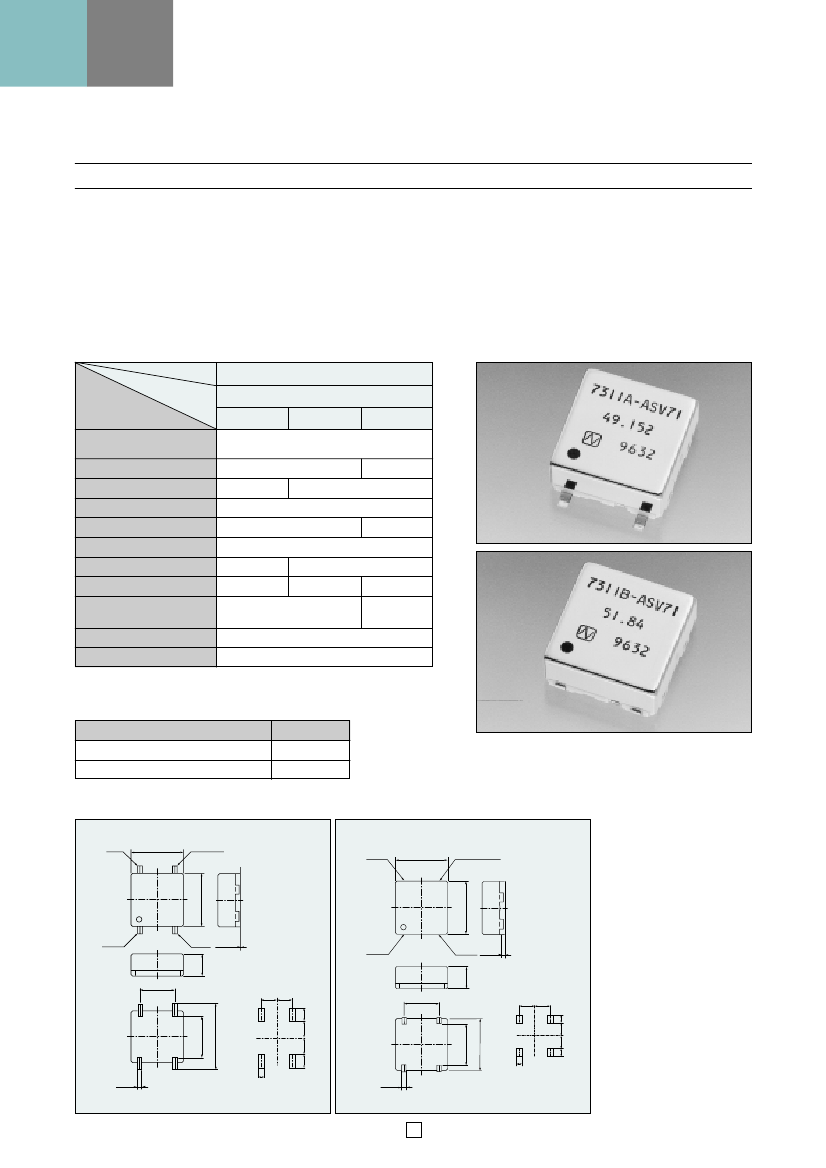

VOLTAGE CONTROLLED CRYSTAL OSCILLATORS 7300 SERIES

Model 7311A

7311B

Main applications : ISDN, HDTV, PBX

Features

Surface mount type

Compactness (height 5mm max, volume

0.65j)

Wide frequency trim range

Directly drives the TTL or C-MOS IC

It is applicable to reflow soldering.

Specification

Model

Item

Spec. Code

SV71

Standard Nominal

Frequency Range (MHz)

Supply Voltage

Load

Operating Temp. Range

Current Consumption

Frequency Stability

Output Level

Duty Cycle

AFC Charact.

Polarity

Case Code

TTL Level

N-TTL2

30mA max

±40×10

–6

max

C-MOS Level

40~60% (+1.4V) 40~60% (1/2V

) 40~60% (1/2V

)

±50×10

–6

min

±100×10

–6

min/+2.5±2.0V /+1.65±1.5V

Positive

11A-3, 11B-4

7311A, 7311B

See (✻)

SV81

2~52

+5VDC±5%

–10~+70˚C

20mA max

+3.3VDC±5%

15pF

SV81-D

Model 7311A

→

Case Code 11A-3, 7311B

→

Case Code 11B-4

(✻)

Standard Nominal frequency (MHz)

2 ~ 25

25 ~ 52

Spec Code

Dimensions

11A-3

+DC

11.4

OUTPUT

(mm)

11B-4

+DC

11.4

OUTPUT

(mm)

11.4

V.C.

GND (0.15)

4.9

+0.1

–0.2

V.C.

GND

+0.1

–0.2

11.4

0.8

Recommended land pattern

7.62

±0.2

4.9

Recommended land pattern

3.81 3.81

3.3 4.3 4.3 3.3

±0.2

7.62

±0.2

3.81 3.81

4.3 4.3

1.6

+0.4

–0.2

14.4

9.0

11.7

9.0

±0.1

1.6

1.0

±0.1

138

1.95
