50006-1102C: DescriptionBoard Connector, 102 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size133KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

50006-1102C Overview

Board Connector, 102 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Black Insulator, Receptacle

50006-1102C Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Is Samacsys	N
Other features	POLARIZED
body width	0.485 inch
subject depth	0.462 inch
body length	4.15 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30)/GOLD FLASH (30) OVER PALLADIUM NICKEL/GOLD (50)
Contact completed and terminated	GOLD FLASH (30) OVER PALLADIUM NICKEL/GOLD (30)/GOLD (50)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	50006
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	POLARIZED KEY
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.533 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	102
Base Number Matches	1

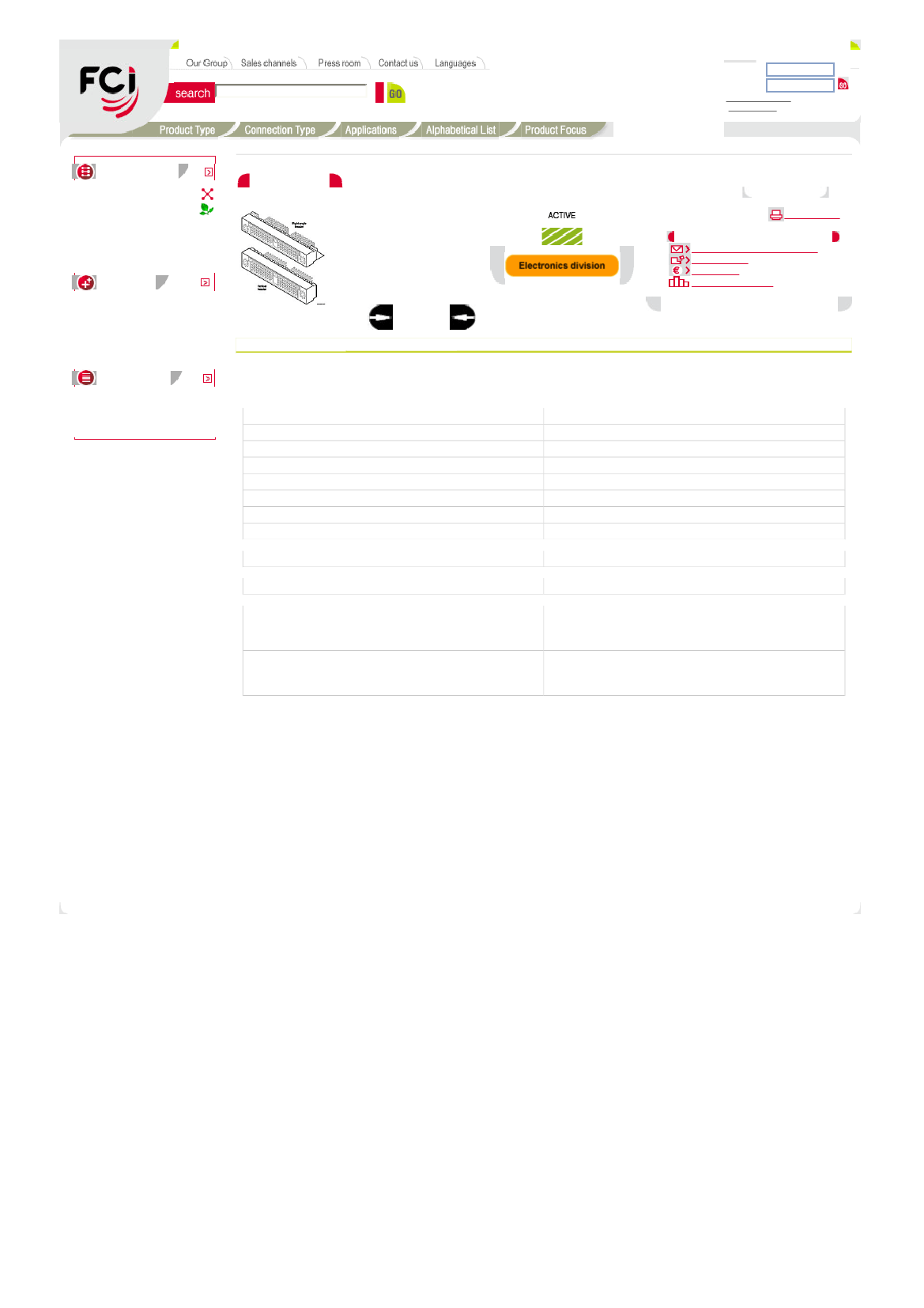

Preview

Download Datasheet

View All

---. //-0 1

---. //-0

(

)

(

# !

! (

-6

+ *

) !

'& #

! '!

/-0

/! ,

- ; < 9 - < :6 #

- ; < 9 - < :6=>

/ 0 < 9 - < :6 #

;

- ; < 9 - < :6=>

/ !

, 0

- ; < 9 - < :6 #

/ 0 < 9 - < :6 #

;

9 ,!

- !

)/ !

, 0

)

(

0 & -/- @#

--; 0

! ! " #$ %
