8501-6119-02 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 8501-6119-02

8501-6119-02: DescriptionRF/Microwave Termination, 0MHz Min, 50000MHz Max, 50ohm; CategoryWireless rf/communication Radio frequency and microwave; File Size482KB，1 Pages; ManufacturerXMA Corp.

Download Datasheet Parametric Compare View All

8501-6119-02 Overview

RF/Microwave Termination, 0MHz Min, 50000MHz Max, 50ohm

8501-6119-02 Parametric

Parameter Name	Attribute value
Maker	XMA Corp.
Reach Compliance Code	unknown
Is Samacsys	N
Other features	SMA
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	26.99 dBm
Maximum operating frequency	50000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-54 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Maximum voltage standing wave ratio	1.3
Base Number Matches	1

Preview

Download Datasheet

View All

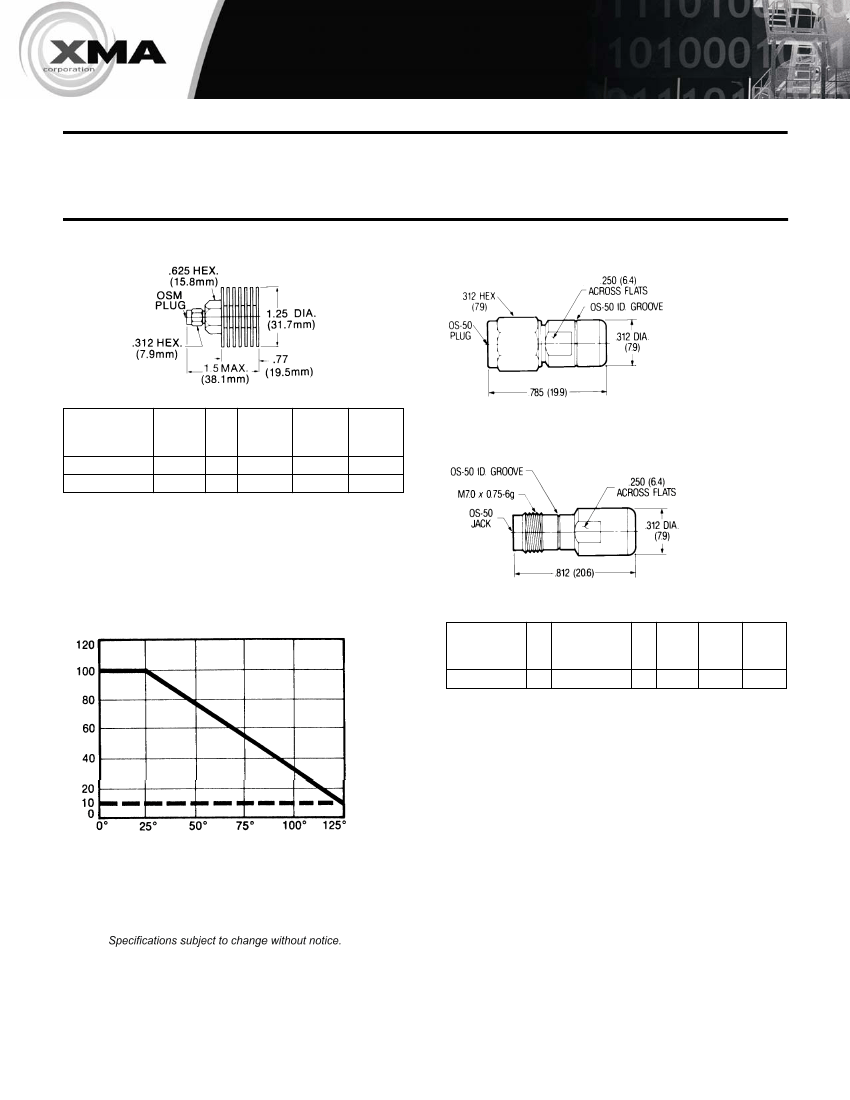

High Power Terminations and

OS-50 (2.4mm) Terminations

High Power Terminations

OS-50 (2.4mm)

Figure 1

2001/8501 Series

V2.00

Plug

Power

Part

Avg.

No.

(Watts) Fig.

2001-6005-00

2001-6010-00

VSWR

dc-4

GHz

1.05:1

VSWR

4-12.4

GHz

1.15:1

VSWR

12.4-18

GHz

1.25:1

Figure 2

Connector ﬁnish is passivated stainless steel, with stainless coupling

nut and black anodized aluminum body.

See Derating Curve.

POWER DERATING

Part

VSWR VSWR VSWR

Number

dc-18 18-26.5 26.5-50

Plug

Fig.

Jack

Fig. GHz GHz

GHz

8501-6119-02 1 8502-6119-02 2 1.10

1.15

1.30

Frequency:

dc - 50.0 GHz

Power:

0.5 Watts Average

See Derating Curve

Finish:

Passivated stainless steel

POWER (%)

TEMPERATURE (°C)

All SMA standard model terminations are

50 ohms and are derated linearly to 10%

power at 125°C. Operating temperature

range is -54° to +125°C.

Phone: 603-222-2256

fax: 603-222-2259

www.XMAcorp.com

sales@XMAcorp.com

8501-6119-02 Related Products

	8501-6119-02	2001-6005-00	2001-6010-00	8502-6119-02
Description	RF/Microwave Termination, 0MHz Min, 50000MHz Max, 50ohm	RF/Microwave Termination, 0MHz Min, 18000MHz Max, 50ohm	RF/Microwave Termination, 0MHz Min, 18000MHz Max, 50ohm	RF/Microwave Termination, 0MHz Min, 50000MHz Max, 50ohm
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	SMA	SMA	SMA	SMA
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω
structure	COAXIAL	COAXIAL	COAXIAL	COAXIAL
Maximum input power (CW)	26.99 dBm	36.99 dBm	40 dBm	26.99 dBm
Maximum operating frequency	50000 MHz	18000 MHz	18000 MHz	50000 MHz
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-54 °C	-54 °C	-54 °C	-54 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION	RF/MICROWAVE TERMINATION	RF/MICROWAVE TERMINATION	RF/MICROWAVE TERMINATION
Maximum voltage standing wave ratio	1.3	1.25	1.25	1.3
Base Number Matches	1	1	1	1
