71692-001 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 71692-001

71692-001: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Female, IDC Terminal; CategoryThe connector The connector; File Size210KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

71692-001 Overview

Board Connector, 10 Contact(s), 2 Row(s), Female, IDC Terminal

71692-001 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Is Samacsys	N
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (118) OVER NICKEL
Contact completed and terminated	GOLD (118) OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	71692
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	2
Options	GENERAL PURPOSE
Termination type	IDC
Total number of contacts	10
UL Flammability Code	94V-0
Base Number Matches	1

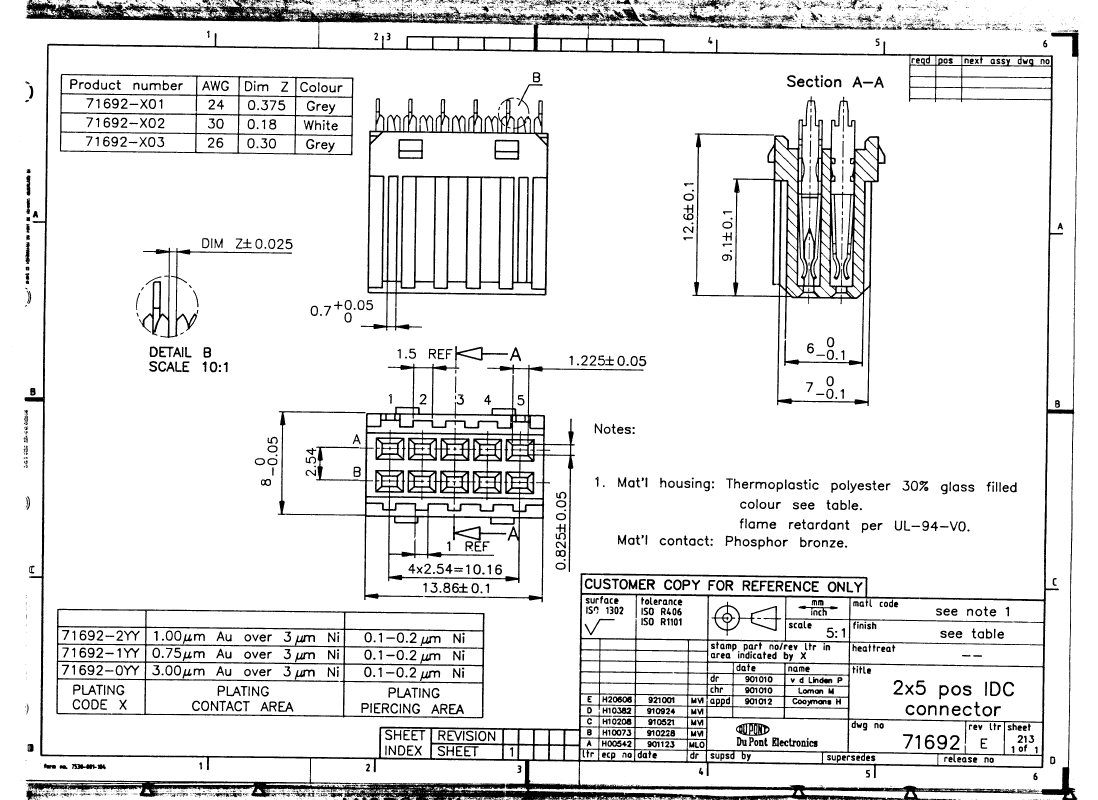

Preview

Download Datasheet

View All

PDM: Rev:E

STATUS:

Released

Printed: Sep 09, 2009

71692-001 Related Products

	71692-001	NUC029-SGE	71692-002	71692-003	71692-101	71692-102	71692-103	71692-201	71692-202
Description	Board Connector, 10 Contact(s), 2 Row(s), Female, IDC Terminal	ARM® Cortex®-M0 32-bit Microcontroller	Board Connector, 10 Contact(s), 2 Row(s), Female, IDC Terminal	Board Connector, 10 Contact(s), 2 Row(s), Female, IDC Terminal	Board Connector, 10 Contact(s), 2 Row(s), Female, IDC Terminal	Board Connector, 10 Contact(s), 2 Row(s), Female, IDC Terminal	Board Connector, 10 Contact(s), 2 Row(s), Female, IDC Terminal	Board Connector, 10 Contact(s), 2 Row(s), Female, IDC Terminal	Board Connector, 10 Contact(s), 2 Row(s), Female, IDC Terminal
Maker	Amphenol	-	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	-	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Is Samacsys	N	-	N	N	N	N	N	N	N
Connector type	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (118) OVER NICKEL	-	GOLD (118) OVER NICKEL	GOLD (118) OVER NICKEL	GOLD (29) OVER NICKEL	GOLD (29) OVER NICKEL	GOLD (29) OVER NICKEL	GOLD (39) OVER NICKEL	GOLD (39) OVER NICKEL
Contact completed and terminated	GOLD (118) OVER NICKEL	-	GOLD (118) OVER NICKEL	GOLD (118) OVER NICKEL	GOLD (29) OVER NICKEL	GOLD (29) OVER NICKEL	GOLD (29) OVER NICKEL	GOLD (39) OVER NICKEL	GOLD (39) OVER NICKEL
Contact point gender	FEMALE	-	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	-	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	-	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	-	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	-	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	-	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	71692	-	71692	71692	71692	71692	71692	71692	71692
Mixed contacts	NO	-	NO	NO	NO	NO	NO	NO	NO
Installation type	CABLE	-	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	-	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	IDC	-	IDC	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	10	-	10	10	10	10	10	10	10
UL Flammability Code	94V-0	-	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	-	1	1	1	1	1	1	1
