51721-10004418AA datasheet, PDF

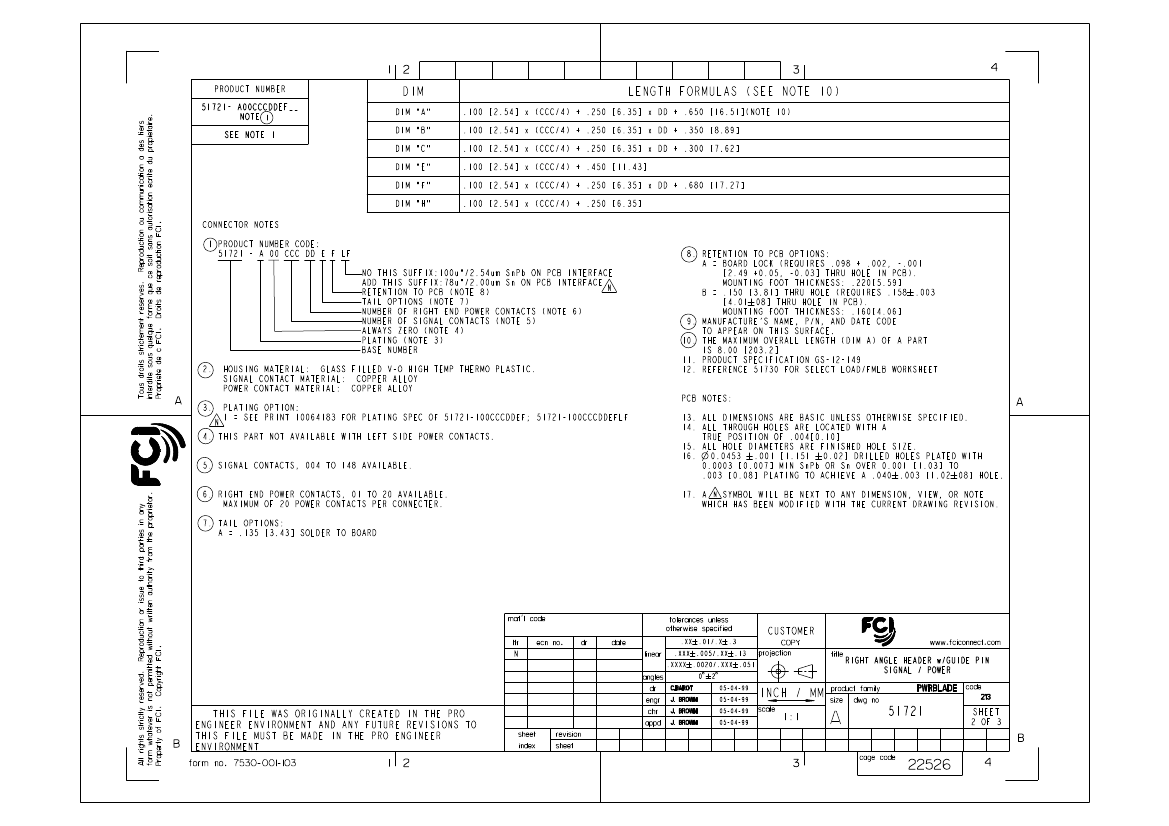

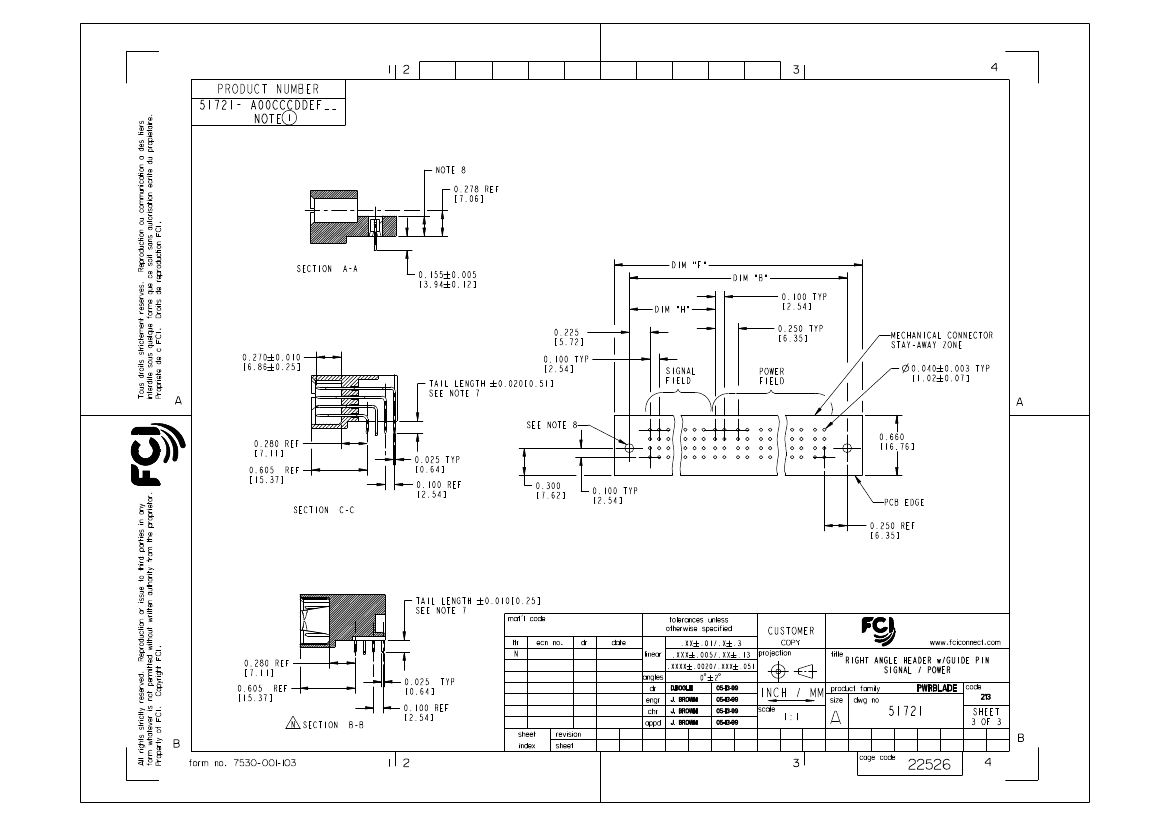

51721-10004418AA: DescriptionBoard Connector, 194 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Guide Pin, Receptacle; CategoryThe connector The connector; File Size257KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

51721-10004418AA Overview

Board Connector, 194 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Guide Pin, Receptacle

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
body width	0.574 inch
subject depth	0.93 inch
body length	8 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	TIN LEAD (100) OVER NICKEL (50)
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	2500VDC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.973 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	51721
Mixed contacts	YES
Installation option 1	GUIDE PIN
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.135 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	194
UL Flammability Code	94V-0
Evacuation force-minimum value	.17792 N
Base Number Matches	1

PDM: Rev:N

STATUS:

Released

Printed: Dec 20, 2010
