8001301ZC datasheet, PDF - EEWORLD Datasheet

8001301ZC: DescriptionOperational Amplifier, 1 Func, 5000uV Offset-Max, MBCY12, METAL CAN, 12 PIN; CategoryAnalog mixed-signal IC Amplifier circuit; File Size169KB，12 Pages; ManufacturerM.S. Kennedy Corporation ( Anaren ); Websitehttps://www.anaren.com/capabilities/multi-chip-modules

Download Datasheet Parametric Compare View All

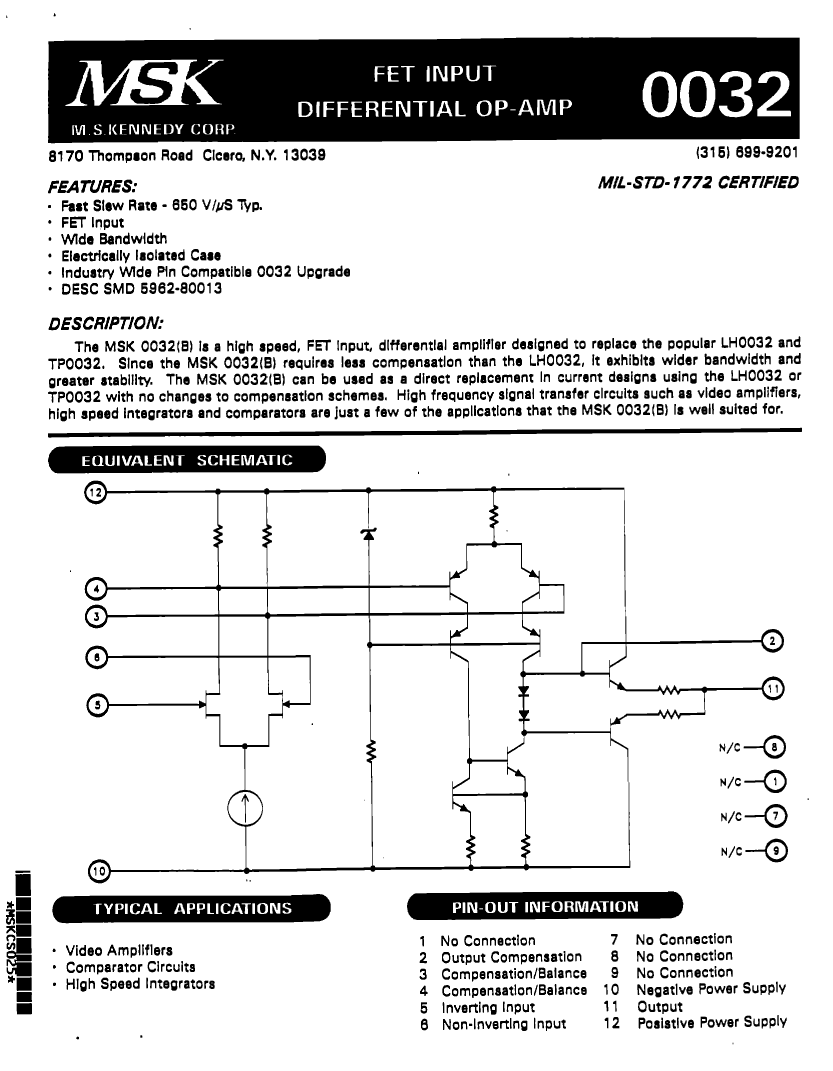

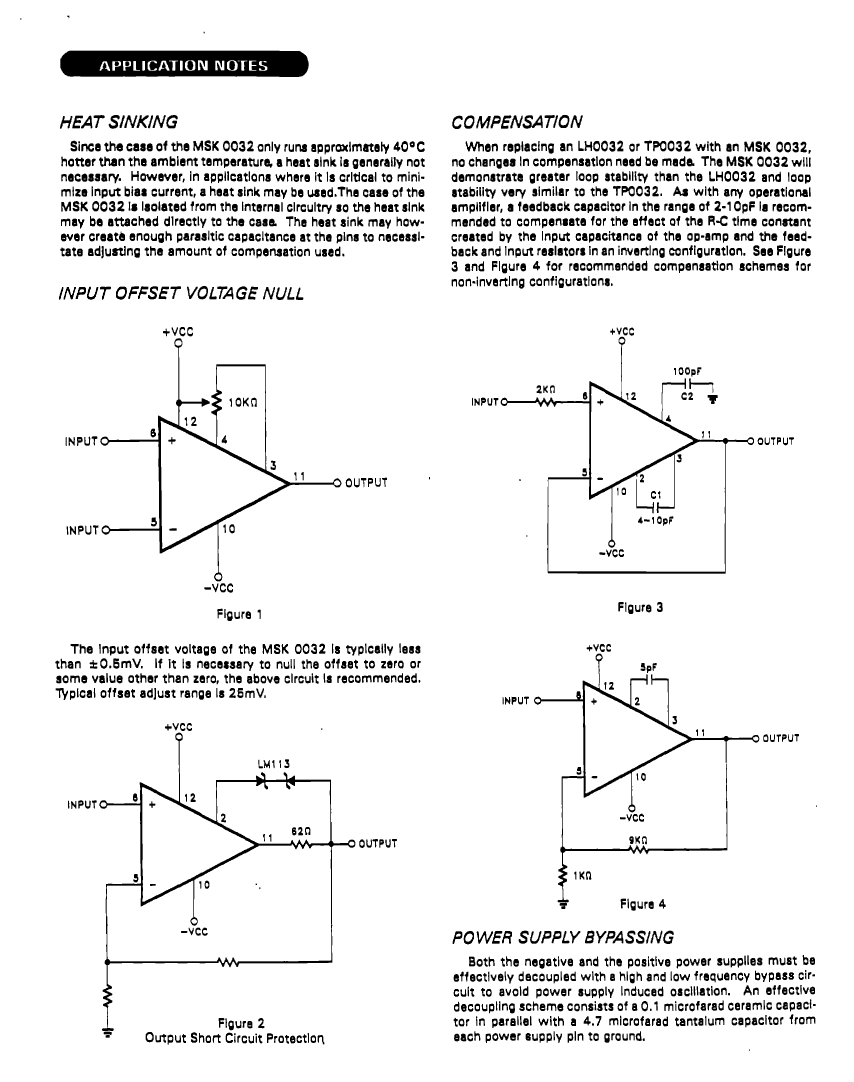

8001301ZC Overview

Operational Amplifier, 1 Func, 5000uV Offset-Max, MBCY12, METAL CAN, 12 PIN

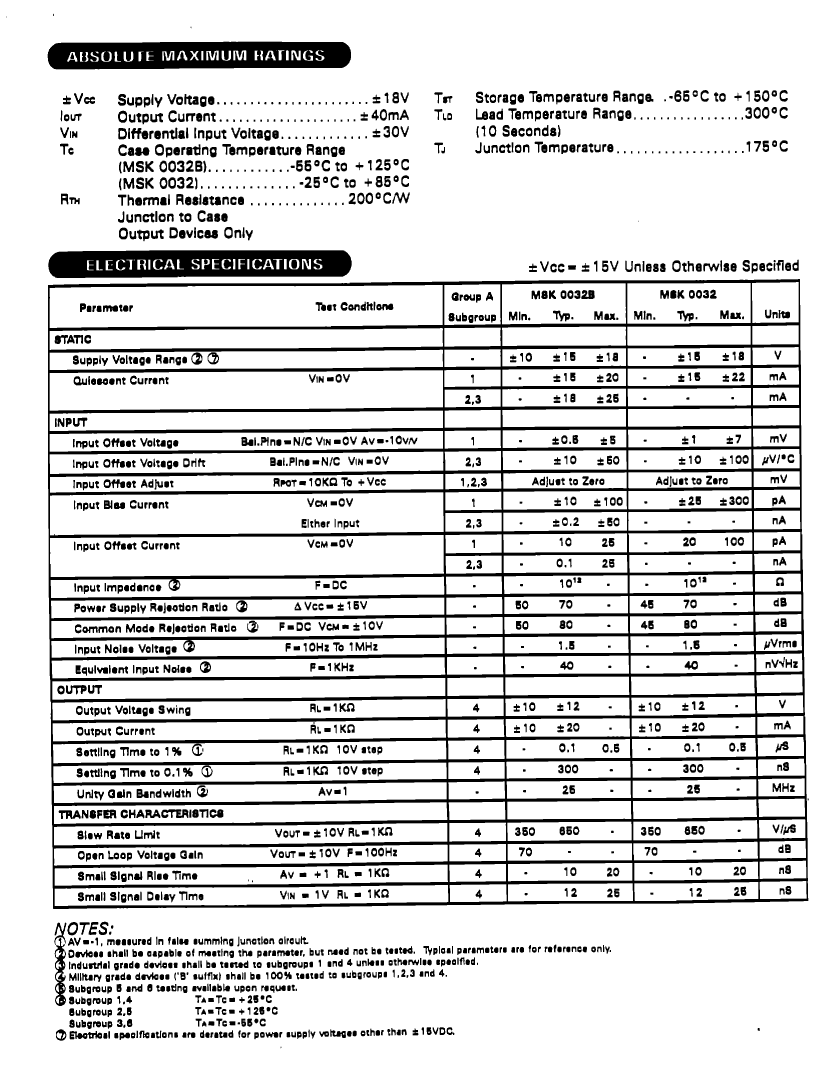

Parameter Name	Attribute value
Maker	M.S. Kennedy Corporation ( Anaren )
Parts packaging code	BCY
package instruction	QIP, QUAD12,.4SQ
Contacts	12
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.0001 µA
Maximum bias current (IIB) at 25C	0.0001 µA
Nominal Common Mode Rejection Ratio	50 dB
frequency compensation	NO
Maximum input offset voltage	5000 µV
JESD-30 code	O-MBCY-P12
low-dissonance	NO
Negative supply voltage upper limit	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	12
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	METAL
encapsulated code	QIP
Encapsulate equivalent code	QUAD12,.4SQ
Package shape	ROUND
Package form	CYLINDRICAL
power supply	+-15 V
Certification status	Qualified
Filter level	38535Q/M;38534H;883B
minimum slew rate	350 V/us
Maximum slew rate	20 mA
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Temperature level	MILITARY
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	BOTTOM
Minimum voltage gain	710
broadband	YES
Base Number Matches	1

	8001301ZC	8001301ZX
Description	Operational Amplifier, 1 Func, 5000uV Offset-Max, MBCY12, METAL CAN, 12 PIN	Operational Amplifier, 1 Func, 5000uV Offset-Max, MBCY12, METAL CAN, 12 PIN
Maker	M.S. Kennedy Corporation ( Anaren )	M.S. Kennedy Corporation ( Anaren )
Parts packaging code	BCY	BCY
Contacts	12	12
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.0001 µA	0.0001 µA
Nominal Common Mode Rejection Ratio	50 dB	50 dB
Maximum input offset voltage	5000 µV	5000 µV
JESD-30 code	O-MBCY-P12	O-MBCY-P12
Negative supply voltage upper limit	-18 V	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V
Number of functions	1	1
Number of terminals	12	12
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	METAL	METAL
Package shape	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL
Certification status	Qualified	Qualified
Supply voltage upper limit	18 V	18 V
Nominal supply voltage (Vsup)	15 V	15 V
surface mount	NO	NO
Temperature level	MILITARY	MILITARY
Terminal form	PIN/PEG	PIN/PEG
Terminal location	BOTTOM	BOTTOM
Base Number Matches	1	1
