51752-004

Description
Board Connector, 42 Contact(s), 4 Row(s), Female, Straight, Solder Terminal, Locking, Receptacle
CategoryThe connector    The connector
File Size237KB,3 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

51752-004 Overview

Board Connector, 42 Contact(s), 4 Row(s), Female, Straight, Solder Terminal, Locking, Receptacle

51752-004 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerAmphenol
Reach Compliance Codecompliant
ECCN codeEAR99
Is SamacsysN
Other featuresTERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
Board mount optionsSPLIT BOARD LOCK
body width0.47 inch
subject depth0.5 inch
body length4.85 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD (30) OVER NICKEL
Contact completed and terminatedTIN LEAD (100) OVER NICKEL
Contact point genderFEMALE
Contact materialCOPPER ALLOY
Contact styleHYBRID
DIN complianceNO
Filter functionNO
IEC complianceNO
insulator materialGLASS FILLED THERMOPLASTIC
JESD-609 codee0
MIL complianceNO
Manufacturer's serial number51752
Mixed contactsYES
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
Number of rows loaded4
OptionsGENERAL PURPOSE
Plating thickness30u inch
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.135 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts42
Base Number Matches1

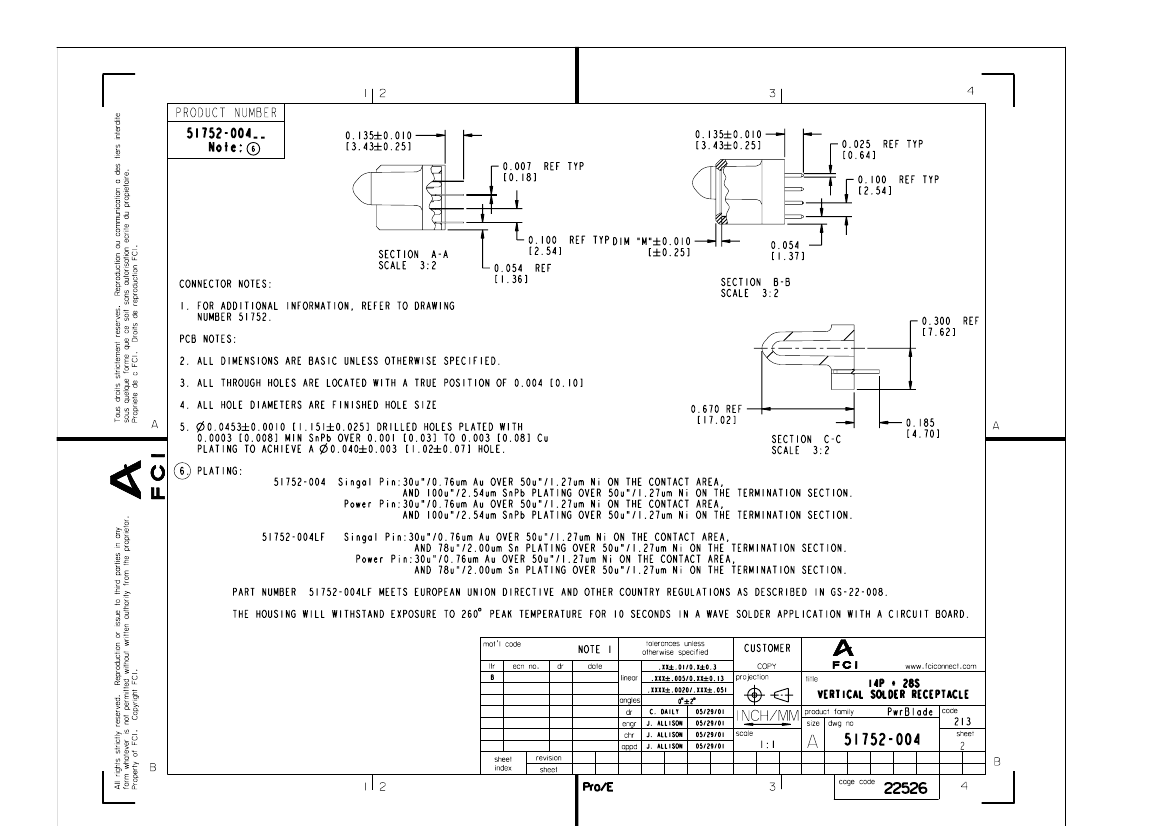

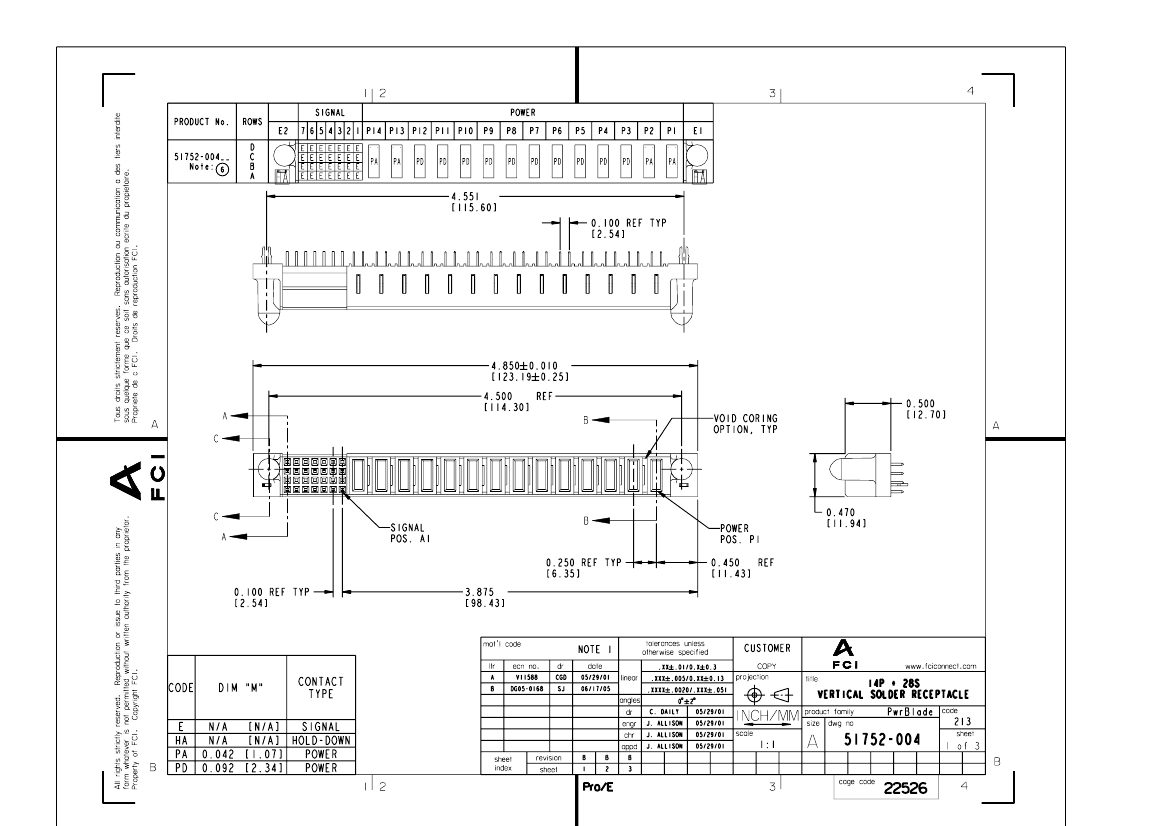

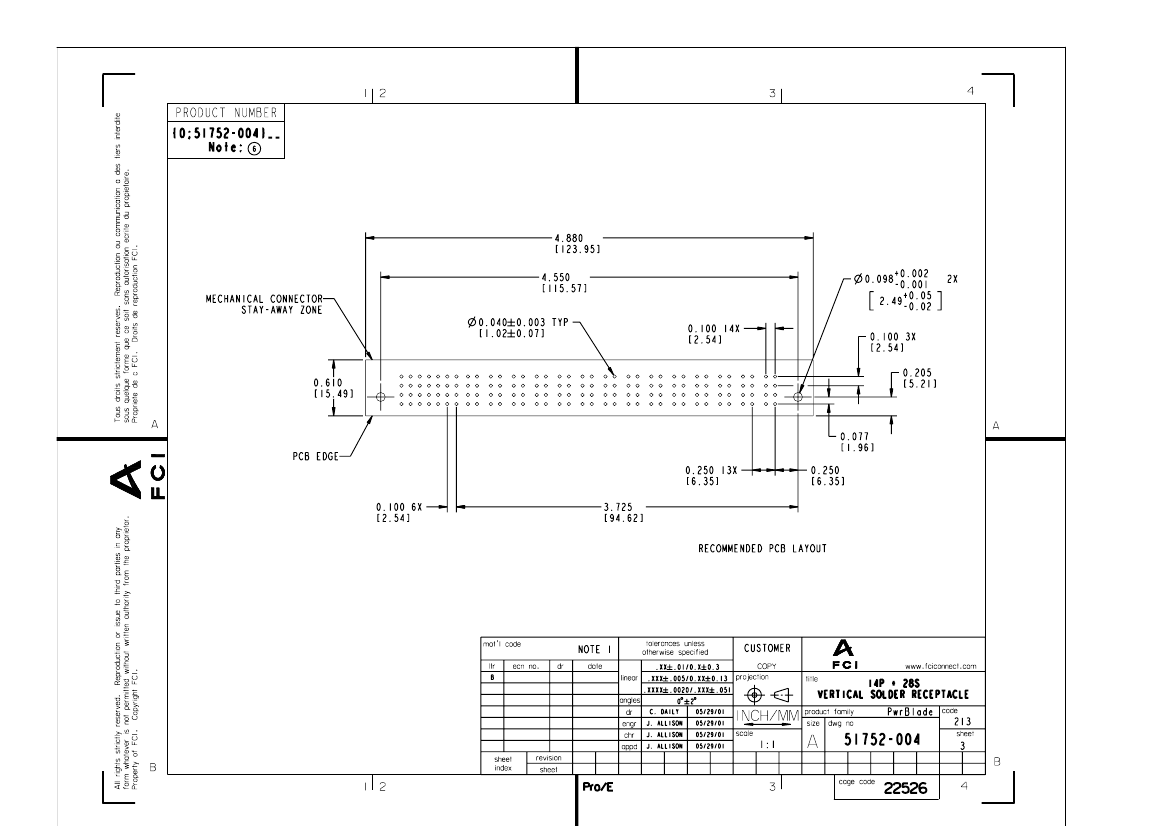

PDM: Rev:B
STATUS:
Released
Printed: Dec 20, 2010
.

51752-004 Related Products

51752-004 51752-004LF
Description Board Connector, 42 Contact(s), 4 Row(s), Female, Straight, Solder Terminal, Locking, Receptacle Board Connector, 42 Contact(s), 4 Row(s), Female, Straight, Solder Terminal, Locking, Receptacle, LEAD FREE
Is it lead-free? Contains lead Lead free
Is it Rohs certified? incompatible conform to
Maker Amphenol Amphenol
Reach Compliance Code compliant compliant
ECCN code EAR99 EAR99
Is Samacsys N N
Other features TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
Board mount options SPLIT BOARD LOCK SPLIT BOARD LOCK
body width 0.47 inch 0.47 inch
subject depth 0.5 inch 0.5 inch
body length 4.85 inch 4.85 inch
Body/casing type RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation GOLD (30) OVER NICKEL GOLD (30) OVER NICKEL
Contact completed and terminated TIN LEAD (100) OVER NICKEL TIN (78) OVER NICKEL
Contact point gender FEMALE FEMALE
Contact material COPPER ALLOY COPPER ALLOY
Contact style HYBRID HYBRID
DIN compliance NO NO
Filter function NO NO
IEC compliance NO NO
insulator material GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC
JESD-609 code e0 e3
MIL compliance NO NO
Manufacturer's serial number 51752 51752
Mixed contacts YES YES
Installation option 1 LOCKING LOCKING
Installation method STRAIGHT STRAIGHT
Installation type BOARD BOARD
Number of connectors ONE ONE
Number of rows loaded 4 4
Options GENERAL PURPOSE GENERAL PURPOSE
Plating thickness 30u inch 30u inch
Guideline UL UL
reliability COMMERCIAL COMMERCIAL
Terminal length 0.135 inch 0.135 inch
Terminal pitch 2.54 mm 2.54 mm
Termination type SOLDER SOLDER
Total number of contacts 42 42
Base Number Matches 1 1
