51752-017 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 51752-017

Preview

51752-017: DescriptionBoard Connector, 34 Contact(s), 4 Row(s), Female, Straight, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size285KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

51752-017 Overview

Board Connector, 34 Contact(s), 4 Row(s), Female, Straight, Solder Terminal, Locking, Receptacle

51752-017 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
body width	0.47 inch
subject depth	0.5 inch
body length	3.75 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN LEAD (100) OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	2500VDC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.973 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	51752
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	4
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	30u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.135 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	34
UL Flammability Code	94V-0
Evacuation force-minimum value	.1668 N
Base Number Matches	1

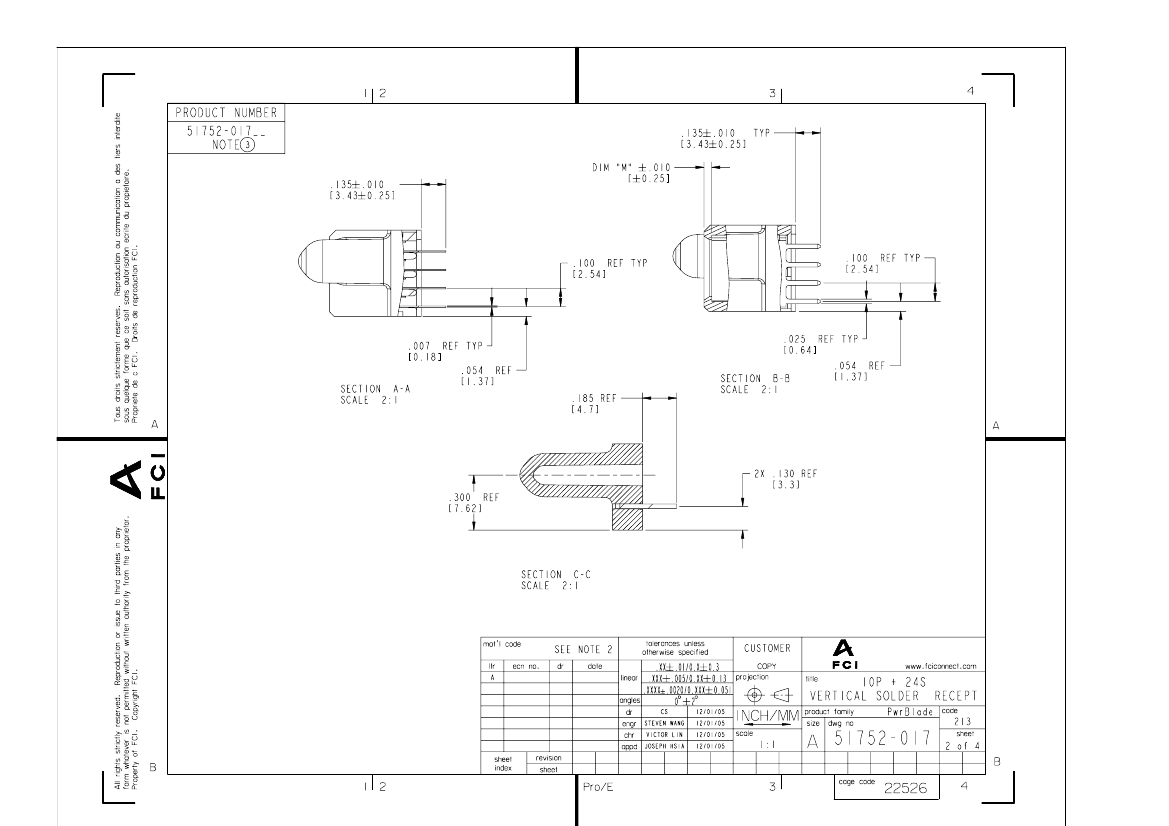

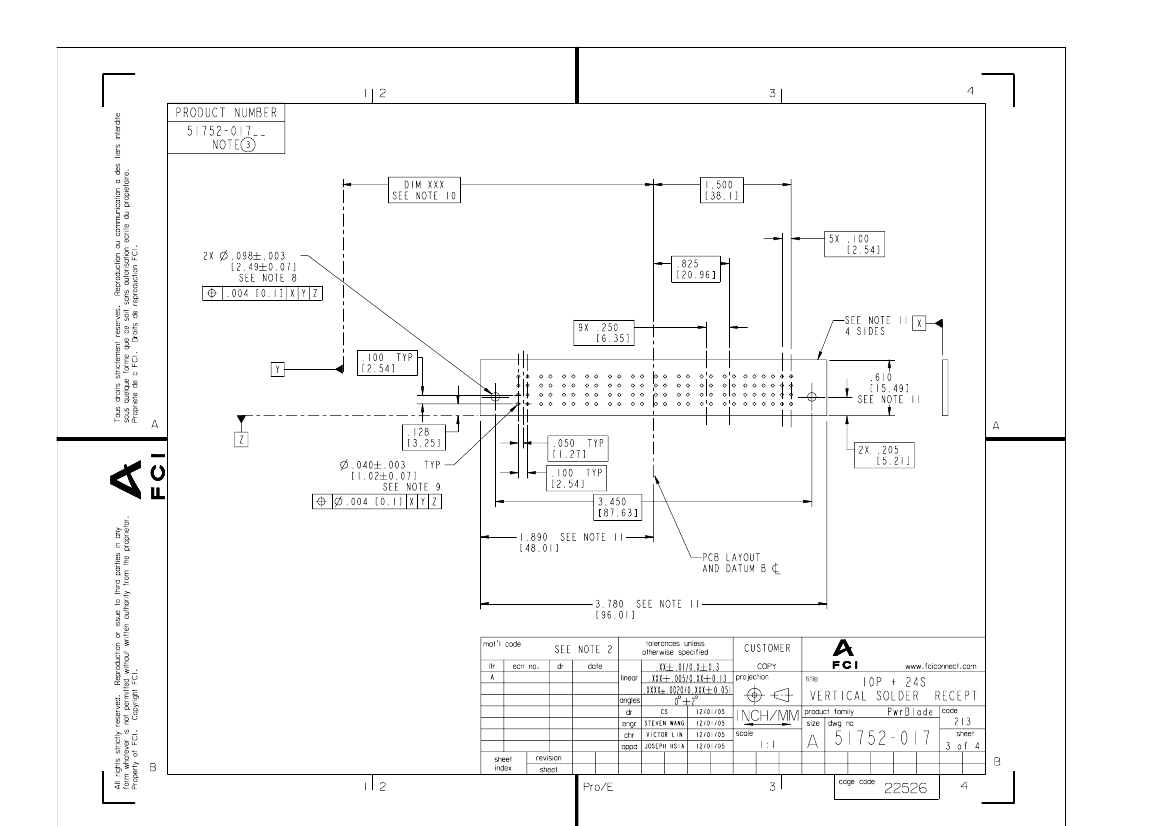

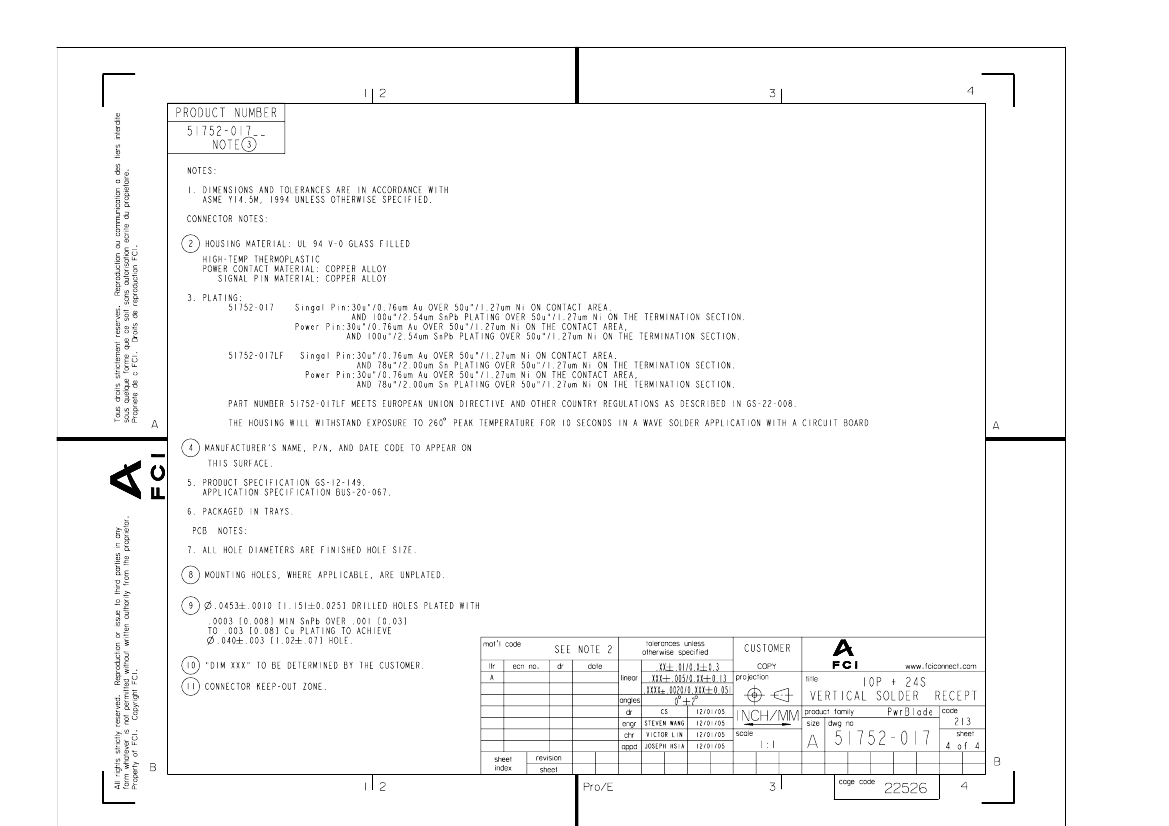

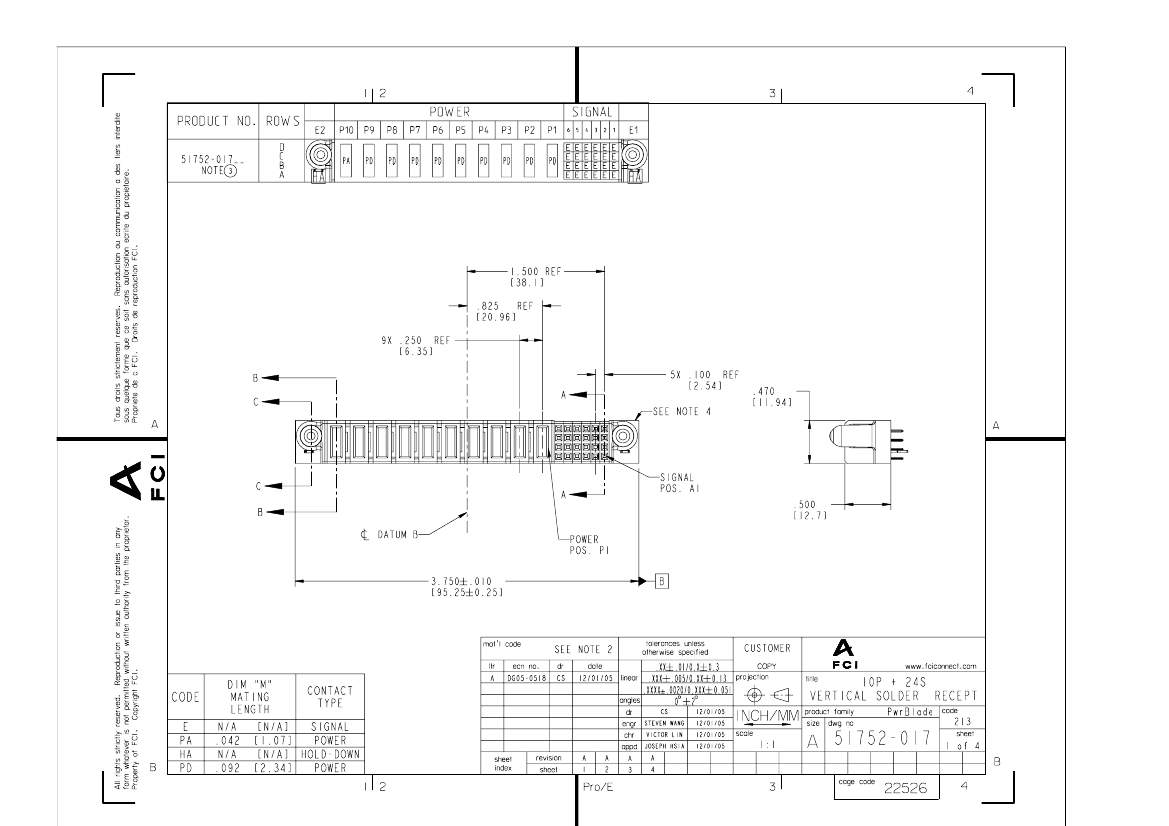

Preview

Download Datasheet

View All

PDM: Rev:A

STATUS:

Released

Printed: Dec 20, 2010

.

51752-017 Related Products

	51752-017	51752-017PGSALF	51752-017LF
Description	Board Connector, 34 Contact(s), 4 Row(s), Female, Straight, Solder Terminal, Locking, Receptacle	PWRBLADE V/T LF REC	Board Connector, 34 Contact(s), 4 Row(s), Female, Straight, Solder Terminal, Locking, Receptacle, LEAD FREE
Connector type	BOARD CONNECTOR	Sockets, female sockets and blade sockets	BOARD CONNECTOR
Installation type	BOARD	Through hole	BOARD
Is it lead-free?	Contains lead	-	Lead free
Is it Rohs certified?	incompatible	-	conform to
Maker	Amphenol	-	Amphenol
Reach Compliance Code	compliant	-	compliant
ECCN code	EAR99	-	EAR99
Is Samacsys	N	-	N
Other features	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM	-	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
body width	0.47 inch	-	0.47 inch
subject depth	0.5 inch	-	0.5 inch
body length	3.75 inch	-	3.75 inch
Body/casing type	RECEPTACLE	-	RECEPTACLE
Contact to complete cooperation	GOLD (30) OVER NICKEL	-	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN LEAD (100) OVER NICKEL	-	TIN (78) OVER NICKEL
Contact point gender	FEMALE	-	FEMALE
Contact material	COPPER ALLOY	-	COPPER ALLOY
Contact resistance	20 mΩ	-	20 mΩ
Contact style	HYBRID	-	HYBRID
DIN compliance	NO	-	NO
Dielectric withstand voltage	2500VDC V	-	2500VDC V
Durability	200 Cycles	-	200 Cycles
Filter function	NO	-	NO
IEC compliance	NO	-	NO
maximum insertion force	.973 N	-	.973 N
Insulation resistance	500000000 Ω	-	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC	-	GLASS FILLED THERMOPLASTIC
JESD-609 code	e0	-	e3
MIL compliance	NO	-	NO
Manufacturer's serial number	51752	-	51752
Mixed contacts	YES	-	YES
Installation option 1	LOCKING	-	LOCKING
Installation method	STRAIGHT	-	STRAIGHT
Number of connectors	ONE	-	ONE
Number of rows loaded	4	-	4
Maximum operating temperature	85 °C	-	85 °C
Minimum operating temperature	-55 °C	-	-55 °C
Options	GENERAL PURPOSE	-	GENERAL PURPOSE
Plating thickness	30u inch	-	30u inch
Guideline	UL	-	UL
reliability	COMMERCIAL	-	COMMERCIAL
Terminal length	0.135 inch	-	0.135 inch
Terminal pitch	2.54 mm	-	2.54 mm
Termination type	SOLDER	-	SOLDER
Total number of contacts	34	-	34
UL Flammability Code	94V-0	-	94V-0
Evacuation force-minimum value	.1668 N	-	.1668 N
Base Number Matches	1	-	1
