50574-3106F datasheet, PDF - EEWORLD Datasheet

50574-3106F: DescriptionBoard Connector, 106 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size205KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

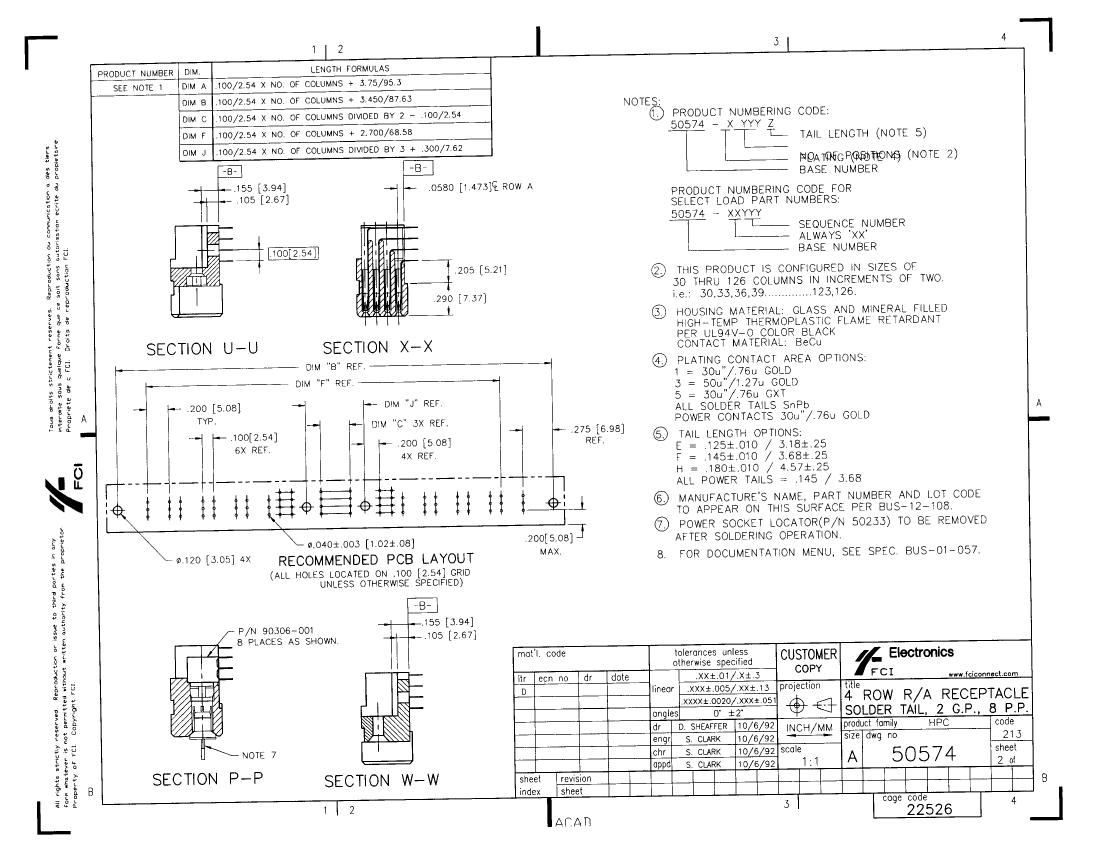

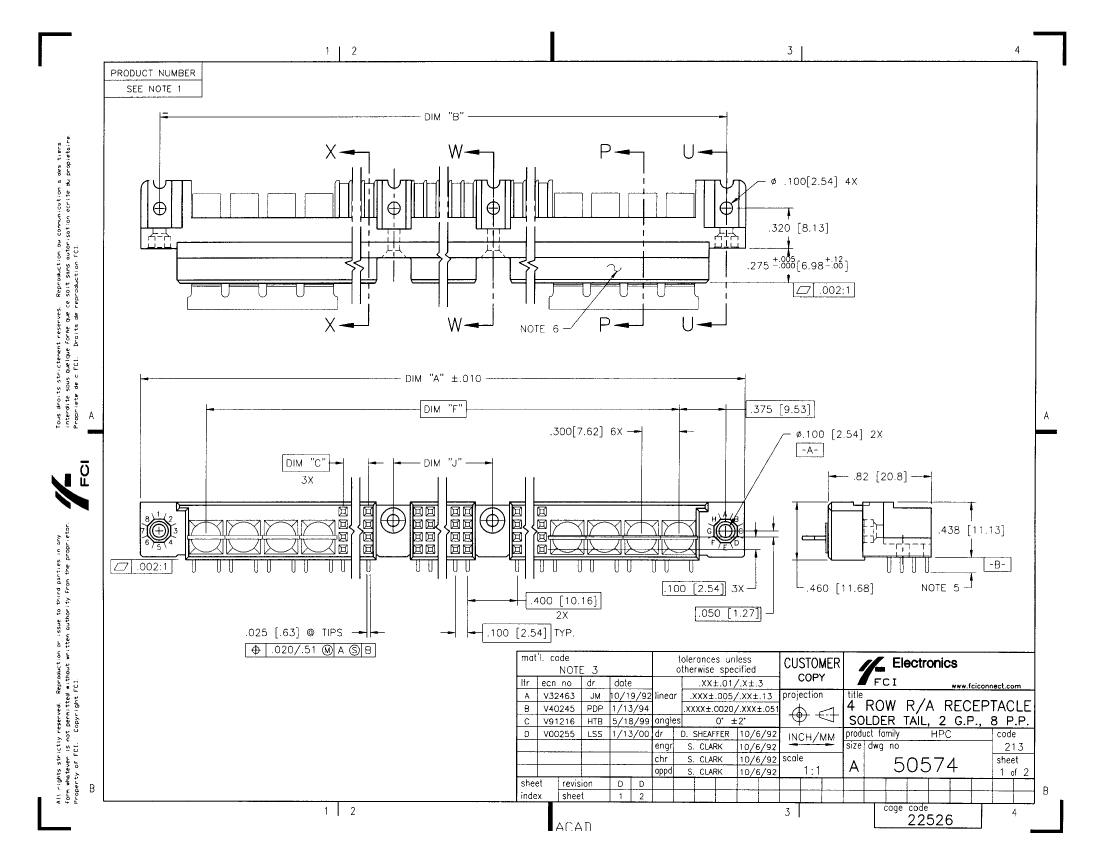

50574-3106F Overview

Board Connector, 106 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Receptacle

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Is Samacsys	N
Other features	TERMINAL PITCH FOR POWER CONTACTS: 7.62 MM
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (50)
Contact completed and terminated	TIN LEAD
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	50574
Mixed contacts	YES
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	106
UL Flammability Code	94V-0
Base Number Matches	1

PDM: Rev:D

STATUS:

Released

Printed: May 13, 2011

.
